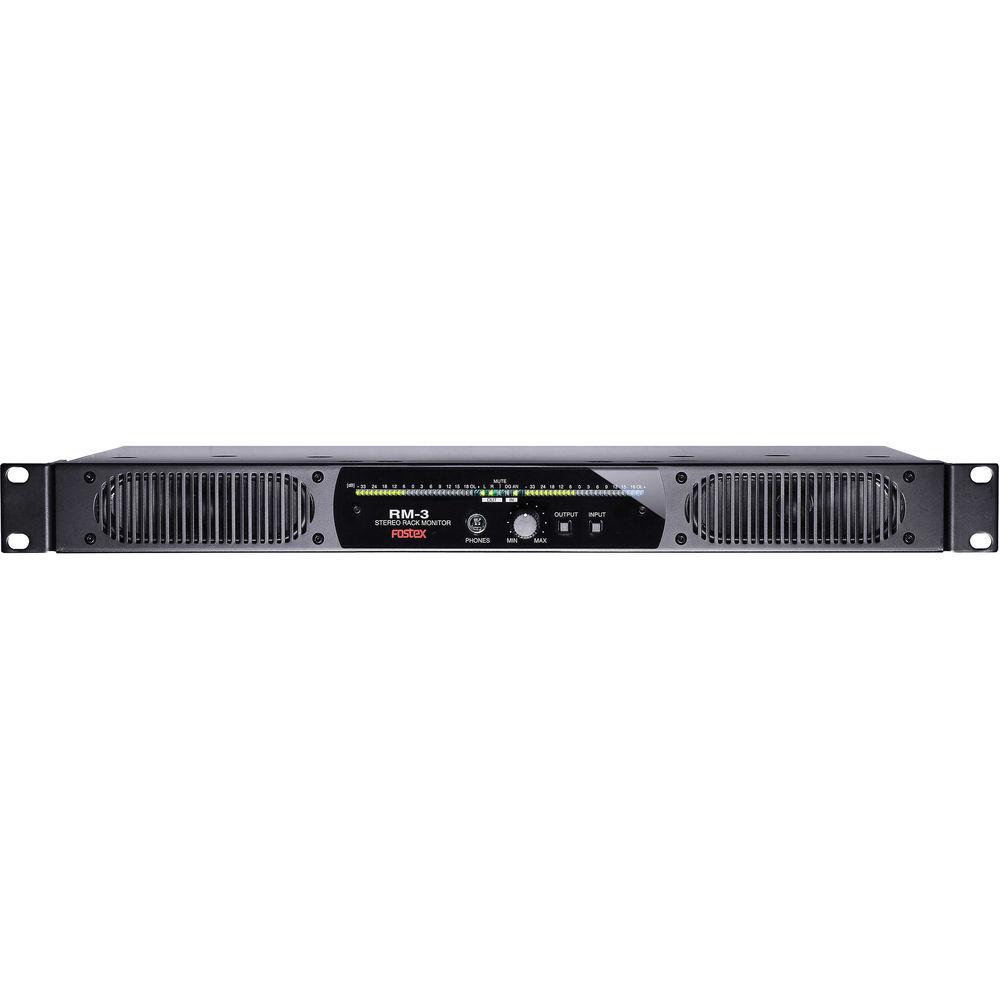

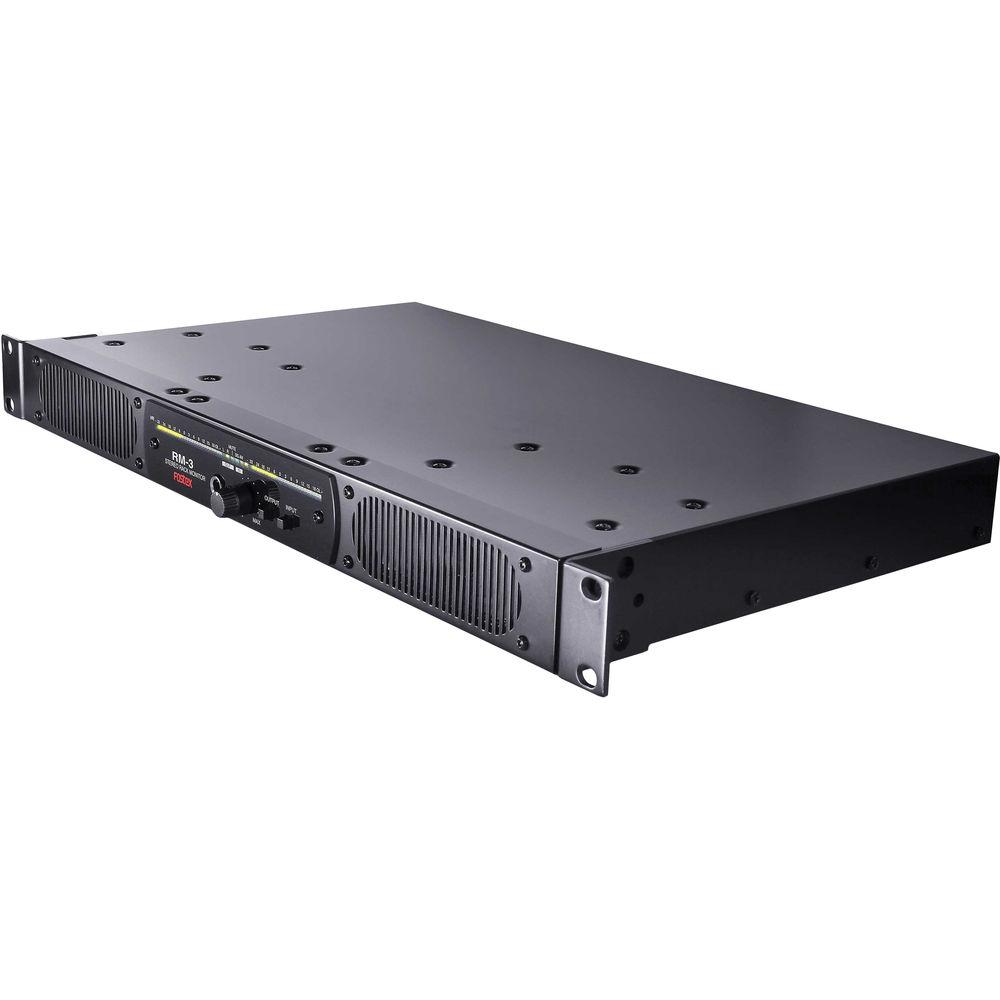

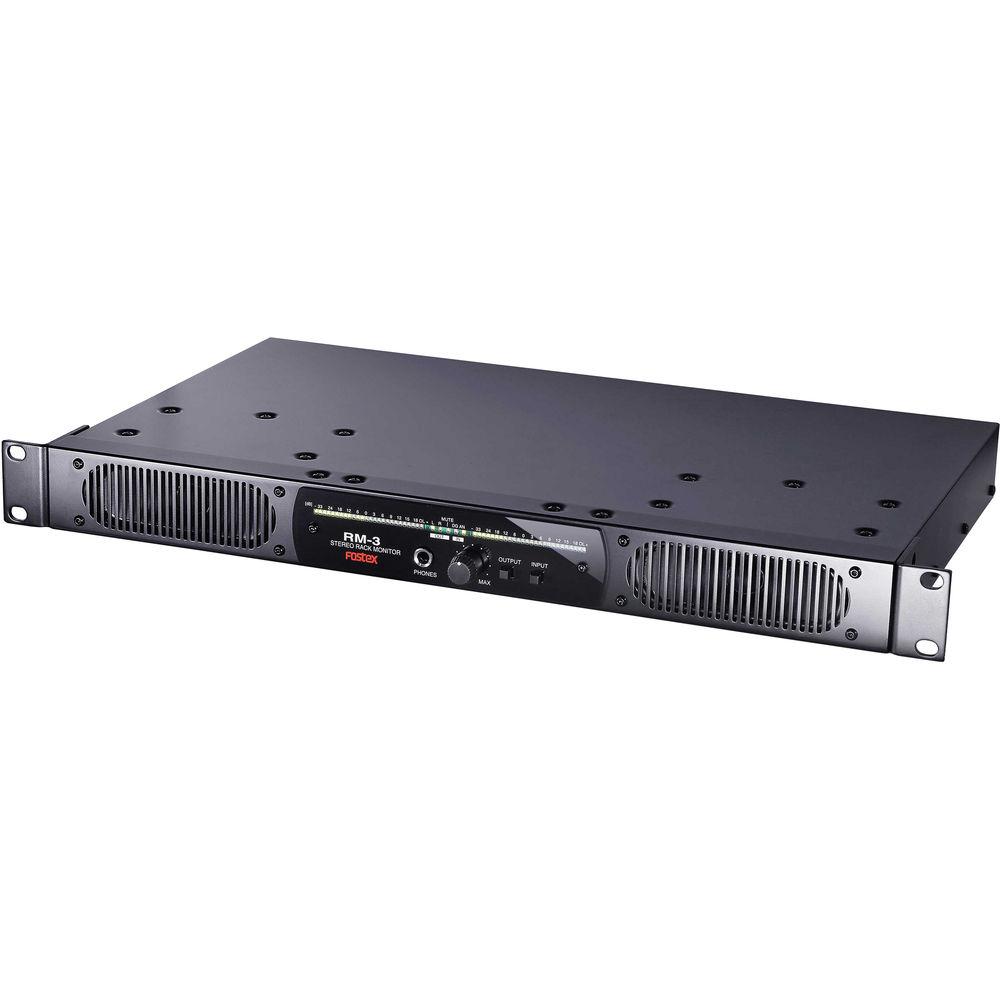

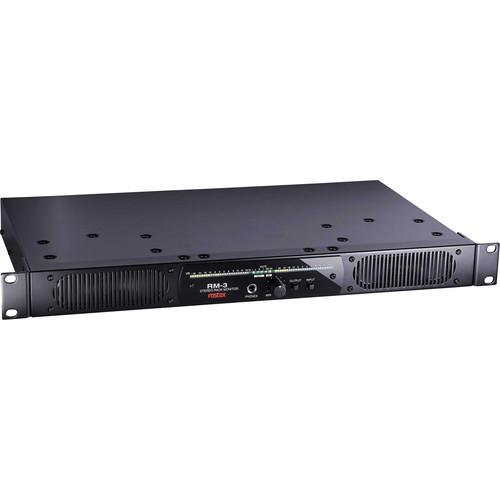

User Manual for Fostex RM-3 Rackmount 20W Speaker System Click to enlarge the picture
Contents of the user manual for the Fostex RM-3 Rackmount 20W Speaker System
- Product category: Rack Mount Monitors Fostex
- Brand: Fostex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fostex Rack Mount Monitors
 |
User manual for the Fostex RM-3 Rackmount 20W Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fostex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fostex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fostex product will considerably shorten its lifespan!
|
Product description The RM-3 Rackmount 20W Speaker System from Fostex is designed to fit the monitoring needs of space-challenged environments like machine rooms, surveillance operations, and mobile or stationary control rooms. The unit accepts both digital and analog source inputs for compatibility with a wide range of systems, while featuring a THRU output that allows you to send the audio to another destination. Dual anti-magnetic cone speakers provide playback, with the option of using the headphone jack for quiet monitoring.
Left and right channel 26-dot LED meters give you a visual representation of your levels. A mute switch can be programmed for total mute, or to provide a 20 dB attenuation based on your preference. - Rack mount stereo monitor speaker system with built-in 10W+10W Class-D amplifier and 110x40mm elongated shape speaker units

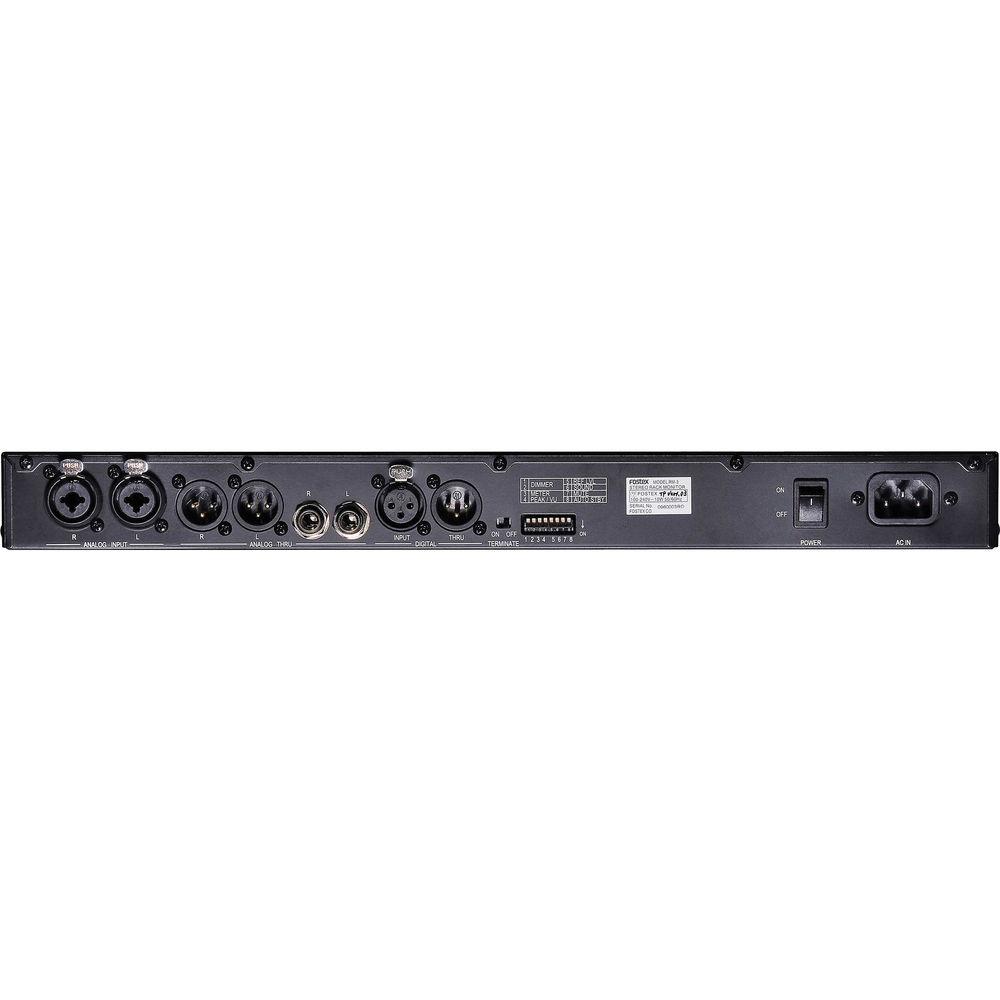

- Accepts both Analog input (XLR & 1/4" TS phone) and Digital Input (AES/EBU)
- Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference
- Mute switch works as total mute or -20dB attenuation
- Highly visible 26-dot LED meter (L&R) with 4-step brightness adjustment
- Flexible meter setting for both Analog and Digital inputs such as VU+Peak, VU+Peak hold, Peak+Peak hold and VU only
- Reference level (0dB) is selectable between +4dBu and 0dBu
- Audio characteristics can be selected between the conventional VOICE mode and new MU-SIC mode for wider frequency range music source
UPC: 636827304832 In the Box Fostex RM-3 Rackmount 20W Speaker System 4 x Rubber Feet Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex RM-3 Rackmount 20W Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex RM-3 Specs | | | Built-in Speakers | 110 x 40 mm anti-magnetic cone speakers | | Impedance | 8 ohms | | SPL | Output SPL: 84 dB/W (1 m) | | Frequency Response | 200 Hz to 20 kHz | | | | Maximum Output | 10 W x 2 | | Residual Noise | -50 dB or less (DIN AUDIO) | | Distortion | Distortion Rate: 0.1% or less | | Digital Input | Connector: XLR-3-31 type
Format: IEC 60958 (AES/EBU)
Sampling Frequency: 44.1 to 96 kHz | | Analog Input | Connector: For both XLR/ 1/4" (6.3 mm) TS phone
Rated Input Level: XLR (balanced) +4/0 dBV, TS phone (unbalanced): -10/-14 dBV
Input Impedance: 10 kOhms or more | | Digital Through | Connector: XLR-3-31 type | | Analog Through | Connector: XLR-3-31 type
1/4" (6.3 mm) TS phone | | Headphones | Connector: 1/4" (6.3 mm) stereo headphone output
Adapted Load Impedance: 16 ohms or more
Maximum Output: 20 mW+ 20 mW (32 ohms, 1 kHz) | | Level Meters | Display: 2x 26 dot LED
Reference Level:
Digital: -20 dBFS
Analog: XLR: +4/0 dBu, TS phone:-10/-14 dBV | | | | Power Consumption | 10 W | | Power | AC 100 V to 240 V 50/60 Hz | | Dimensions (W x H x D) | 18.9 x 1.7 x 11.2" (482 x 44 x 284 mm), including protruding parts | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 20.945 x 15.748 x 7.716" |
