User Manual for FotodioX C-818ASV Studio Pro Flapjack Bi-Color LED Edge Light Click to enlarge the picture
Contents of the user manual for the FotodioX C-818ASV Studio Pro Flapjack Bi-Color
- Product category: LED Lights FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX LED Lights
 |
User manual for the FotodioX C-818ASV Studio Pro Flapjack Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

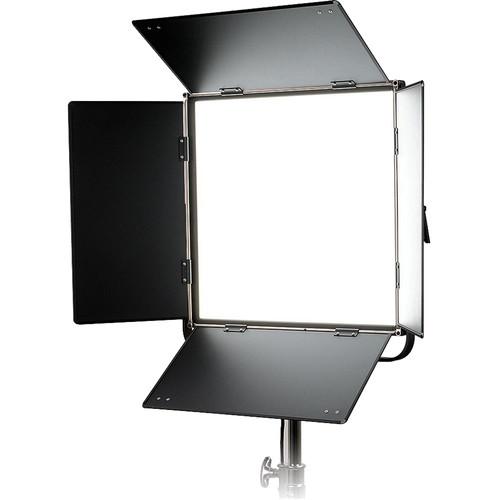

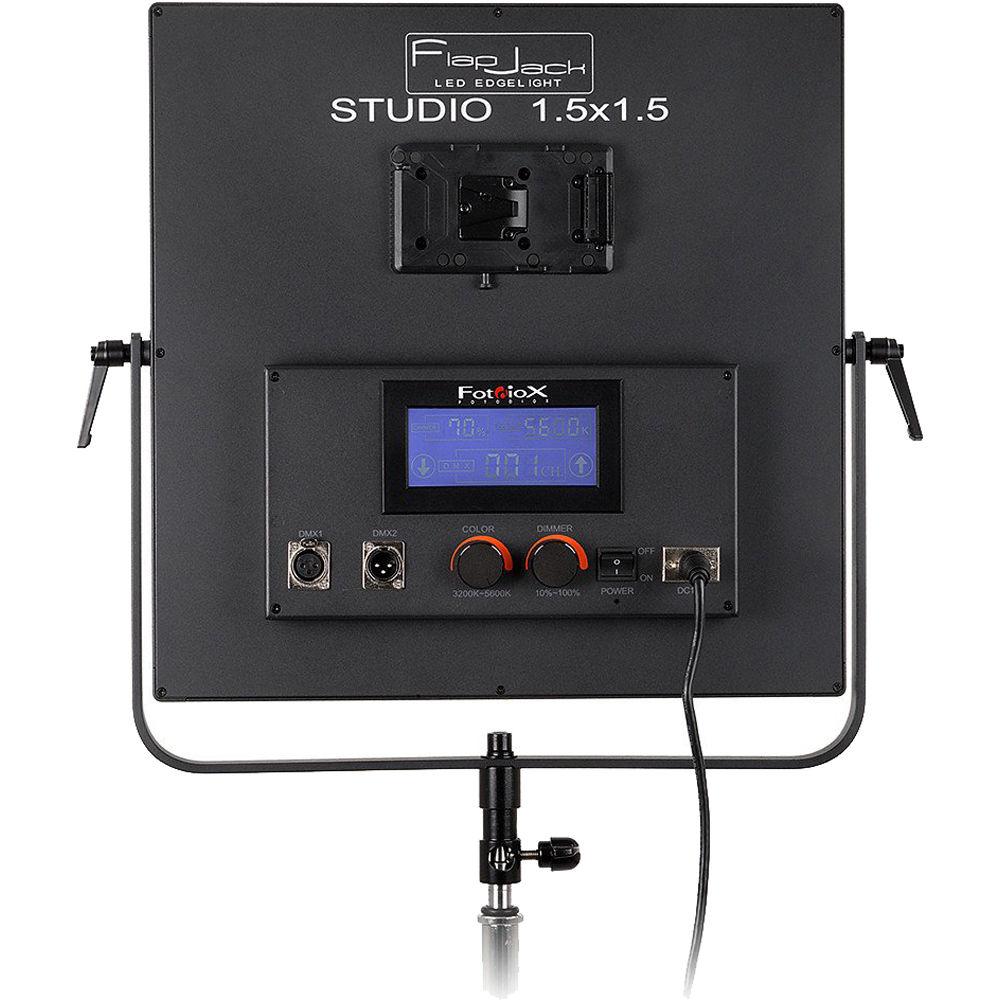

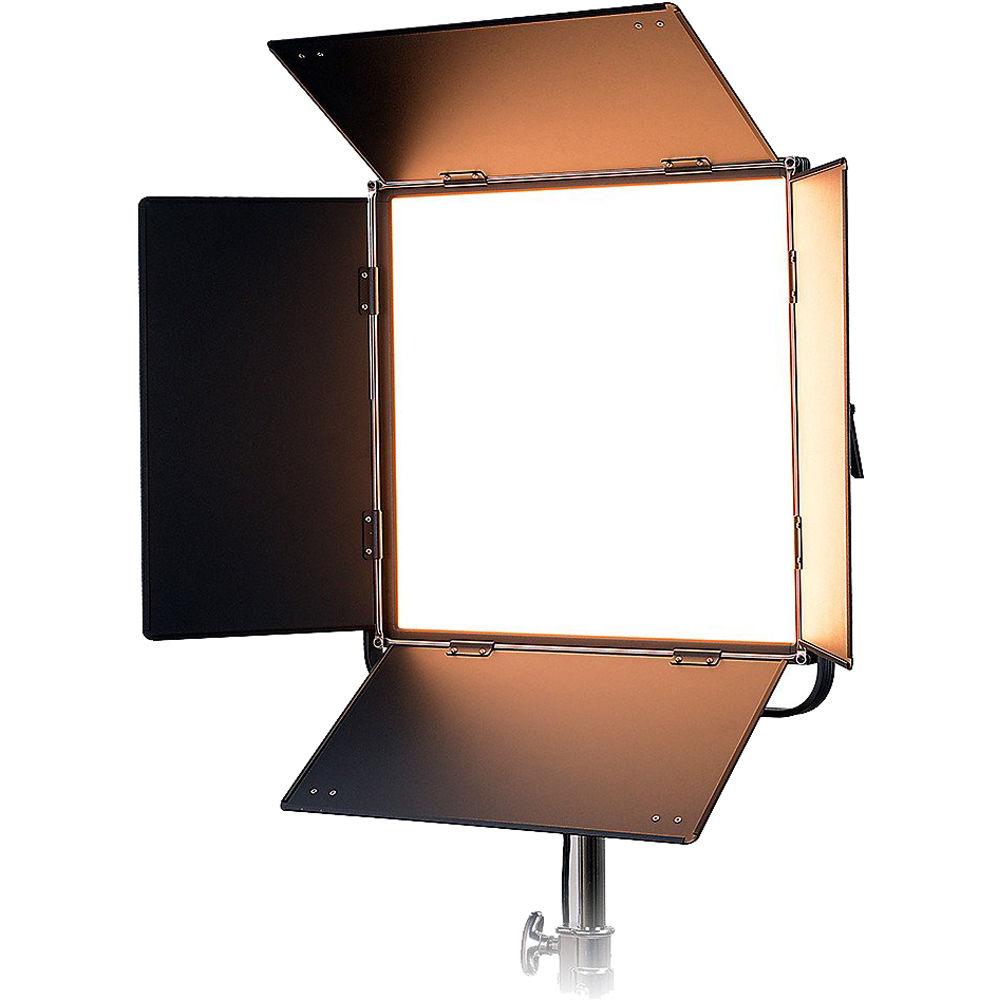

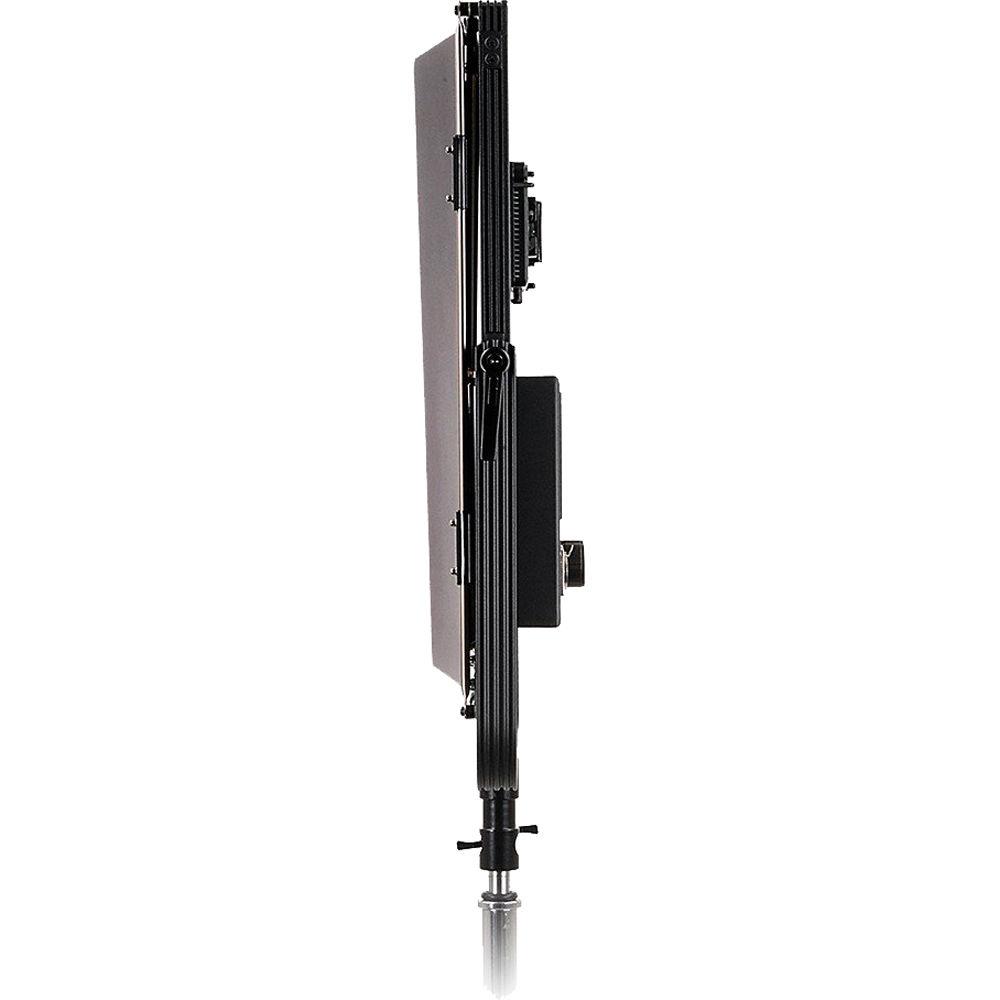

Product description Fotodiox Expands LED Lighting Lineup Read More With its soft quality of light, CRI of ≥95, AC or battery power options, and full function control, the C-818ASV Studio Pro Flapjack Bi-Color LED Edge Light from FotodioX is a valuable tool in the studio or on set for a variety of specialized uses. FotodioX uses LEDs that are situated around the edge of the panel and bounced inward then through the panel's surface. The lack of direct light results is very soft output without hotspots.The Flapjack's color temperature is variable from 3200-5600K or anywhere in between for matching other lights, ambient lighting or just for creative color. Brightness is variable too, from 10-100%, avoiding the need to use scrims or move the light back and forth for the right illumination Both color and brightness can be controlled locally on the unit or remotely via onboard DMX.Great for all-around use, the light has built-in barndoors to control the beam angle and at 1/2" thick and running barely warm to the touch, the light can be squeezed into tight spaces where traditionally-shaped lights just can't go.The Flapjack has a 110-240 VAC power supply for worldwide use, but it also has a V-Mount battery plate for optional 14.8 V batteries when mains current is unavailable. A fitted custom carrying case with shoulder strap is included for storage and transport. UPC: 847372037131 In the Box FotodioX C-818ASV Studio Pro Flapjack Bi-Color LED Edge Light (18 x 18") Yoke with 5/8" Receiver 110-240 VAC Power Cable Fitted Custom Carry Case with Shoulder Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX C-818ASV Studio Pro Flapjack Bi-Color LED Edge Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX C-818ASV Specs | | | Beam Angle | 75° | | Color Temperature | 3200 to 5600K ± 300K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Rectangular Panel Size | 15.75 x 15.75" / 40 x 40 cm | | Fixture Dimensions | 17.5 x 17.5 x 0.5" / 44.5 x 44.5 x 1.3 cm | | Fixture Weight | 29 lb / 13 kg | | | | Battery Plate | 1 x V-Mount | | DMX Connector | 3-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 14.8 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 80 W | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 27.5 x 26.3 x 6.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
