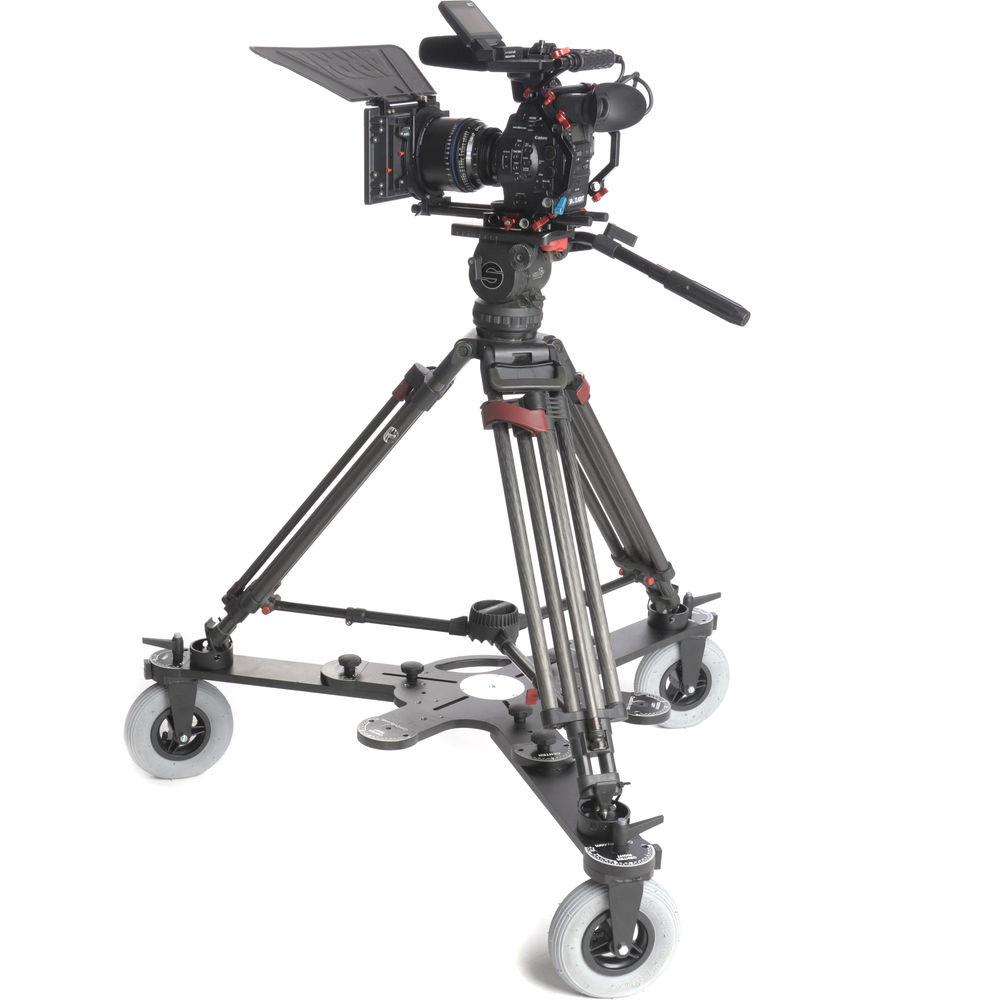

Product description The FotodioX CamDolly Cinema System with 2 x 50' Rolls of Flexible SnakeTrack is a flexible camera dolly system that can be used in a variety of modes ranging from a ride-on dolly platform (with included seat) to a tabletop dolly. The aircraft-grade aluminum center hub is the mainstay of the dolly, and the included extension pieces enable building the dolly from ground up in less than 15 minutes, while mode changes typically take around a minute.

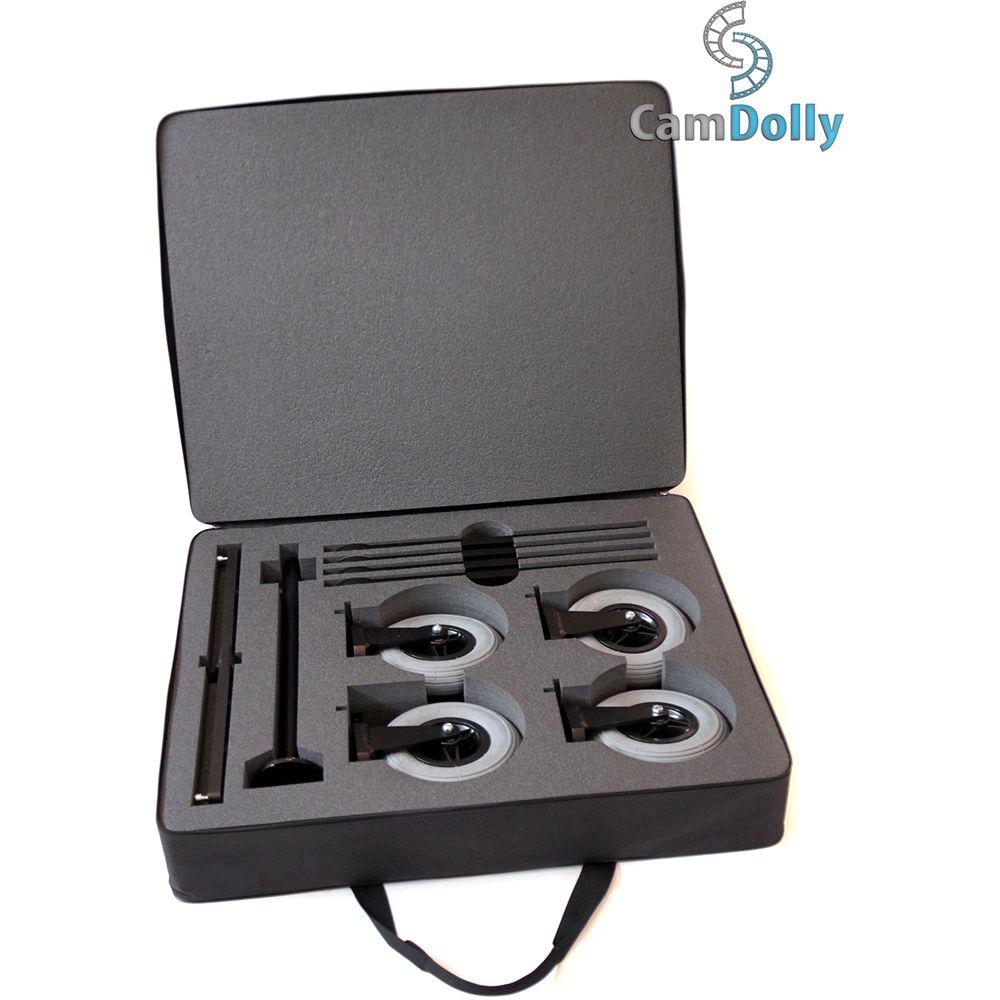

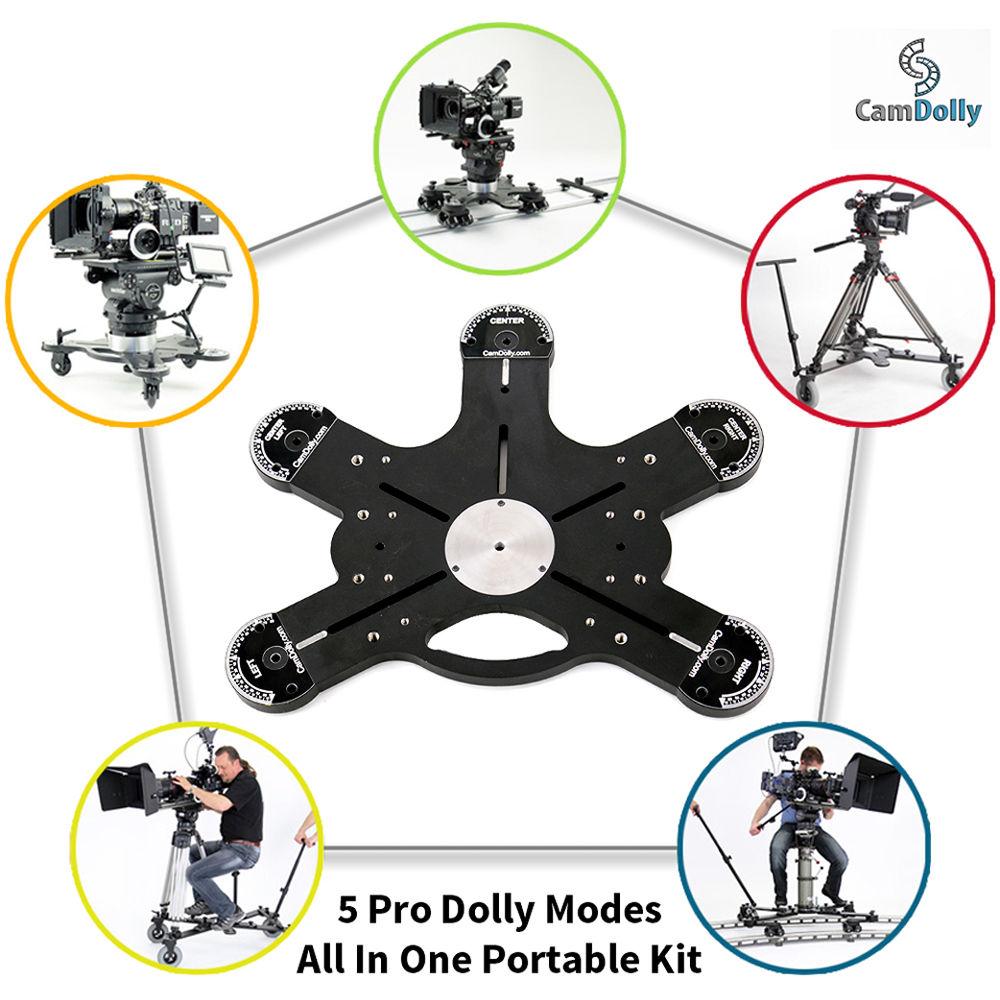

Included universal tripod holders enable you to use virtually any tripod you wish, while the included half ball adapters allow you to mount heads with either 75, 100, or 150mm balls directly to the dolly. You can use the included Mitchell plate for Mitchell heads, or mount the included European mount that allows you to mount an optional bazooka. The dolly comes complete with three different sets of wheels; pneumatic wheels for rolling on the floor, tabletop (inline skate) wheels, and track wheels for running on optional pipe, round track, or the included flexible rubber track. Included track ends and track supports enable using multiple lengths of track. Five Main Camera Dolly Modes - Ride-On Track Dolly

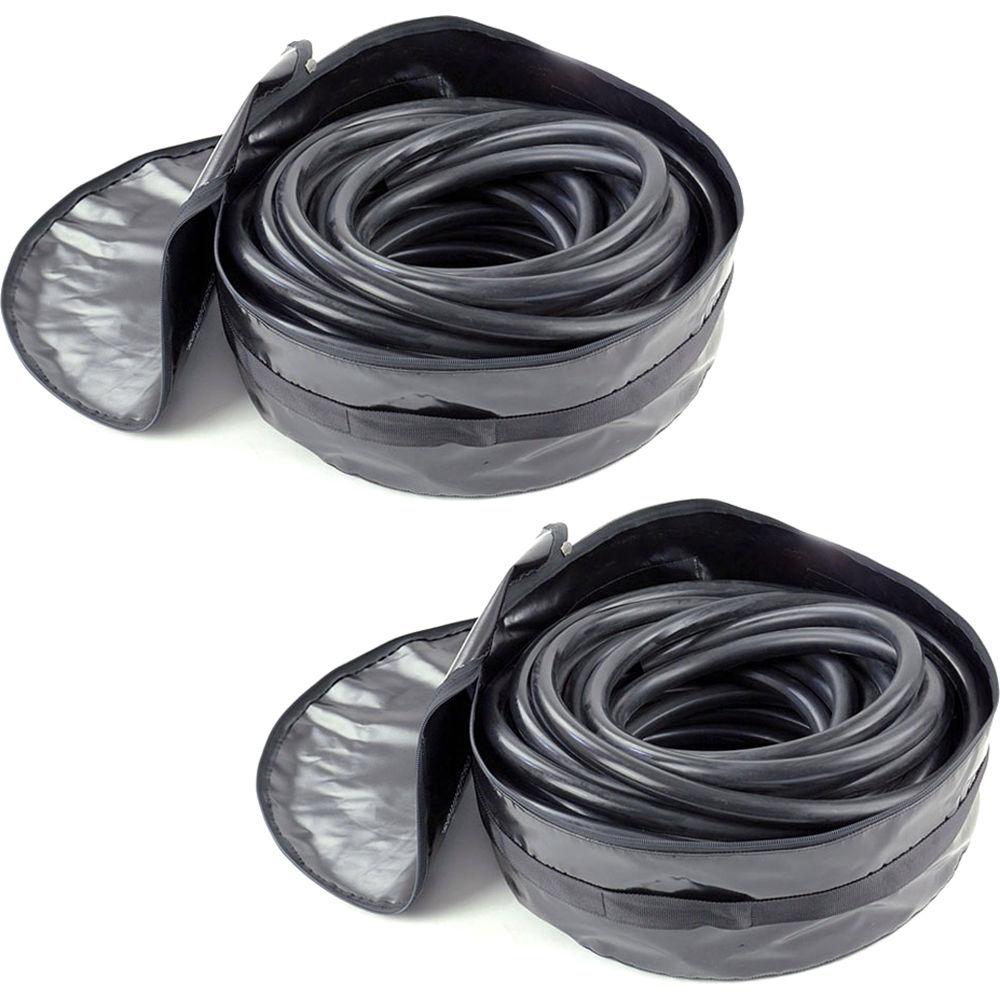

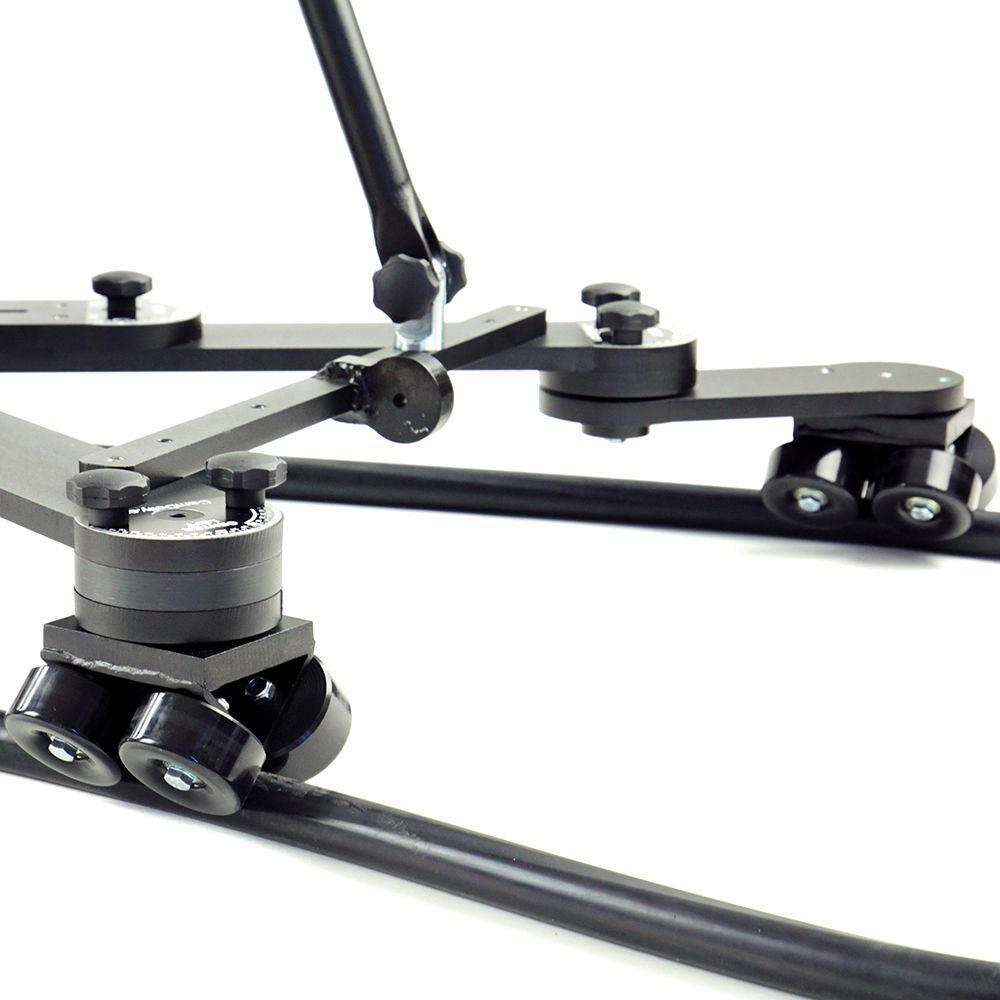

- The included push/pull T-bar gives your grip control over the speed of your dolly move, and you can position the seat in one of many configurations. The track wheels can ride on metal track or the included SnakeTrack Flexible Rail. The pair of special compensation legs make it easy to negotiate the curves of the rubber rail, as well as smooth out any uneven rubber rail layouts. The track dolly configuration enables working with the dolly on a straight or curved track. It is compatible with virtually any track, and the included 50' of flexible rubber track provides about 20' of track run.
- Ride-On Doorway Dolly
- You can mount a set of four skate wheels (for shooting on smooth floors), or a set of four pneumatic tires for rougher terrain or carpet.
- Heavy-Duty Slider
- The CamDolly runs on readily available pipe with a diameter between 0.8 to 1.4". The CamDolly Cinema System includes a pair of adjustable rail ends. You can either operate the Slider at ground level, or raise the slider up on C-stands or light stands and use the included pair of supports to eliminate sagging.
- Tabletop Dolly
- Using only the Core (hub) of the CamDolly, you can use this compact mode to do tabletop dolly shots or very low-angle shots on the floor. You can also attach the push/pull bar directly to one of the wheels to steer the dolly.
- Orbit Dolly
- You can lock the wheels to specific degrees to get a smooth, graceful, repeatable arc to create perfect 360-degree camera moves. An included chart advises you as to how to position the wheels (either 3 or 4 wheels) to create the desired arc.

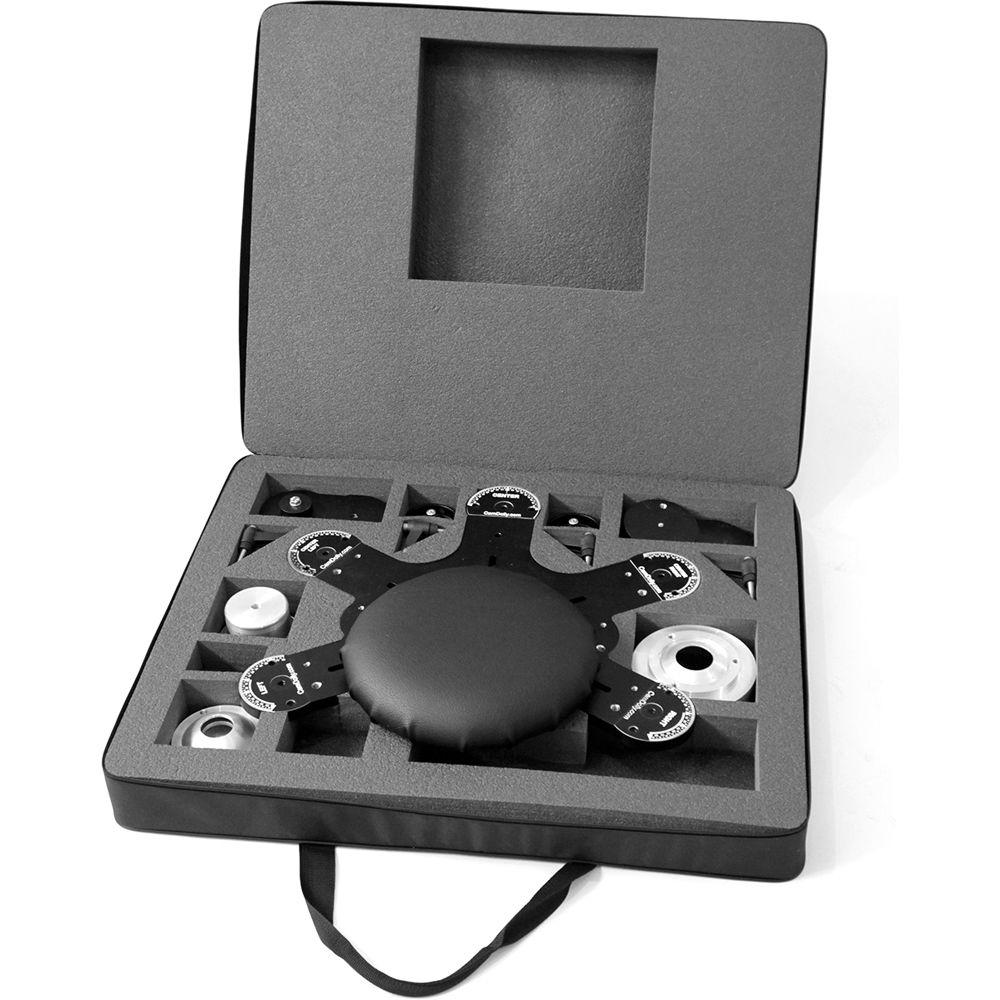

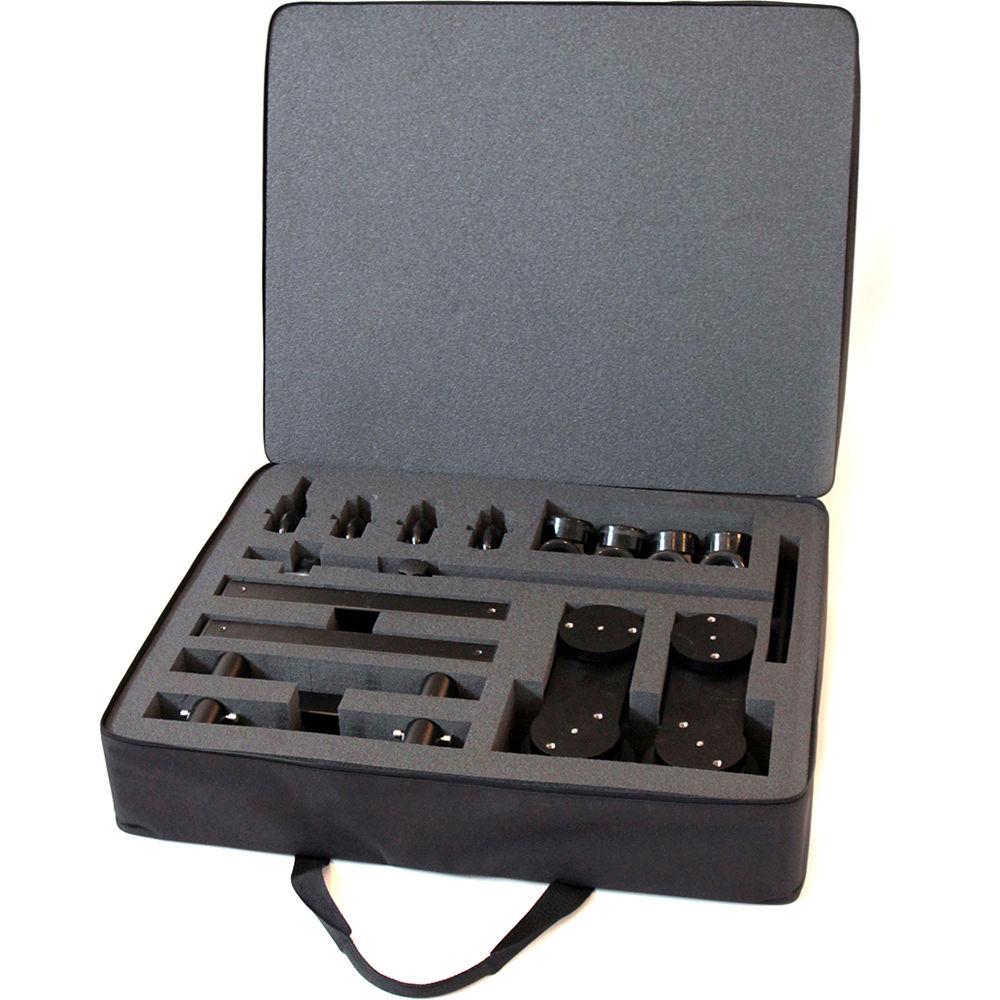

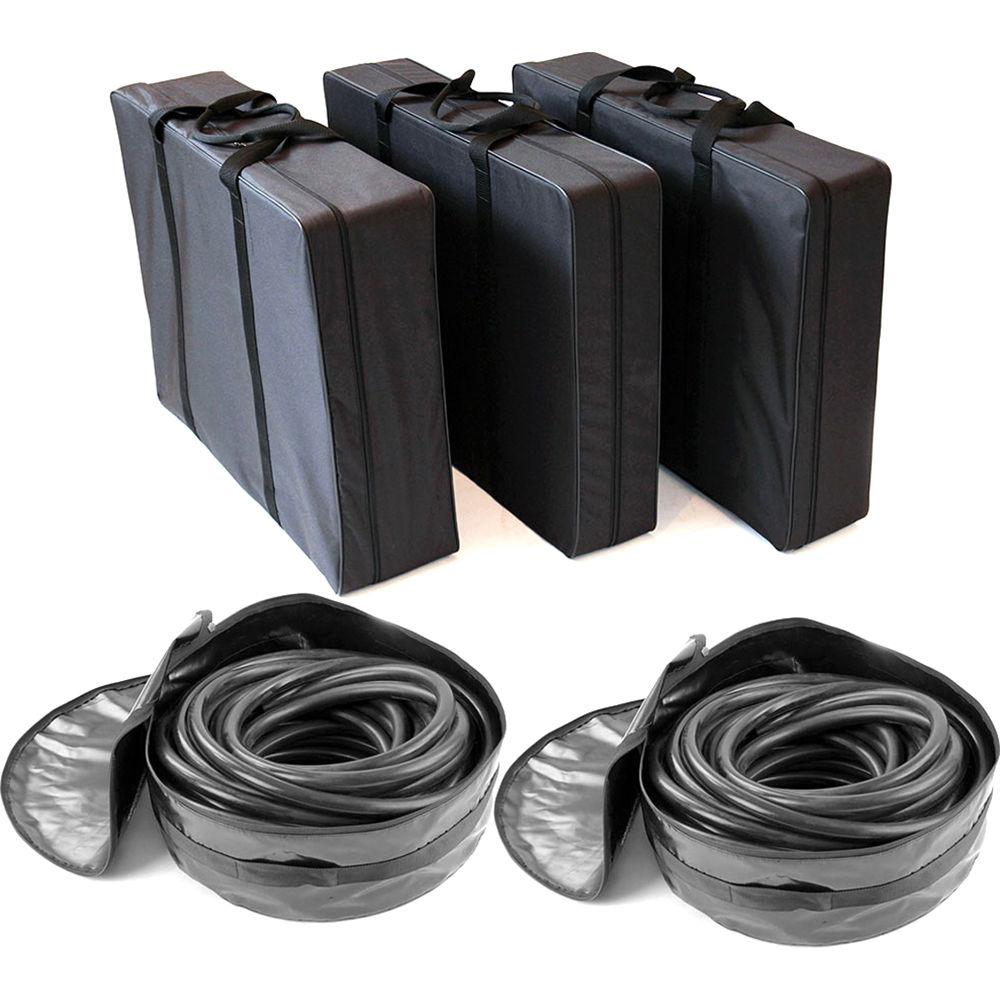

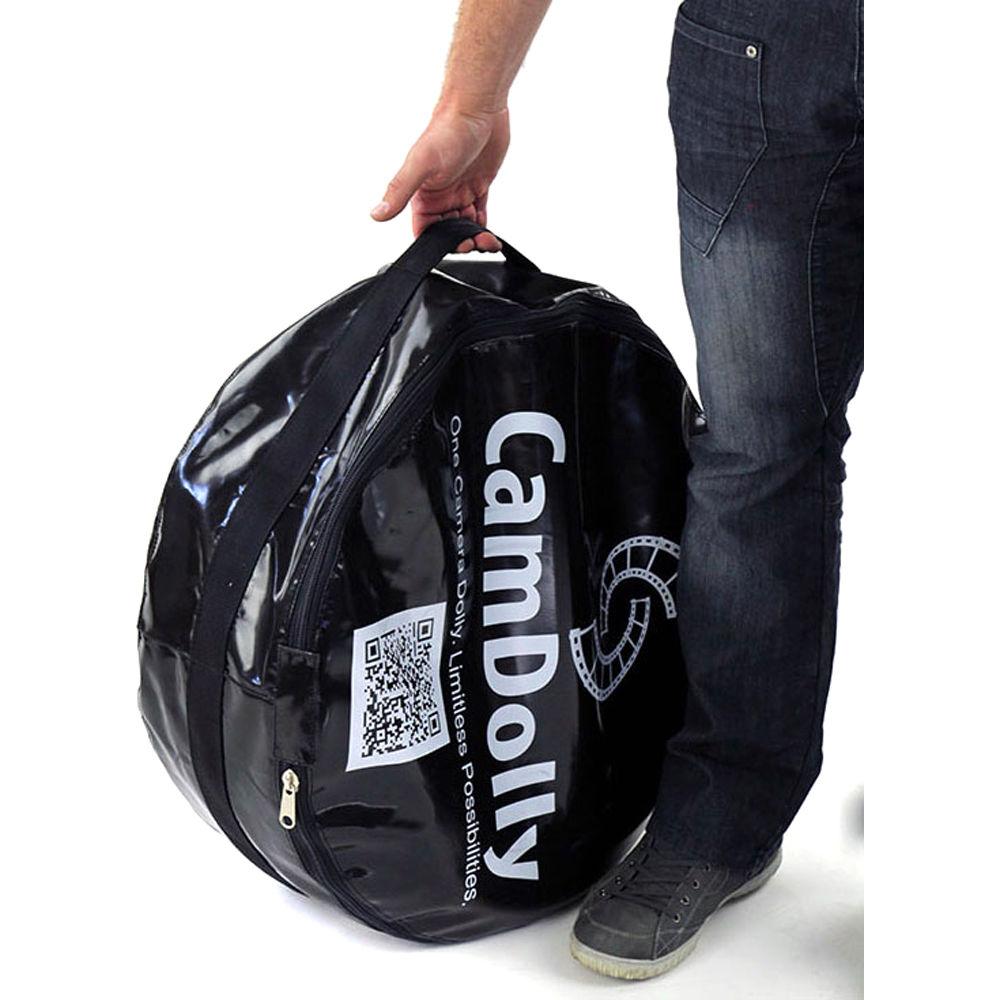

UPC: 847372033133 In the Box FotodioX CamDolly Cinema System with 2 x 50' Rolls of Flexible SnakeTrack 4 x Extension Leg 4 x Pneumatic Wheel 4 x Tabletop (Inline Skate) Wheel 2 x Track Wheel 2 x Track Wheel with Extending Arm 3 x Universal Tripod Holder Seat Assembly T-Bar Assembly 75mm Bowl Mount Adapter 100mm Bowl Mount Adapter 150mm Bowl Mount Adapter Flat/Mitchell Mount Adapter Bazooka/Euro Mount Adapter Set of Doorway Dolly Push/Pull/Turn Adapters Set of Height-Difference Adapters Set of Track Ends Tracking Board Support for Tabletop Configuration Degrees vs. Diameter Chart 3 x Soft Dolly Part Case 2 x Track (50') 2 x Carry Bag for Track Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX CamDolly Cinema System with 2 x 50' Rolls of Flexible SnakeTrack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX CAMDOLLY-2X-RAIL-KIT Specs | Load Capacity | 550 lb / 249.5 kg | | Material of Construction | Dolly Platform
Base Plate: 15 mm aircraft grade aluminum
Extension Legs: 15 mm aircraft grade aluminum
Wheels
4 x Inflatable pneumatic wheels
4 x Tabletop wheels (inline skate wheels)
2 x Track wheels (fixed)
2 x Track wheels (with extending arm) | | Dimensions | Camera Slider: 21.7 x 19.7 x 3.9" / 55 x 50 x 10 cm
Orbit Dolly: 37.4 x 37.4 x 3.9" / 95.0 x 95.0 x 10.0 cm
Track Camera Dolly: 29.5 x 47.2 x 3.9" / 75.0 x 120.0 x 10.0 cm
Tabletop: 21.7 x 19.7 x 3.9" / 55.0 x 50.0 x 10.0 cm
Doorway Dolly: 29.5 x 47.2 x 3.9" / 75.0 x 120.0 x 10.0 cm | | Weight | Setup
Camera Slider: 22 lb / 10 kg
Orbit Dolly: 33 lb / 15 kg
Track Camera Dolly: 66.1 lb / 30 kg
Tabletop: 11 lb / 5 kg
Doorway Dolly: 61.7 lb / 28 kg
CamDolly Cinema System: 165.3 lb / 75 kg |
