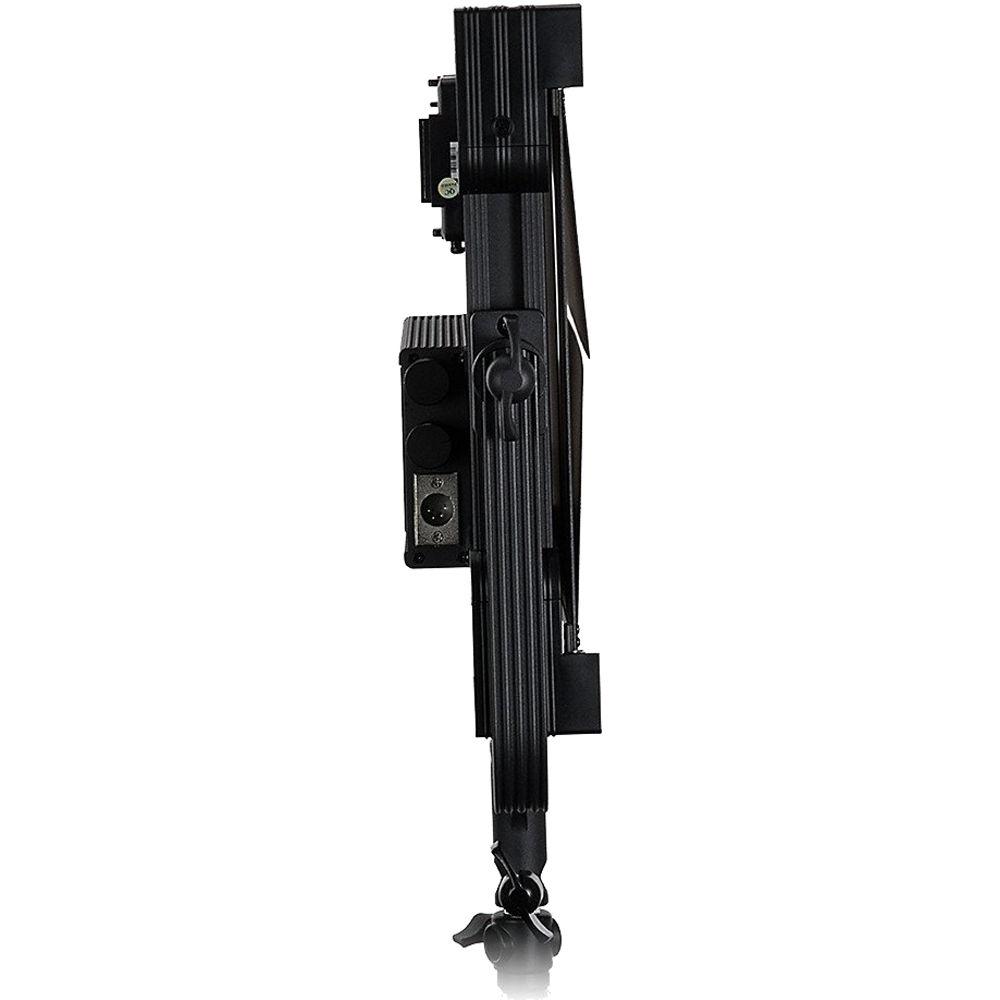

User Manual for FotodioX FACTOR 1x2 LED-1380 ASVL Bi-Color Dimmable Studio Light Click to enlarge the picture
Contents of the user manual for the FotodioX FACTOR 1x2 LED-1380 ASVL Bi-Color
- Product category: LED Lights FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX LED Lights
 |
User manual for the FotodioX FACTOR 1x2 LED-1380 ASVL Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

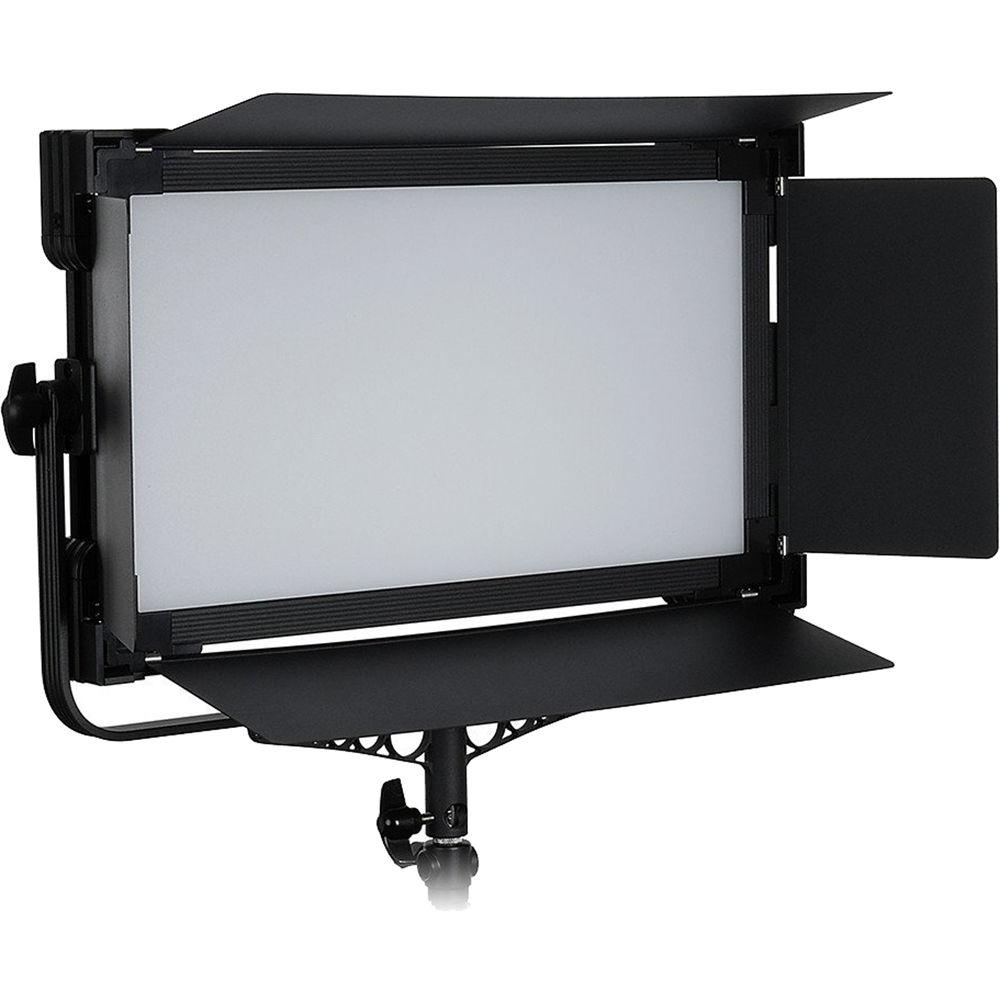

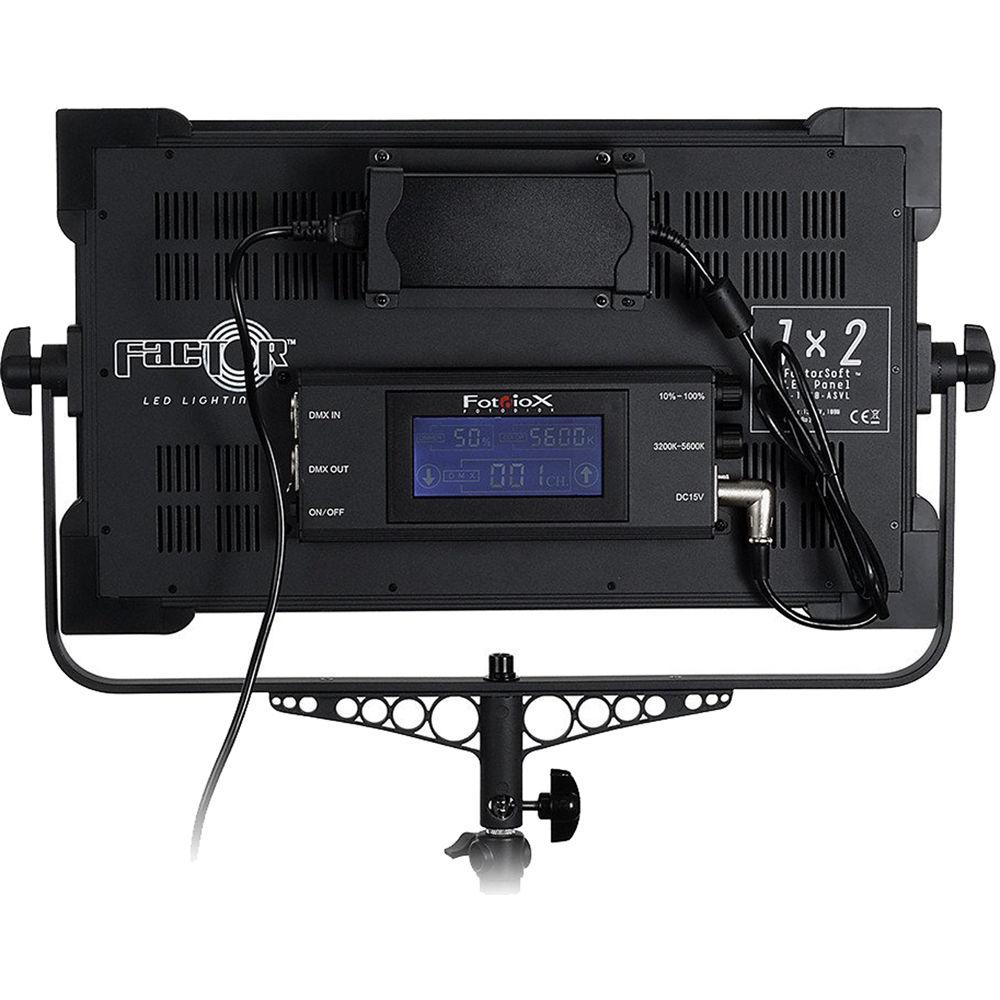

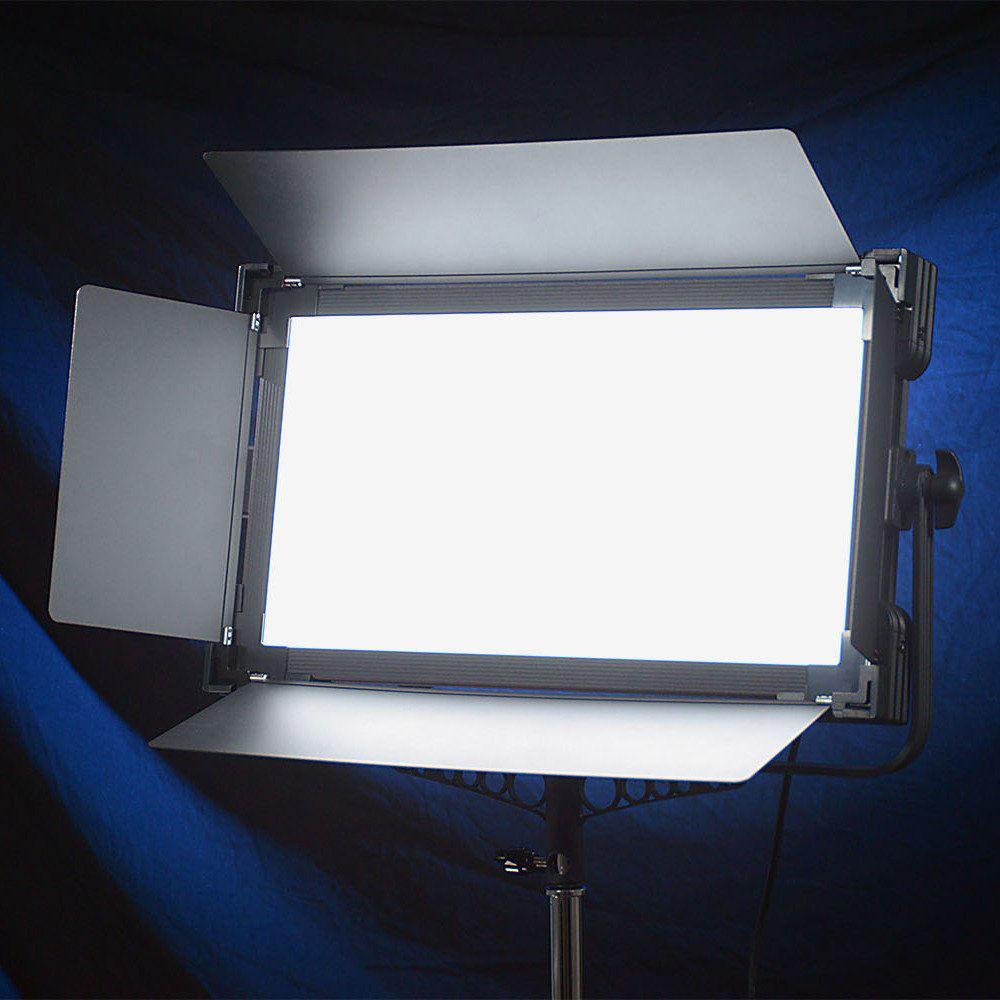

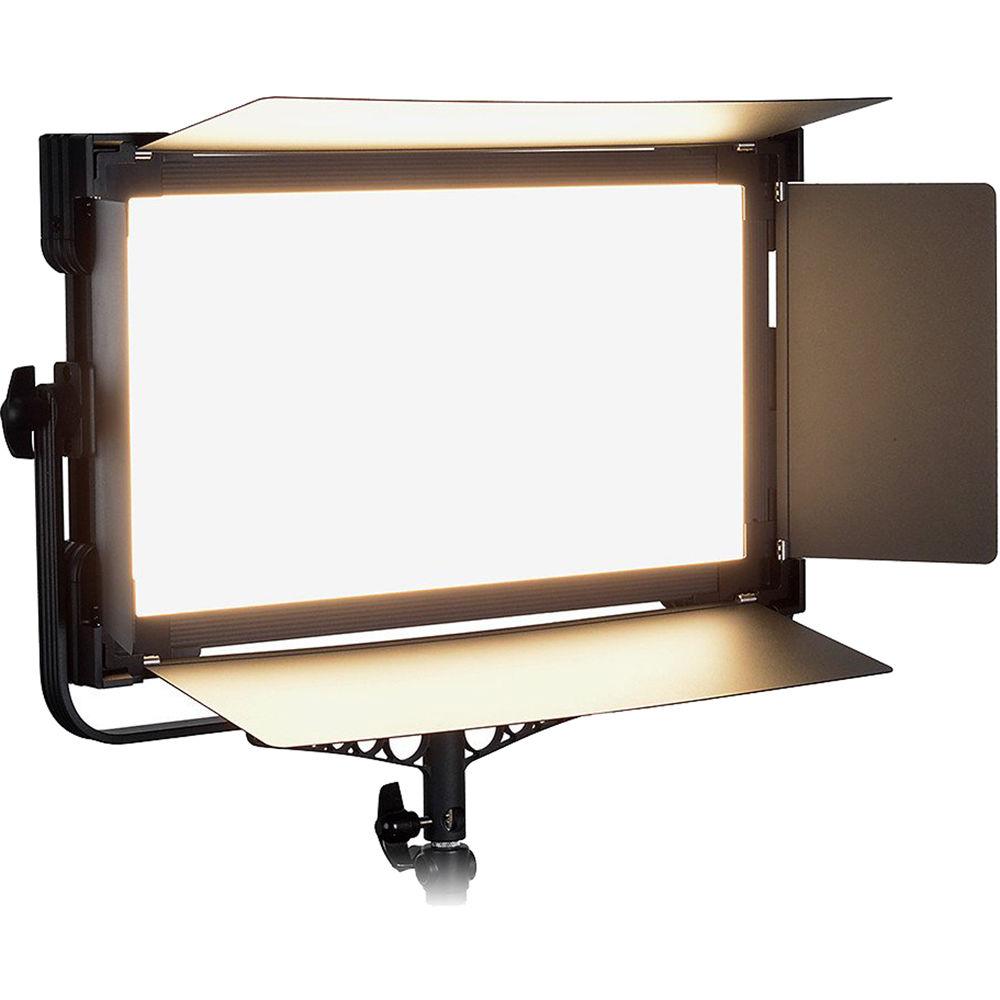

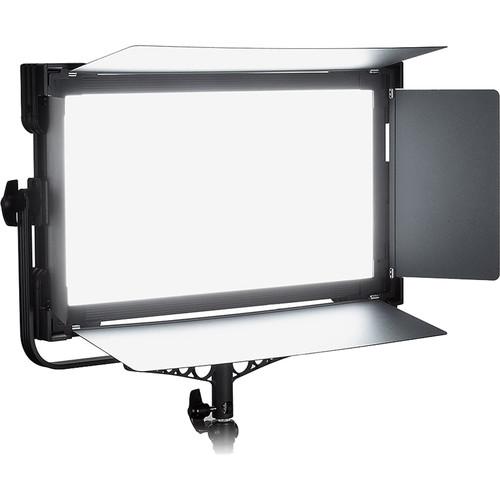

Product description A flexible soft light source, the FACTOR 1x2 LED-1380 ASVL Bi-Color Dimmable Studio Light from Fotodiox offers both notable output along with an inherently diffuse light quality with no multiple shadows. As a bi-color light, color temperature can be set between 3200-5600K for working in various ambient light conditions, and a high CRI of 95 ensures accurate subject rendition. Compared to conventional LED bulbs, this panel uses LED chips in order to maintain high output, up to 2800 lux at 5600K or 2150 lux at 3200K, throughout the color temperature range, and 10-100% dimming is also available and can be controlled using the on-board LCD or via DMX.

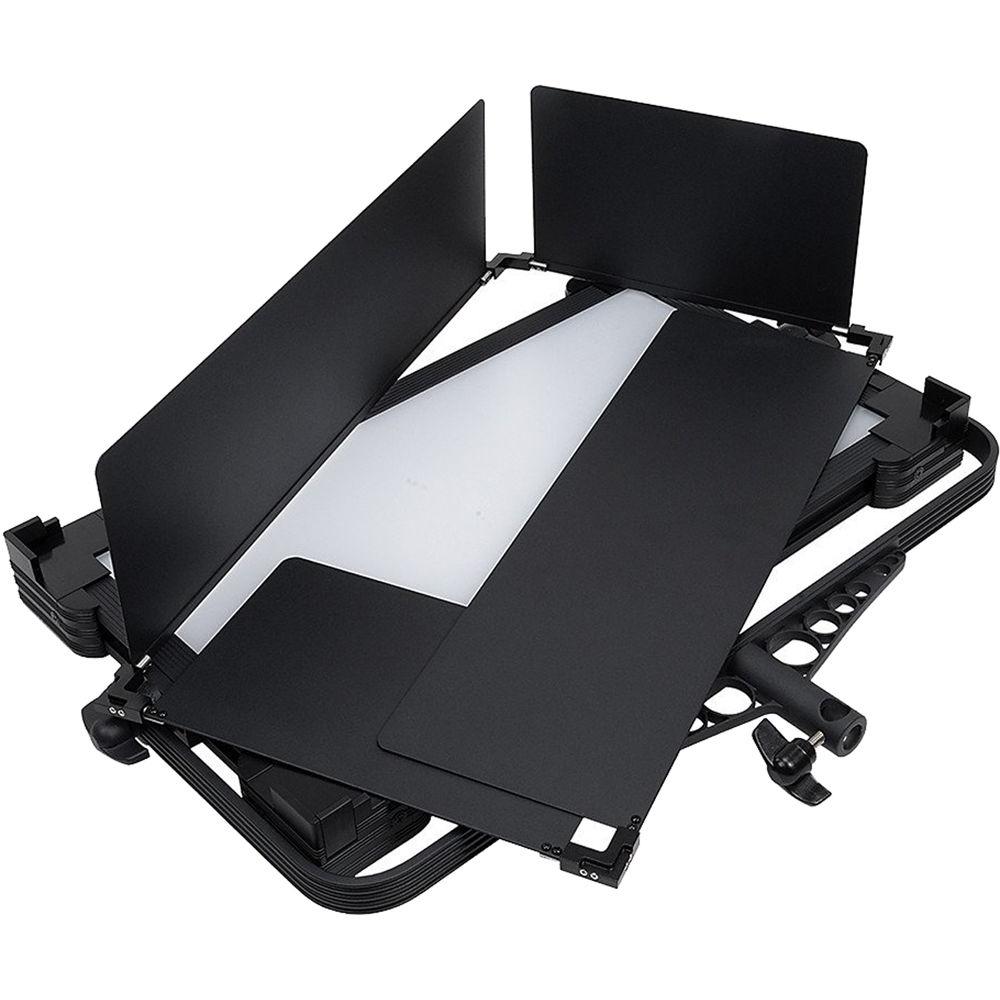

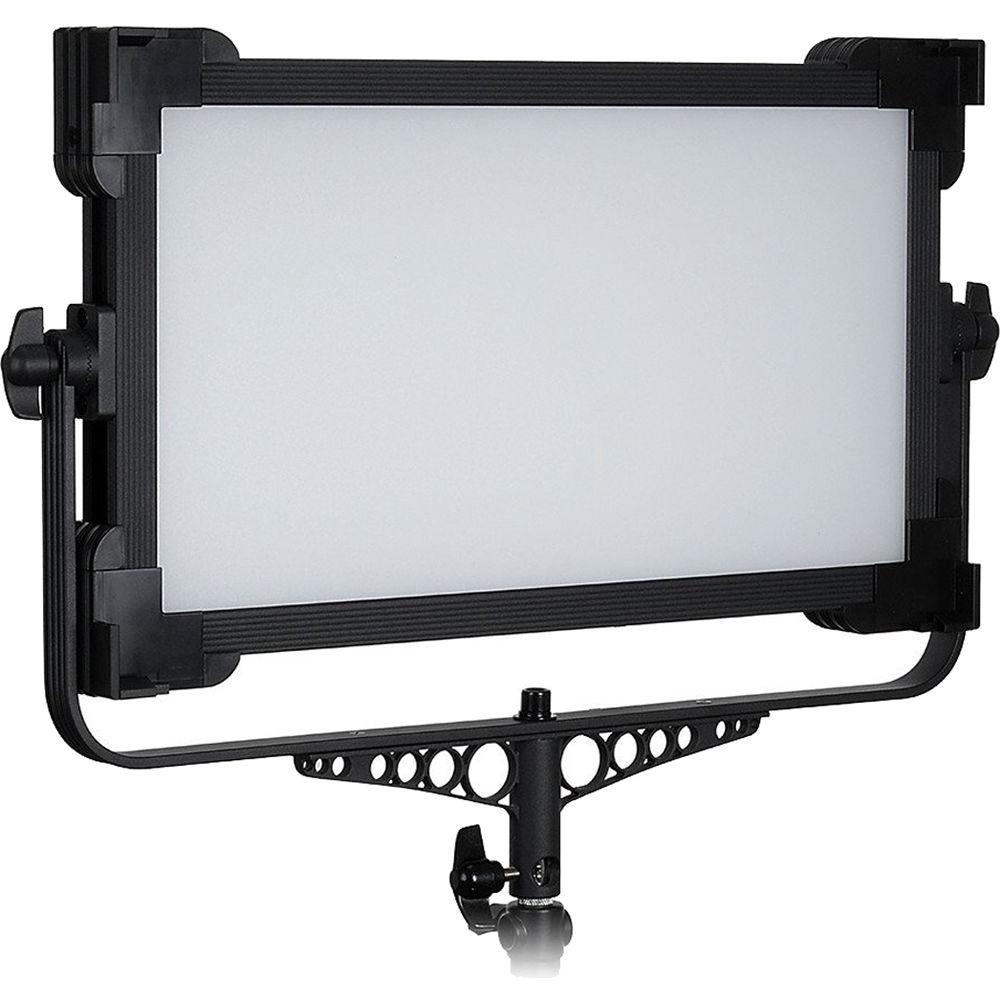

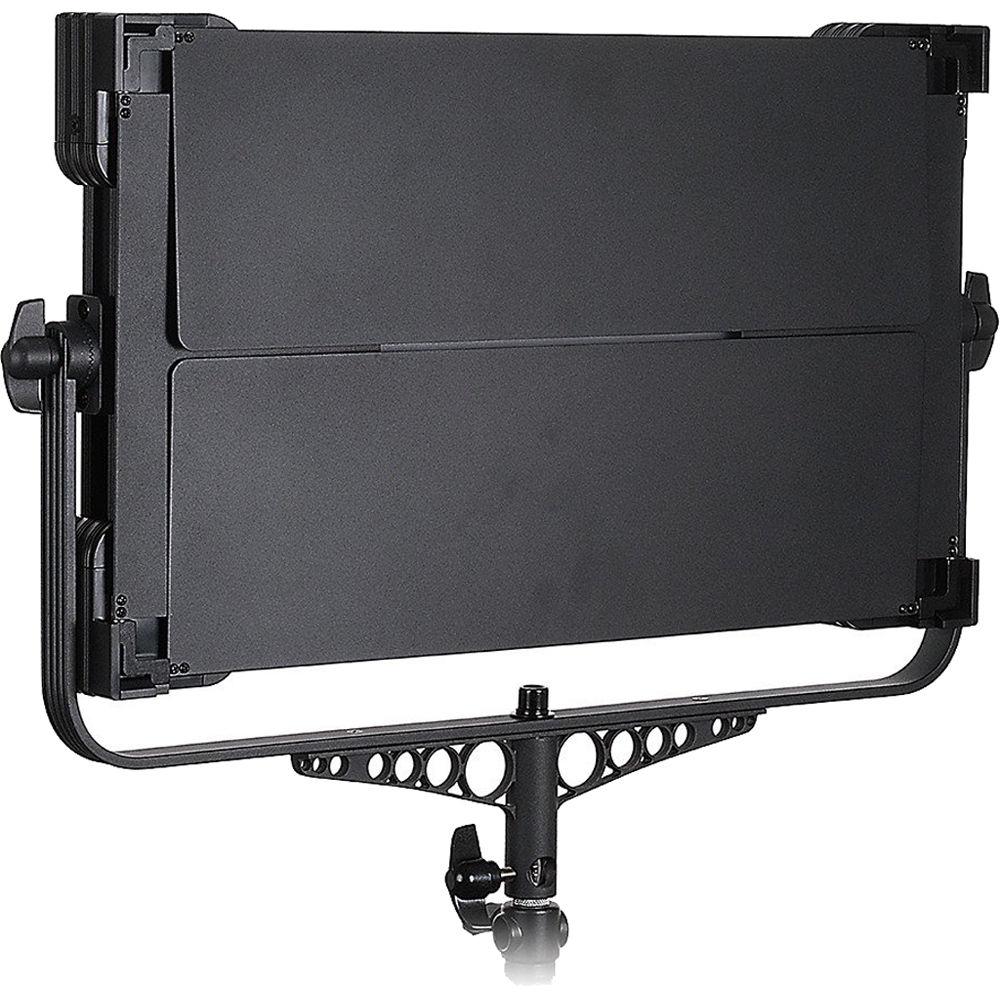

The panel itself has a 10 x 19" illumination area and the LED chips are set into the body of the panel, rather than against the diffuser, to create a softer, more even light quality. The panel can be run on 100-240 VAC power or 15 VDC power using an optional V-mount battery. Additionally, the light comes with a four-way barndoors for controlling the light beam as well as a yoke with an integrated 5/8" mount. UPC: 847372036813 In the Box FotodioX FACTOR 1x2 LED-1380 ASVL Bi-Color Dimmable Studio Light Mounting Yoke with 5/8" Mount 110-240 VAC Power Adapter and Power Cord Barndoors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX FACTOR 1x2 LED-1380 ASVL Bi-Color Dimmable Studio Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX LED1380ASVL-FCTR1X2 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K ± 300K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Rectangular Panel Size | 10 x 19" / 25.5 x 48.0 cm | | Fixture Dimensions | 13.0 x 22.0 x 3.0" / 33.5 x 56.5 x 8.0 cm | | Fixture Weight | 10.6 lb / 4.8 kg | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR | | DMX Connector | 3-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 25.8 x 21.3 x 5.8" |
