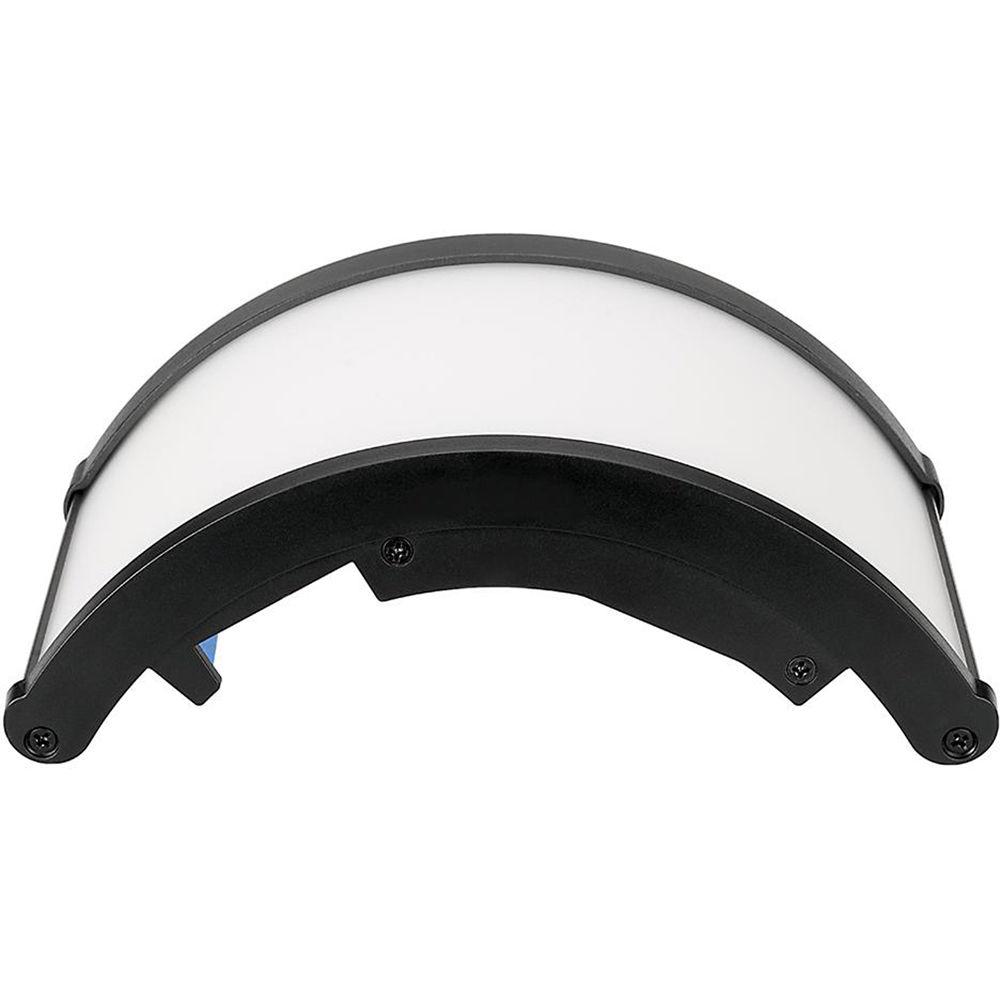

Product description The bi-color Fotodiox Pro FACTOR Radius Mini 4x9" Curved Led Panel features a curved design that produces a 180° beam spread. Variable from 3200 to 5600K, this fixture draws a maximum 18W and produces a soft even light that is dimmable from 100 to 10% brightness. Featuring a discrete on/off switch, the fixture has one analog knob for color temperature adjustment and a separate knob to control dimming. A built-in status screen confirms the light's output within plus/minus 300K.

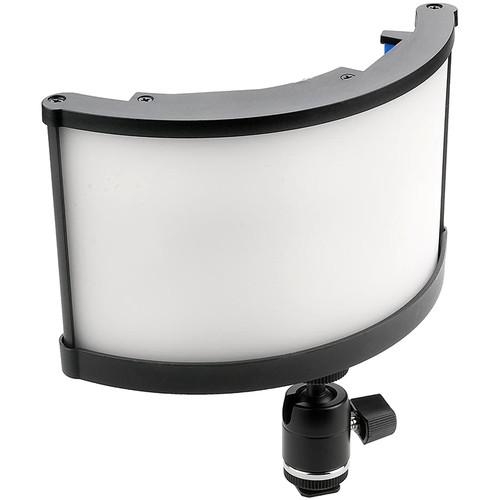

The durable aluminum chassis features an integrated L-series battery plate and a threaded 1/4"-20 mounting hole. An included ball joint adapter enables you to mount the fixture to your camera's accessory shoe, or you can use a variety of 1/4"-20 mounting accessories to mount your fixture onto a light stand, or get creative with hanging your light. An included carrying bag makes it simple to carry your light from shoot to shoot. - FACTOR Radius Lights feature a curved surface that delivers an ultra-wide 180° beam angle to evenly spread the light without producing hot spots. This makes the fixture ideal for green screen work, rapid-fire setups, immersive VR capture, multicamera setups, and wide-angle shots.
- The light fixture is ready to go right out of the box; no extra diffusion or accessories are needed. It creates a strong, diffused light with a single, soft, clean shadow and a CRI of ≥96, making it great for photo or video shoots. It is also flicker-free, making it a solid option for shooting slow motion video.

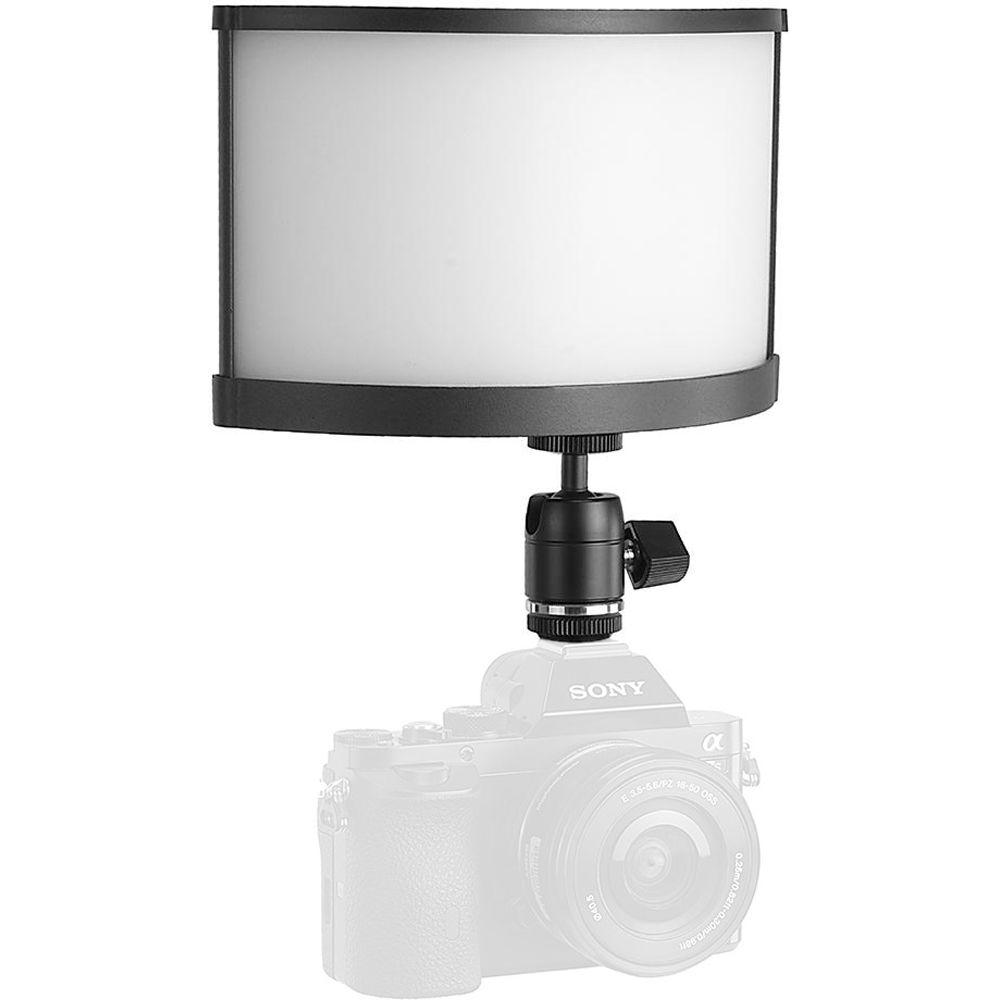

- Built with a solid aluminum frame for durability and added heat dissipation, the included heavy-duty metal ball head enables you to mount the light on your camera's hot shoe, a light stand, or 1/4"-20 rigging.

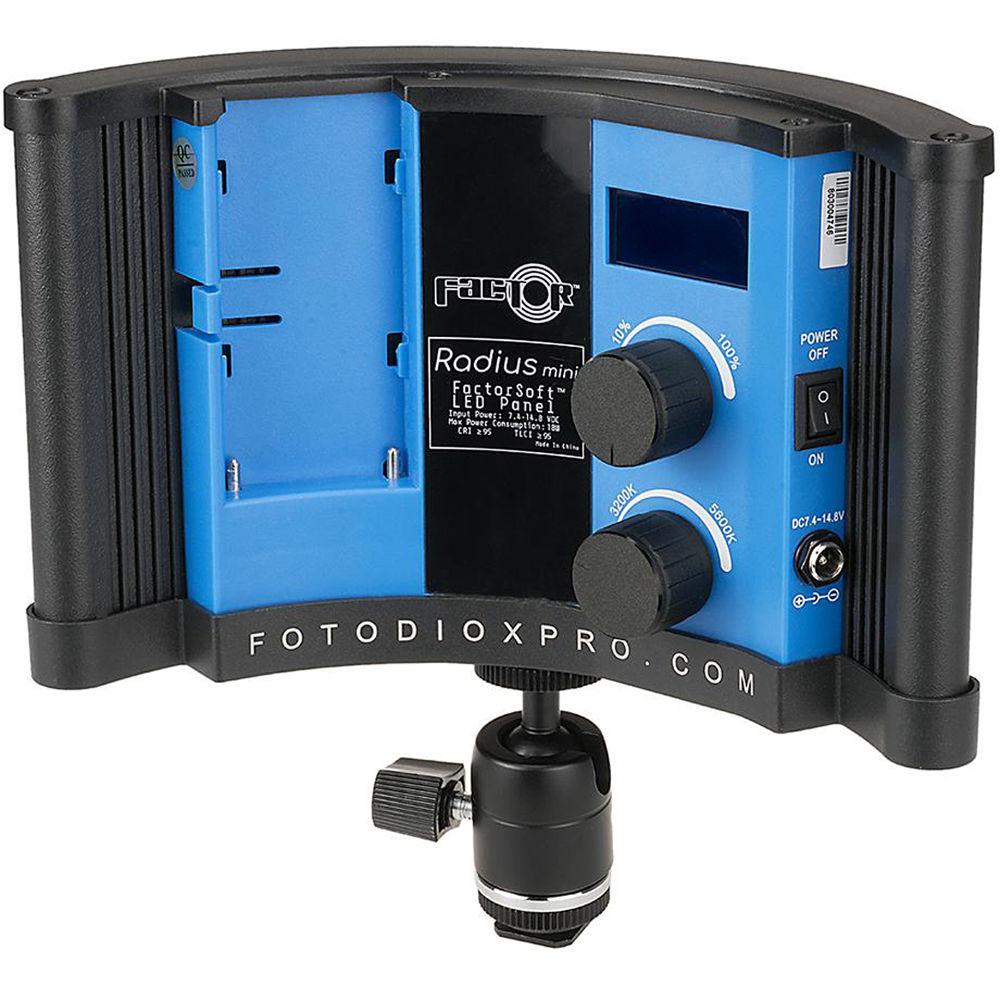

- Color temperature, brightness, and remaining battery power are all displayed in real time on the rear LCD display.
- The FACTOR Radius Mini light draws a maximum of 18 watts and runs off the included L-series battery, or it can be run on any household electrical circuit with the AC adapter. The FACTOR Radius Mini also includes a 12V car adapter.
- Each FACTOR Radius Mini light comes in a custom-fit carrying case to make transporting it safe and simple.

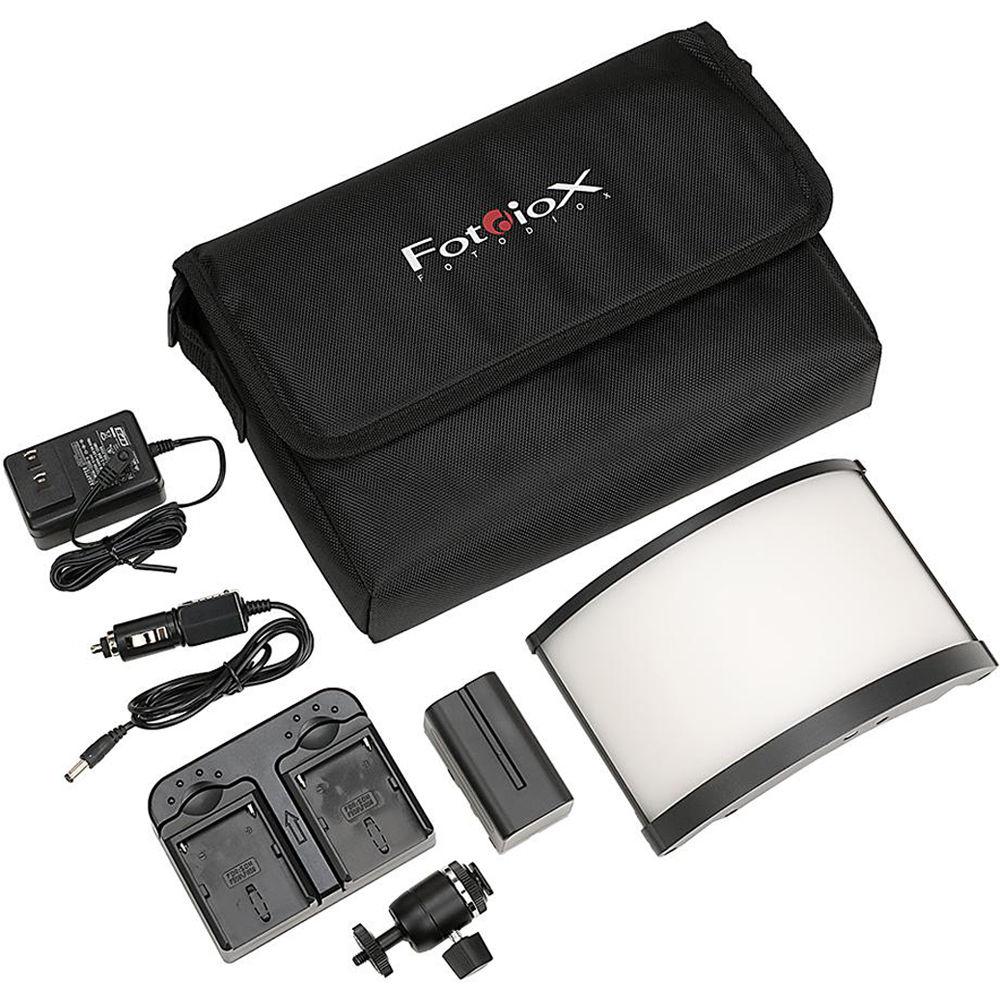

UPC: 847372044023 In the Box FotodioX FACTOR Radius Mini Wide-Angle Light 4x9" Curved Led Panel (Bi-Color) NP-F740-Style Battery Dual Charging Cradle Power Supply Car Charging Cable Light Stand Mounting Ball Joint Soft Padded Carrying Case with Shoulder Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX FACTOR Radius Mini Wide-Angle Light 4x9" Curved Led Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX Radius Mini Specs | | | Beam Angle | 180° | | Color Temperature | 3200K ± 200K
5600K ± 300K | | Color Accuracy Standard | CRI 96
TLCI 95 | | Photometrics | 180° at 3200K:
37.2 fc / 400 lux at 3.28' / 1 m
180° at 5600K:
41.8 fc / 450 lux at 3.28' / 1 m | | Dimming | Yes, 10 to 100% | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.4 to 14.8 VDC | | Max Power Consumption | 18 W | | Power Input Connector | Barrel | | Power Source | AC Adapter, Cigarette Lighter Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 4.7 x 2.8 x 7.5" / 11.9 x 7.1 x 19.1 cm | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 12.5 x 8.6 x 3.6" |
