Product description This Multi-Position Stitching Adapter from FotodioX allows a Fujifilm G-mount camera to serve as a digital back on a view camera that features a Graflok back. While in use, this adapter permits the creation of images in the landscape or portrait orientation. Images can be generated from individual captures. Alternatively, multiple captures that are aligned using the adapter's integrated sliding mechanism can be combined to create an image with an increased field of view and a larger file size using separately available stitching software.

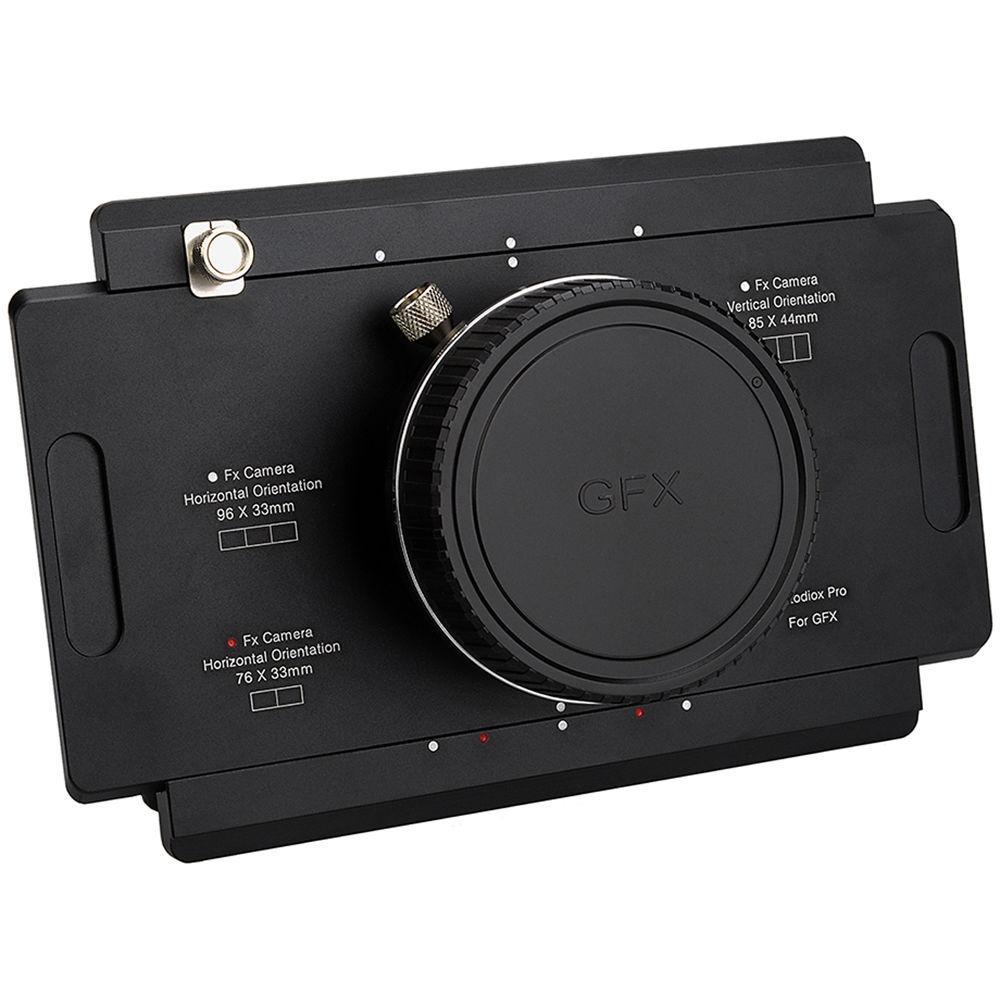

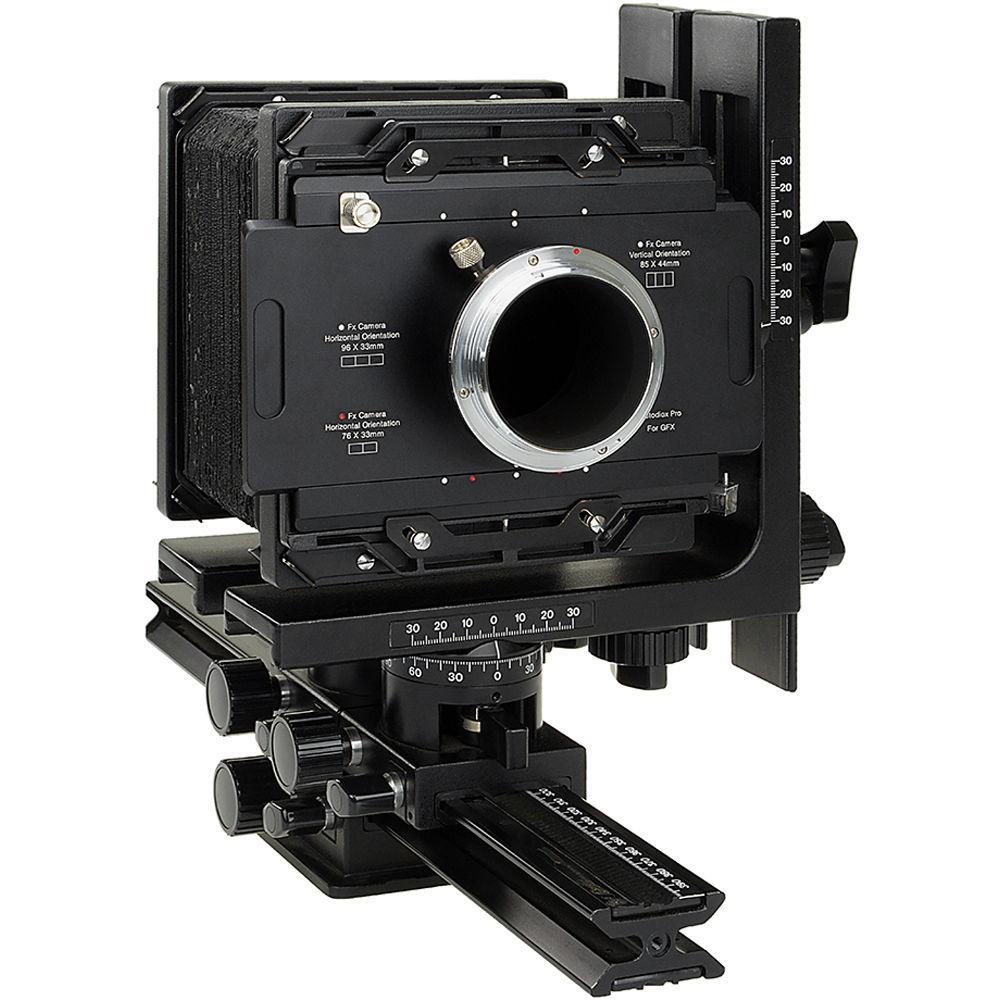

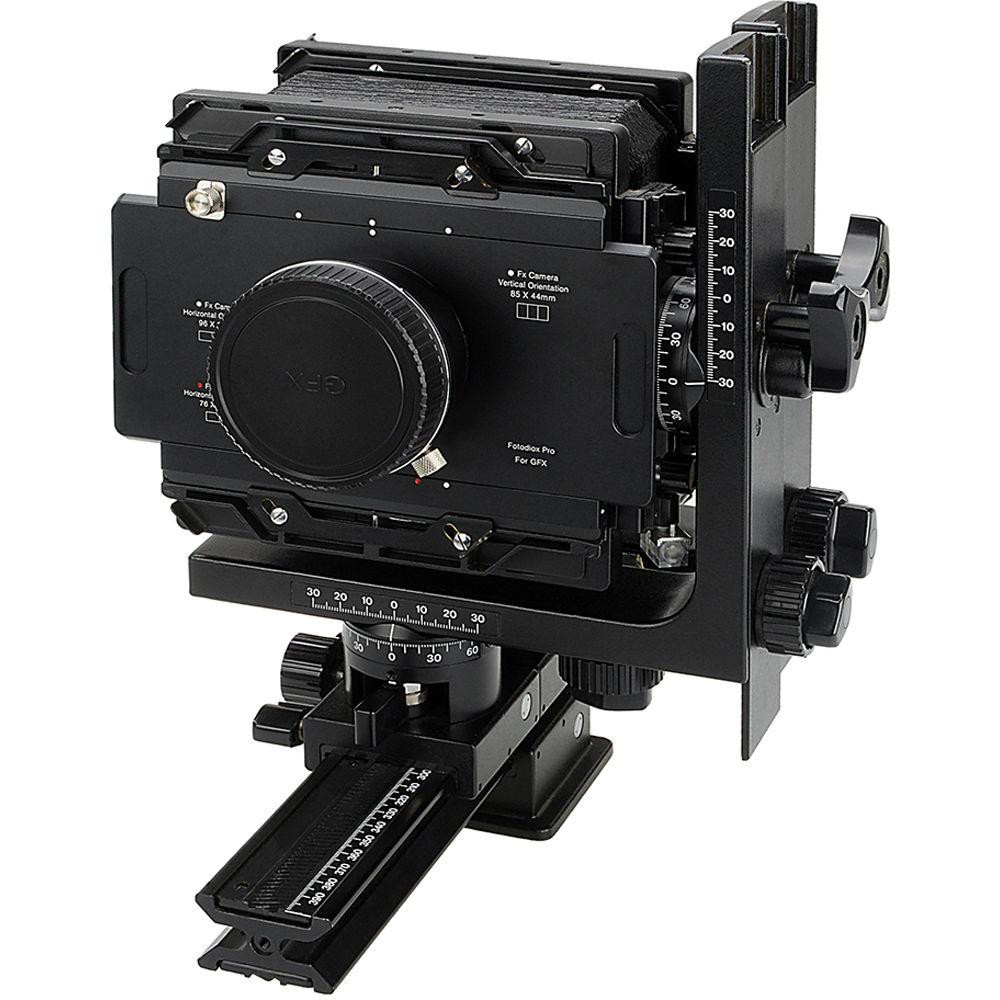

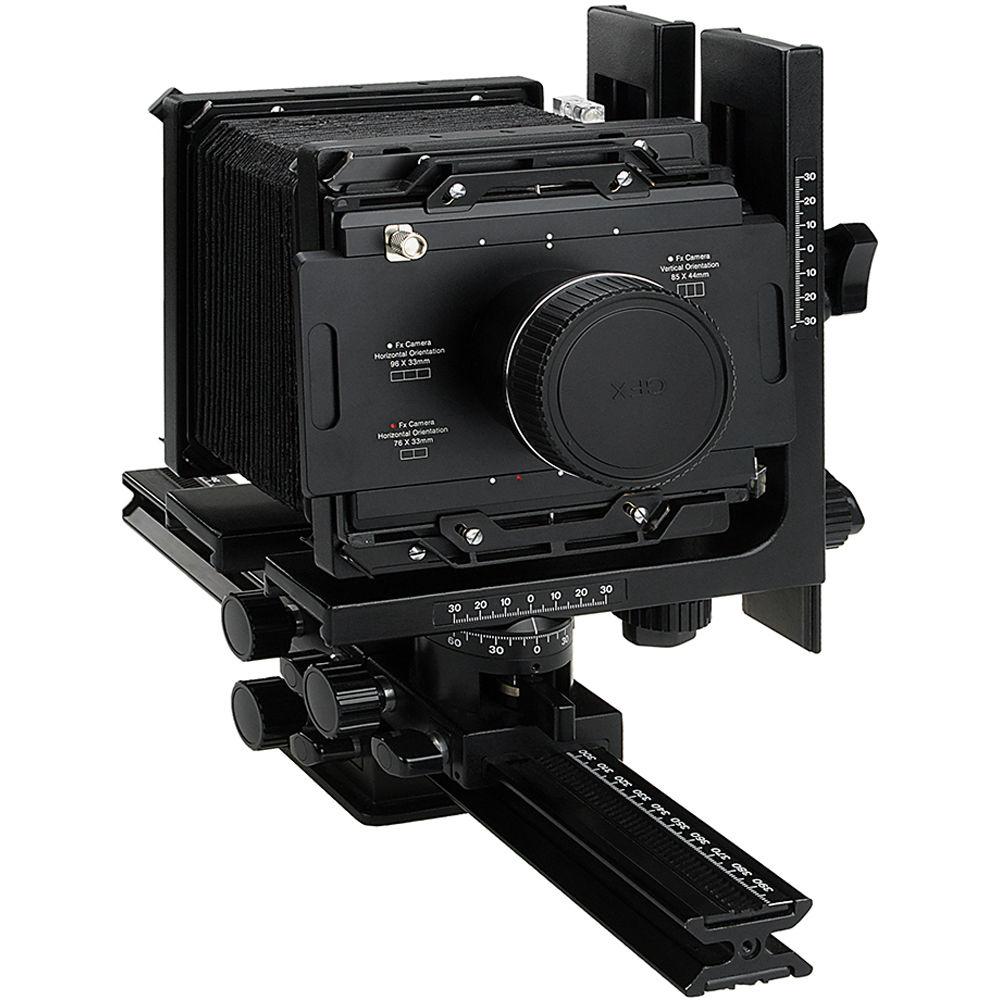

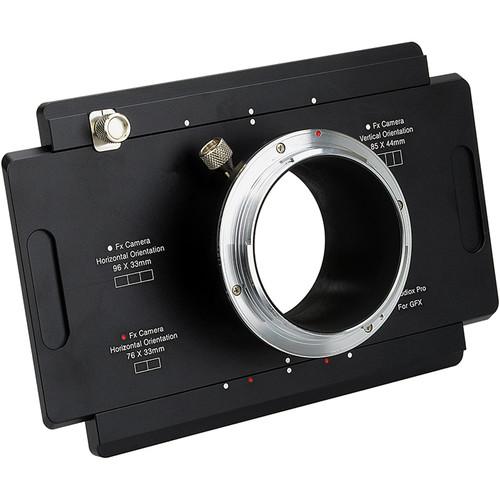

The front of this adapter consists of an interface plate that mounts directly onto a Graflok back. The rear of the interface plate holds a sliding panel with a bayonet for a Fujifilm G-mount camera. A Fujifilm G-mount camera connected to the adapter can be placed in the landscape or portrait orientation by rotating the sliding panel's bayonet. The sliding panel can be shifted and aligned according to a three-point interval scale on the rear of the interface plate. The central point can be used to orient the camera to generate an image from a single capture. Without otherwise moving the camera or the view camera it is adapted to, three captures, one at each point of the interval scale, can later be combined to form an image with triple the field of view and horizontal resolution.

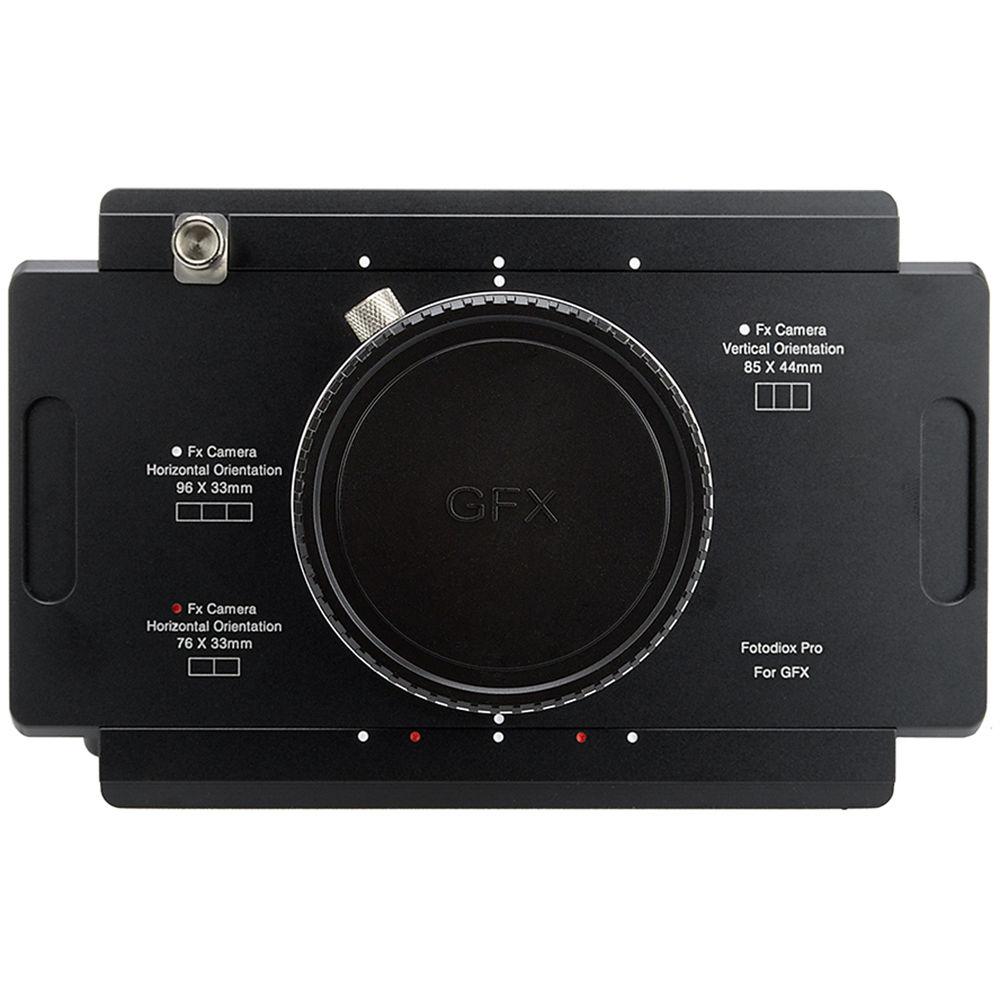

Alternatively, a secondary interval scale on the rear of the interface plate is specifically provided for use while a connected camera is in the landscape orientation. That interval scale can be used to generate two overlapping captures that can later be combined to form an image with 1.7x the field of view and horizontal resolution of a single image from a Fujifilm G-mount camera.
Aluminum-alloy locking knobs for the sliding panel and its rotatable bayonet allow each of those components to be firmly held in place during the capture process. To further enhance this adapter's durability, the rotatable bayonet, sliding panel, and the Graflok back-compatible interface plate are constructed from brass. -
- Allows a Fujifilm G-mount camera to serve as a digital back on a view camera that features a Graflok back
- Rotatable bayonet for Fujifilm G-mount camera permits the creation of images in the landscape or portrait orientation
- Create images from individual captures or use integrated sliding panel to generate multiple captures that can be combined to create a larger image using separately available stitching software
- Three-point interval scale for sliding mechanism helps generate three captures in the landscape or portrait orientation that can later be combined to form an image with triple the field of view and horizontal resolution of an image from an individual capture
- Secondary, two-point interval scale can be used to generate two overlapping captures in the landscape orientation which can later be combined to form an image with 1.7x the field of view and horizontal resolution of an image from an individual capture
- Aluminum-alloy locking knobs for sliding panel and rotatable bayonet
- Durable, brass construction for Graflok back-compatible interface plate, sliding panel, and rotatable bayonet

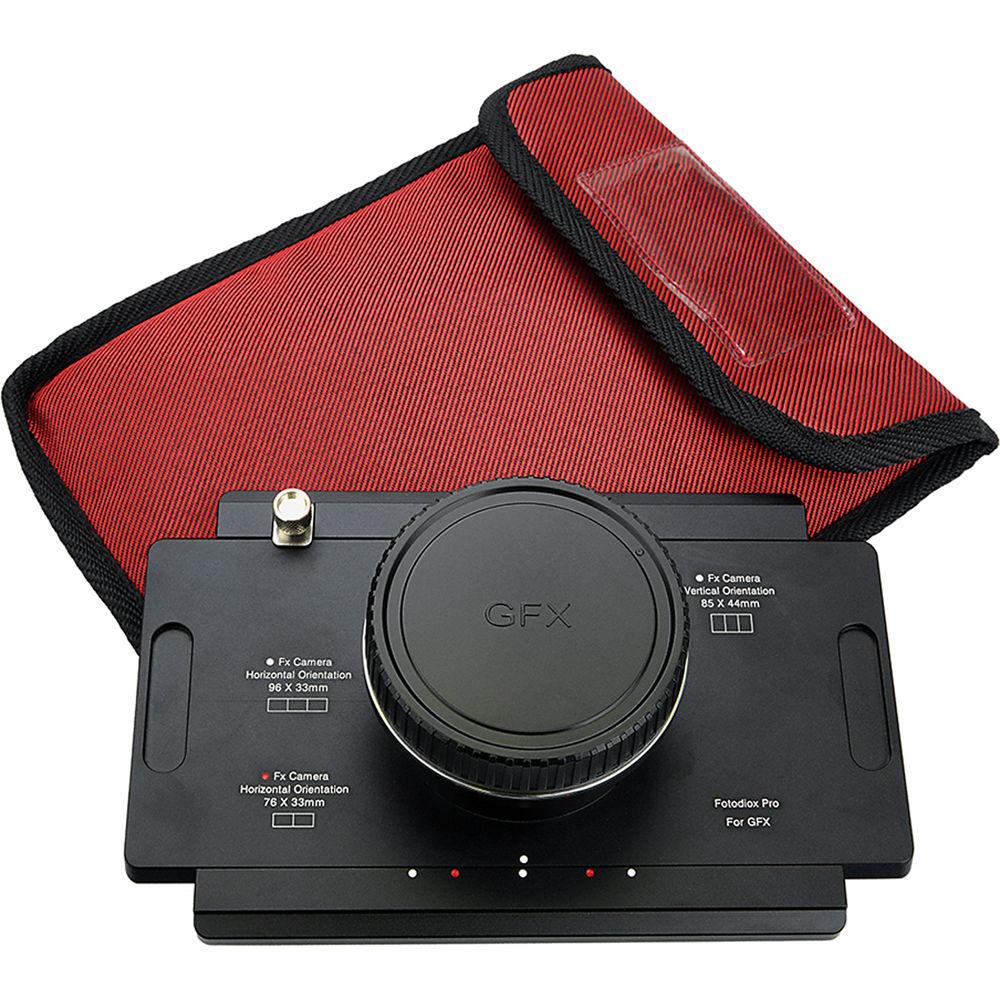

UPC: 847372037360 In the Box FotodioX Multi-Position Stitching Adapter for Fujifilm G-Mount Camera to View Camera with Graflok Back Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Multi-Position Stitching Adapter for Fujifilm G-Mount Camera to View Camera with Graflok Back in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX 4X5-GFX-PRO Specs | Compatibility | Fuji G-mount camera to view camera with Graflok back | | Material | Aluminum alloy
Brass | | Dimensions | 7.5 x 4.7 x 1.8" (19.0 x 12.0 x 4.5 cm) | | Weight | 17.0 oz (481.9 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.9 x 6.3 x 2.7" |
