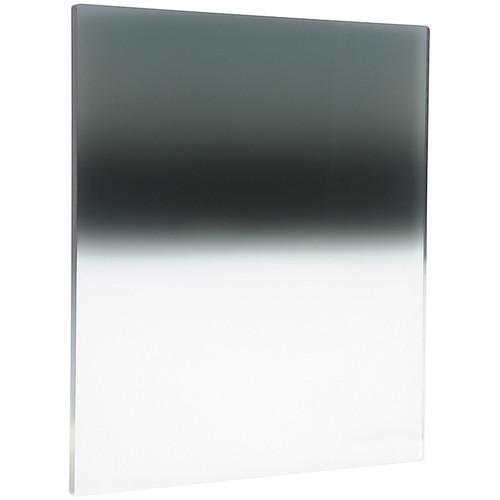

User Manual for FotodioX Pro 6.6 x 8.5" Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.6 Filter Click to enlarge the picture
Contents of the user manual for the FotodioX Pro 6.6 x 8.5" Hard-Edge
- Product category: Graduated Neutral Density FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX Graduated Neutral Density
|
User manual for the FotodioX Pro 6.6 x 8.5" Hard-Edge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|
Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More The FotodioX Pro 6.6 x 8.5" Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.6 Filter is designed for use with the WonderPana 66 and FreeArc filter holder systems. This filter can be applied to darken bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image.
This filter achieves its effect with a band across its center region that provides a 3-stop reduction in light from entering a lens. This band extends approximately 1.1" in both vertical directions before tapering to clear below and lighter above, with hard-edged lines of transition before both the lighter area and the clear area. The lighter area then extends approximately 2.0" until it meets the top edge of the filter, and provides a 2-stop reduction in light from entering a lens.
The placement of a 2-stop band of density over a 3-stop band of density that is directly above a clear area allows the FotodioX Pro 6.6 x 8.5" Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.6 Filter to match the positioning of the sun when it is at, or immediately above the horizon. In such instances, the sun can appear closer to the center of an image as opposed to the upper edge, and an increase in brightness is created that is more prominent on both sides of the sun than above it. This pattern of brightness corresponds to the density pattern on the FotodioX Pro 6.6 x 8.5" Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.6 Filter. The hard-edged lines of transition in this reverse, graduated neutral density filter are useful for hard transitions between the sky, land, and multiple regions of brightness within the sky.
This filter is made of durable, optical resin (CR39) and measures 4mm thick. A carrying pouch is also included for storage and transport. -
- Compatible with FotodioX WonderPana 66 and FreeArc Systems
- Effectively darkens bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image
- 2-stop band of density over a 3-stop band of density that is directly above a clear area creates a neutral density pattern that matches the positioning of the sun when it is at, or immediately above the horizon
- 3-stop band of density extends approximately 1.1" in both vertical directions, and 2-stop band of density extends approximately 2.0" until it reaches the top edge of the filter
- Density pattern corresponds to the brightness pattern of the sun when it appears at or is closer to the horizon as opposed to a higher angle, which creates an increase in brightness that is more prominent on both sides of the sun than above it
- Hard-edged lines of transition between the 2-stop band of density and 3-stop band of density, as well as between the 3-stop band of density and the clear area
- Transition lines are useful for hard transitions between the sky, land, and multiple regions of brightness within the sky
- Filter does not affect the overall coloration of the image
- Constructed from optical resin (CR39) for clarity and durability
- Filter pouch included for storage and transport
UPC: 847372026746 In the Box FotodioX Pro 6.6 x 8.5" Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.6 Filter (3 to 2-Stop) Filter Pouch Limited 2-Year Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 dzsddtqxdedebc How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro 6.6 x 8.5" Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.6 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX 6X8-REVGRAD-ND6SE Specs | Filter Type | Graduated ND | | Graduation Type | Reverse | | Density | 0.9 (3 Stops) | | Shape | Rectangle | | Rectangular Size | 6.6 x 8.5" / 168.0 x 216.0 mm | | Filter Thickness | 0.16" / 4 mm | | Filter Material | Resin | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 9.7 x 7.6 x 0.5" |
