FotodioX Pro FACTOR 1.5 x 1.5

User Manual for FotodioX Pro FACTOR 1.5 x 1.5 Bi-Color V-3000ASVL Kit with Grid and Travel Case

• Product category: LED Lights FotodioX
• Brand: FotodioX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for FotodioX LED Lights

Product description

• Pro FACTOR 1.5 x 1.5' V-3000ASVL Bi-Color Dimmable LED Studio Light Ideal for portraits, products, or fill light, the Pro FACTOR 1.5 x 1.5' V-3000ASVL Bi-Color Dimmable LED Studio Light from FotodioX has a host of essential professional features as well as convenience features that make using the light an easy and intuitive experience. Unlike other soft lights, the Pro FACTOR 1.5 x 1.5' has a built-in diffuser. The LEDs are set deep within the fixture instead of up against the diffuser, thus defeating harshness and hot spots and making the output as soft as it can be.The Pro FACTOR 1.5 x 1.5' has color that's variable from 3200 to 5600K to accommodate any other light source or ambient light conditions and to maximize your creative options. Dimming from 10 - 100% is available and both color and light intensity are controllable locally on the unit or remotely via DMX. The light draws just 200W while outputting many times that number in tungsten equivalence and rendering accurate, natural color with a CRI rating of approximately 96.Thanks to the inclusion of a 110-240 VAC power supply, the Pro Factor 1.5 x 1.5' is ready for worldwide use, but it also has a V-mount battery plate for optional batteries that can run the fixture for 1.3 hours when mains power is unavailable. The Pro FACTOR 1.5 x 1.5' ships with a yoke with 5/8" receiver and removable, clip-in barndoors.
  Benefits
  • • Powerful softlight without the need for diffusion - without the traditional shortcomings (multiple shadows, uncomfortable intensity) of conventional LED panels.

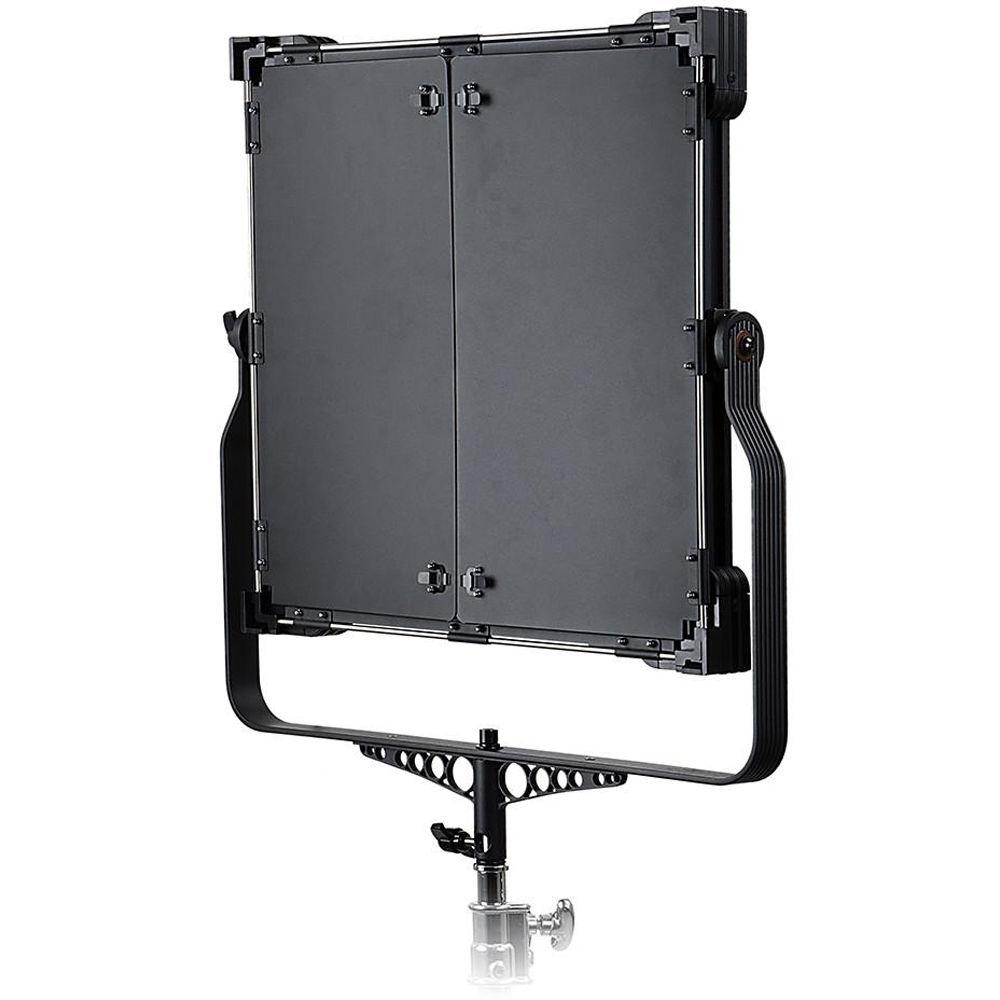

    • The Pro FACTOR light is ready to go for both photo and video right out of the box - no extra diffusion or accessories to add. Included barndoors control and shape the light, and are easy to remove.
    • AC adapter locks into V-Mount battery mount, or you can attach an optional V-Mount battery for totally wireless operation
    • The light draws a maximum of 200W, and so can connect to any household electrical circuit.
    • Durable all-metal construction, ready for studio and location work.

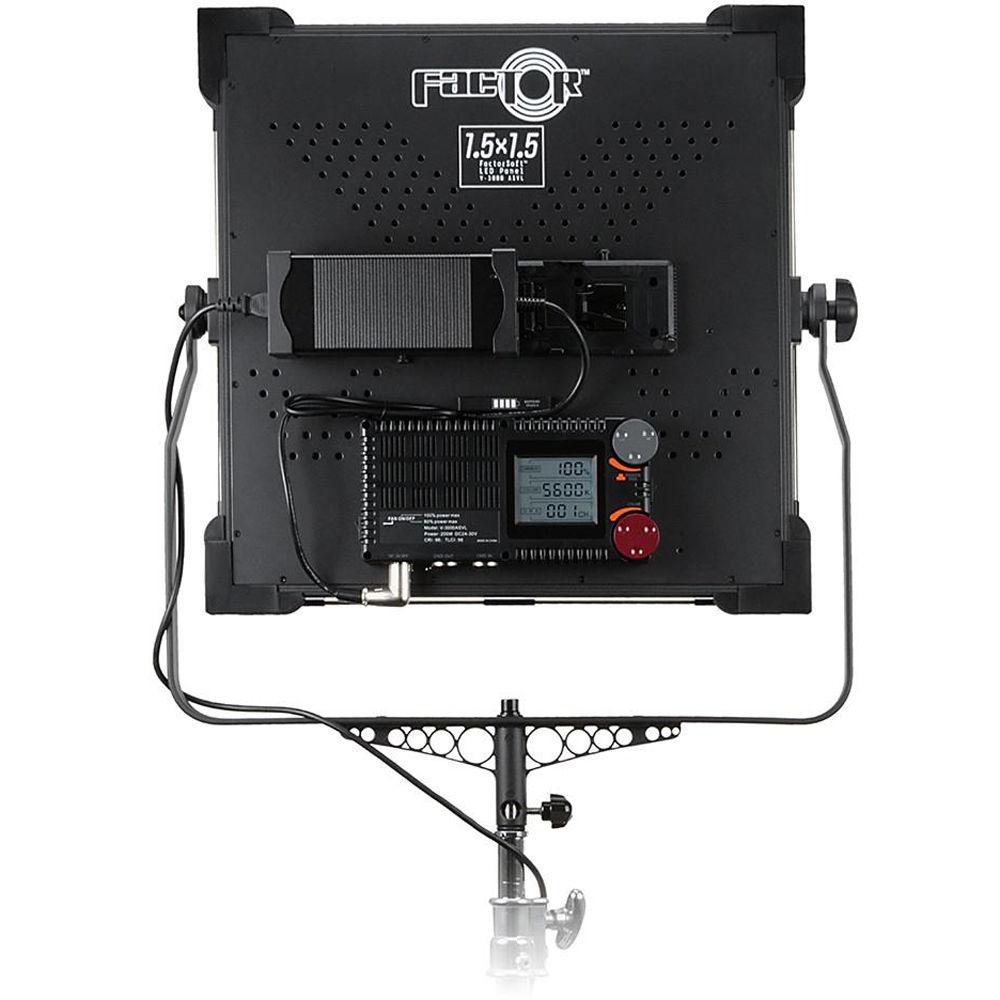

    • Rear backlit LCD displays percentage of light output, color temperature, remaining battery level, and DMX channel information
    • Optional Honeycomb Grid to concentrate light's beam angle to 90 degrees.
  UPC: 847372036905
• Honeycomb Grid for 1.5x1.5 V-3000ASVL Pro Factor LED Light Featuring lightweight aluminum construction and an easy snap-in design, the Honeycomb Grid for 1.5x1.5 V-3000ASVL Pro Factor LED Light from FotodioX narrows the light's wide beam spread to 90 degrees adding directional control, enabling selective lighting and containing spill light. UPC: 847372037711

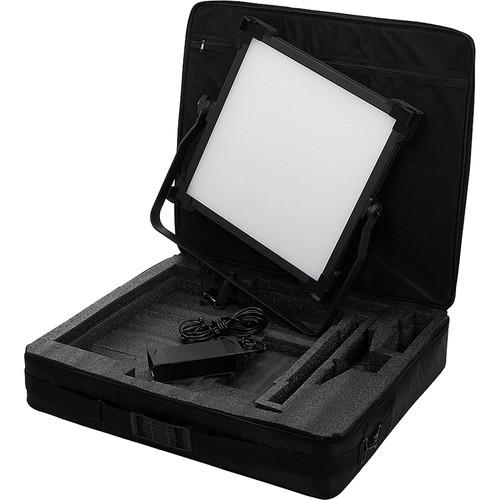

• Pro FACTOR and FACTOR Jupiter Studio Lights 1.5 x 1.5' LED V3000ASVL Case (Black) Store, protect, and transport your Pro FACTOR and FACTOR Jupiter Studio Lights 1.5 x 1.5' LED with the black V3000ASVL Studio Lights Case from Fotodiox. The case features a zipper closure, zippered inner compartment under the lid, a soft sided, ballistic nylon shell, and a custom-cut foam interior for light, cables, and accessories. Carry the case with the removable, anti-skid shoulder strap. The case may be stacked with several similar cases.
  • The underside of the top flap features a full sized zippered compartment for storing the barn doors or other accessories
  UPC: 847372042364

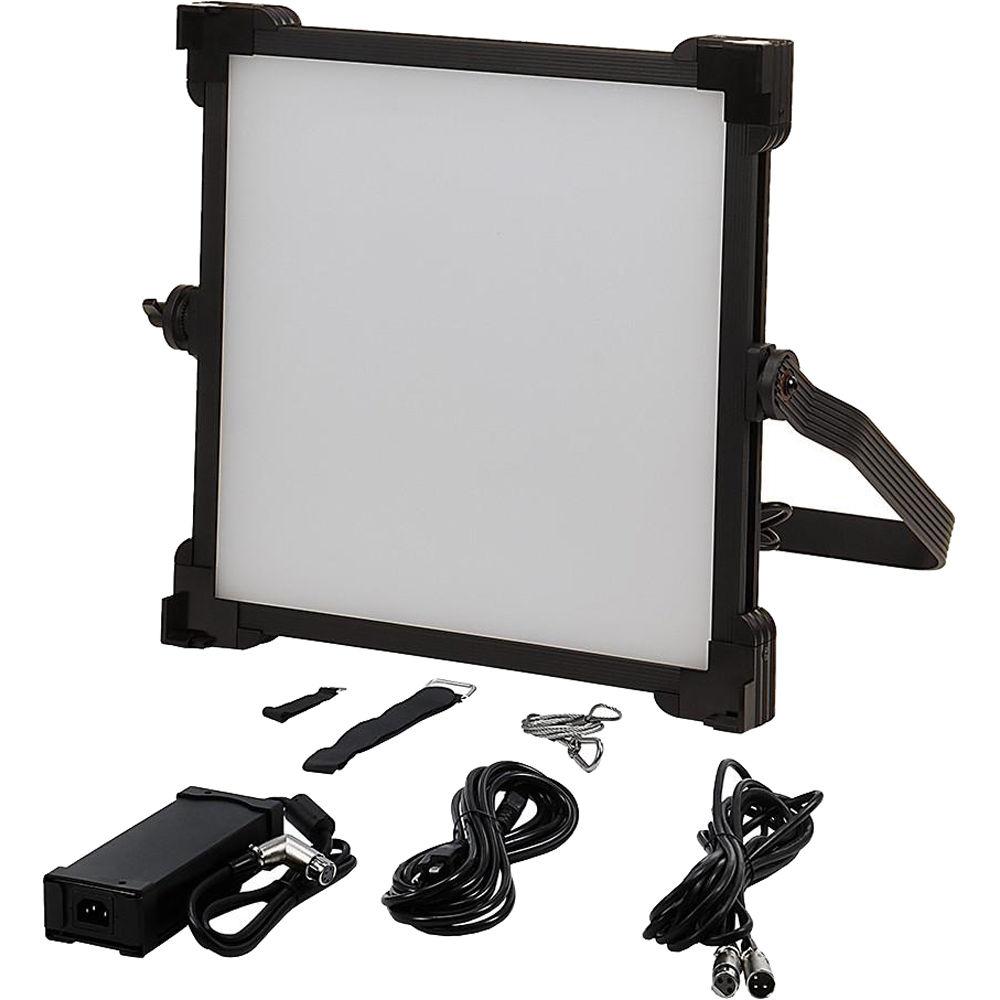

• 110-240 VAC Power Adapter and Cord

• Barndoors

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Shoulder Strap

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pro FACTOR 1.5 x 1.5' V-3000ASVL Bi-Color Dimmable LED Studio Light

  Beam Angle	120°
  Color Temperature	3200 to 5600K ± 300K

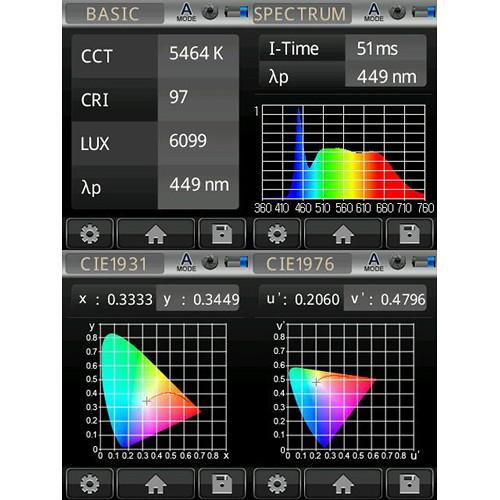

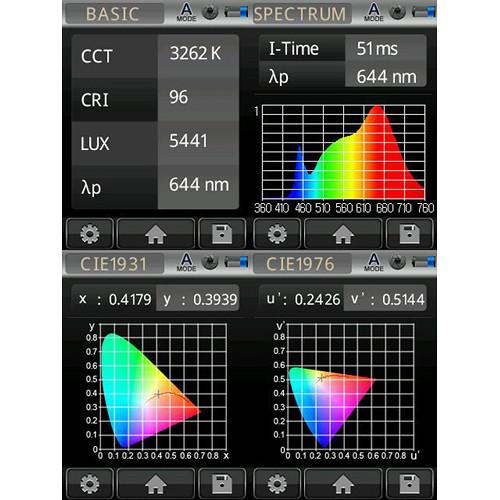

  Color Accuracy Standard	CRI 96
  Cooling System	None
  Dimming	Yes, 10 to 100%
  Display	None
  Lumens	6500
  Rectangular Panel Size	17.7 x 17.7" / 45 x 45 cm
  Fixture Dimensions	19.7 x 19.7" / 50.0 x 50.0 cm
  Fixture Weight	20.7 lb / 9.4 kg

  Battery Plate	1 x V-Mount
  Power Input Connector	4-Pin XLR
  DMX Connector	3-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX

  AC Input Power	110 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 to 24 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	200 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	32.3 x 27.8 x 6.0"

• Honeycomb Grid for 1.5x1.5 V-3000ASVL Pro Factor LED Light

  Material of Construction	Aluminum and ABS Plastic
  Beam Angle	90°

• Pro FACTOR and FACTOR Jupiter Studio Lights 1.5 x 1.5' LED V3000ASVL Case (Black)

  Padding	Foam

  Closure Type	Zipper
  Carry and Transport Options	Shoulder Strap
  Material of Construction	Nylon
