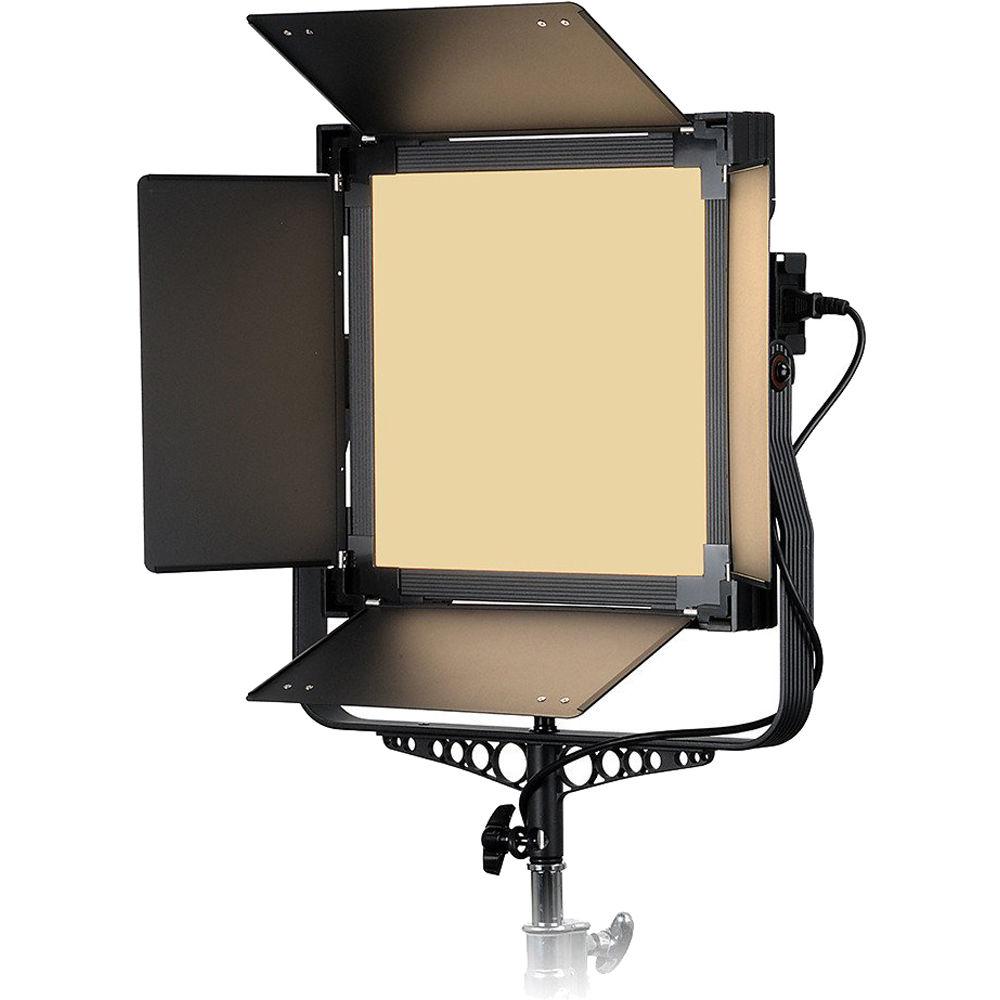

User Manual for FotodioX Pro FACTOR 1 x 1' V-2000ASVL Bi-Color Dimmable LED Studio Light Click to enlarge the picture
Contents of the user manual for the FotodioX Pro FACTOR 1 x 1'
- Product category: LED Lights FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX LED Lights
 |
User manual for the FotodioX Pro FACTOR 1 x 1' contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

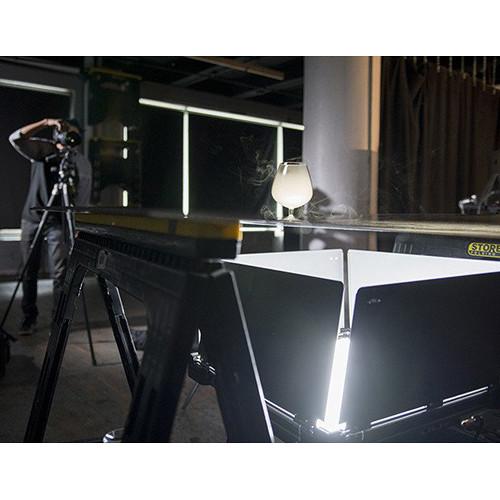

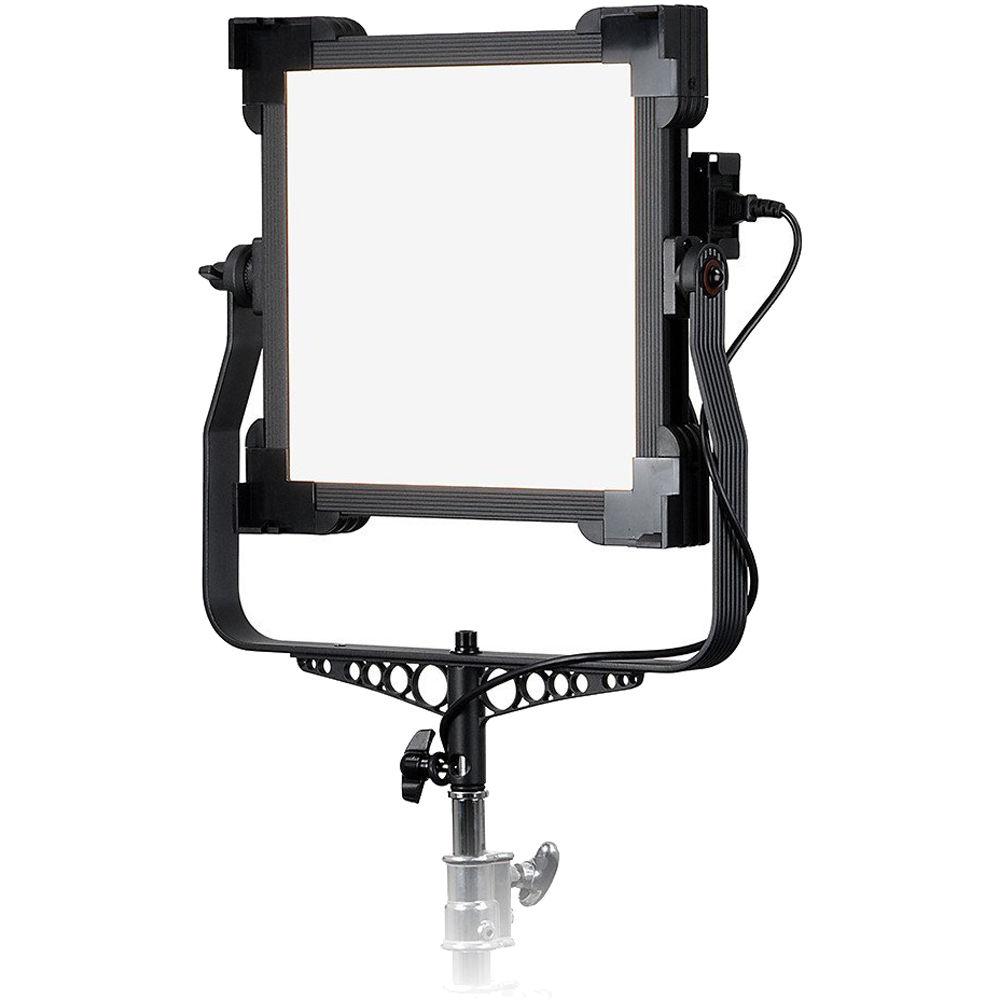

Product description Ideal for portraits, products, or fill light, the Pro FACTOR 1 x 1' V-2000ASVL Bi-Color Dimmable LED Studio Light from FotodioX has a host of essential professional features as well as convenience features that make using the light an easy and intuitive experience. Unlike other soft lights, the Pro FACTOR 1 x 1' has a built-in diffuser. The LEDs are set deep within the fixture instead of up against the diffuser, thus defeating harshness and hot spots and making the output as soft as it can be.The Pro FACTOR 1 x 1' has color that's variable from 3200 to 5600K to accommodate any other light source or ambient light conditions and to maximize your creative options. Dimming from 10 - 100% is available and both color and light intensity are controllable locally on the unit or remotely via DMX. The light draws just 100W while outputting many times that number in tungsten equivalence and rendering accurate, natural color with a CRI rating of approximately 96.Thanks to the inclusion of a 110-240 VAC power supply, the Pro Factor 1 x 1' is ready for worldwide use, but it also has a V-mount battery plate for optional batteries that can run the fixture for 1.3 hours when mains power is unavailable. The Pro FACTOR 1 x 1' ships with a yoke with 5/8" receiver and removable, clip-in barndoors. - Benefits
-
- Powerful softlight without the need for diffusion - without the traditional shortcomings (multiple shadows, uncomfortable intensity) of conventional LED panels.

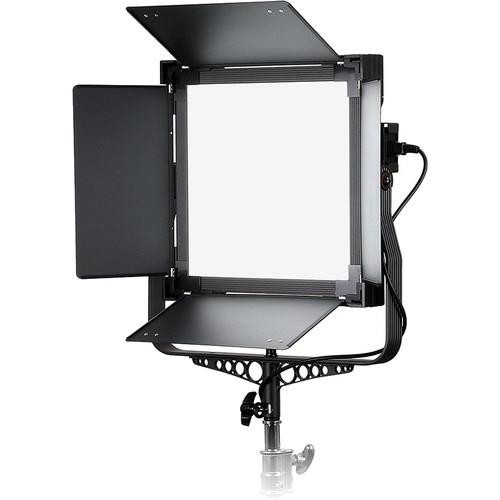

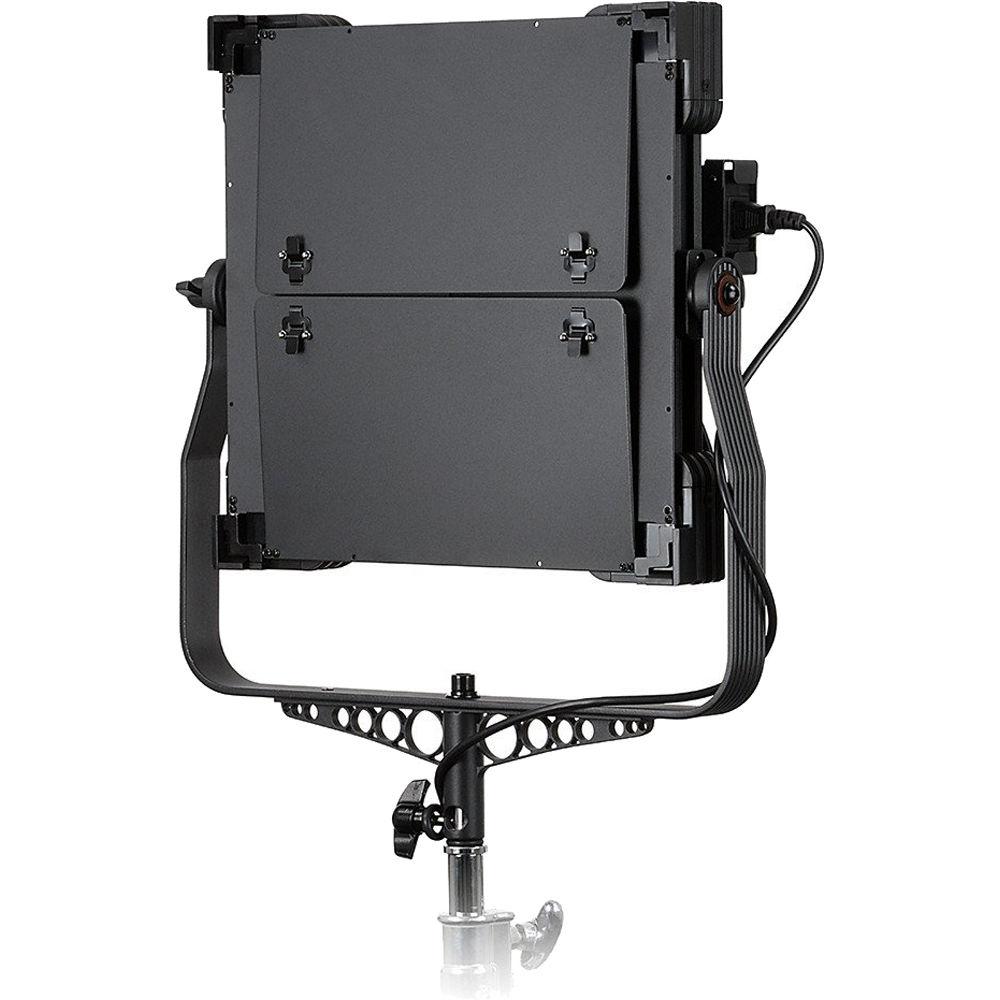

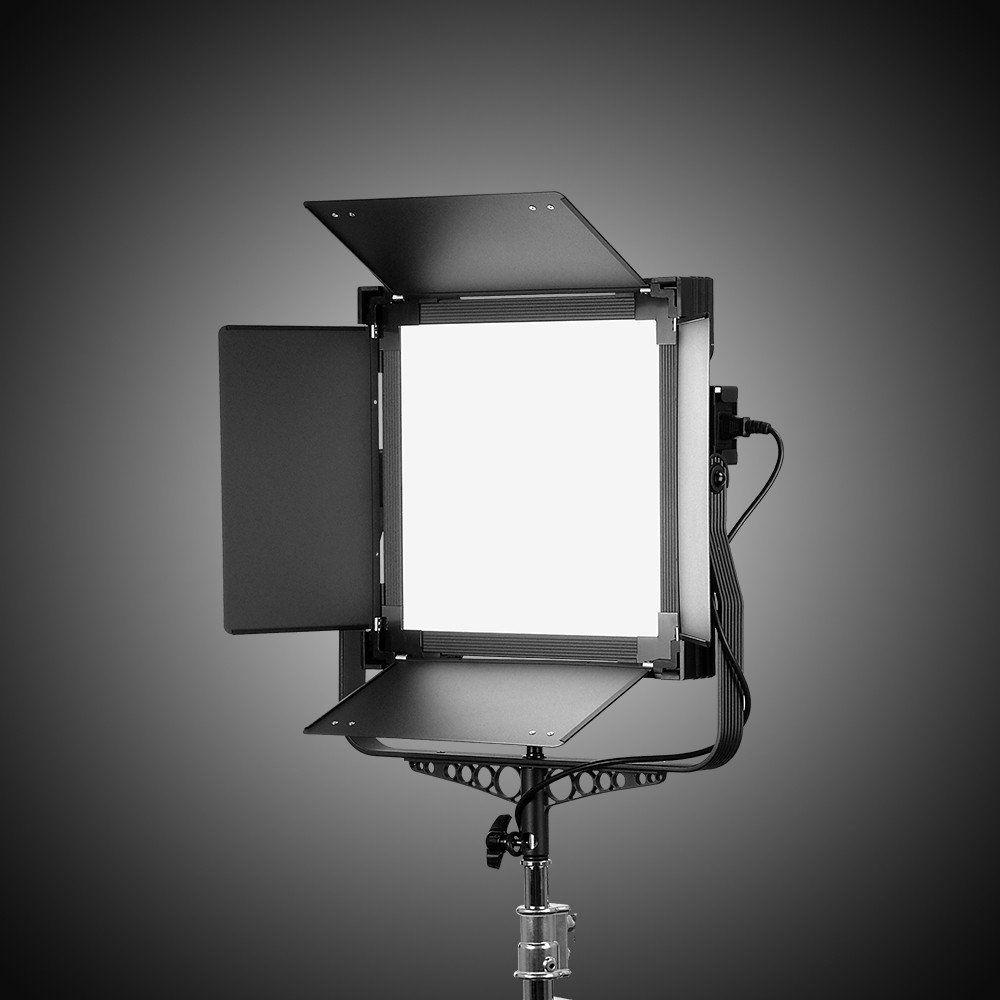

- The Pro FACTOR light is ready to go for both photo and video right out of the box - no extra diffusion or accessories to add. Included barndoors control and shape the light, and are easy to remove.
- AC adapter locks into V-Mount battery mount, or you can attach an optional V-Mount battery for totally wireless operation
- The light draws a maximum of 100W, and so can connect to any household electrical circuit.
- Durable all-metal construction, ready for studio and location work.

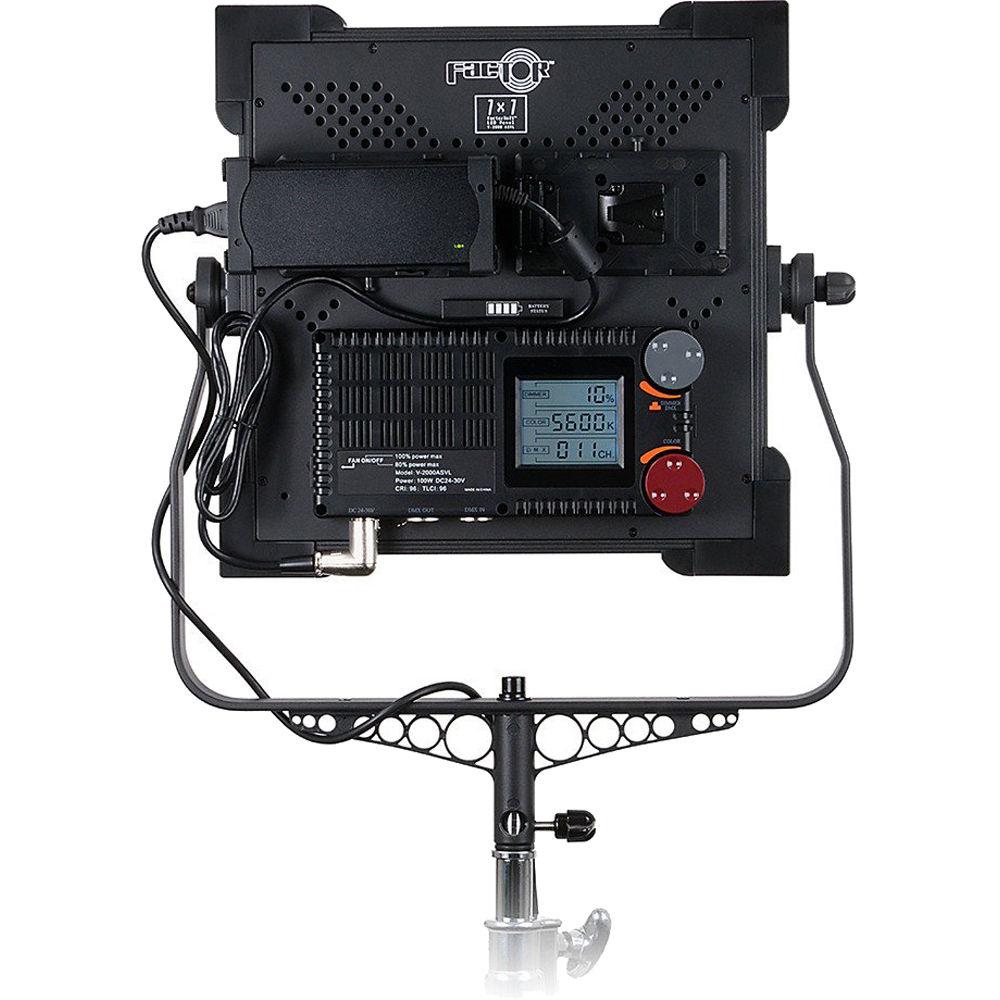

- Rear backlit LCD displays percentage of light output, color temperature, remaining battery level, and DMX channel information
- Optional Honeycomb Grid to concentrate light's beam angle to 90 degrees.

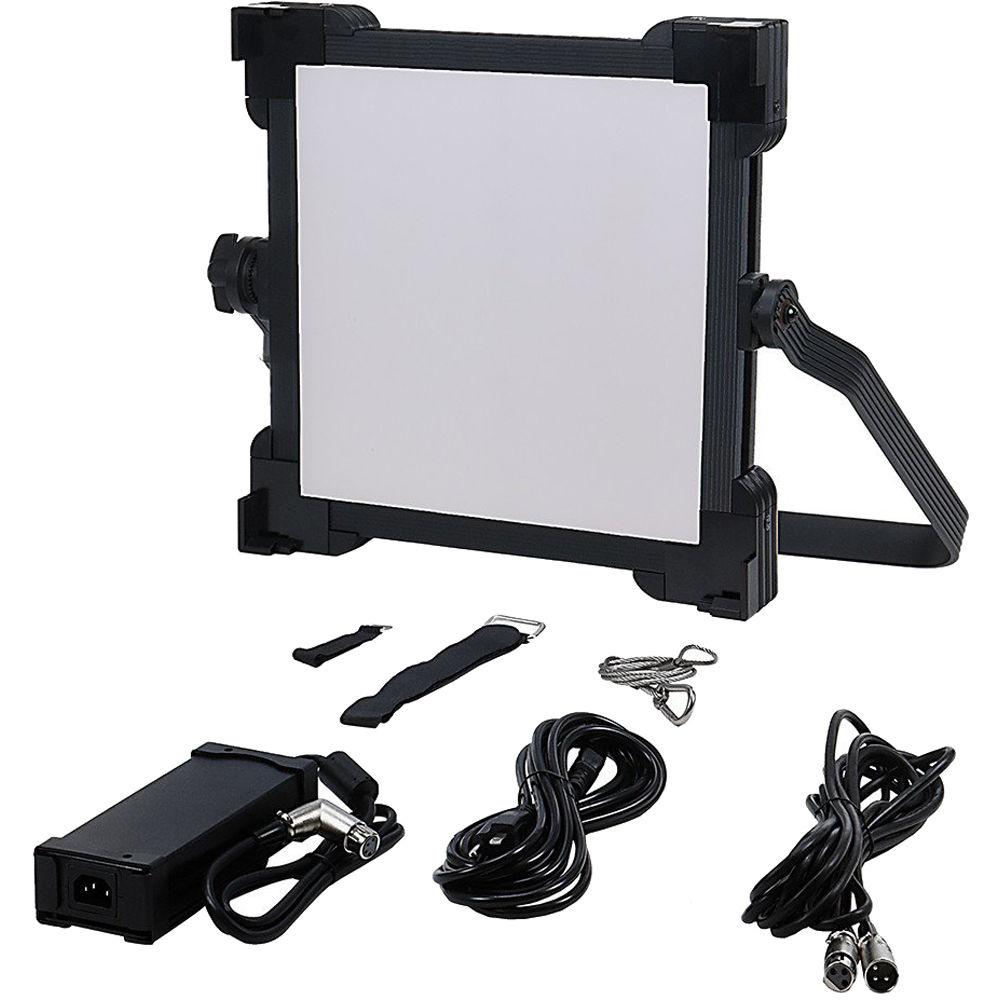

UPC: 847372036929 In the Box FotodioX Pro FACTOR 1 x 1' V-2000ASVL Bi-Color Dimmable LED Studio Light 110-240 VAC Power Adapter and Cord Barndoors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro FACTOR 1 x 1' V-2000ASVL Bi-Color Dimmable LED Studio Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX V-2000ASVL Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K ± 300K | | Color Accuracy Standard | CRI 96 | | Cooling System | None | | Dimming | Yes, 10 to 100% | | Display | None | | Lumens | 3200 | | Rectangular Panel Size | 11.8 x 11.8" / 30 x 30 cm | | Fixture Dimensions | 13.8 x 13.8" / 35.0 x 35.0 cm | | Fixture Weight | 12.9 lb / 5.85 kg | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR | | DMX Connector | 3-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 25.2 x 20.7 x 5.9" |
