User Manual for FotodioX Pro FACTOR 1 x 4' V-6000ASVL Bi-Color Dimmable LED Studio Light

Click to enlarge the picture
FotodioX Pro FACTOR 1 x 4 Contents of the user manual for the FotodioX Pro FACTOR 1 x 4'
  • Product category: LED Lights FotodioX
  • Brand: FotodioX
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FotodioX LED Lights

FotodioX Pro FACTOR 1 x 4 FotodioX Pro FACTOR 1 x 4 FotodioX Pro FACTOR 1 x 4 FotodioX Pro FACTOR 1 x 4 FotodioX Pro FACTOR 1 x 4 FotodioX Pro FACTOR 1 x 4
User manual for the FotodioX Pro FACTOR 1 x 4' contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FotodioX product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!



Product description

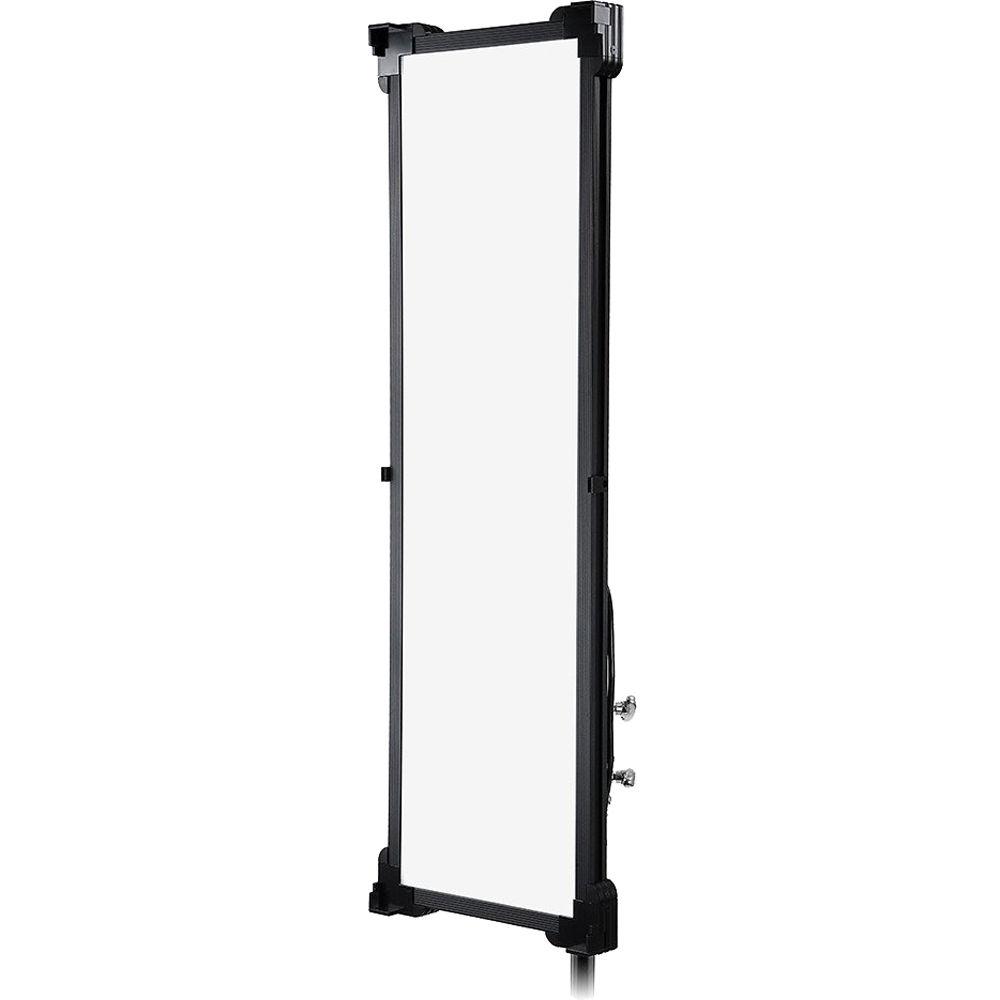

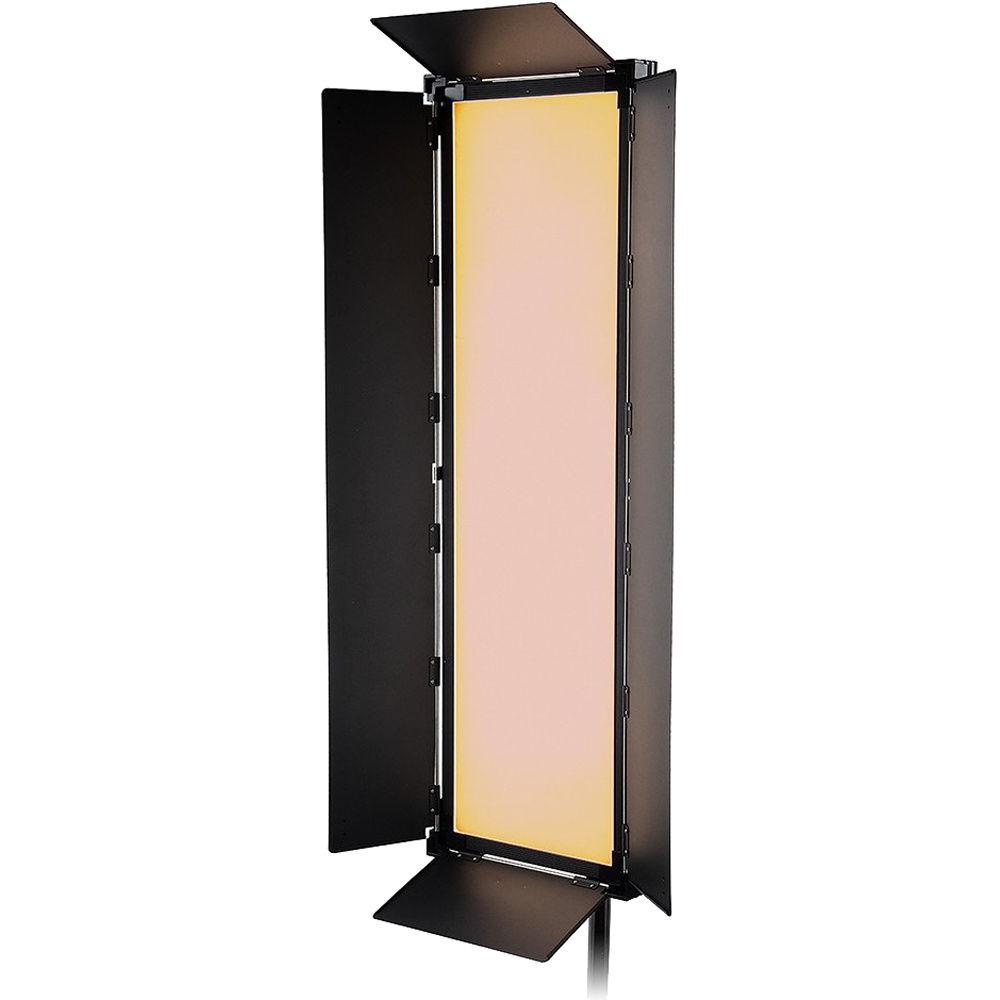

Ideal for portraits, products, or fill light, the Pro FACTOR 1 x 4' V-6000ASVL Bi-Color Dimmable LED Studio Light from FotodioX has a host of essential professional features as well as convenience features that make using the light an easy and intuitive experience. Unlike other soft lights, the Pro FACTOR 1 x 4' has a built-in diffuser. The LEDs are set deep within the fixture instead of up against the diffuser, thus defeating harshness and hot spots and making the output as soft as it can be.The Pro FACTOR 1 x 4' has color that's variable from 3200 to 5600K to accommodate any other light source or ambient light conditions and to maximize your creative options. Dimming from 10 - 100% is available and both color and light intensity are controllable locally on the unit or remotely via DMX. The light draws just 300W while outputting many times that number in tungsten equivalence and rendering accurate, natural color with a CRI rating of approximately 96.Thanks to the inclusion of a 110-240 VAC power supply, the Pro Factor 1 x 4' is ready for worldwide use, but it also has a V-mount battery plate for optional batteries that can run the fixture for 0.86 hours when mains power is unavailable. The Pro FACTOR 1 x 4' ships with a yoke with 5/8" receiver and removable, clip-in barndoors.
    Benefits
    • Powerful softlight without the need for diffusion - without the traditional shortcomings (multiple shadows, uncomfortable intensity) of conventional LED panels.

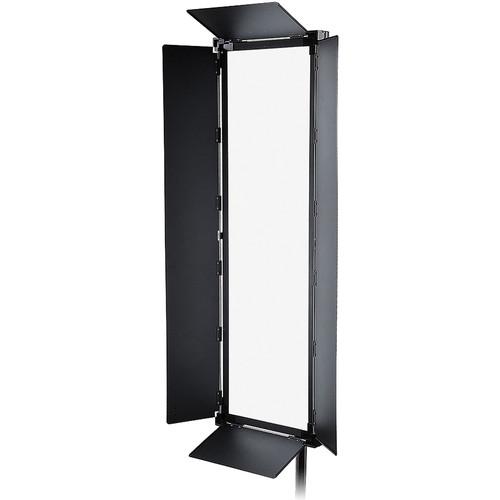

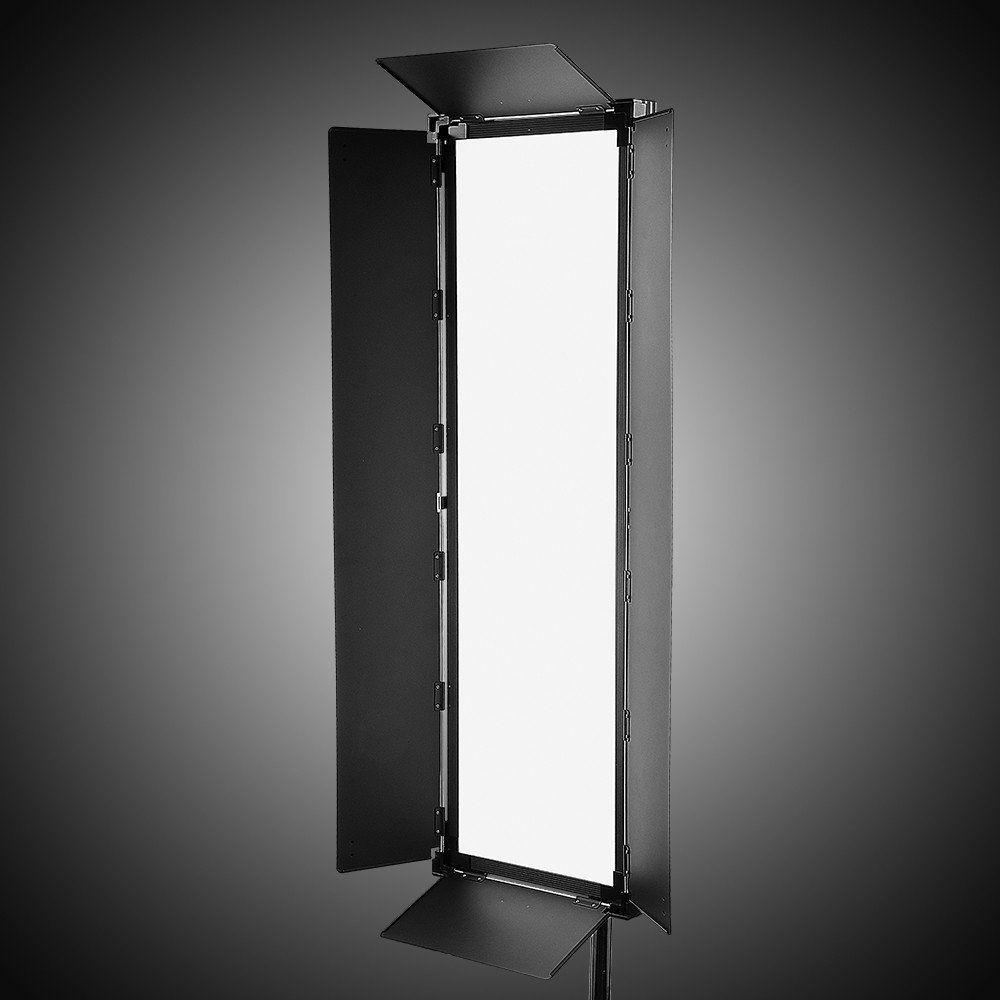

    • The Pro FACTOR light is ready to go for both photo and video right out of the box - no extra diffusion or accessories to add. Included barndoors control and shape the light, and are easy to remove.
    • AC adapter locks into V-Mount battery mount, or you can attach an optional V-Mount battery for totally wireless operation
    • The light draws a maximum of 300W, and so can connect to any household electrical circuit.
    • Durable all-metal construction, ready for studio and location work.
    • Rear backlit LCD displays percentage of light output, color temperature, remaining battery level, and DMX channel information
    • Optional Honeycomb Grid to concentrate light's beam angle to 90 degrees.

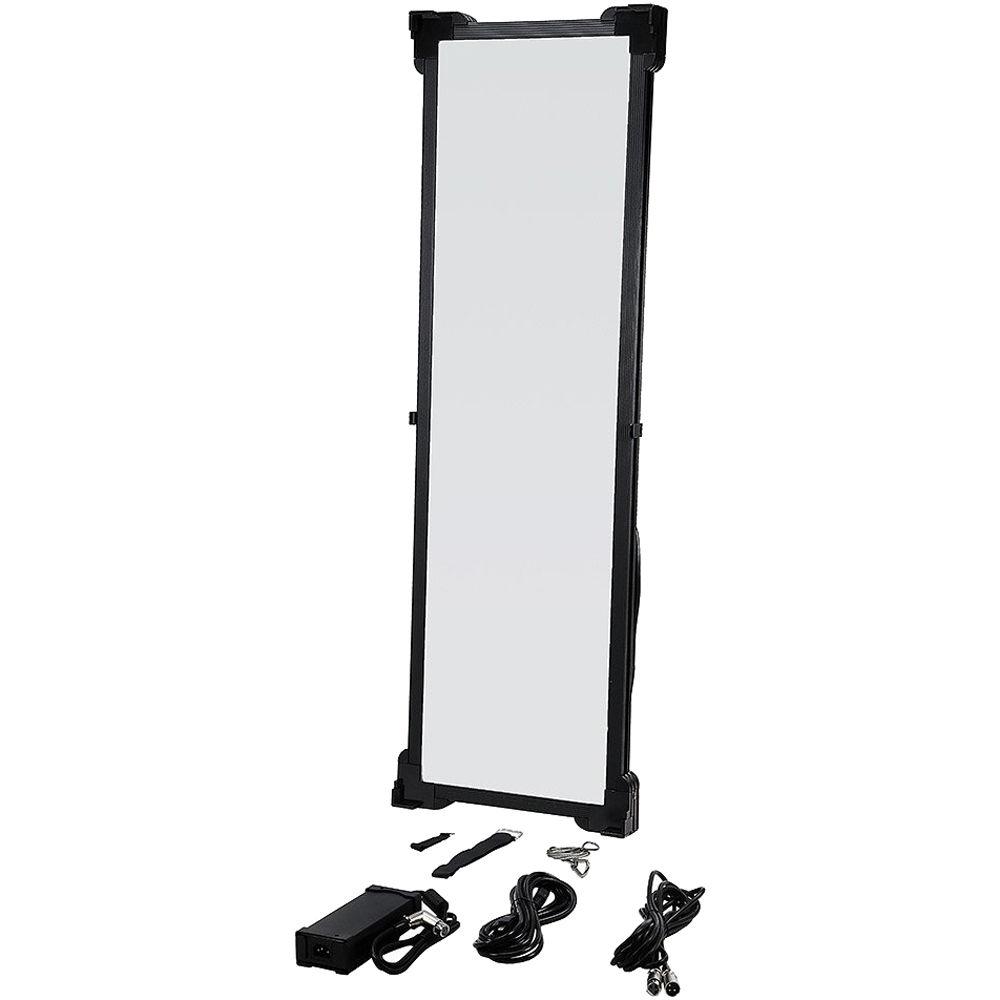

UPC: 847372036882 In the Box FotodioX Pro FACTOR 1 x 4' V-6000ASVL Bi-Color Dimmable LED Studio Light
  • 110-240 VAC Power Adapter and Cord

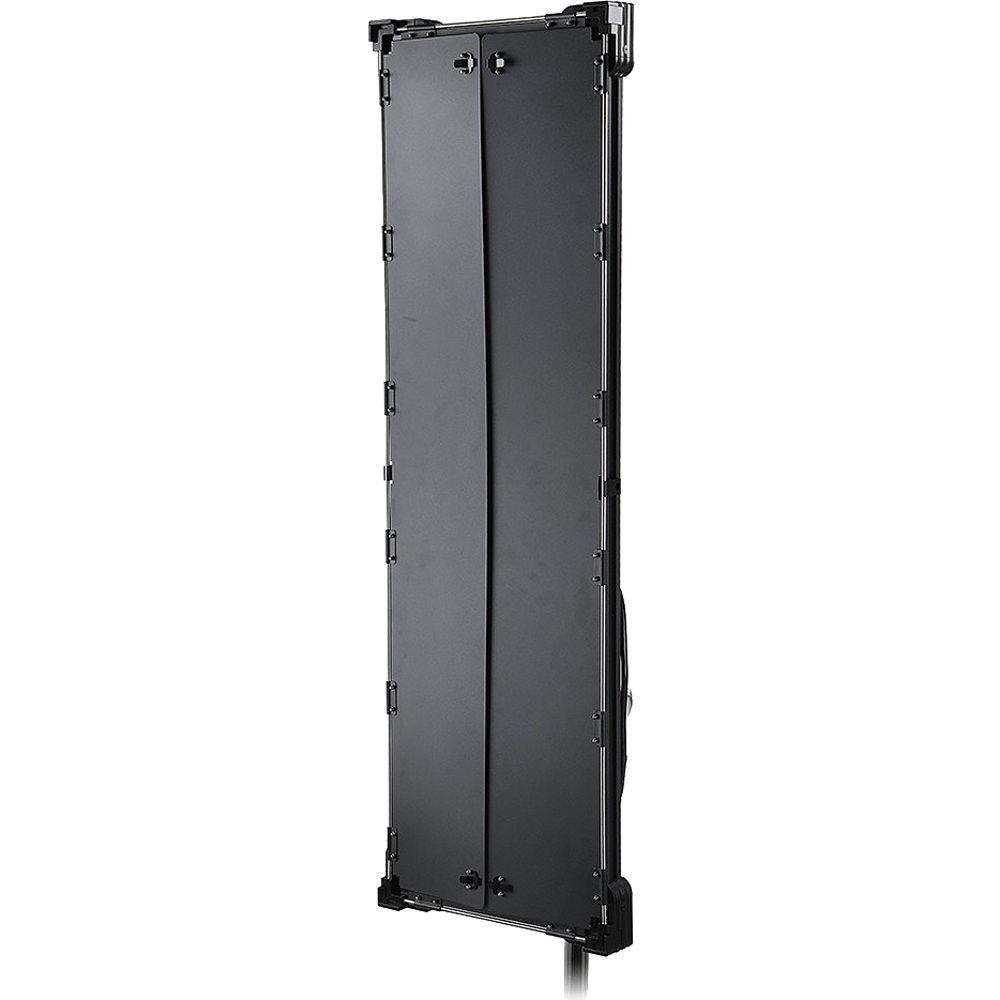

  • Barndoors
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the FotodioX Pro FACTOR 1 x 4' V-6000ASVL Bi-Color Dimmable LED Studio Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    FotodioX V-6000ASVL Specs

    Beam Angle 120°
    Color Temperature 3200 to 5600K ± 300K
    Color Accuracy Standard CRI 96
    Cooling System None
    Dimming Yes, 10 to 100% (Stepped)
    Display None
    Lumens 8600
    Rectangular Panel Size 11.8 x 43.3" / 30 x 110 cm
    Fixture Dimensions 13.8 x 45.3" / 35.0 x 115.0 cm
    Fixture Weight 33.6 lb / 15.25 kg
    Battery Plate 1 x V-Mount
    Power Input Connector 4-Pin XLR
    DMX Connector 3-Pin XLR

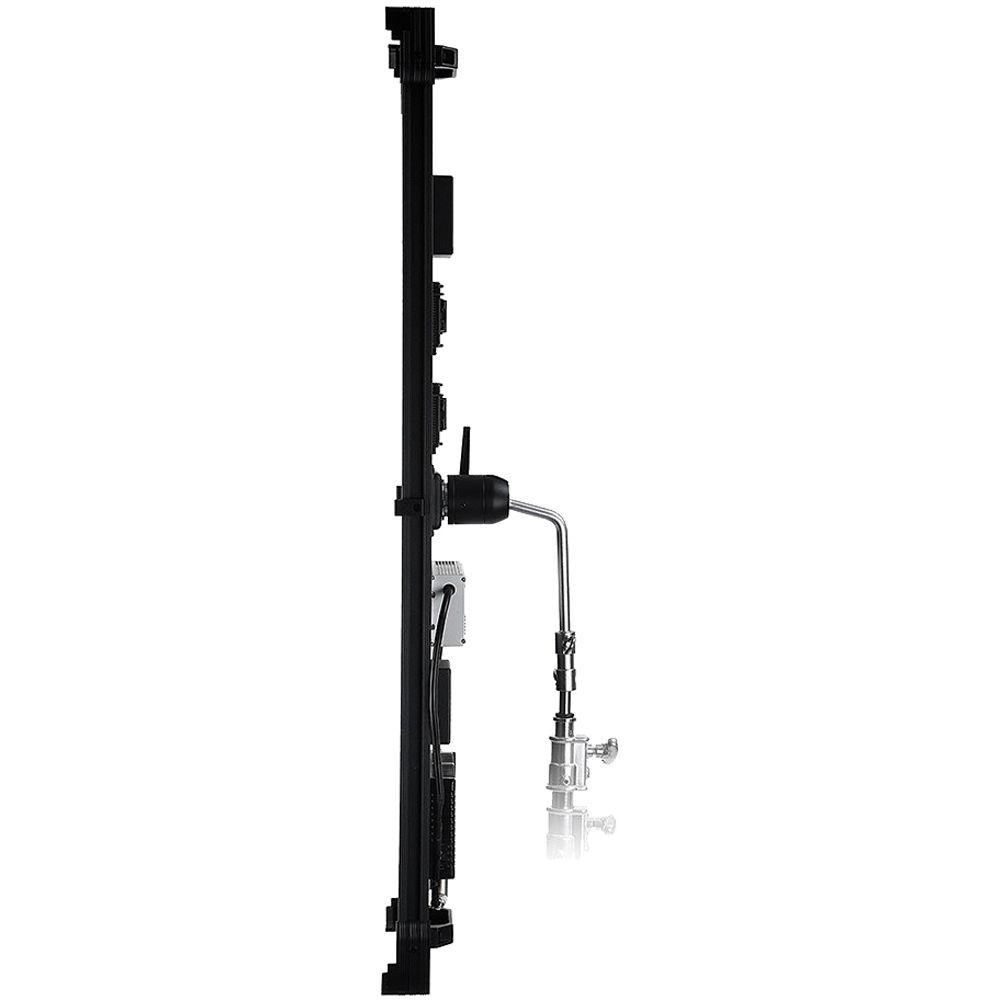

    Yoke Mount TVMP/ Hex Bolt
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Remote Control Type DMX
    AC Input Power 110 to 240 VAC, 50 / 60 Hz
    DC Input Power 15 to 24 VDC
    Power Source AC Adapter, External Battery
    Max Power Consumption 300 W
    IP Rating IP20
    Package Weight 42.5 lb
    Box Dimensions (LxWxH) 52.0 x 21.3 x 8.4"
