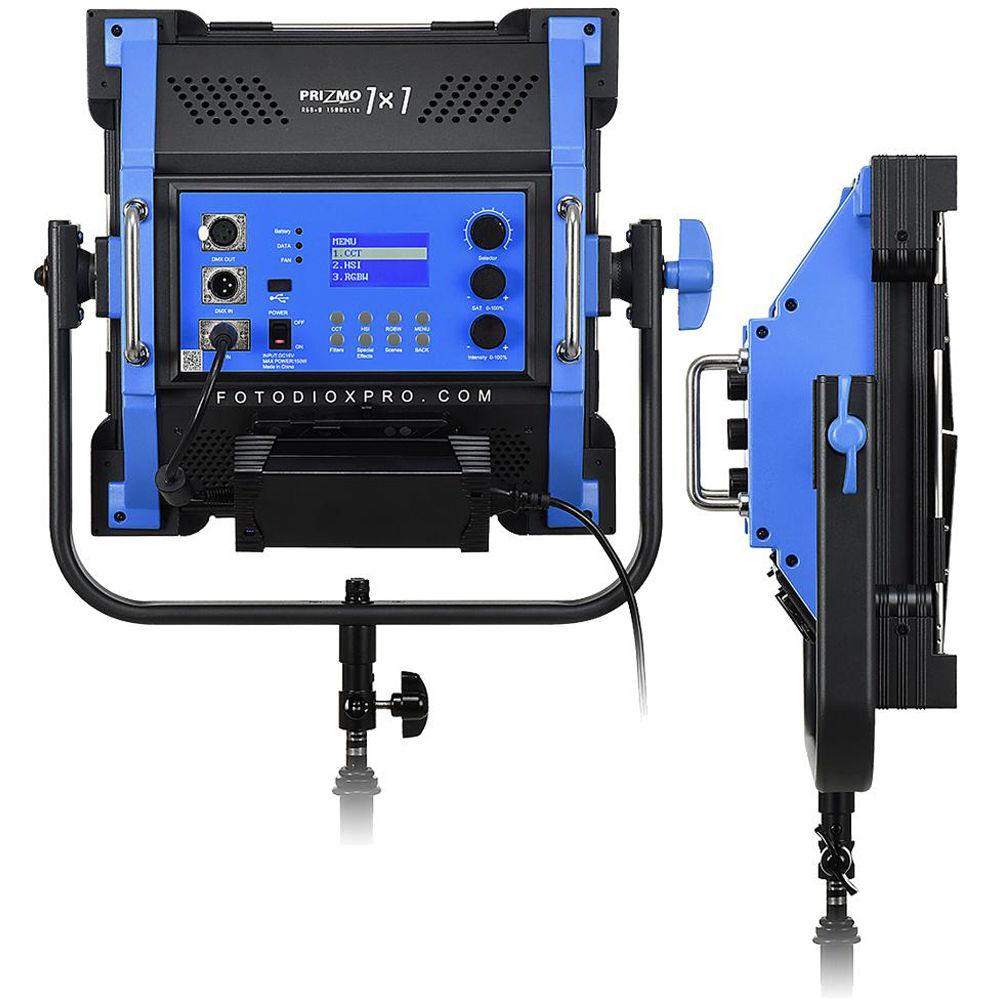

User Manual for FotodioX Pro FACTOR Prizmo 150 RGB W Multi Color LED Light Click to enlarge the picture
Contents of the user manual for the FotodioX Pro FACTOR Prizmo 150 RGB
- Product category: LED Lights FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX LED Lights
 |
User manual for the FotodioX Pro FACTOR Prizmo 150 RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|
Product description - FACTOR Prizmo: Affordable RGB+W Light for Video and Photo

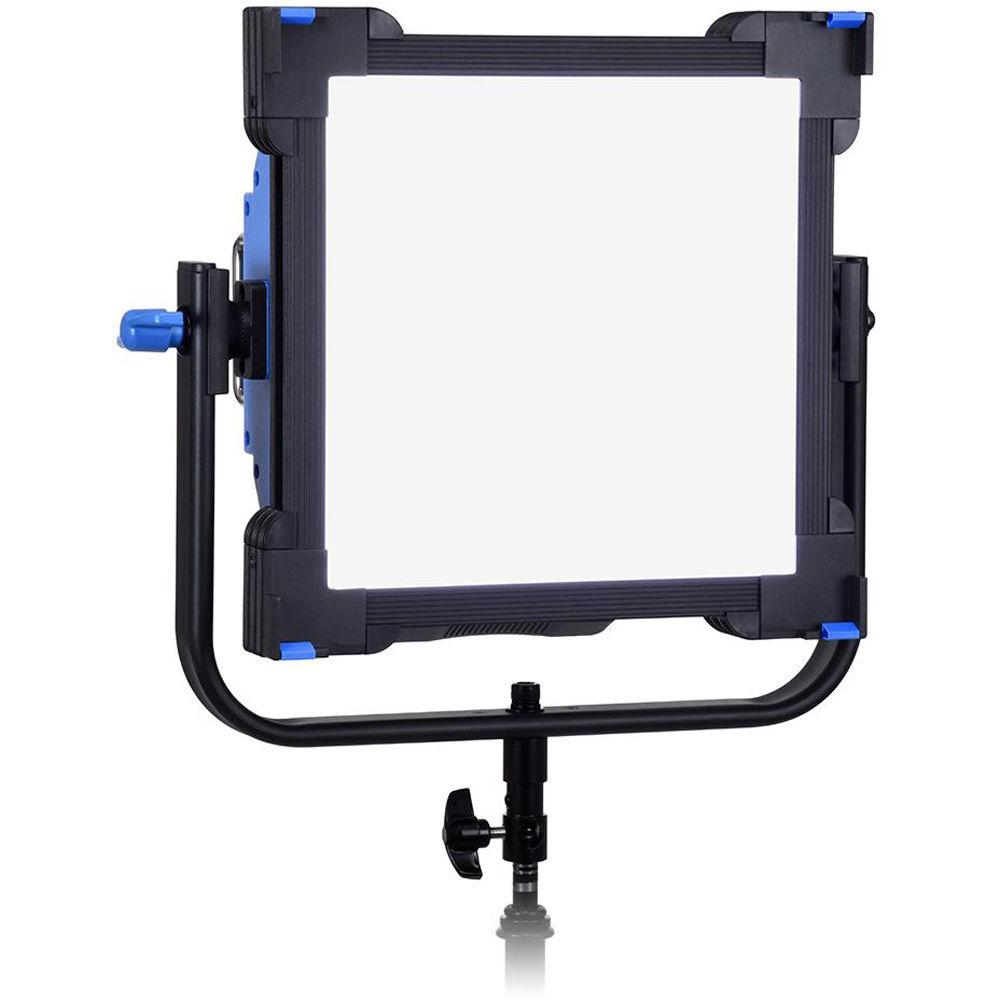

Loaded with advanced features, the Pro FACTOR Prizmo 150 RGB+W Multi Color LED Light from FotodioX has a 1 x 1' illuminated surface, a wide 120-degree beam spread, and while it draws just 150W, outputs the equivalent of a 1000W tungsten fixture. The Prizmo has a white light color temperature of 2800-10,000K and a high CRI of 95 indicating color fidelity. It's also got HSI and RBGW Mixing modes, as well as Hue and Saturation control to give you access to the full 360-degree color gamut and literally millions of color combinations. Light intensity is variable too from 10 to 100% and while you can make color and dimming adjustments locally on the light, you can also make them remotely from a console via onboard DMX, or wirelessly using the included remote control. Yet another handy feature is the Pre-Programmed Filter mode that allows duplication of industry-standard gels. There's also a Special Effects mode that includes police car, fire, party, and fireworks effects. The Prizmo is ready for worldwide use thanks to its 110 to 240 VAC power adapter, but you can also run the light on batteries via the V-Mount battery plate when mains power is unavailable. A custom carry case is included for storage and transport. - Affordable RGB+W Light
- Each FACTOR Prizmo light includes several built-in control modes including CCT mode for white light adjustable from 2800 to 10000K, adjustable magenta and green points, HSI mode to access the full 360° color gamut, and RBGW mixing mode. There is also a pre-programmed Filter mode to assist in matching industry-standard gels as well as pre-programmed special effects modes including police car, fire, party and fireworks effects.
- Control Options

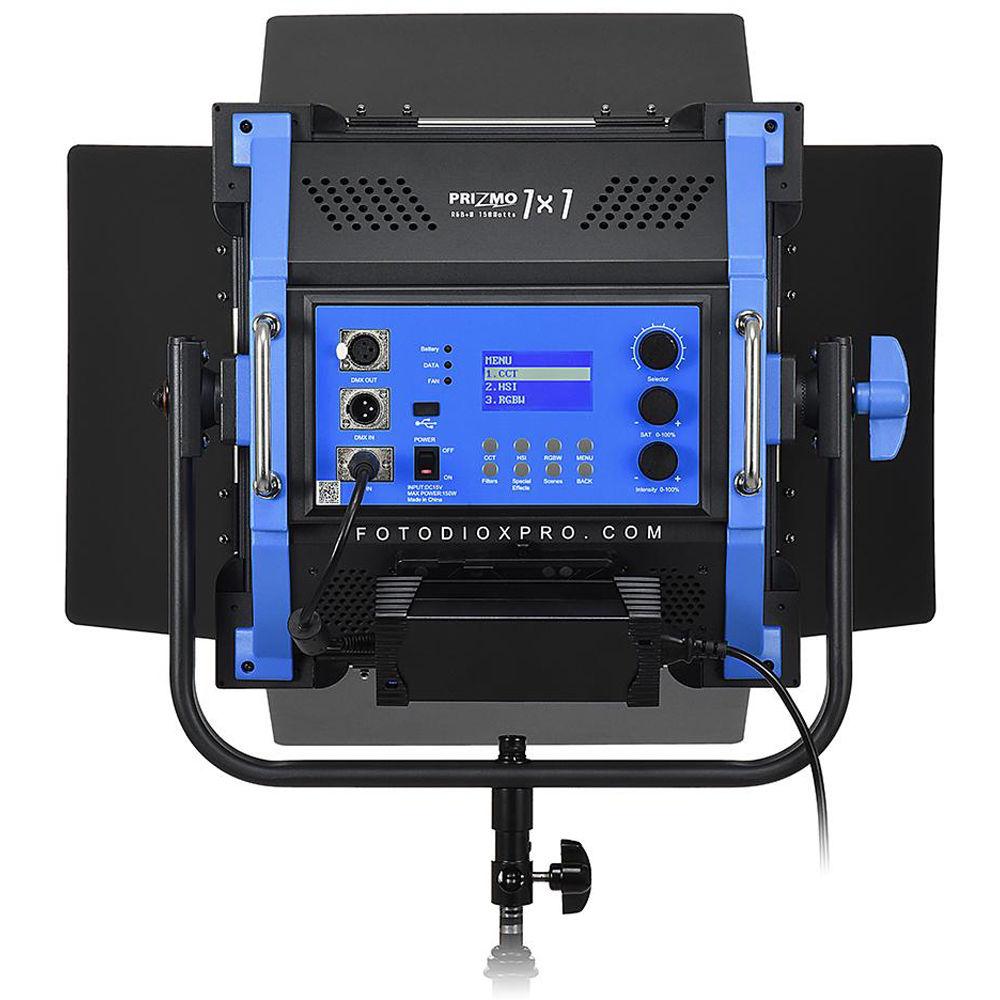

- Make color and light intensity adjustments on the fixture, remotely from a console via DMX, or wirelessly with the included remote control.
- Powerful Softlight Without the Need for Diffusion
- FACTORSOFT technology creates flattering, strong, single-source light without the shortcomings of conventional LED panels such as hot spots, and without extra diffusion or accessories. The light's CRI of 95 is an indicator of impressive accuracy in color rendering. FACTOR lights are also flicker-free, making them a solid option for any shooting scenario, including slow motion video.
- Heavy-Duty Construction and Advanced Features
- FACTOR Prizmo lights have a solid aluminum frame for durability and added heat dissipation. The silent-running, intelligent cooling fan ensures that your lights are ventilated without adding fan noise to your shoot.
- Ready for Studio or Location Work of all Kinds
- The FACTOR Prizmo 150 light draws a maximum of 150W, so you can run it on any household electrical circuit. FACTOR Prizmo lights can also be powered by optional batteries, thanks to its onboard V-mount battery plate.

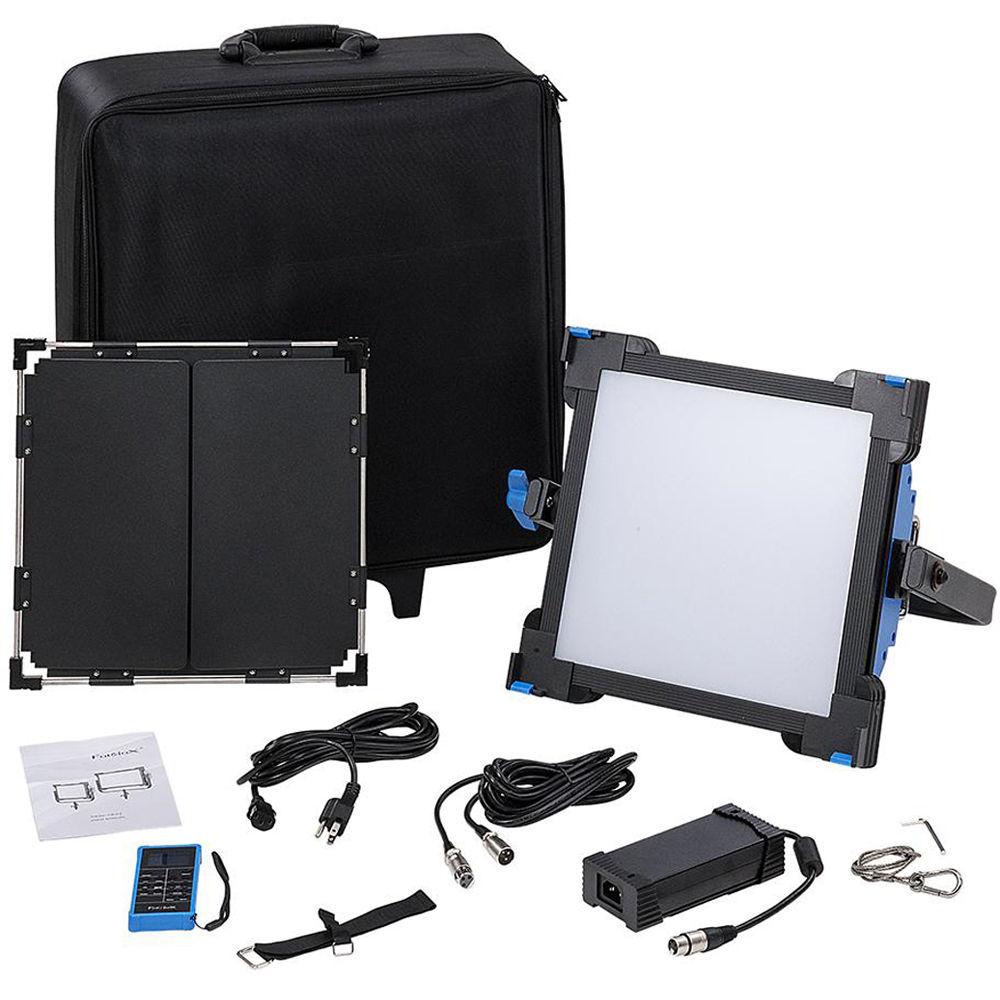

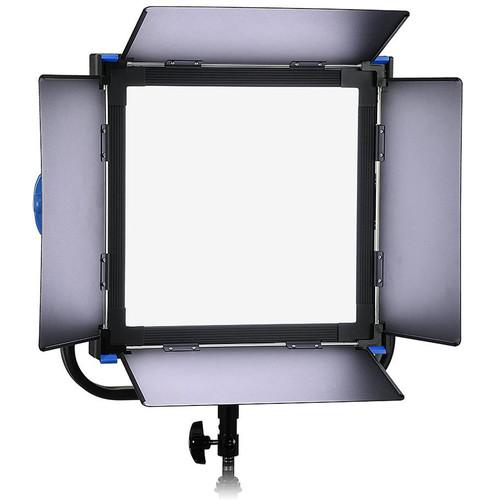

UPC: 847372045006 In the Box FotodioX Pro FACTOR Prizmo 150 RGB+W Multi Color LED Light Removable Barn Door Unit Mounting Yoke for 5/8" Light Stand 110-240 VAC Power Adapter and Cord Wire Safety Cable and Magic Cable Ties 2.4 GHz Wireless Remote Control DMX 3-Pin Remote Cable Custom Fit Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro FACTOR Prizmo 150 RGB W Multi Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX 150 RGB+W Specs | | | Beam Angle | 120° | | Color Temperature | 2800 to 10,000K ± 200K | | Color Accuracy Standard | CRI 95
TLCI 91 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% | | Display | None | | Housing Material | Aluminum | | Photometrics | 120°:
418.1 fc / 4500 lux at 3.28' / 1 m | | Fixture Dimensions | Flood: 19.0 x 21.0 x 7.5" / 48.3 x 53.3 x 19.1 cm (Including Yoke) | | Fixture Weight | 22.3 lb / 10.12 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR | | DMX Connector | 3-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | Remote Control Type | DMX, Proprietary Wireless | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 30 / 30 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 150 W | | | | Cable Type | 3-Pin XLR to 3-Pin XLR | | | | Package Weight | 42.72 lb | | Box Dimensions (LxWxH) | 26.5 x 21.5 x 11.6" |
