User Manual for FotodioX Pro GoTough Wedge Click to enlarge the picture
Contents of the user manual for the FotodioX Pro GoTough Wedge
- Product category: Handgrips & Handles FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX Handgrips & Handles
 |
User manual for the FotodioX Pro GoTough Wedge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

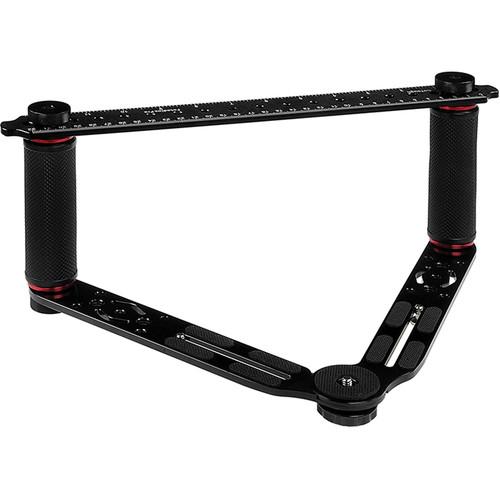

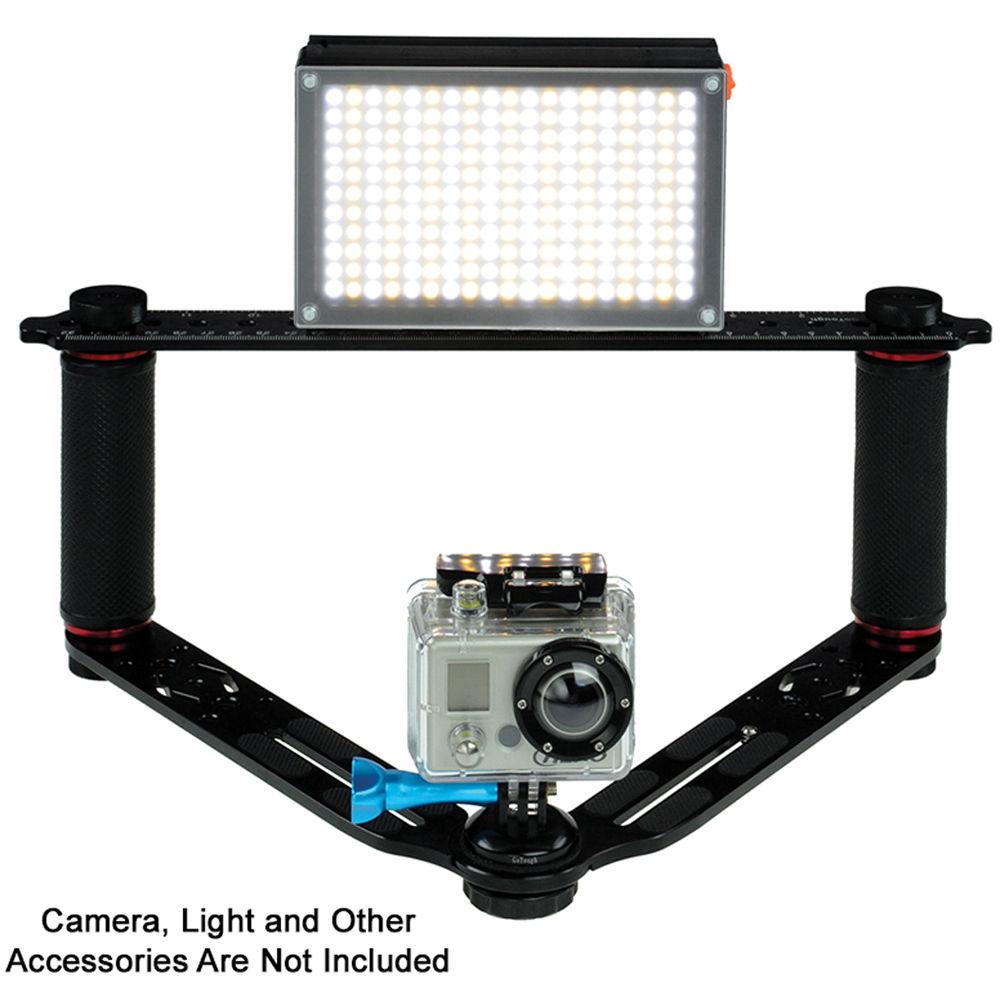

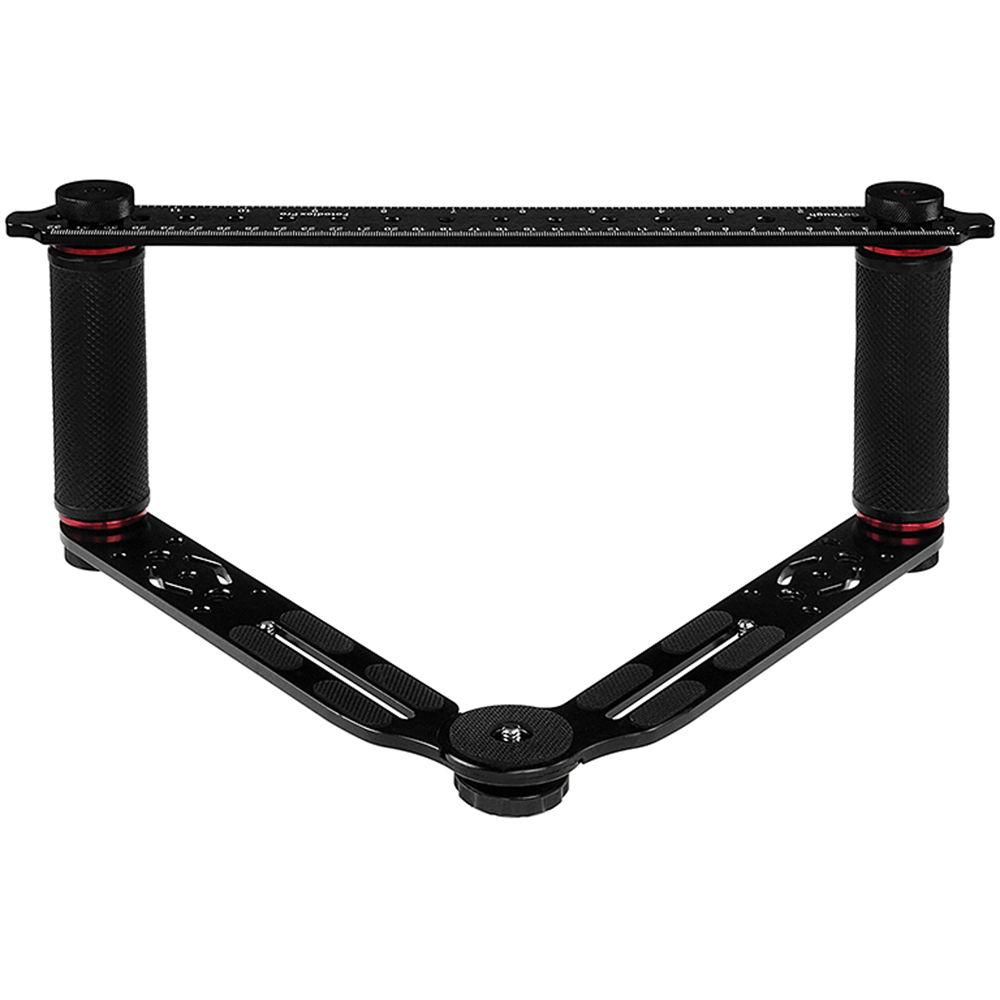

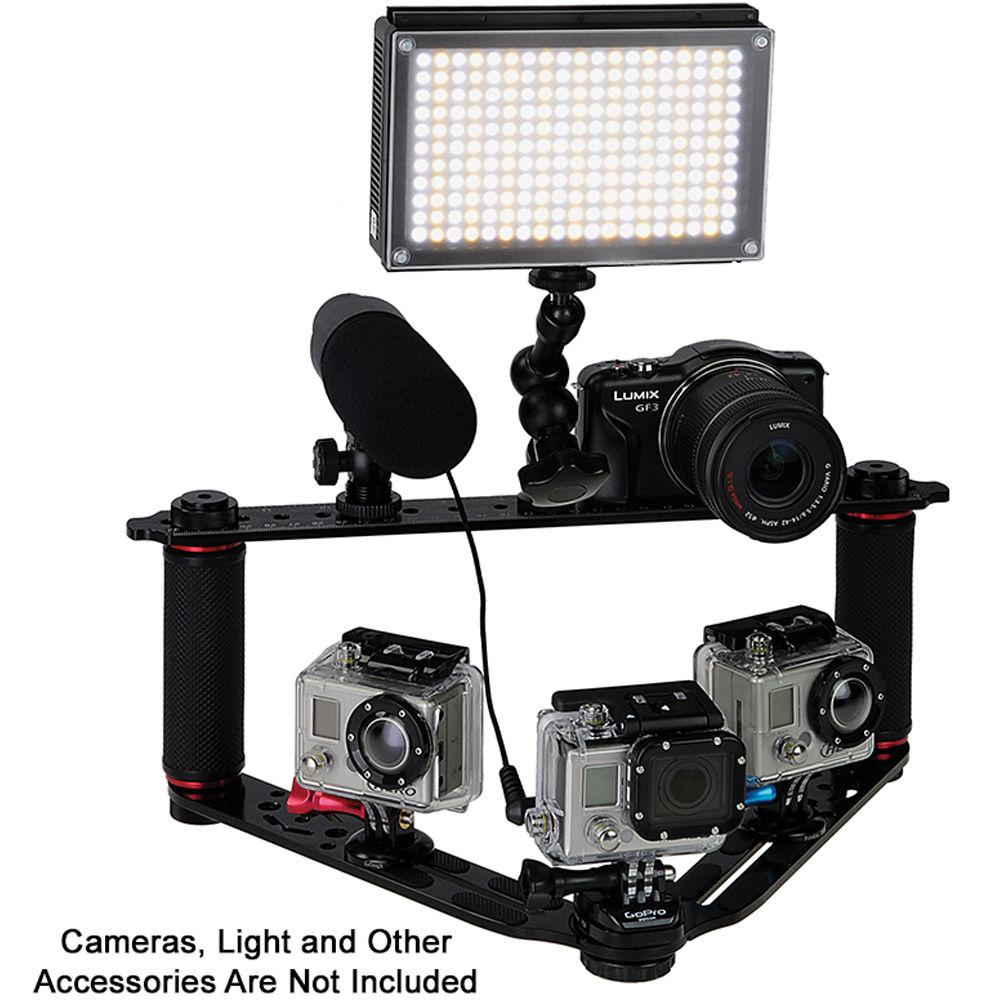

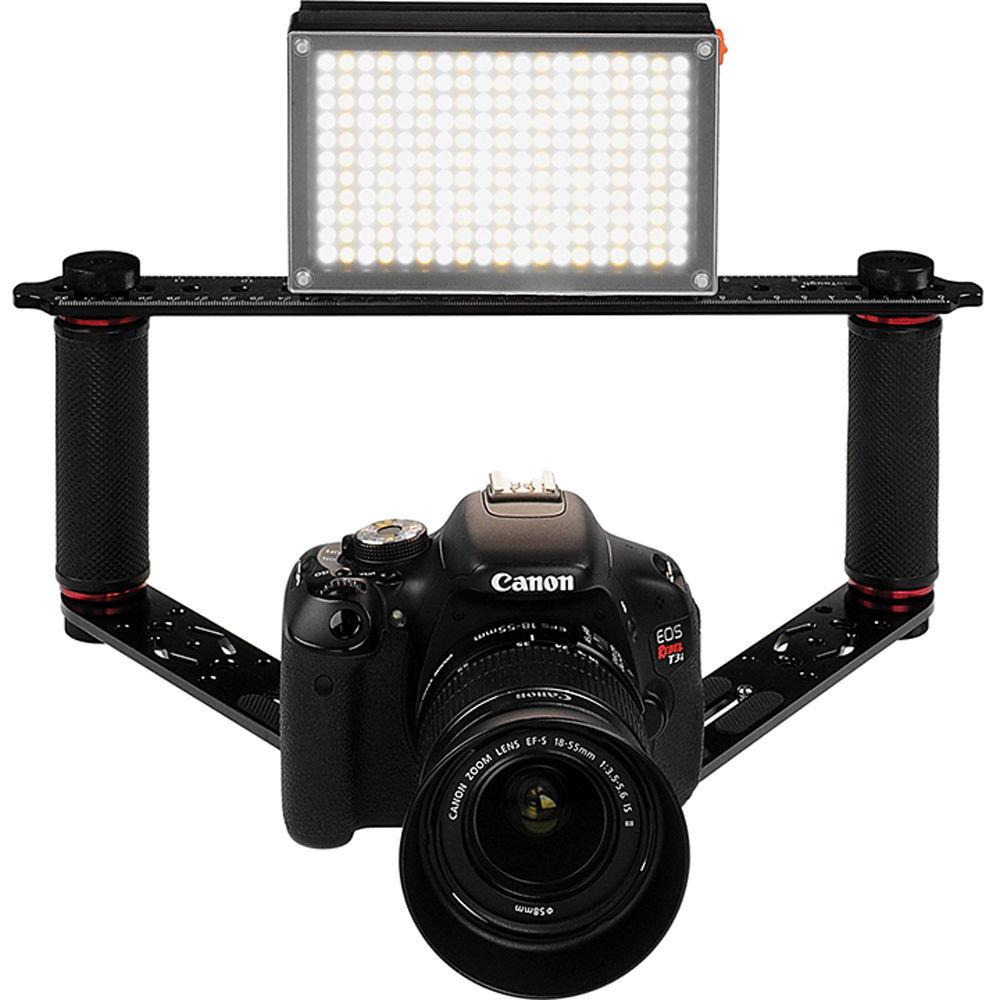

Product description The FotodioX Pro GoTough Wedge is a two-handed grip designed for shooting for photos and film making shooting. The wedge is designed to be user-configurable, while remaining compact and easy to transport. There are 42 mounting options for many types of cameras and accessories. You can simultaneously mount several cameras to capture the action from different angles. You can mount a full sized DSLR, a GoPro camera shooting slow motion footage, microphones, LED lights or any other combination of gear. The GoTough Wedge is designed to assemble at any angle up to 1' apart.
The triangular shaped bottom has 23 different mounting points, two of which are long versatile sliding slots on each arm with two included 1/4"-20 screws and another set of two shorter angled sliding slots. The straight upper deck of the wedge features extra mounting points. You get 19 additional holes to choose from for maximum versatility. The upper deck also has a ruler silk-screened in place and the handles can be used as standalone grips for cameras or other 1/4"-20 mount gear. The wedge can also be mounted on a tripod with the female 1/4"-20 thread on the bottom of the central mount. - 42 possible mounting points for cameras and accessories
- Two-handed design for increased stability when shooting handheld
- User configurable, disassembles to fit easily in your camera bag
- Both threaded and non-threaded pass throughs for ultimate mounting flexibility
- Metal construction for durability and reliability in challenging conditions

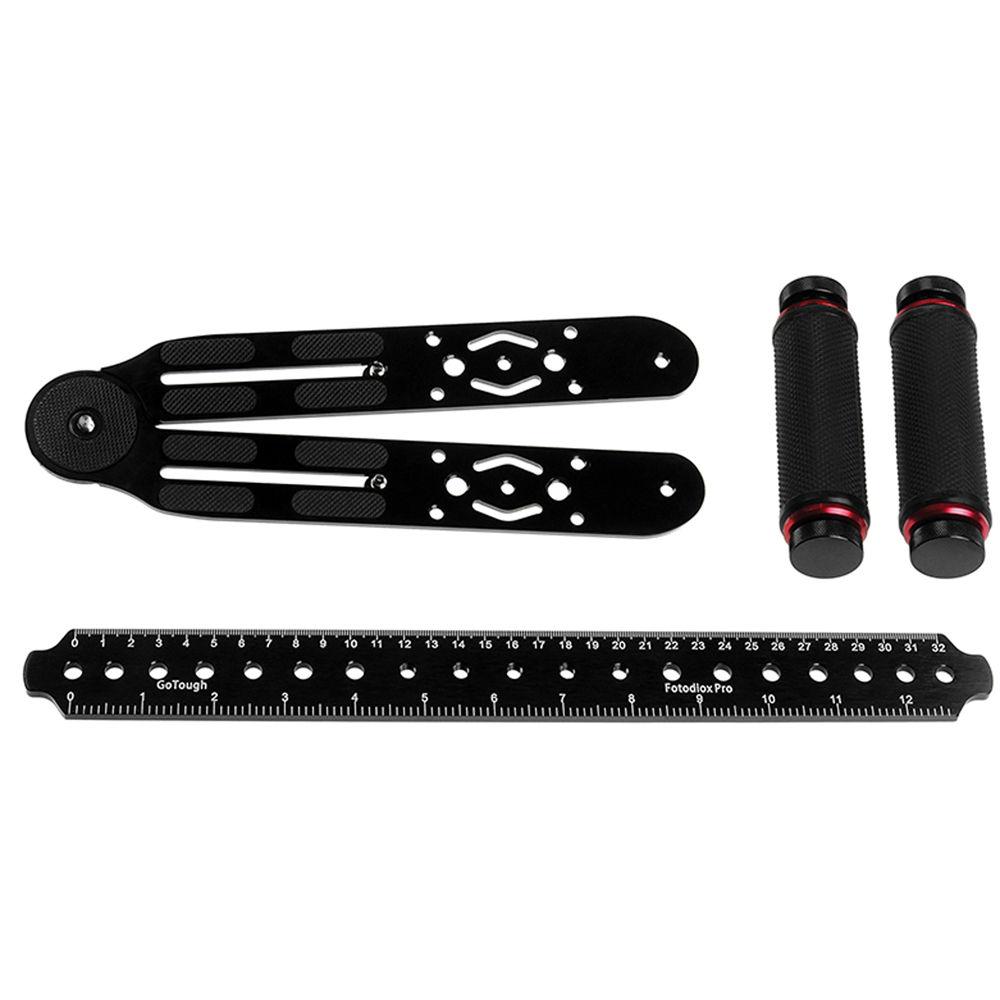

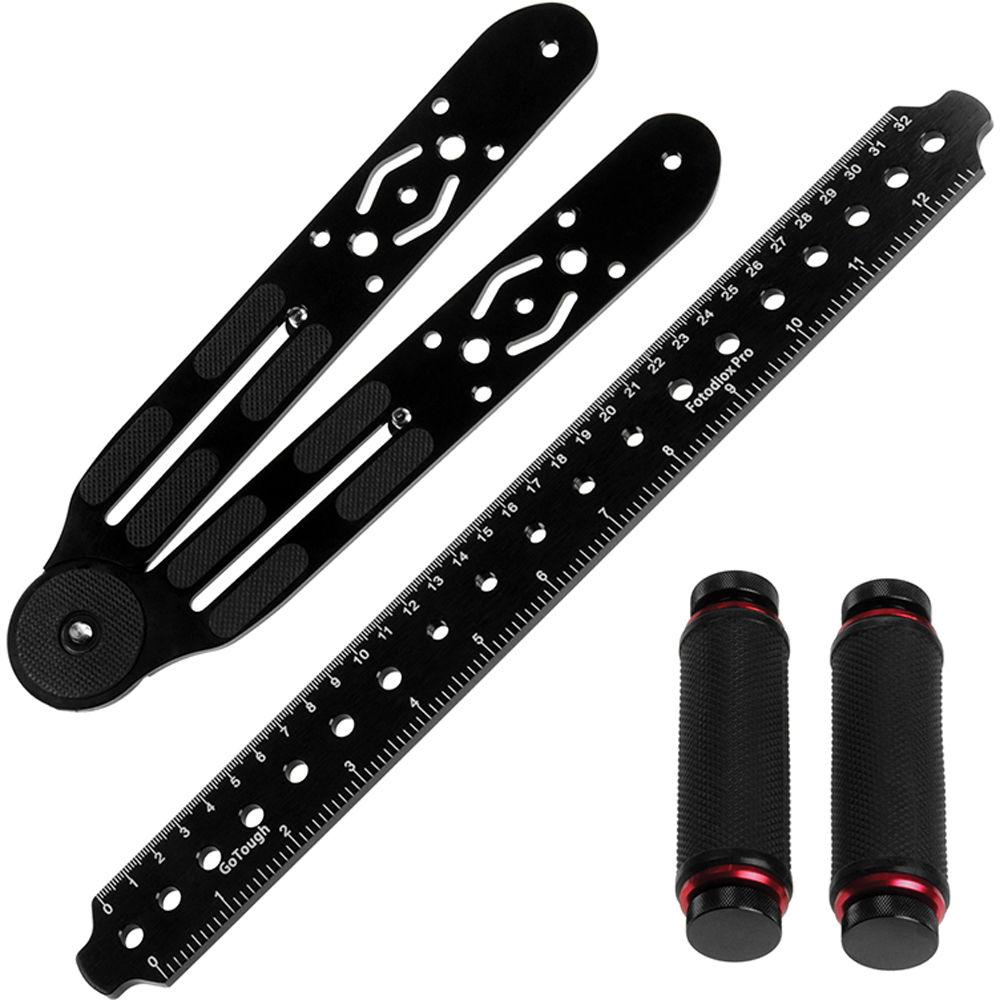

In the Box FotodioX Pro GoTough Wedge 2 x 1/4"-20 Screw Ruler 2 x Handlebar Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro GoTough Wedge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX GT-WEDGE Specs | Compatibility | Gopro Hero HD, Hero1, Hero2, Hero3 and all GoPro adapter tripod mounts | | Material | Industrial grade aluminum | | Color | Black anodized with red handles | | Mounting Holes | 1 x Central 1/4"-20 male threaded mount
13 x 1/4"-20 threaded holes
18 x 1/4" Pass-thru holes
4 x 5/8" Threaded holes
2 x Long 1/4"-20 slider slots with screws
4 x Short angled 1/4" pass-thru slider slots | | Handle | Minimum: 5.75" (15 cm)
Maximum: 14" (35.5 cm) | | Dimensions (W x H x D) | 14 x 8 x 5.5" (35.5 x 14 x 20 mm) | | Weight | 1.5 lb (0.68 kg) |
