User Manual for Fotodiox Pro LED-200WA-56 Daylight Studio LED Click to enlarge the picture
Contents of the user manual for the Fotodiox Pro LED-200WA-56 Daylight Studio LED
- Product category: LED Lights Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others LED Lights
 |
User manual for the Fotodiox Pro LED-200WA-56 Daylight Studio LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

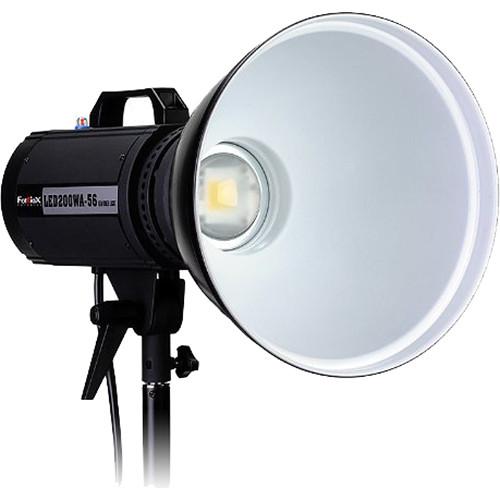

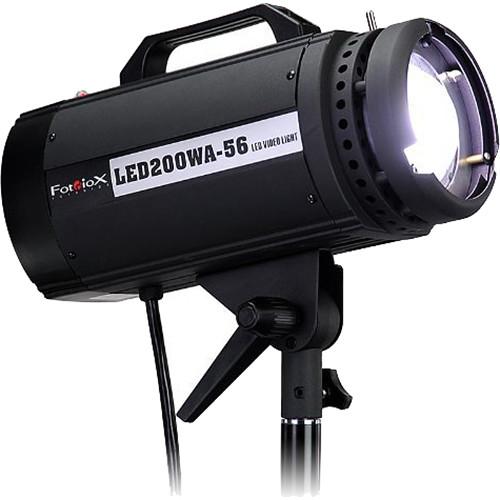

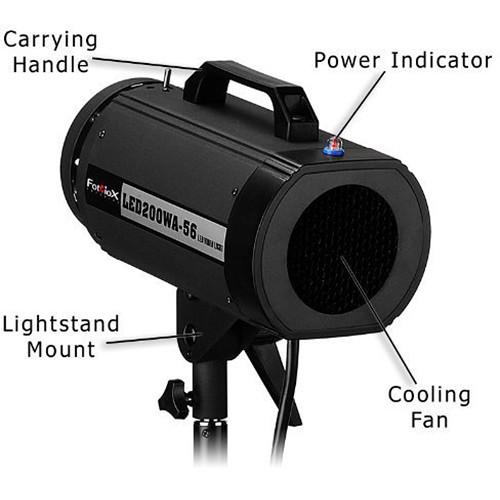

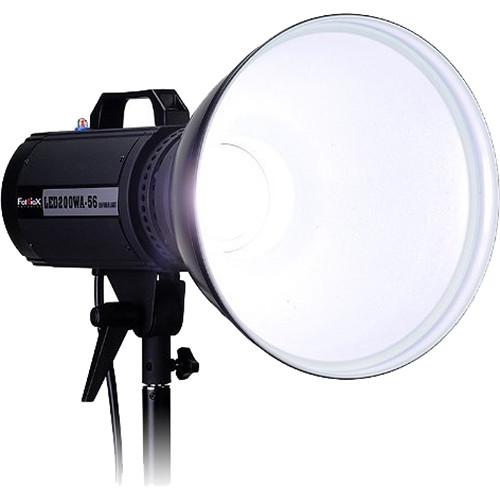

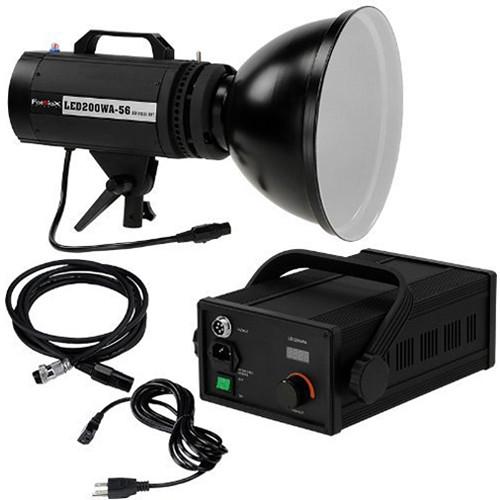

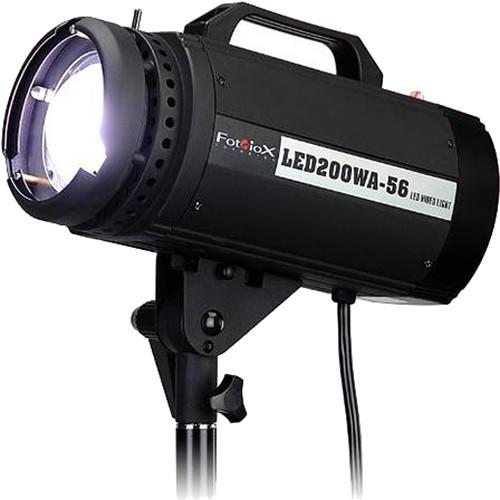

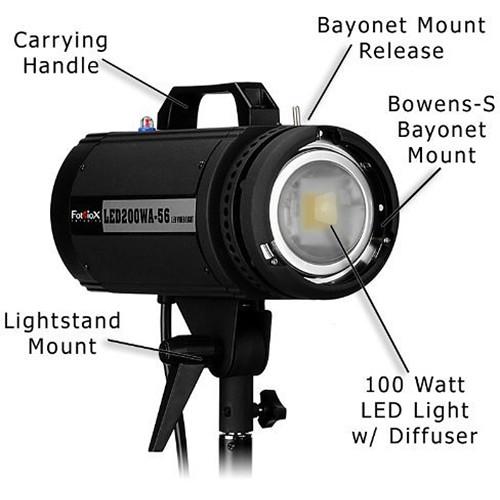

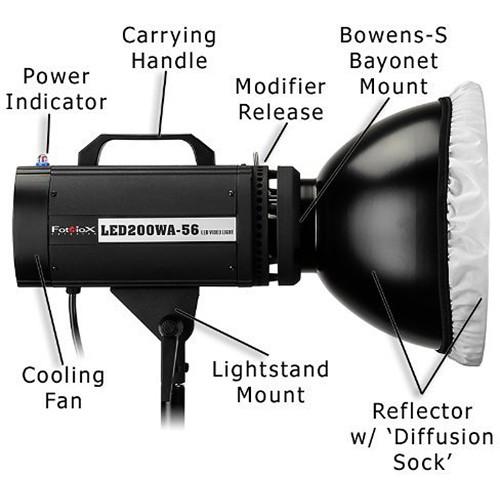

Product description With a form factor that resembles a monolight, the Pro LED-200WA-56 Daylight Studio LED Light from Fotodiox is a versatile light source with convenience features like its built-in handle that make it a pleasure to use. The 5600K daylight balance makes it a great choice for use outdoors, with other daylight sources or in spaces with large windows. You can match various other lights or ambient colors with the simple addition of optional gel filters. One of the hallmarks of LED fixtures is barely perceptible generated heat and the head's on-board fan keeps the electronics cool and is responsible for extending the LED lamp life to many thousands of hours. Another feature of the LED-200WA's LEDs is an extremely low power draw (200W) meaning a fast return on investment and the ability to use up to 7 of these fixtures on a standard household circuit. The light intensity is also dimmable from 0-100%. The LED-200WA comes with a 100-240 VAC power supply for worldwide use. It also comes with a 12" reflector with a soft white interior. A diffusion sock is included to soften the LED-200WA's output. The lamp head has a Bowens S-type accessory mount making it compatible with not only Fotodiox modifiers, but with light shapers from the many manufacturers that use this mount. UPC: 847372025732 In the Box Fotodiox Pro LED-200WA-56 Daylight Studio LED Power Supply Ballast with Cables Removable 12" Reflector with White Interior Diffusion Sock Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fotodiox Pro LED-200WA-56 Daylight Studio LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX LED-200WA Specs | Light Source | 200 W LED | | Color Range | 5600K | | CRI | 85 | | Dimming | 0-100% Via soft touch buttons | | Beam Angle | 60° Unmodified | | Operating Voltage | 36 VDC, 100 - 240 VAC, 50/60 Hz | | Power Consumption | 200 W | | Mount | 5/8" (16 mm) Receiver | | Luminance | 15,200 lux / 1412 fc @ 3.28' (1.0 m) | | Dimensions | Light with Reflector: (DxHxW) 19 x 12 x 11" (48.2 x 30.5 x 28 cm)
Light without Reflector: (DxHxW) 12 x 11 x 6.0: (30.5 x 28 x 15.2 cm)
Reflector Diameter: 12" (30.5 cm) | | Weight | Total: 13.5 lb (6.15 kg)
Light: 7.8 lb (3.55 kg)
Power Supply: 5.75 lb (2.6 kg) | | | | Package Weight | 20.6 lb | | Box Dimensions (LxWxH) | 17.7 x 17.4 x 13.3" |
