User Manual for FotodioX Pro LED-312DS Bi-Color LED Photo Video Light Kit Click to enlarge the picture
Contents of the user manual for the FotodioX Pro LED-312DS Bi-Color LED Photo
- Product category: LED Lights FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX LED Lights
 |
User manual for the FotodioX Pro LED-312DS Bi-Color LED Photo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

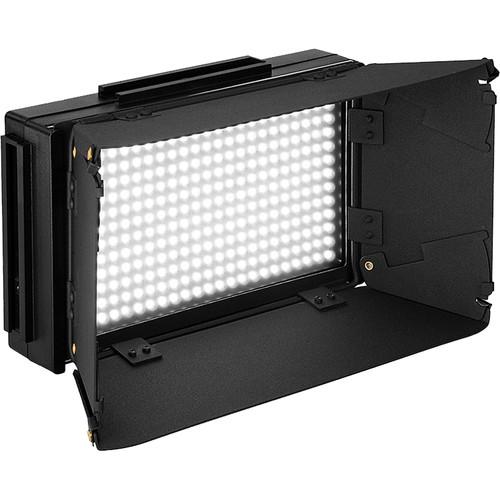

Product description The FotodioX LED-312DS Bi-Color LED Photo Video Light Kit is built around a powerful LED light panel that lets you adjust the light's color output anywhere between 5600K daylight and 3200K tungsten color temperatures. The 312DS is compact and versatile enough for a wide variety of shooting scenarios, while remaining lightweight enough to bring along on every project. The kit includes two 2200mAh NP-F550 7.4V batteries, a dual charger, multi-voltage AC adapter, car charger, ball joint bracket with cold shoe, collapsible barn doors, slide-in diffusion and conversion panels, and a carrying case. A full spectrum is offered full by 156 ultra-bright 5600K LEDs and 156 3200K LEDs, rendering soft light that's ideal for location and studio productions for both photographers and filmmakers. Control features include 10-100% dimming via a simple control while a second control adjusts the color temperature. You can choose 3200K or 5600K or anything in between to balance with ambient light or other fixtures. Settings appear on a rear LCD panel display that also shows the remaining battery level. The kit includes 4 way barndoors to control spill and sculpt the light. A diffusion panel is also included, as is a CTO conversion panel. Channels all around the light allow multiple 312DSs to be joined together for more power and a larger light source. The 312DS can operate with or without AC power thanks to the inclusion of an AC adapter and a pair of Sony NP-style batteries and dual intelligent charger. - Attributes and Benefits
-

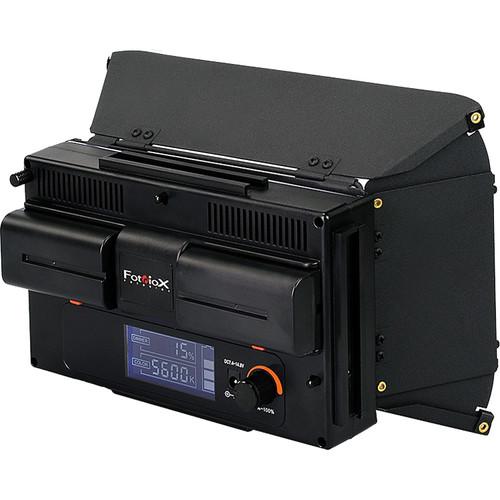

- LCD screen displays brightness, color temperature and battery life
- 10-100% Power dimmer dial with off position
- Battery mounts for 2 Sony NP-style batteries
- Adjustable color temperature from 3200 to 5600K
- Color Rating Index > 92
- Top, bottom and side dovetail mounts and 1/4"-20 female thread mount
- Removable ball joint adapter with cold shoe mount
- 156 Tungsten and 156 Daylight LEDs in alternating rows
- Lighting is adjustable to match mixed lighting scenarios

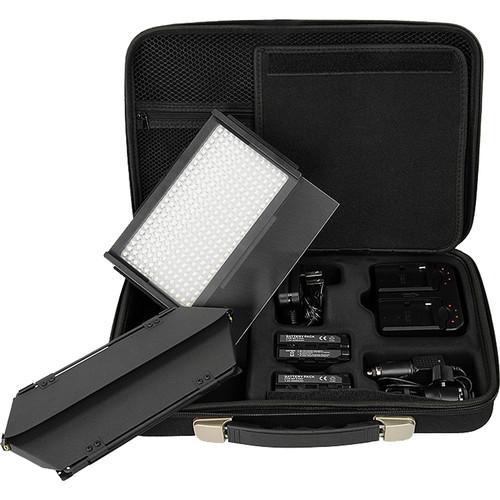

UPC: 847372025411 In the Box FotodioX Pro LED-312DS Bi-Color LED Photo Video Light Kit 2 x 2200mAh NP-F550 Battery Dual Battery Charger Worldwide 100-240 VAC Adapter Car Charger Ball Joint Bracket Collapsible Barndoors Slide-In Color Conversion Panel Slide-In Diffusion Panel Carrying Case with Handle Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro LED-312DS Bi-Color LED Photo Video Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX LED-312DS Specs | | | Beam Angle | 60° | | Color Temperature | 3200 to 5600K ± 200K | | Color Accuracy Standard | CRI 92 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Number of LEDs | 312 | | Fixture Dimensions | 7.9 x 4.7 x 2.0" / 200.0 x 120.0 x 53.0 mm | | Fixture Weight | 3.0 lb / 1.36 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | | | Package Weight | 4.475 lb | | Box Dimensions (LxWxH) | 16.0 x 11.1 x 3.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
