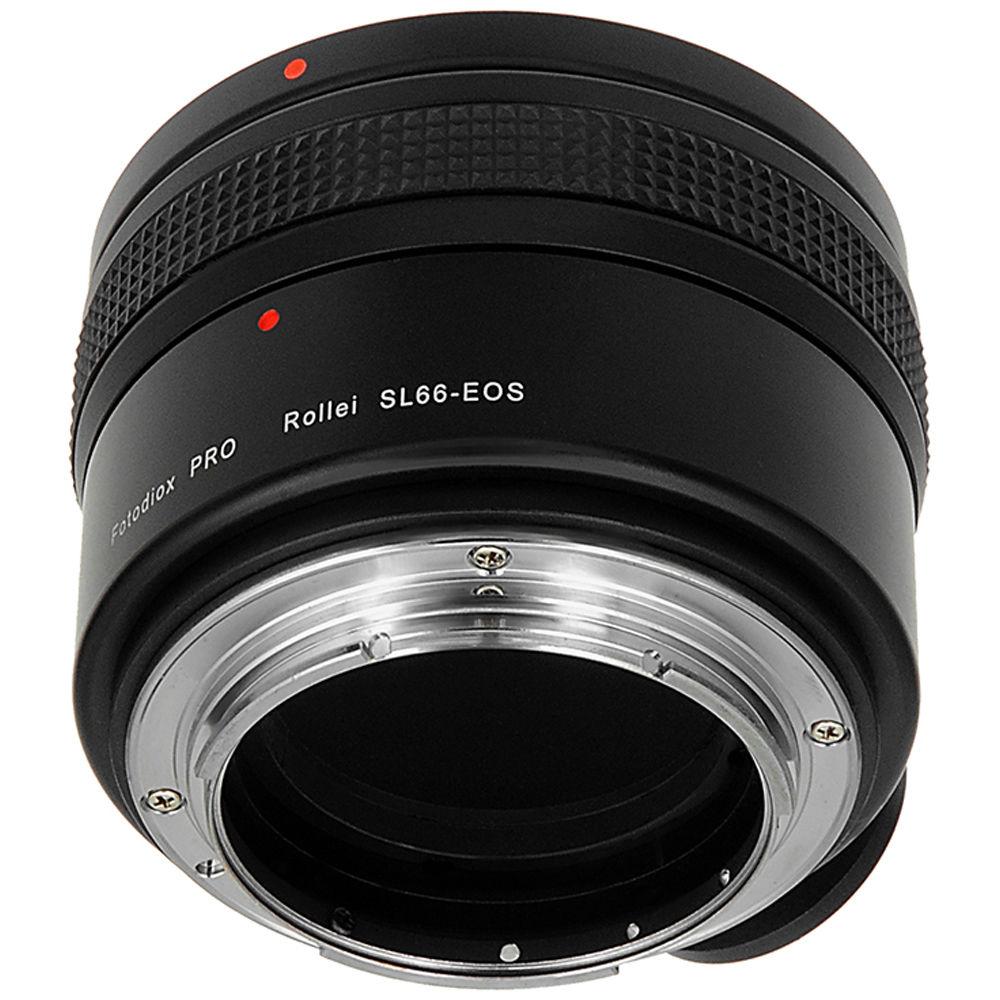

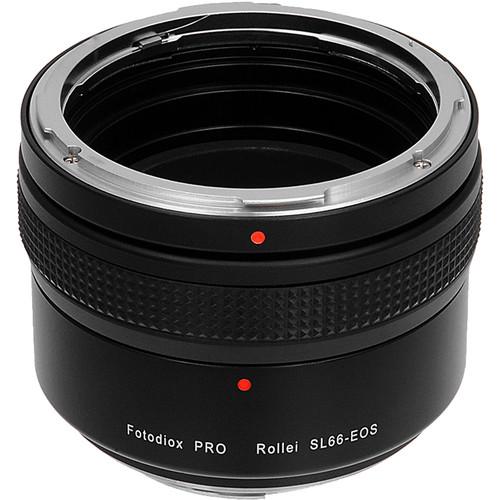

Product description This FotodioX Pro Lens Mount Adapter allows a Rolleiflex SL66-mount lens to be used on a Canon EF or EF-S mount camera. It is designed to support focusing to infinity, is constructed from brass as well as aluminum-alloy, and utilizes a brass lens mounting ring to provide a durable, yet lightweight camera-to-lens connection.

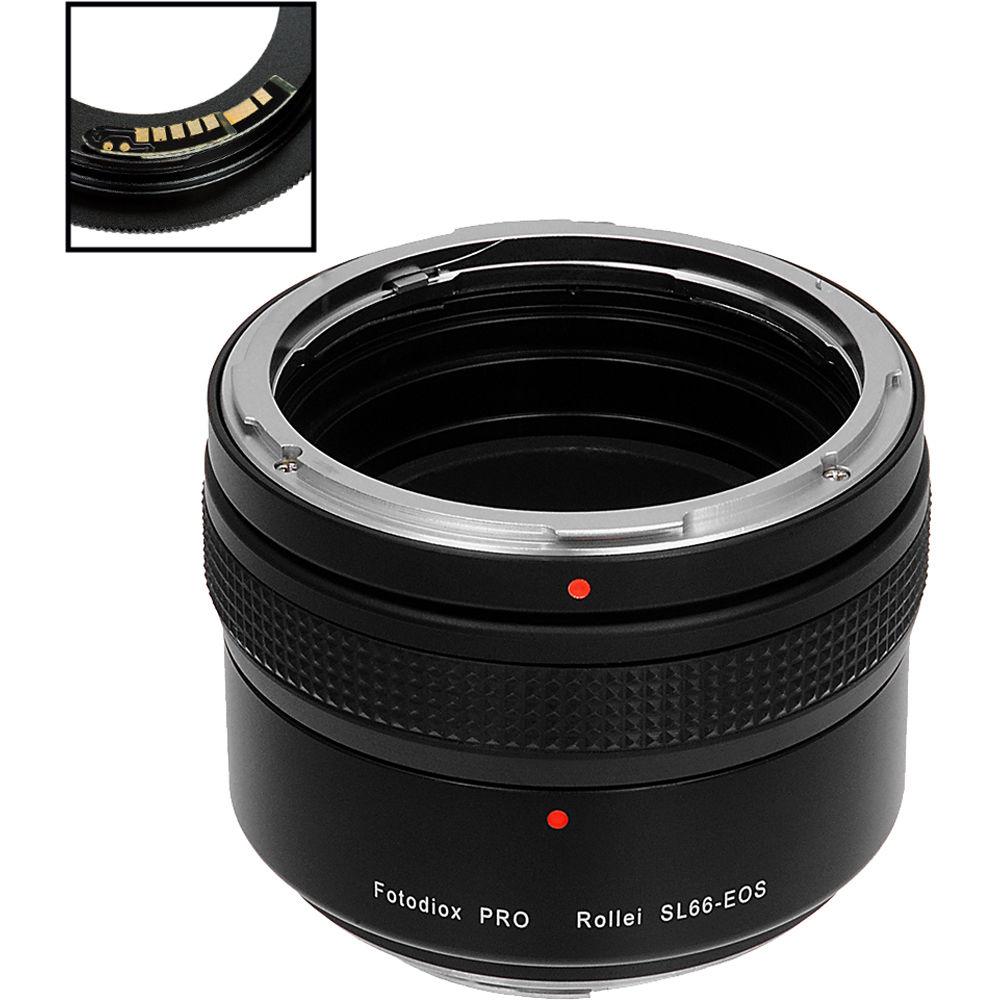

A Generation v10 chip built into the adapter enables focus confirmation within a Canon EF or EF-S mount camera when used with a Rolleiflex SL66-mount lens. This feature allows focus to be quickly and accurately achieved through a compatible camera's viewfinder or live view feature.

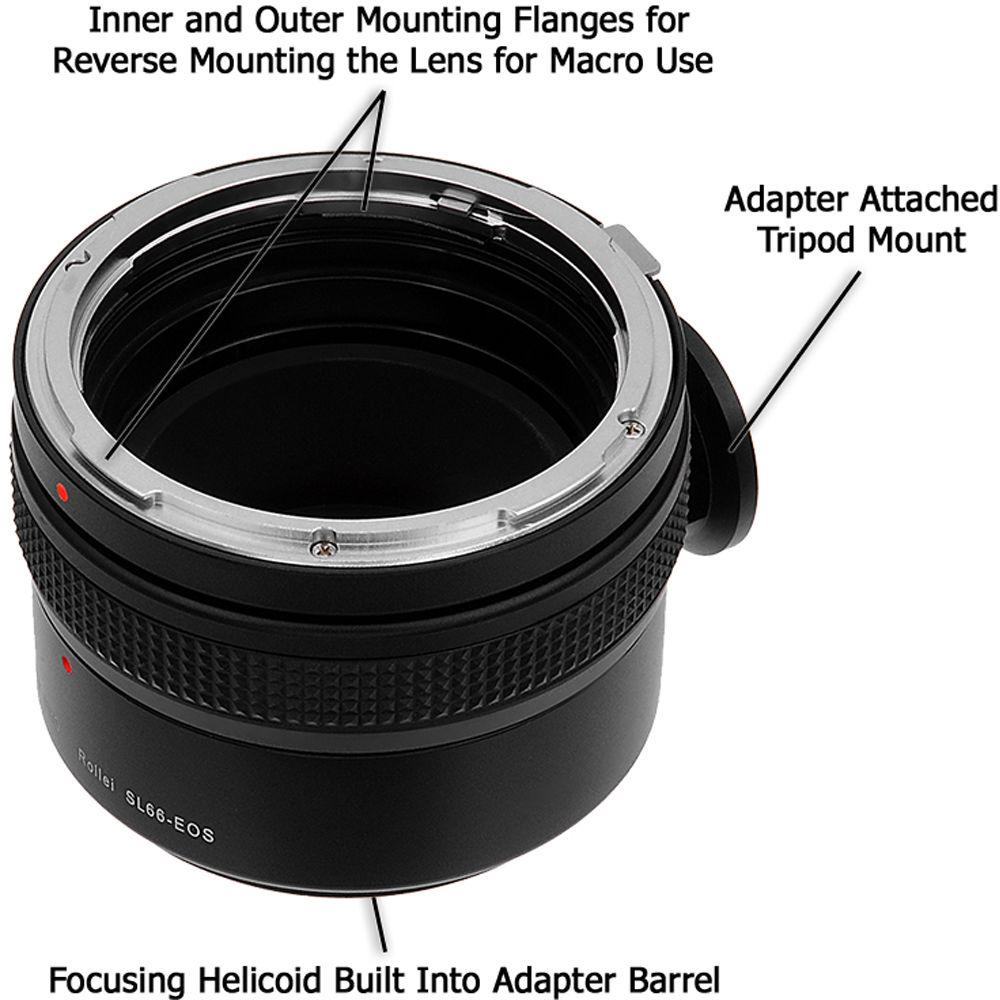

After being placed on the front of the adapter, aperture control on a compatible lens would continue to be used. For focus control, this Pro Lens Mount Adapter features a built-in helicoid that extends and retracts a compatible lens in a manner similar to a Rolleiflex SL66 camera's focusing rack.
Similar to a Rolleiflex SL66 camera's lens mounting ring, this Pro Lens Mount Adapter offers the ability to mount a compatible lens in reverse. By utilizing this feature, the focal length of the attached lens relative to the camera being used is shortened, which can then provide a macro effect.

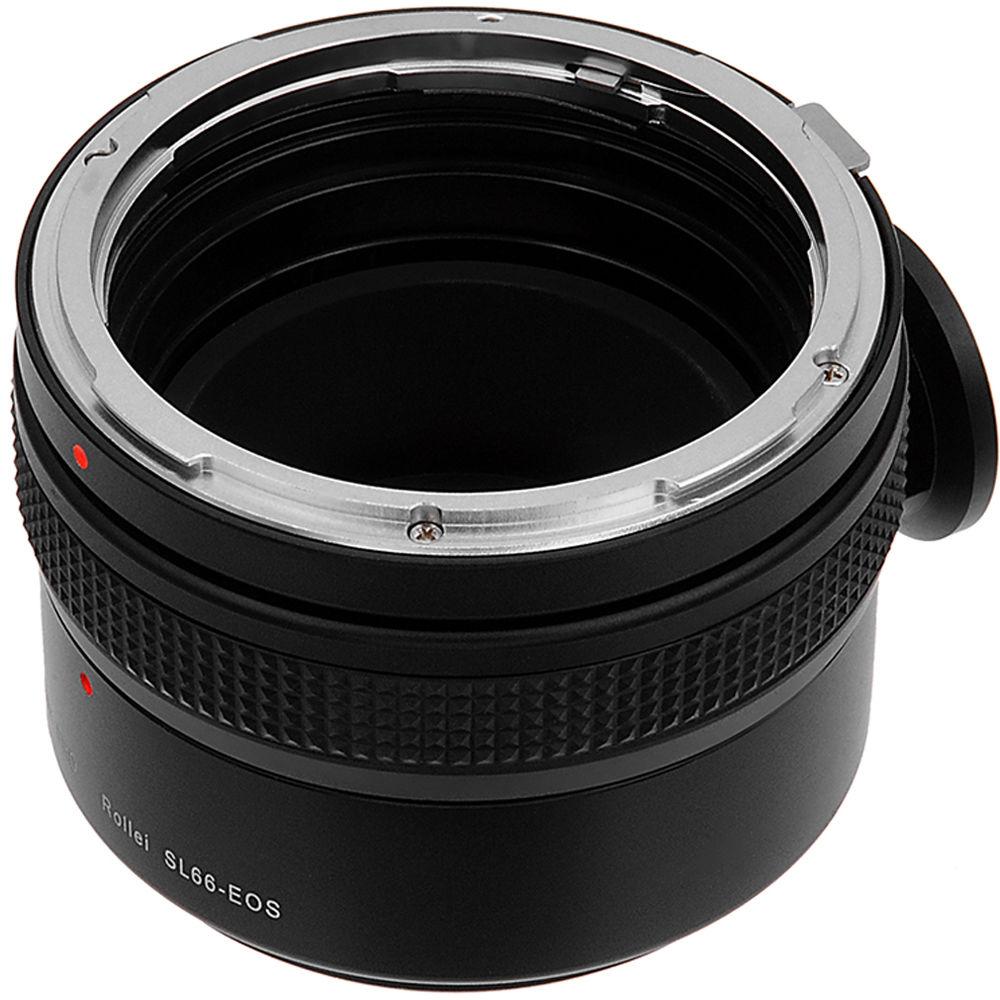

To help prevent stress on the camera mount if the supported camera and lens combination is to be placed on a tripod, this Pro Lens Mount Adapter includes an integrated tripod foot. For direct attachment to accessories such as tripods or quick-release plates that feature 1/4"-20 mounts, the underside of the tripod foot is tapped with a 1/4"-20 accessory thread. -
- Allows a Rolleiflex SL66-mount lens to be used on a Canon EF or EF-S mount camera
- Built-in Generation v10 chip enables in-camera focus confirmation
- Attached lens can focus to infinity
- Constructed from brass and aluminum-alloy
- Utilizes a brass lens mounting ring to provide a lightweight camera-to-lens connection with enhanced durability
- Locking mechanism for secure attachment of lens with push-button release
- Integrated helicoid mechanism provides lens focus control
- Lens mounting ring provides reverse-lens macro capability
- Integrated tripod foot with 1/4"-20 accessory thread for direct attachment to tripods or quick-release plates that feature 1/4"-20 mounts
UPC: 847372046201 In the Box FotodioX Pro Lens Mount Adapter with Generation v10 Focus Confirmation Chip for Rolleiflex SL66-Mount Lens to Canon EF or EF-S Mount Camera Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro Lens Mount Adapter with Generation v10 Focus Confirmation Chip for Rolleiflex SL66-Mount Lens to Canon EF or EF-S Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX SL66-EOS-PRO-FC10 Specs | | | Camera Mount | Canon EF-S | | Lens Mount | Rollei SL66 | | | | Material | Aluminum, Brass | | Tripod Mounting Thread | 1/4"-20 Female | | Dimensions | H: 3.4 x W: 3.0 x D: 2.5" / H: 8.5 x W: 7.7 x D: 6.3 cm | | Weight | 12.7 oz / 360.05 g |
