User Manual for FotodioX Pro PopSpot High Intensity Ultra 100 Bi-Color LED Light Kit Click to enlarge the picture
Contents of the user manual for the FotodioX Pro PopSpot High Intensity Ultra
- Product category: LED Lights FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX LED Lights
 |
User manual for the FotodioX Pro PopSpot High Intensity Ultra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

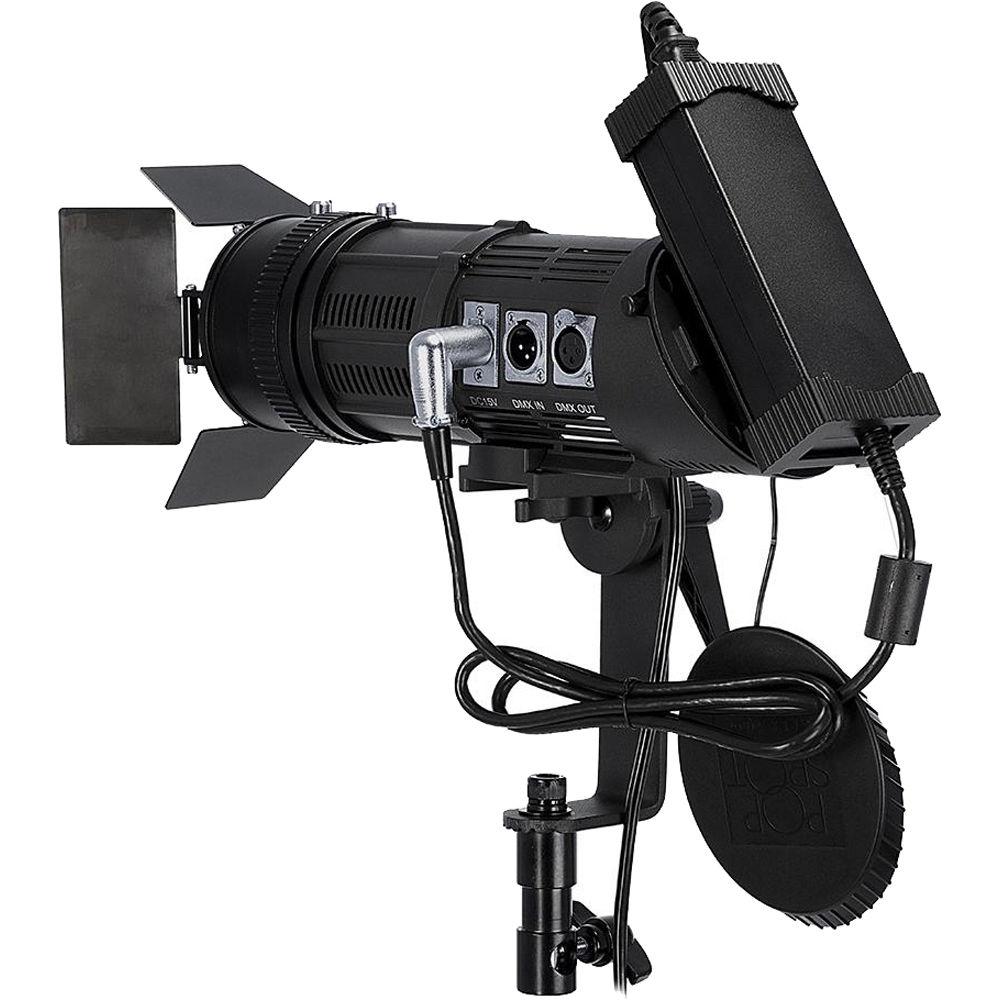

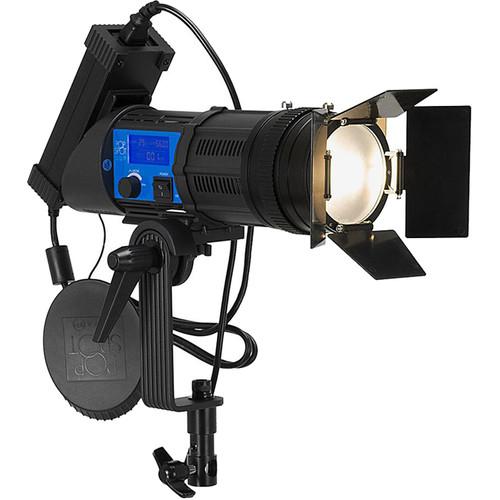

Product description Offering color control, dimming, beam angle, and power options, the Pro PopSpot High Intensity Ultra 100 Bi-Color LED Light Kit from FotodioX is built around a fixture with a focusable lens that offers adjustments from a wide, 60° flood beam to a 30° spot for selective lighting or sharp-shadowed sunlight effects. The beam angle can be further tweaked with the included 4-way barndoors that allow you to illuminate areas that you want while keeping light from areas that you don't. Color is variable from 3200 to 5600K to match other fixtures, ambient light challenges, or just for creative expression. The light's high CRI/TLCI rating of 95/96 illustrates accuracy in color rendition. Demonstrating economy of power, the Ultra 100 draws just 50W of current while outputting many times that number with negligible heat, allowing you to squeeze it into places where traditional fixtures can't go, or to place it close to the talent without discomfort. The light is dimmable from 10 to 100% and maintains full power throughout the color range. The Ultra 100's light intensity and color temperature can be controlled locally on the fixture or remotely from a console via onboard DMX. Powering the Ultra 100 offers more options. The light is ready for worldwide use via the kit's multi-voltage power supply, but it can also run on an optional V-mount battery via the light's battery plate. A fully charged battery will give you 2 hours and 35 minutes of run time with the Ultra 100 at full power. FotodioX also includes a DMX cable, safety cable, and a case for storage and transport. - Daylight/Tungsten Balanced and Dimmable
- The PopSpot Ultra 100 Bi-Color is dimmable from 10-100% power and is adjustable from daylight through tungsten color balance at 3200-5600K while maintaining a CRI of 95 and a TLCI rating 96, providing accurate color rendition.
- Local or DMX Control

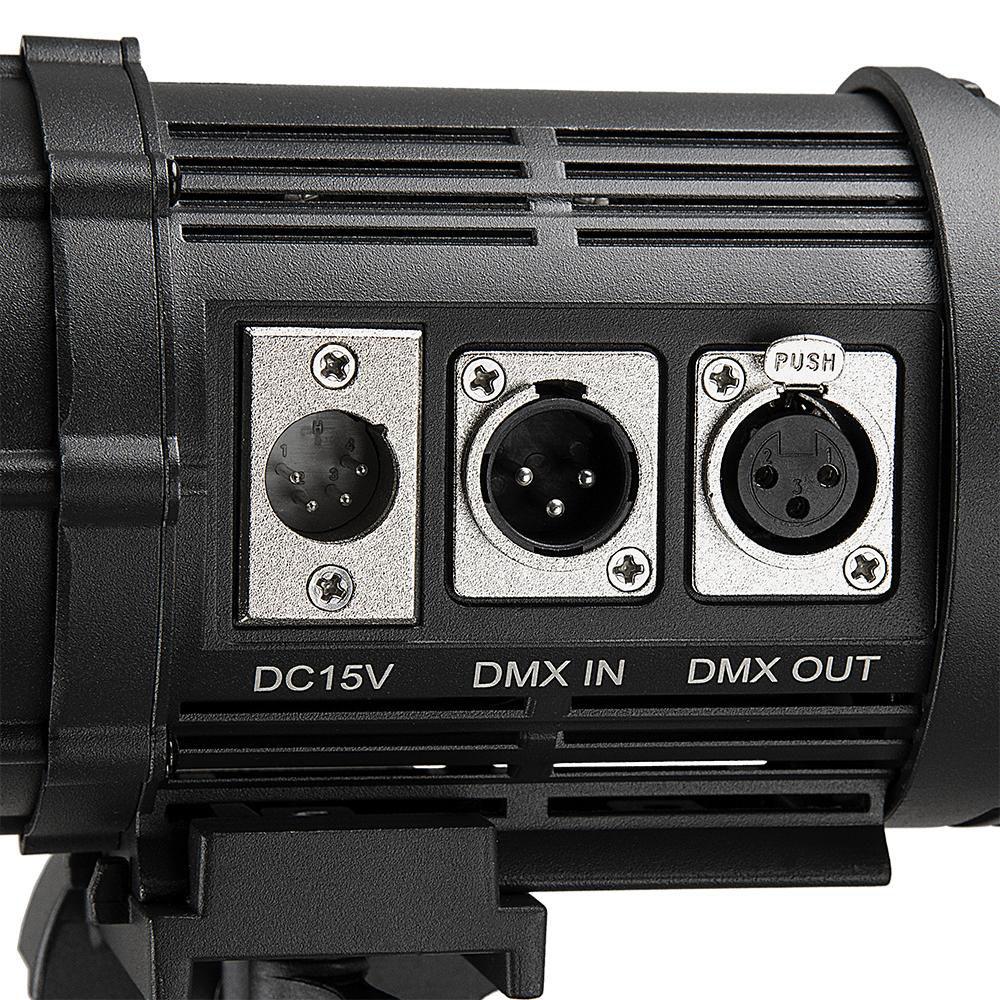

- The Ultra 100's light intensity and color temperature can be controlled locally on the fixture or remotely from a console via onboard DMX.
- Four-Way Barndoors

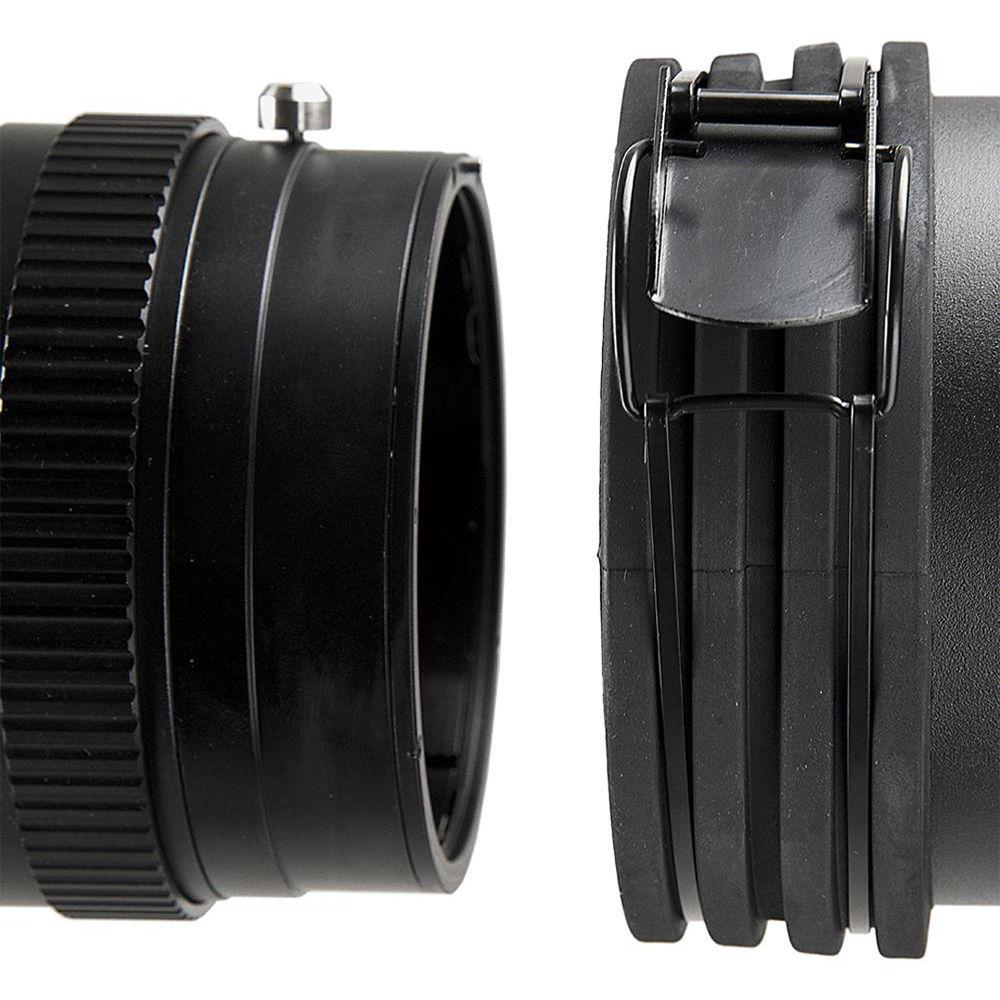

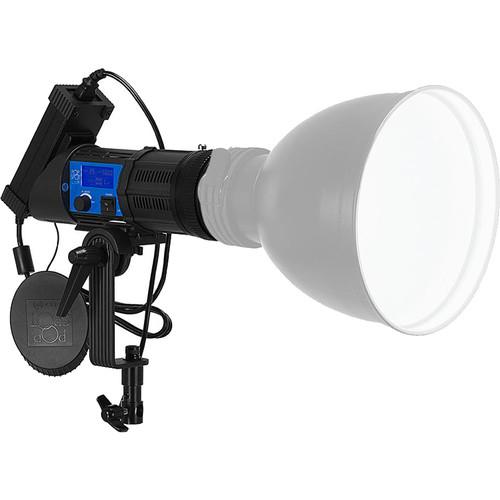

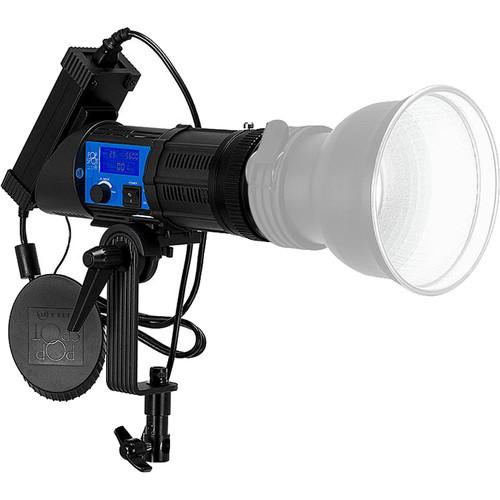

- The included 4-way barndoors help you illuminate areas that you want while keeping light from areas that you don't. In addition, the PopSpot Ultra 100 features a Profoto-style accessory mount, allowing you to use your favorite light modifiers such as reflectors, snoots, and softboxes.
- Adjustable, Spot Focus

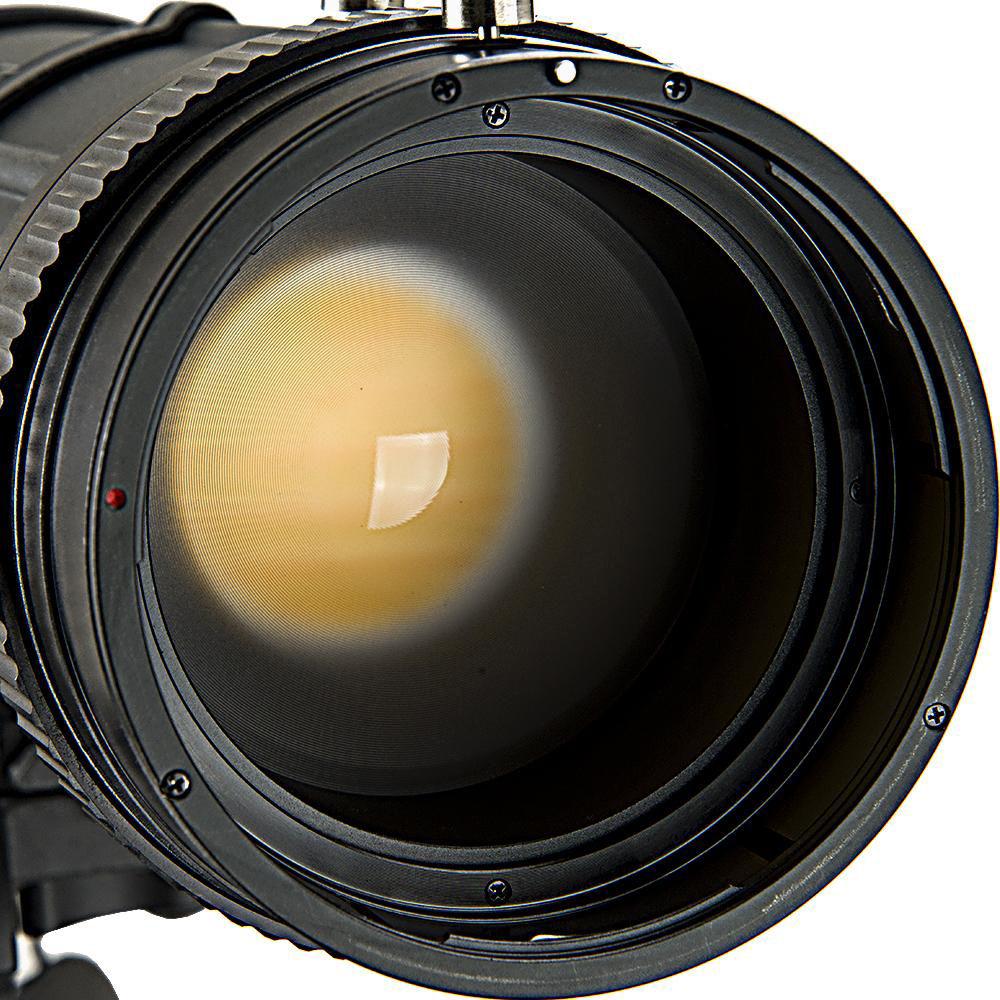

- Yet another sign of versatility is the PopSpot Ultra's adjustable focus feature. The lens offers you adjustments from a wide 60° flood beam to a 30° spot for selective lighting or sharp-shadowed sunlight effects.
- Compact Design, Flicker-Free, Low Heat
- The compact design and negligible heat created by the COB LEDs, allows you to squeeze the PopSpot Ultra 100 into tight places or work up close to your subject without the concern of hazard or discomfort. The PopSpot Ultra also features an integrated PWM circuit to give you get constant, flicker-free light that is great for slow-motion and high frame rate videography.
- Full Power at Any Color Temperature
- Often bi-color means half-power, but that's not so with the PopSpot Ultra. The light features one daylight (5600K) balanced 100W COB LED and one 100W tungsten (3200K) balanced COB LED, providing full power throughout the color range.
- Dual Power Options and More

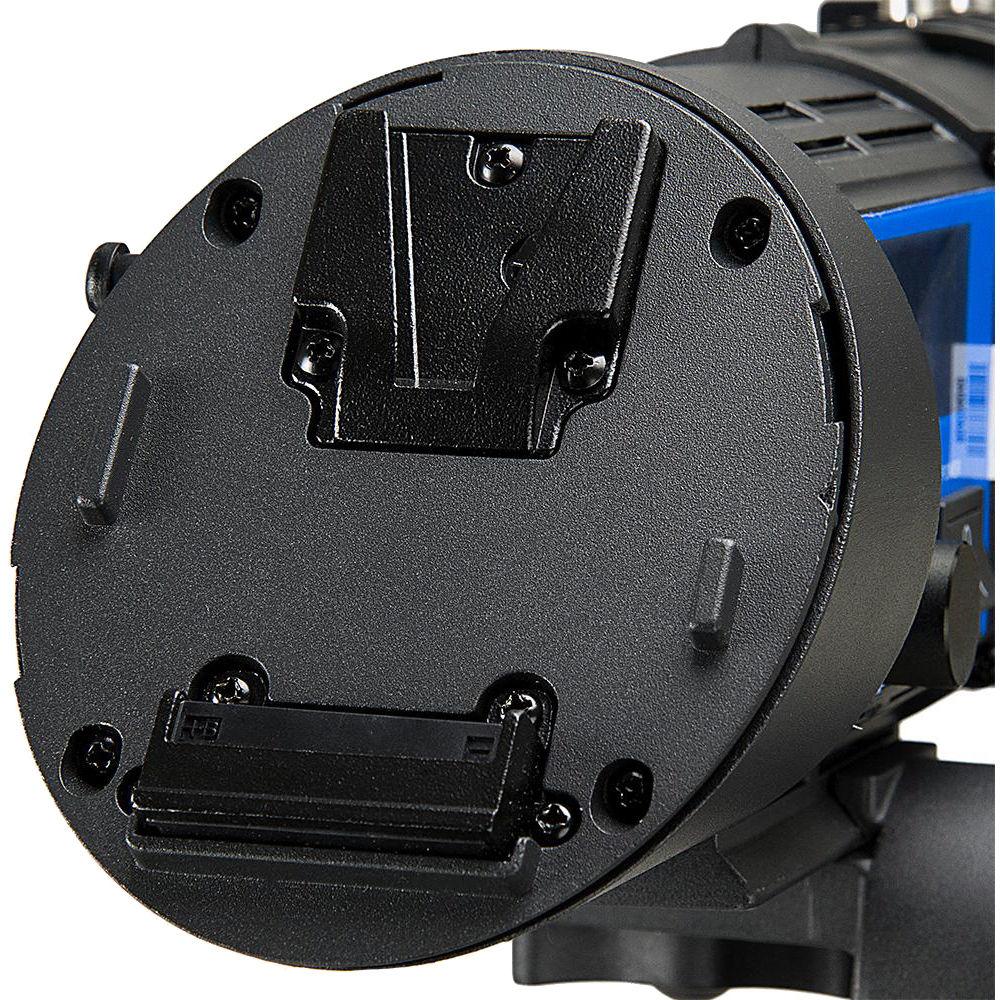

- The PopSpot Ultra 100 can be powered by standard AC current or via batteries making it suitable for studio or location work. Thanks to its multi-voltage power adapter (100-240 VAC), the PopSpot Ultra 100 is ready for worldwide use; all you'll need is an inexpensive travel power adapter.
UPC: 847372044764 In the Box FotodioX Pro PopSpot High Intensity Ultra 100 Bi-Color LED Light Kit PopSpot Ultra 100 Bi-Color Head AC Power Adapter AC Power Cord (U.S. Household) L-Type Light Stand Yoke V-Mount Battery Plate Safety Cable DMX Cable Removable 4-Way Barndoors Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro PopSpot High Intensity Ultra 100 Bi-Color LED Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX Ultra 100 Specs | | | Beam Angle | 30 to 60° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Continuous) | | Photometrics | 30° at 3200K:
956.9 fc / 10,300 lux at 3.28' / 1 m
30° at 5600K:
1165.9 fc / 12,550 lux at 3.28' / 1 m
60° at 3200K:
235 fc / 2530 lux at 3.28' / 1 m
60° at 5600K:
294 fc / 3165 lux at 3.28' / 1 m | | Number of LEDs | 1 (Tungsten)
1 (Daylight) | | Fixture Dimensions | 6.3 x 14.8 x 15.0" / 16.0 x 37.6 x 38.1 cm | | Fixture Weight | 6.2 lb / 2.81 kg | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 50 W | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 18.9 x 14.5 x 7.5" |
