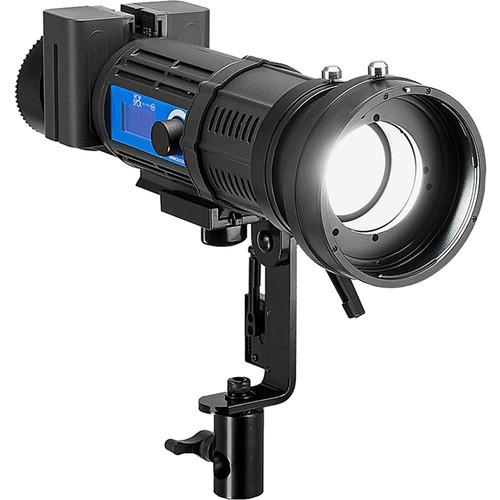

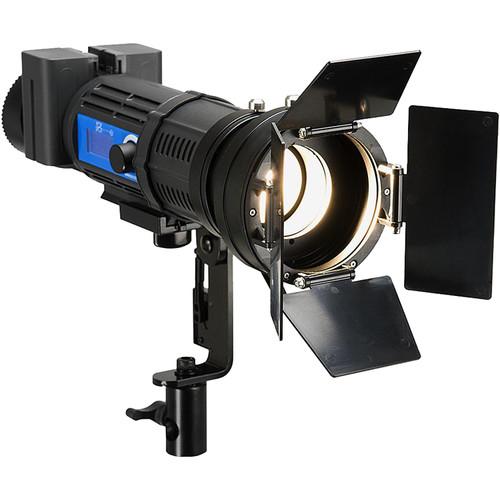

Product description Offering color control, dimming, beam angle, and power options, the Pro PopSpot High Intensity Ultra 50 Bi-Color LED Light Kit from FotodioX is built around a fixture with a focusable lens that offers adjustments from a wide, 60° flood beam to a 30° spot for selective lighting or sharp-shadowed sunlight effects. The beam angle can be further tweaked with the included 4-way barndoors that allow you to illuminate areas that you want while keeping light from areas that you don't. Color is variable from 3200 to 5600K to match other fixtures, ambient light challenges, or just for creative expression. The light's high CRI/TLCI rating of 95/96 illustrates accuracy in color rendition. Demonstrating economy of power, the Ultra 50 draws just 50W of current while outputting many times that number with negligible heat, allowing you to squeeze it into places where traditional fixtures can't go, or to place it close to the talent without discomfort. The light is dimmable from 10 to 100% and maintains full power throughout the color range. Powering the Ultra 50 offers more options. The light is ready for worldwide use via the kit's multi-voltage power supply, but it can also run on the two included NP-F750 batteries when mains power is unavailable. The batteries will give you 90 minutes of run time on a full charge. FotodioX includes a dual battery charger and a bag for storage and transport. - Daylight/Tungsten Balanced and Dimmable

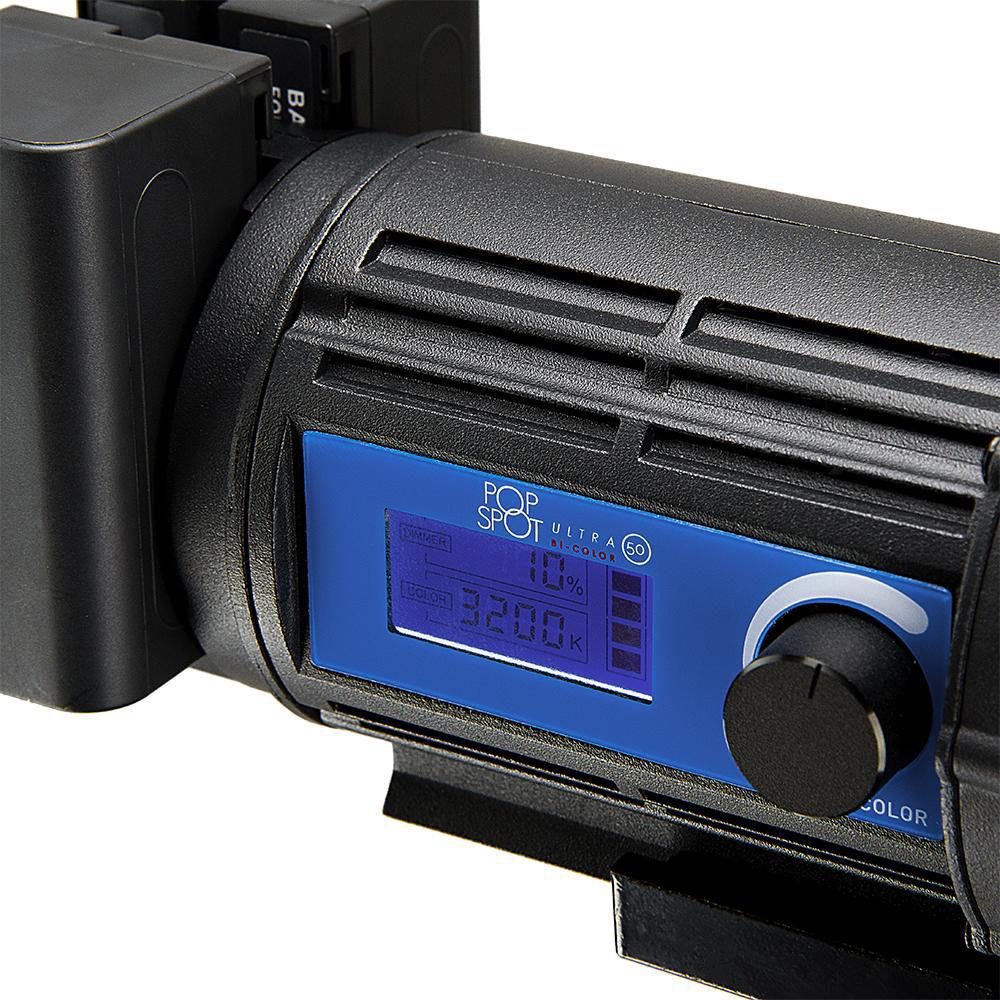

- The PopSpot Ultra 50 Bi-Color is dimmable from 10-100% power and is adjustable from daylight through tungsten color balance at 3200-5600K while maintaining a CRI of 95 and a TLCI rating 96, providing accurate color rendition.

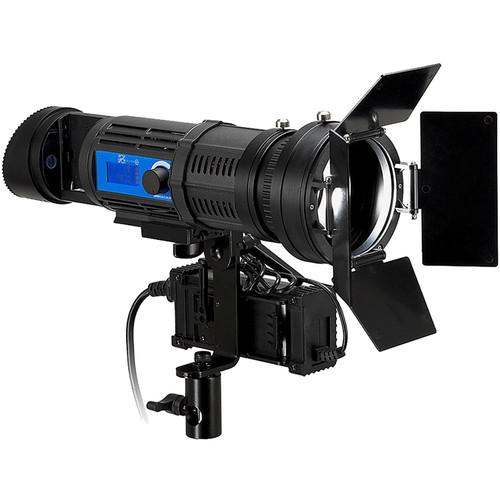

- Four-Way Barndoors

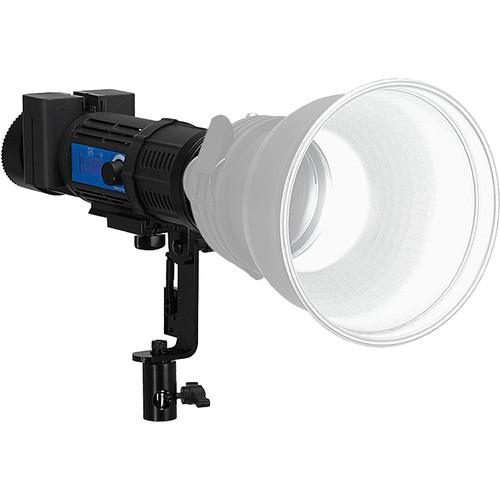

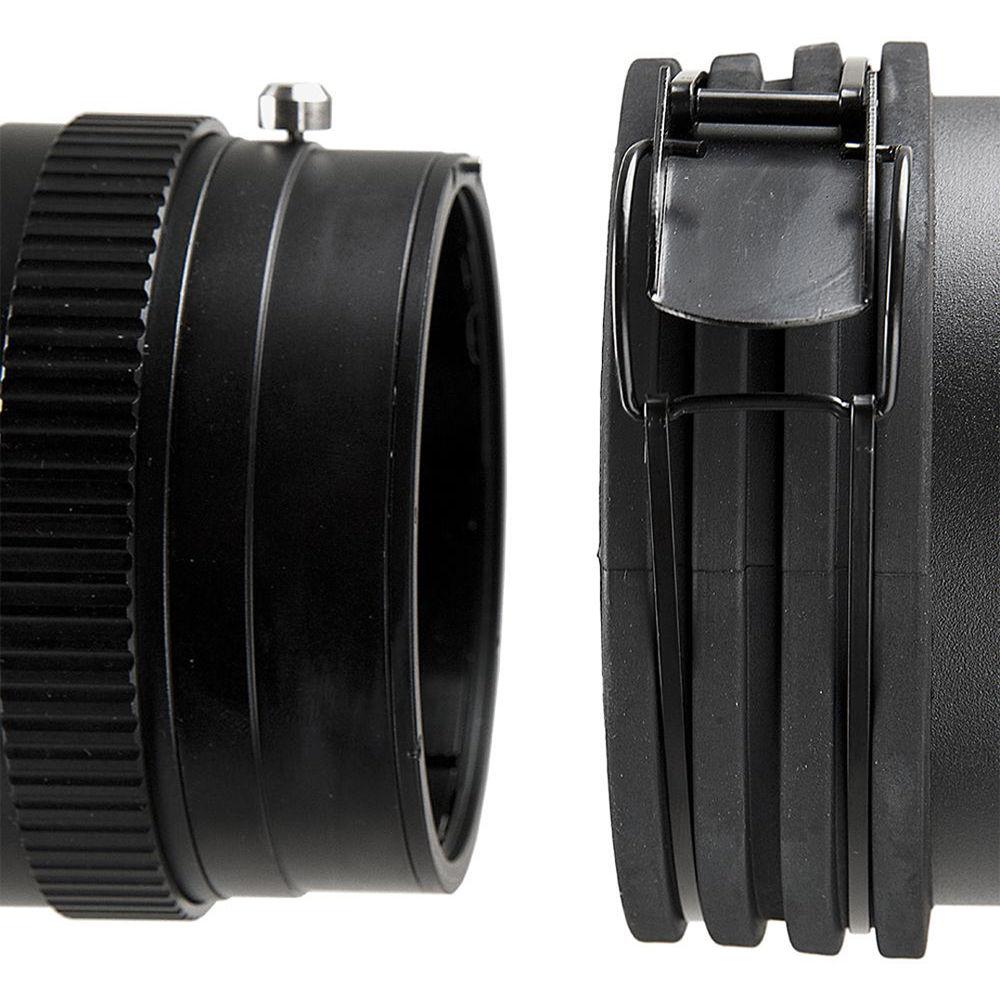

- The included 4-way barndoors help you illuminate areas that you want while keeping light from areas that you don't. In addition, the PopSpot Ultra 50 features a Profoto-style accessory mount, allowing you to use your favorite light modifiers such as reflectors, snoots, and softboxes.

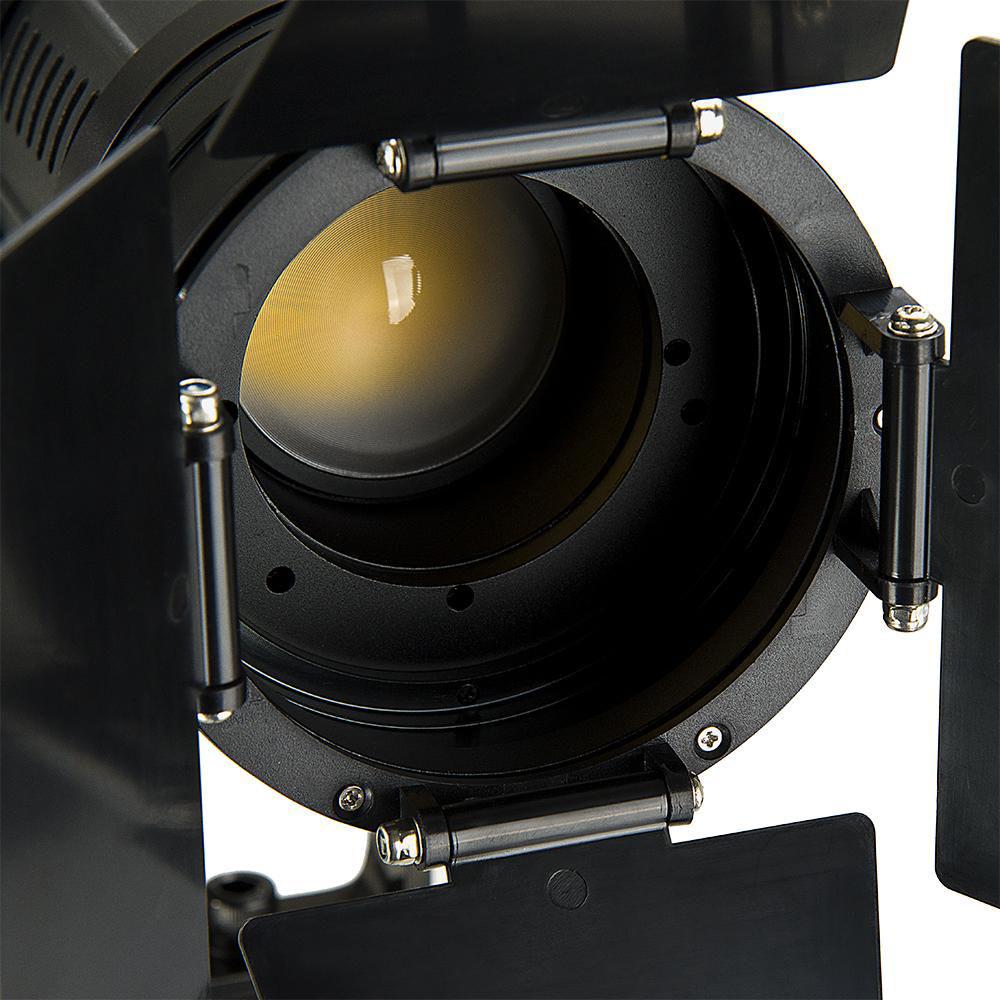

- Adjustable, Spot Focus
- Yet another sign of versatility is the PopSpot Ultra's adjustable focus feature. The lens offers you adjustments from a wide 60° flood beam to a 30° spot for selective lighting or sharp-shadowed sunlight effects.
- Compact Design, Flicker-Free, Low Heat
- The compact design and negligible heat created by the COB LEDs, allows you to squeeze the PopSpot Ultra 50 into tight places or work up close to your subject without the concern of hazard or discomfort. The PopSpot Ultra also features an integrated PWM circuit to give you get constant, flicker-free light that is great for slow-motion and high frame rate videography.
- Full Power at Any Color Temperature
- Often bi-color means half-power, but that's not so with the PopSpot Ultra. The light features one daylight (5600K) balanced 50W COB LED and one 50W tungsten (3200K) balanced COB LED, providing full power throughout the color range.

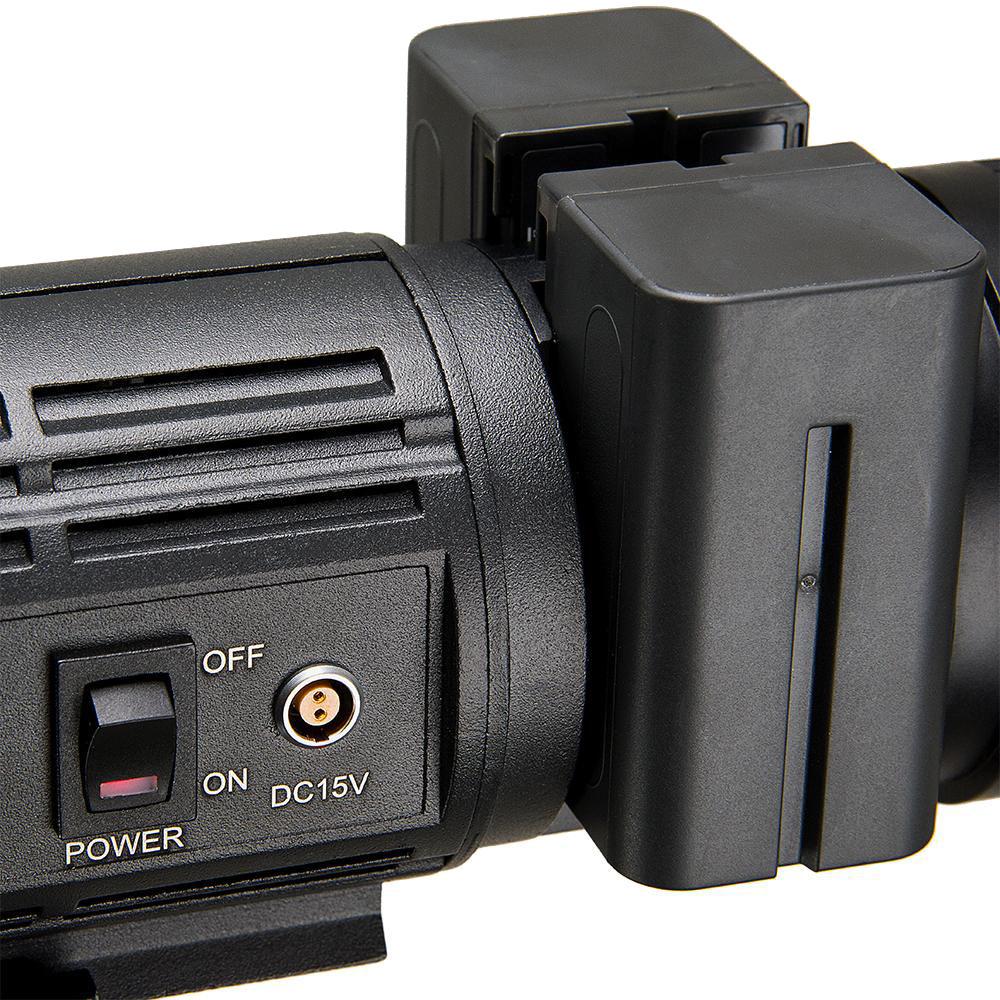

- Dual Power Options and More

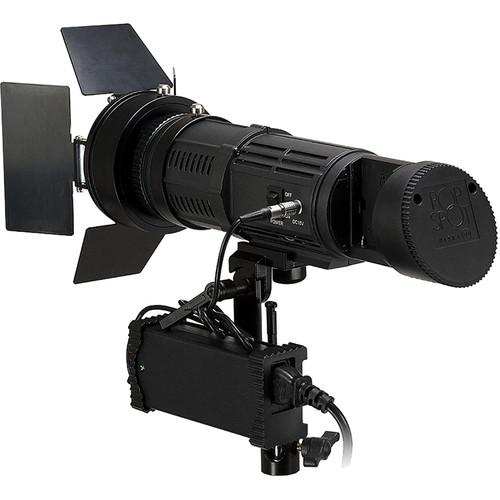

- The PopSpot Ultra 50 can be powered by standard AC current or via batteries making it suitable for studio or location work. Thanks to its multi-voltage power adapter (100-240 VAC), the PopSpot Ultra 50 is ready for worldwide use; all you'll need is an inexpensive travel power adapter.
UPC: 847372044740 In the Box FotodioX Pro PopSpot High Intensity Ultra 50 Bi-Color LED Light Kit PopSpot Ultra 50 Bi-Color Head AC Power Adapter AC Power Cord (U.S. Household) L-Type Light Stand Yoke 2 x NP-F750 Lithium Batteries Dual Battery Charger Removable 4-Way Barndoors Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro PopSpot High Intensity Ultra 50 Bi-Color LED Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX Ultra 50 Specs | | | Beam Angle | 30 to 60° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Continuous) | | Photometrics | 30° at 3200K:
265.4 fc / 2857 lux at 3.28' / 1 m
30° at 5600K:
312.1 fc / 3360 lux at 3.28' / 1 m
60° at 3200K:
181.6 fc / 1955 lux at 3.28' / 1 m
60° at 5600K:
214.7 fc / 2311 lux at 3.28' / 1 m | | Number of LEDs | 1 (Tungsten)
1 (Daylight) | | Fixture Dimensions | 4.0 x 9.6 x 15.0" / 10.2 x 24.4 x 38.1 cm | | Fixture Weight | 3.97 lb / 1.80 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 5/8" Receiver | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 50 W | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 7.0" |
