Product description Offering light intensity control, beam angle, and power options, the Pro PopSpot High Intensity Ultra 100 Daylight LED Light Kit from FotodioX is built around a fixture with a focusable lens that offers adjustments from a wide, 60° flood beam to a 30° spot for selective lighting or sharp-shadowed sunlight effects. The beam angle can be further tweaked with the included 4-way barndoors that allow you to illuminate areas that you want while keeping light from areas that you don't. Suitable for shooting outdoors or in spaces with large windows with a color temperature of 5600K, it also has a high CRI/TLCI rating of 95/96 illustrating accuracy in color rendition. You can also use the included filter to balance the Ultra 100 with other tungsten filters for warm, ambient illumination. Demonstrating economy of power, the Ultra 100 draws just 50W of current while outputting many times that number with negligible heat, allowing you to squeeze it into places where traditional fixtures can't go, or to place it close to the talent without discomfort. The light is dimmable from 10 to 100% and maintains consistent power throughout the dimming range which can be controlled locally on the fixture or remotely from a console via onboard DMX. Powering the Ultra 100 offers more options. The light is ready for worldwide use via the kit's multi-voltage power supply but it can also run on an optional V-mount battery via the light's battery plate. A fully charged battery will give you 2 hours and 35 minutes of run time with the Ultra 100 at full power. FotodioX also includes a DMX cable, safety cable, and a case for storage and transport. - Daylight Balanced and Dimmable
- The PopSpot Ultra 100 Daylight has a constant daylight (5600K) balanced color temperature and is dimmable from 10-100% power, while maintaining a CRI≥95 and a TLCI rating ≥96, providing accurate color rendition. You can easily add color gels, such as the included tungsten-balanced filter or diffusion materials for softness using the integrated filter frame.

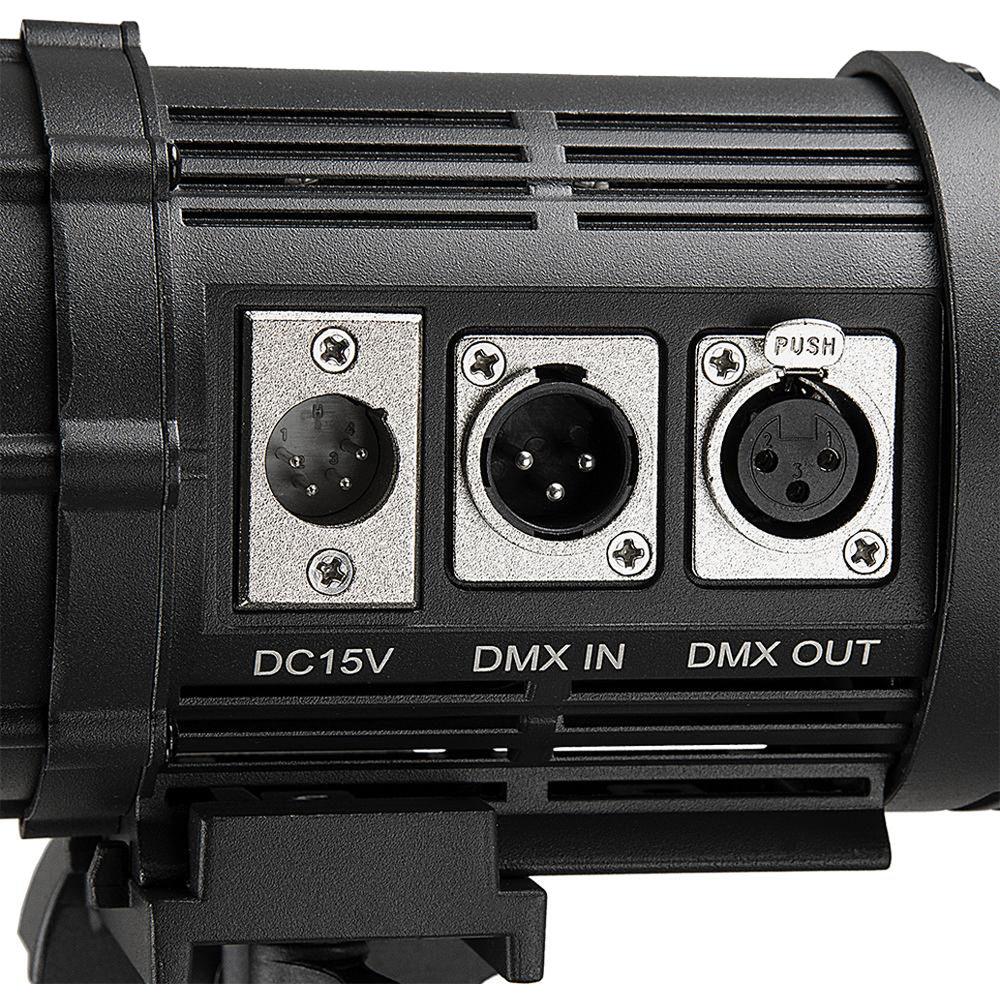

- Local or DMX Control

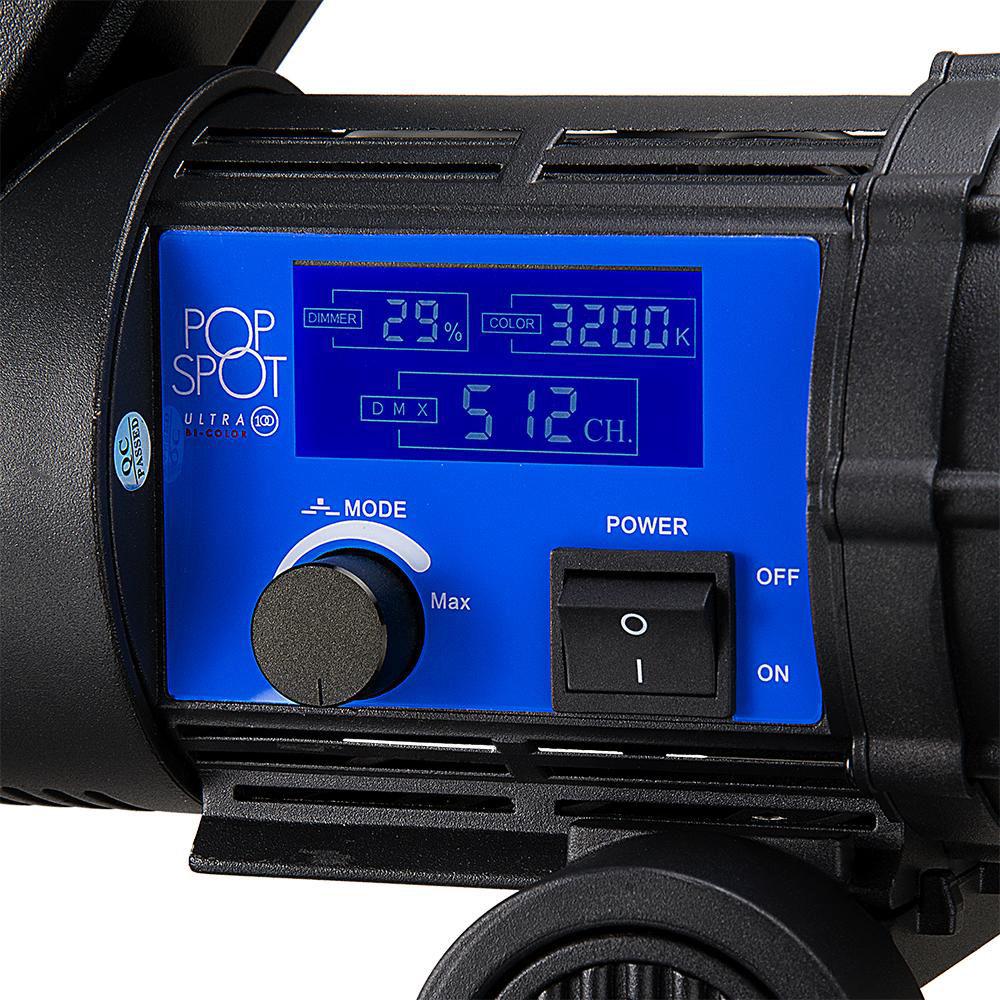

- The Ultra 100's light intensity can be controlled locally on the fixture or remotely from a console via onboard DMX.

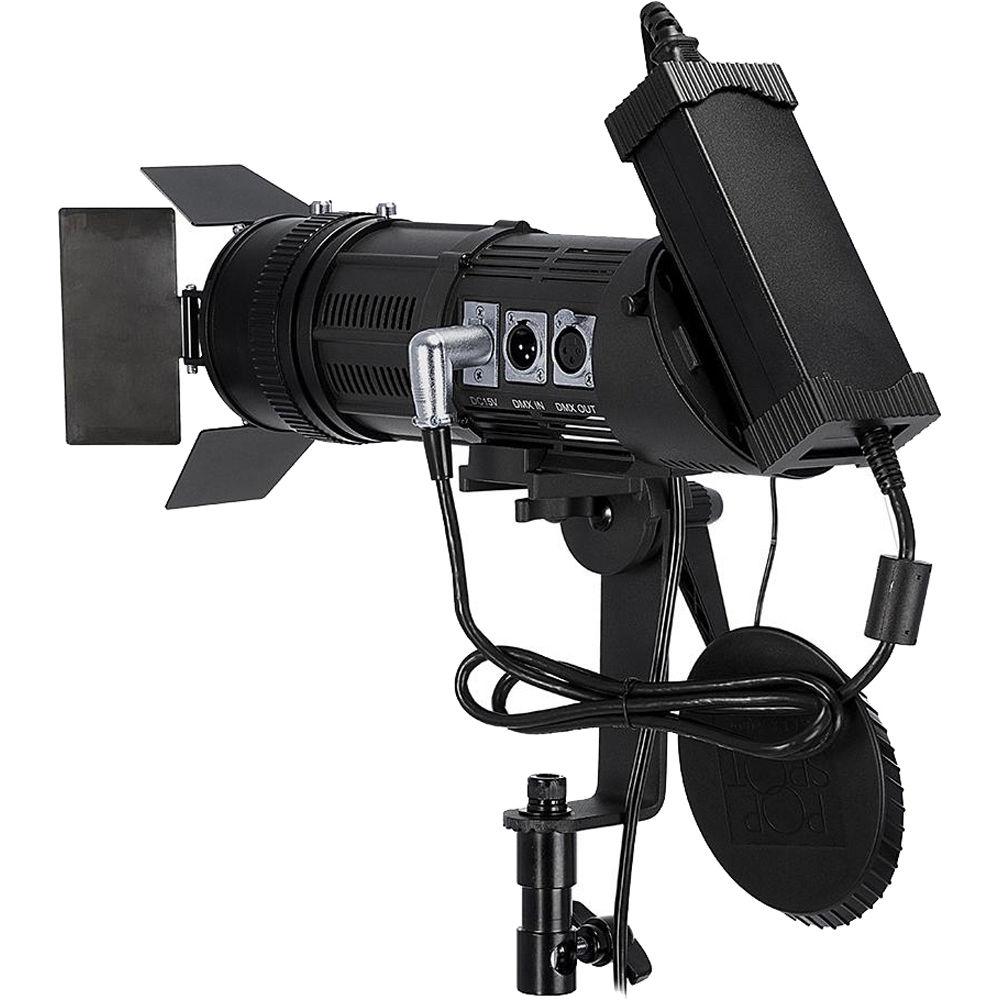

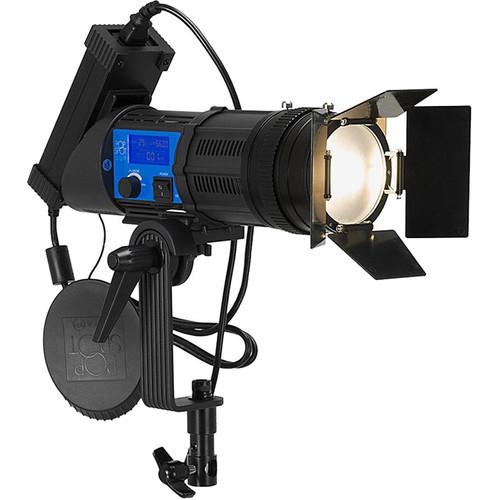

- Four-Way Barndoors

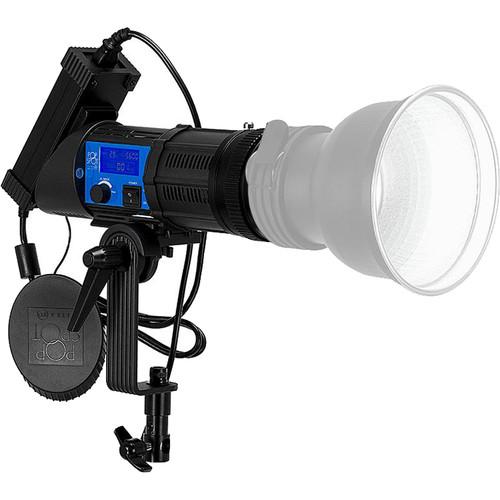

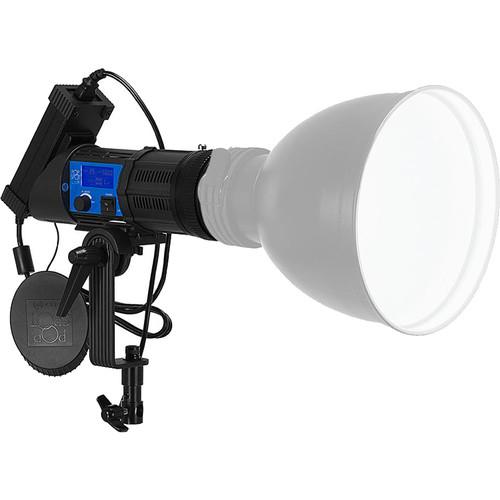

- The included 4-way barndoors help you illuminate areas that you want while keeping light from areas that you don't. In addition, the PopSpot Ultra 100 features a Profoto-style accessory mount, allowing you to use your favorite light modifiers such as reflectors, snoots, and softboxes.

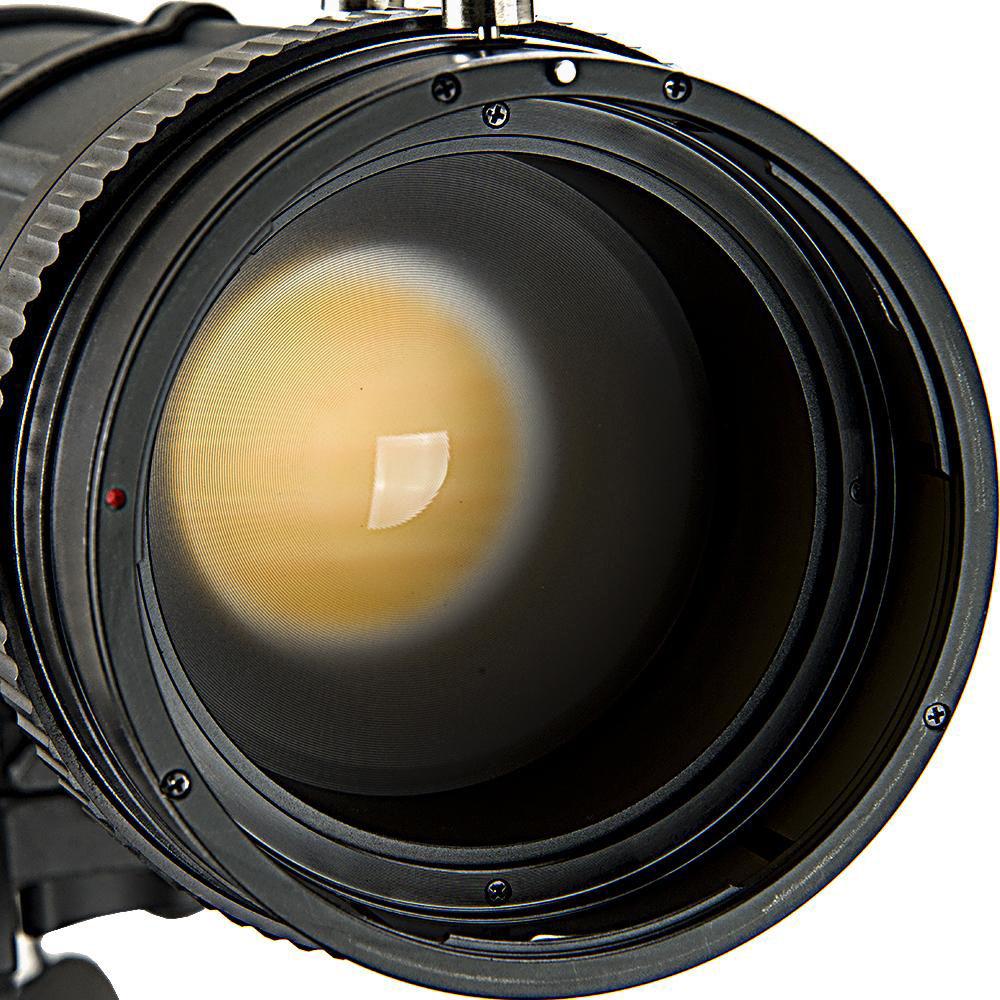

- Adjustable, Spot Focus
- Yet another sign of versatility is the PopSpot Ultra's adjustable focus feature. The lens offers you adjustments from a wide 60° flood beam to a 30° spot for selective lighting or sharp-shadowed sunlight effects.
- Compact Design, Flicker-Free, Low Heat
- The compact design and negligible heat created by the COB LEDs, allows you to squeeze the PopSpot Ultra 100 into tight places or work up close to your subject without the concern of hazard or discomfort. The PopSpot Ultra also features an integrated PWM circuit to give you get constant, flicker-free light that is great for slow-motion and high frame rate videography.
- Dual Power Options and More
- The PopSpot Ultra 100 can be powered by standard AC current or via batteries making it suitable for studio or location work. Thanks to its multi-voltage power adapter (100-240 VAC), the PopSpot Ultra 100 is ready for worldwide use; all you'll need is an inexpensive travel power adapter.
UPC: 847372044757 In the Box FotodioX Pro PopSpot High Intensity Ultra Daylight LED Light Kit PopSpot Ultra 100 Bi-Color Head AC Power Adapter AC Power Cord (U.S. Household) L-Type Light Stand Yoke V-Mount Battery Plate Tungsten Filter Safety Cable DMX Cable Removable 4-Way Barndoors Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro PopSpot High Intensity Ultra Daylight LED Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX Ultra 100 Specs | | | Beam Angle | 30 to 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Continuous) | | Photometrics | 30° at 5600K:
1384.2 fc / 14,900 lux at 3.28' / 1 m
60° at 5600K:
337.5 fc / 3633 lux at 3.28' / 1 m | | Number of LEDs | 1 (Daylight) | | Fixture Dimensions | 6.3 x 14.8 x 15.0" / 16.0 x 37.6 x 38.1 cm | | Fixture Weight | 6.2 lb / 2.81 kg | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 50 W | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 18.5 x 14.6 x 7.4" |
