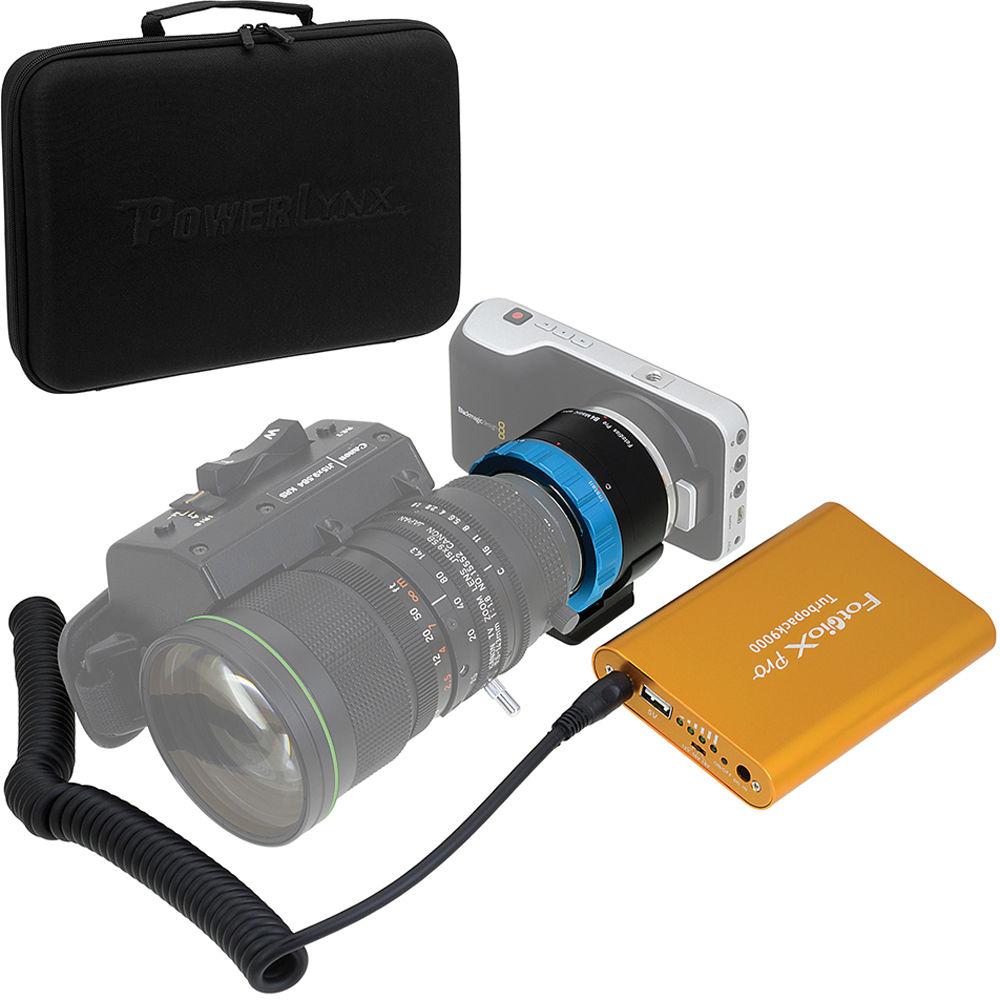

Product description Providing a solution to mounting B4 mounted lenses onto your Blackmagic Design Pocket Cinema Camera (BMPCC), the Fotodiox Pro PowerLynx Kit for BMPCC with 12-Pin Hirose Type Power Cable powers your lens and optically corrects its light path for use on a camera with a single sensor. B4 mounted lenses, such as ENG/EFP type lenses, are designed to mount on a camera with a beam splitter prism and cover cover an 11mm image circle. The included B4 to BMPCC adapter incorporates optics that correct for the lack of a prism and blows up the image to cover the larger image circle of your camera's Super-16-sized sensor.

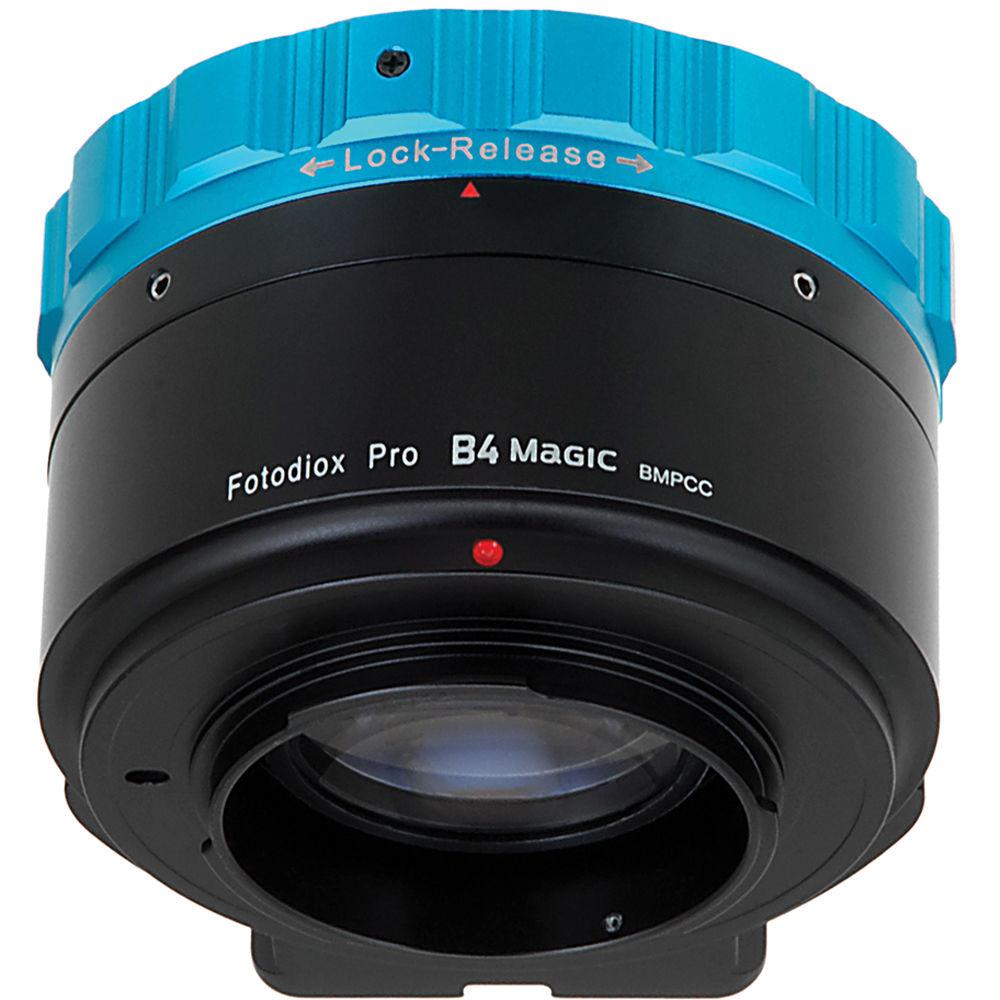

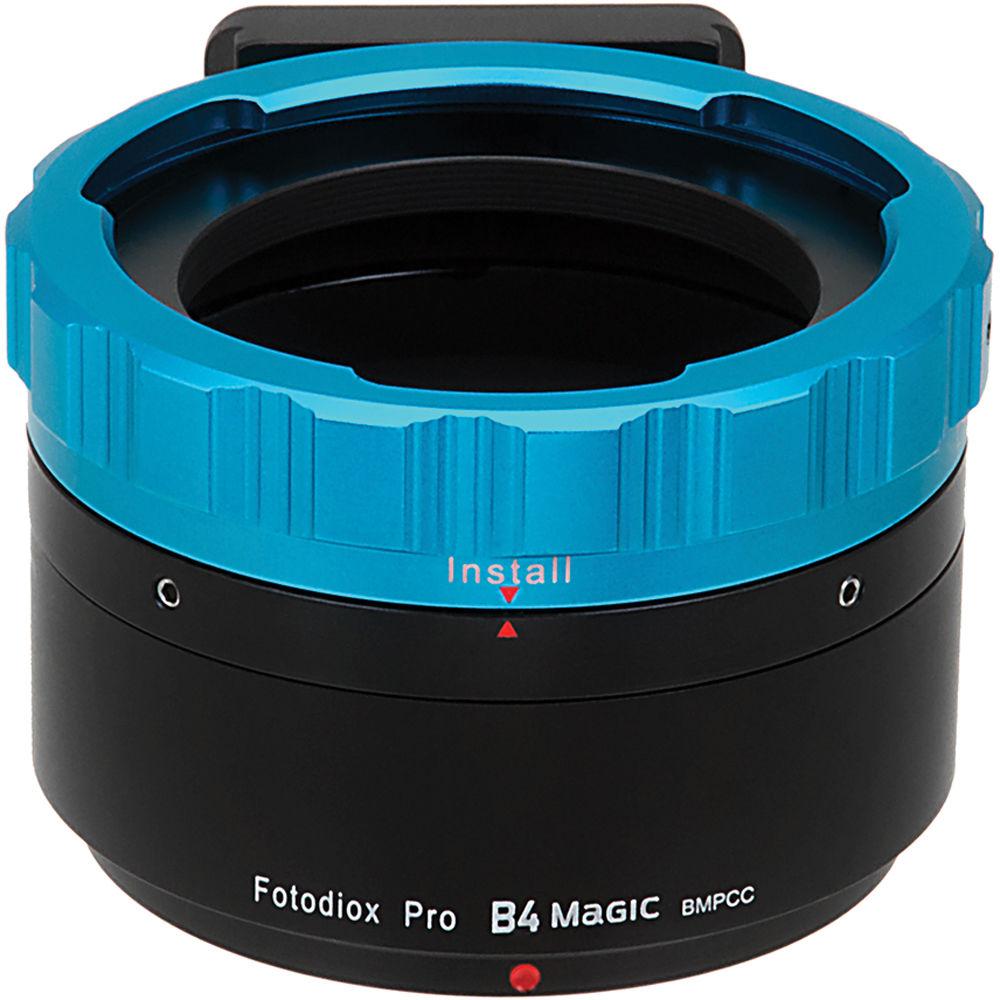

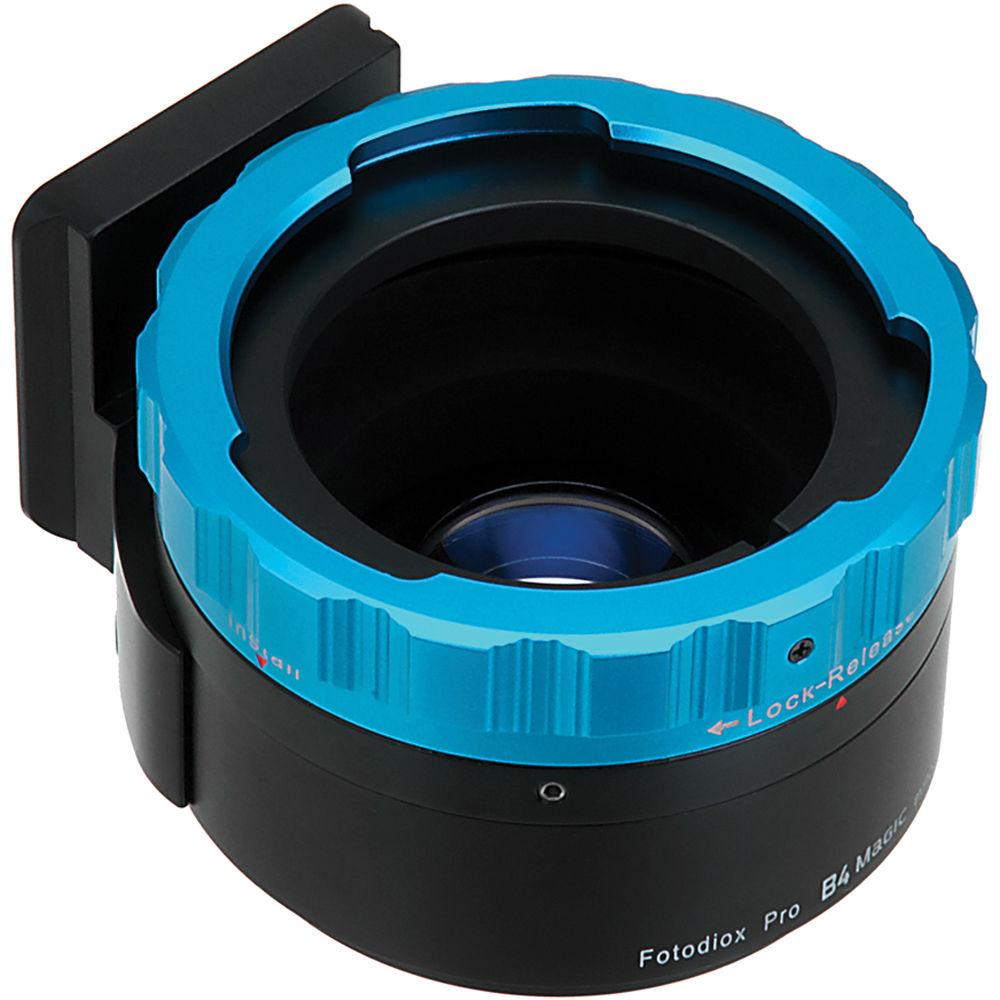

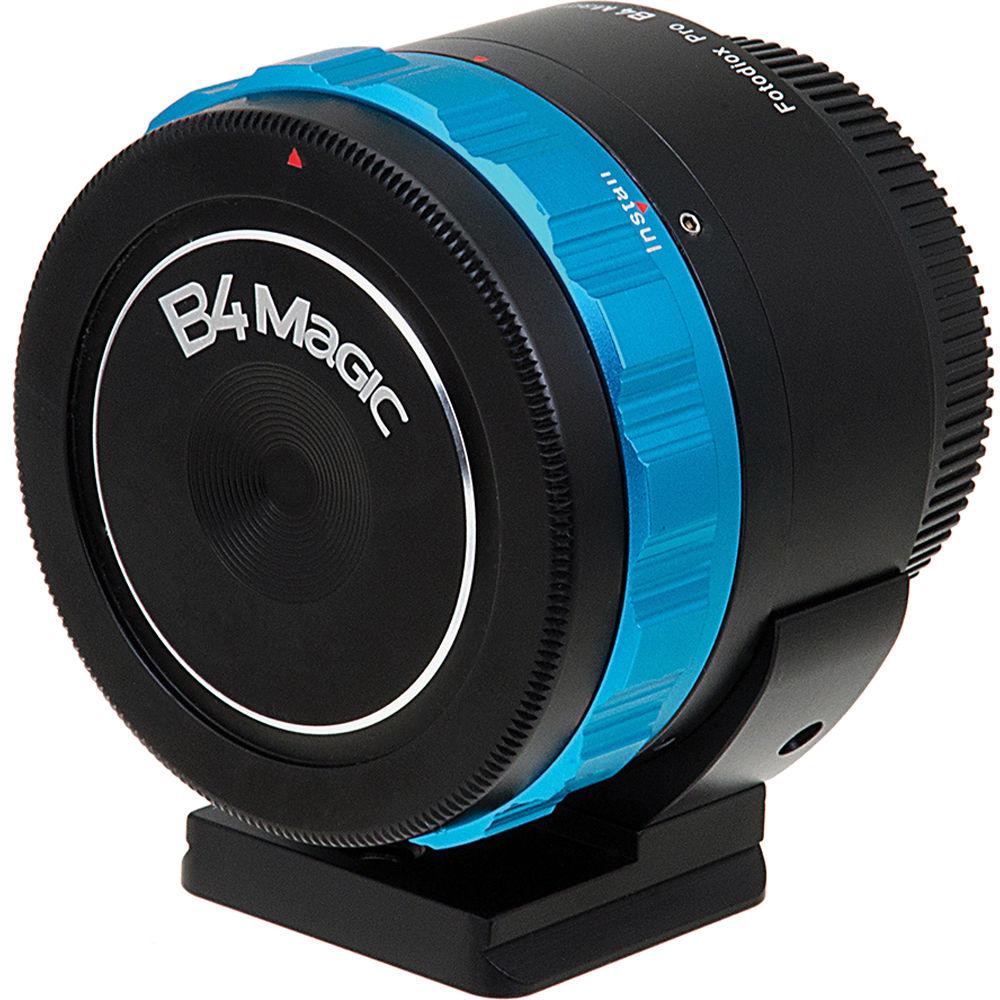

The adapter is made from brass with a stainless steel finish providing a durable surface that stands up to the rigors of production. It incorporates an Arca-Swiss compatible support foot that you can mount to a tripod, which takes the strain off your camera's mount. Included with the kit are a Fotodiox Turbopack 9000 and a coiled 12-pin cable that you can use power the zoom controller of your B4 lens. An included metal front cap is included with the B4 mount adapter that protects the optics the adapter when no lens is mounted. - Pro B4 Magic Adapter for Blackmagic Pocket Cinema Camera The Fotodiox Pro B4 Magic Adapter allows you to mount 2/3" B4 lenses onto the Blackmagic Pocket Cinema Camera. It is constructed from brass with a stainless steel finish and features built-in optics to correct the image circle from your B4 lens to fit the Pocket Camera's sensor without vignetting. To reduce strain on the Pocket Camera's MFT mount when using heavy zoom lens, the adapter has an Arca-Swiss compatible tripod foot to help support the weight of the adapter and lens. An all-metal cap is included that fits on the front of the lens adapter, protecting the optics when no lens is attached.
Note: This adapter is designed to work with lenses set to f/5.6 or greater. Shooting below f/5.6 may result in soft focus, depending on your lens. UPC: 847372029600 - Pro Turbopack 9000 Power Pack for B4 Mount Servo Lenses The Fotodiox Pro Turbopack 9000 Power Pack is a 25Wh battery designed to power 2/3" B4 servo lenses, as well as a GoPro and USB-powered devices. You can connect the Turbopack to your B4 lens with a separately available 6-pin or 12-pin connecting cable, and a 3-position switch selects between 12, 16, or 19V DC output. Depending on the lens type used, this allows you to power functions such as cruise zoom, quick zoom, and iris return. The battery also features a 5V, 2A USB output for powering cameras such as a GoPro or for charging your smartphone or tablet. The Pro Turbopack 9000 can power a GoPro camera via a USB connector for up to 9 hours in video mode or up to 12 hours in time lapse mode. Included with the battery is an AC charger and a fitted case with hook and loop fastener attachments, so you can secure it anywhere on your camera setup.
- Key Features
-
- Provides power to the zoom servo on B4 lenses using separately available Servo Power Cables
- Powered servo lens functions including quick zoom, cruise zoom, and iris return
- 12, 16, or 19VDC switchable outputs
- 25Wh capacity
- Battery does not have a sleep function; lens is fully powered at all times
- Battery level LED indicator
- Can also be used to power a GoPro or charge phone/tablet with the 5V USB port

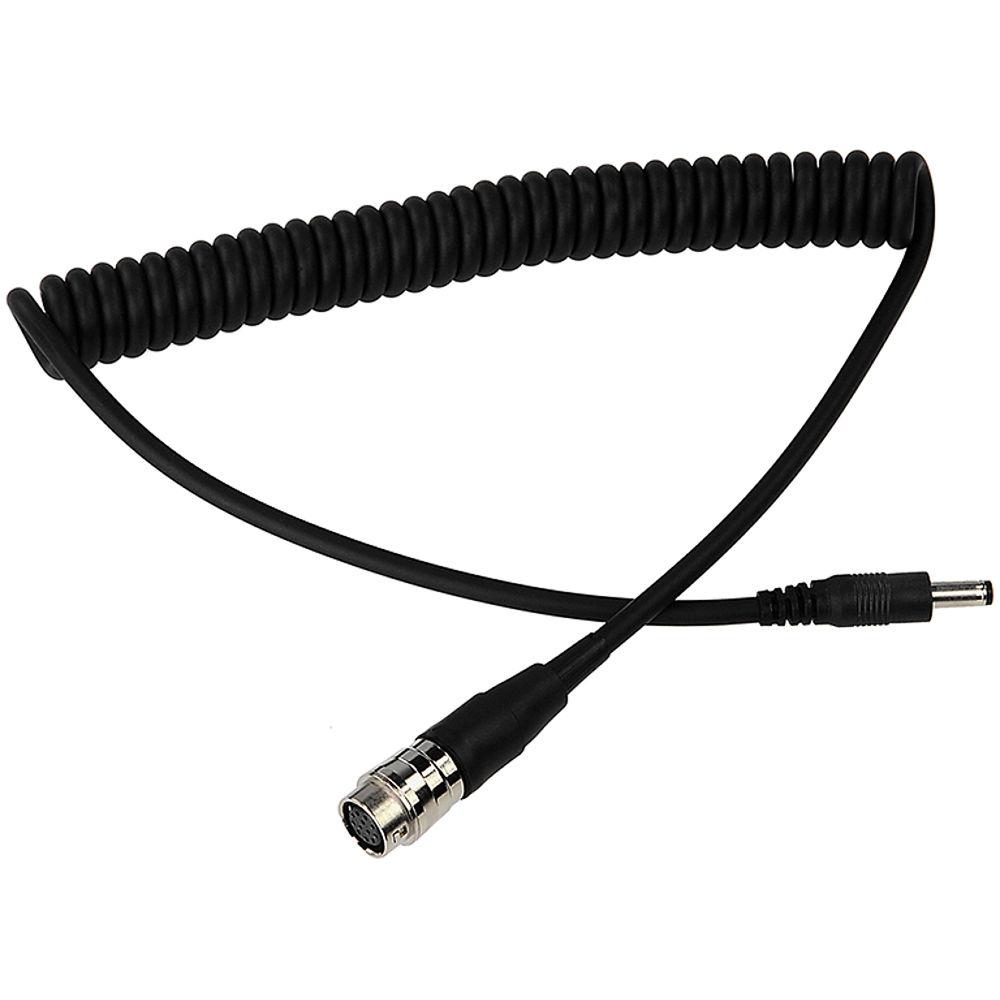

UPC: 847372027149 - B4 12-Pin Hirose to 12V DC Coiled Power Cable (15") The FotodioX B4 12-Pin Hirose to 12V DC Coiled Power Cable (15") allows you to connect portable DC input power packs to broadcast production lenses and power zoom, iris return, and other functions. Compatible power packs include the Fotodiox Pro Turbopack 9000. The cable's coiled design extends to approximately 15" in length and otherwise keeps cable clutter to a minimum. Note: Auto iris control is not supported. UPC: 847372027163

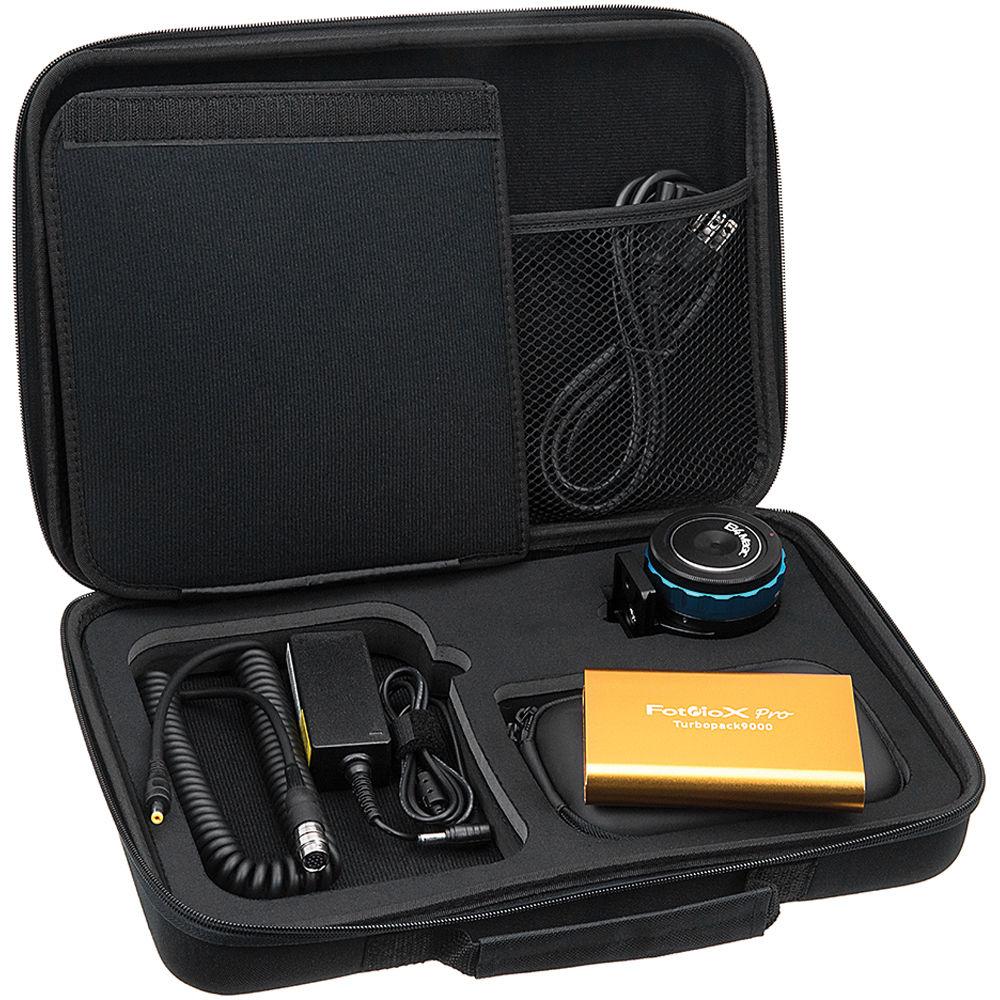

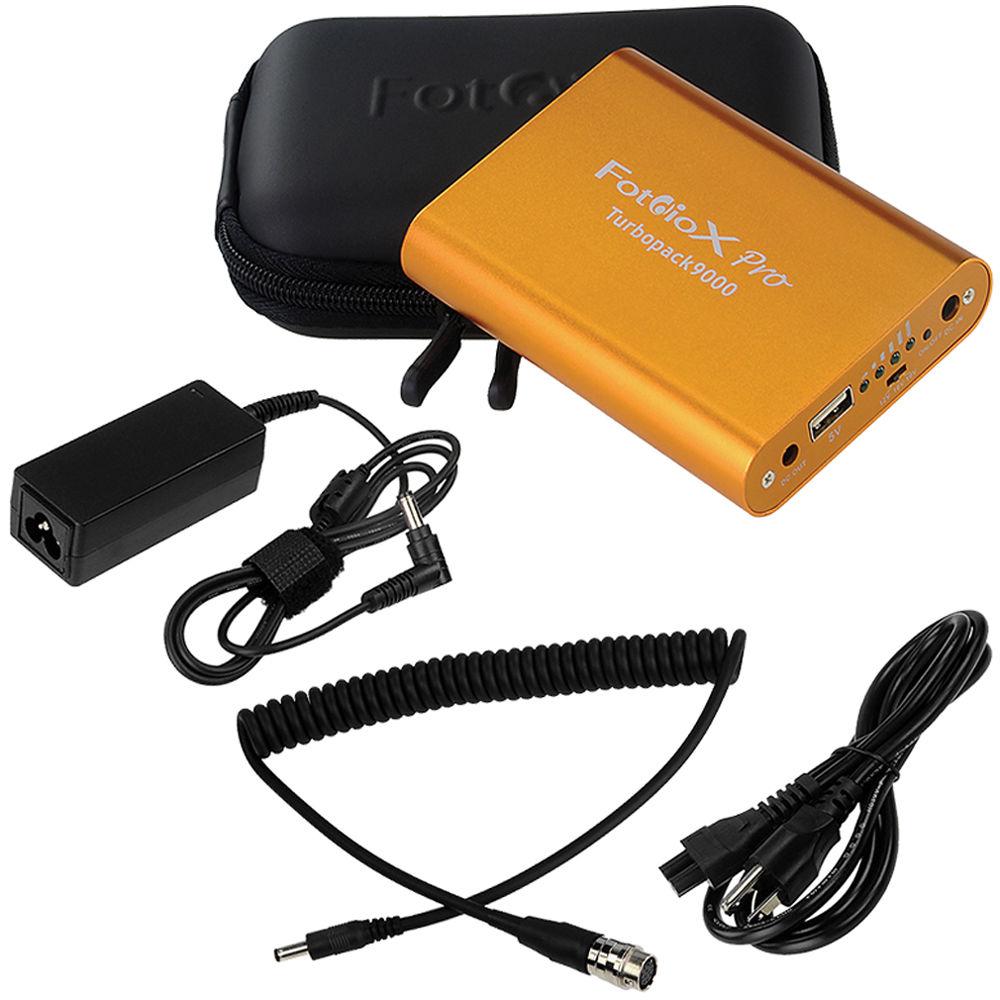

In the Box Bundle Items Pro B4 Magic Adapter for Blackmagic Pocket Cinema Camera xayvtsyvcasryrxuacfaba Pro Turbopack 9000 Power Pack for B4 Mount Servo Lenses B4 12-Pin Hirose to 12V DC Coiled Power Cable (15") Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro PowerLynx Kit for BMPCC with 12-Pin Hirose Type Power Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pro B4 Magic Adapter for Blackmagic Pocket Cinema Camera
| | | Box Dimensions (LxWxH) | 4.3 x 3.9 x 2.6" | - Pro Turbopack 9000 Power Pack for B4 Mount Servo Lenses
| Compatibility | B4 2/3" lens (Fujinon, Nikon, Canon, Angenieux, Schneider) servo power cables and GoPro cameras | | Indicators and Controls | 4 x LED green, battery indicator level
1 x On/off button
1 x 3-position switch (12, 16, and 19 VDC) | | Connectors | 1 x DC barrel female, 16 to 20 VDC input port
1 x DC barrel female, output port
1 x USB type A, 5 VDC, 2 A output | | Battery Current | 3.5 A maximum output | | Battery Capacity | 25 Wh | | Battery Type | Li-Polymer | | Dimensions (L x H x W) | Battery: 4.5 x 3.2 x 0.8" (11.5 x 8.0 x 2.0 cm) | | Weight | 12.3 oz (348.7 g) | | | | Box Dimensions (LxWxH) | 9.8 x 9.5 x 2.2" | - B4 12-Pin Hirose to 12V DC Coiled Power Cable (15")
| Connector 1 | 12-pin B4 (2/3") Hirose female | | Connector 2 | 12 VDC female (1.7 mm inside diameter; 4.75 mm outside diameter) | | Length | Approx. 15" (37 cm) fully extended | | | | Box Dimensions (LxWxH) | 7.0 x 2.25 x 0.85" |
