User Manual for FotodioX Pro Turbopack 9000 Power Pack for B4 Mount Servo Lenses Click to enlarge the picture
Contents of the user manual for the FotodioX Pro Turbopack 9000 Power Pack
- Product category: Zoom & Focus Accessories FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX Zoom & Focus Accessories
 |
User manual for the FotodioX Pro Turbopack 9000 Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

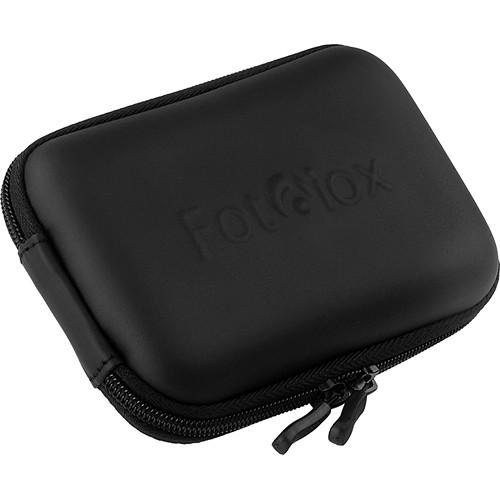

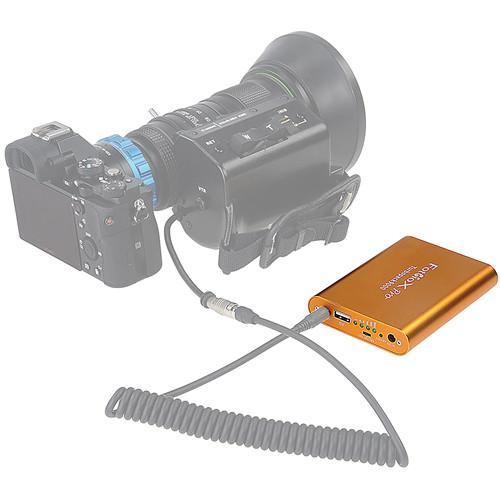

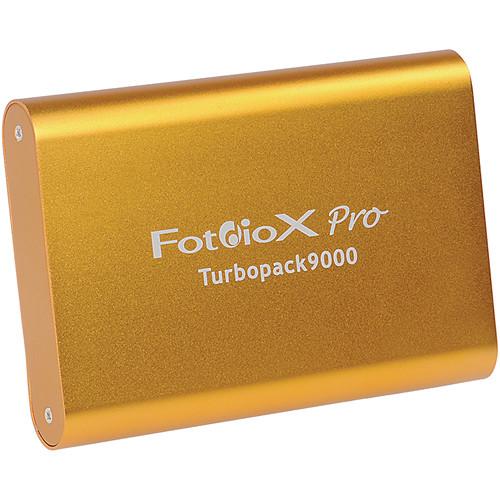

Product description The Fotodiox Pro Turbopack 9000 Power Pack is a 25Wh battery designed to power 2/3" B4 servo lenses, as well as a GoPro and USB-powered devices. You can connect the Turbopack to your B4 lens with a separately available 6-pin or 12-pin connecting cable, and a 3-position switch selects between 12, 16, or 19V DC output. Depending on the lens type used, this allows you to power functions such as cruise zoom, quick zoom, and iris return. The battery also features a 5V, 2A USB output for powering cameras such as a GoPro or for charging your smartphone or tablet. The Pro Turbopack 9000 can power a GoPro camera via a USB connector for up to 9 hours in video mode or up to 12 hours in time lapse mode. Included with the battery is an AC charger and a fitted case with hook and loop fastener attachments, so you can secure it anywhere on your camera setup. - Key Features
-
- Provides power to the zoom servo on B4 lenses using separately available Servo Power Cables
- Powered servo lens functions including quick zoom, cruise zoom, and iris return
- 12, 16, or 19VDC switchable outputs
- 25Wh capacity
- Battery does not have a sleep function; lens is fully powered at all times
- Battery level LED indicator
- Can also be used to power a GoPro or charge phone/tablet with the 5V USB port

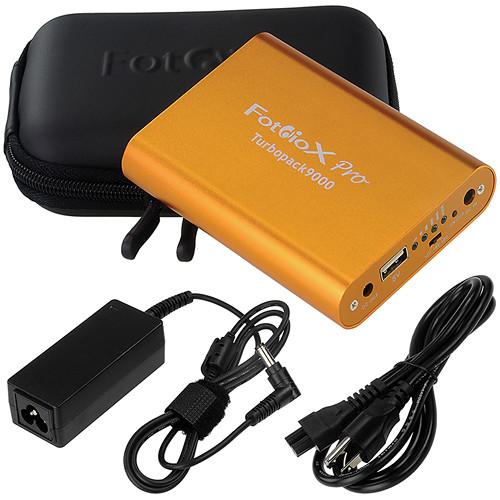

UPC: 847372027149 In the Box FotodioX Pro Turbopack 9000 Power Pack for B4 Mount Servo Lenses AC Charger Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Pro Turbopack 9000 Power Pack for B4 Mount Servo Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

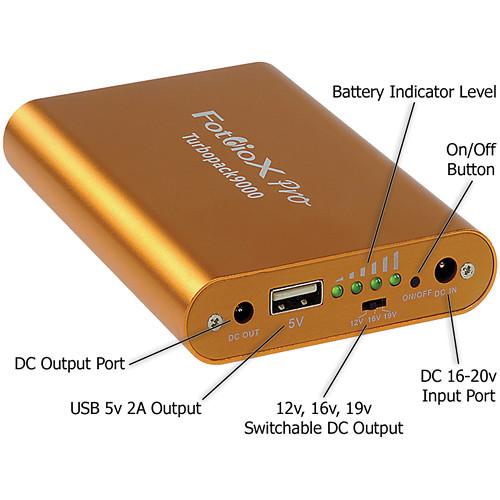

Technical parametersFotodioX TURBOPACK-9000-ONLY Specs | Compatibility | B4 2/3" lens (Fujinon, Nikon, Canon, Angenieux, Schneider) servo power cables and GoPro cameras | | Indicators and Controls | 4 x LED green, battery indicator level
1 x On/off button
1 x 3-position switch (12, 16, and 19 VDC) | | Connectors | 1 x DC barrel female, 16 to 20 VDC input port
1 x DC barrel female, output port
1 x USB type A, 5 VDC, 2 A output | | Battery Current | 3.5 A maximum output | | Battery Capacity | 25 Wh | | Battery Type | Li-Polymer | | Dimensions (L x H x W) | Battery: 4.5 x 3.2 x 0.8" (11.5 x 8.0 x 2.0 cm) | | Weight | 12.3 oz (348.7 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.8 x 9.5 x 2.2" |
