User Manual for FotodioX Vizelex Pro ND Throttle Lens Mount Adapter for Nikon F-Mount Lens to Sony E-Mount Camera Click to enlarge the picture
Contents of the user manual for the FotodioX Vizelex Pro ND Throttle Lens
- Product category: Lens Mount Adapters FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX Lens Mount Adapters
 |
User manual for the FotodioX Vizelex Pro ND Throttle Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|

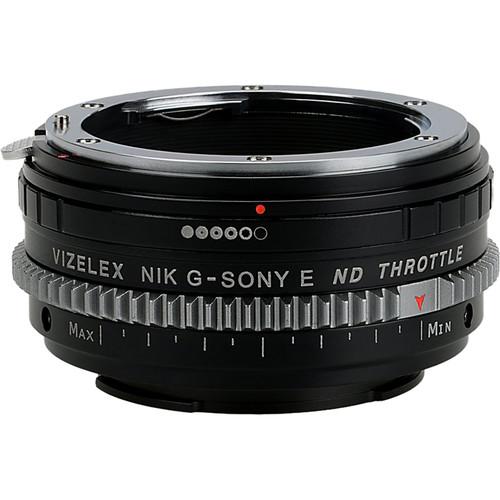

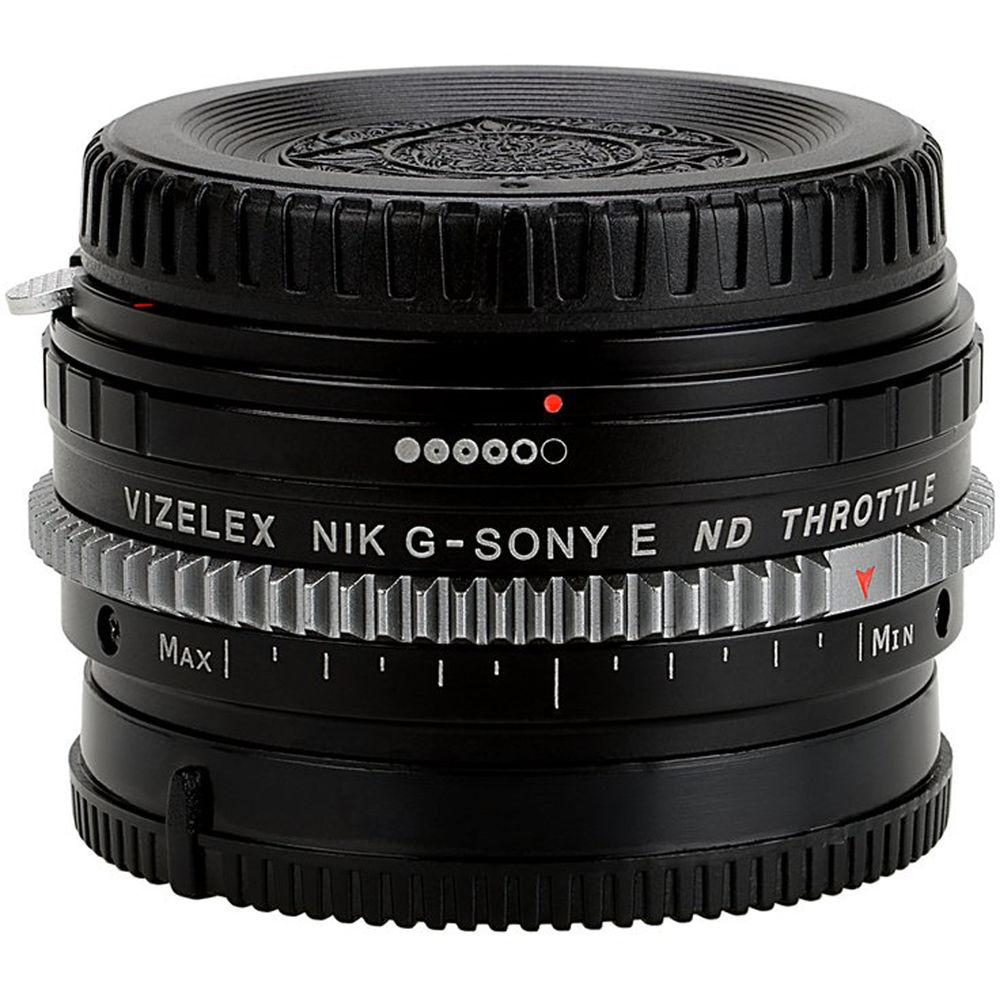

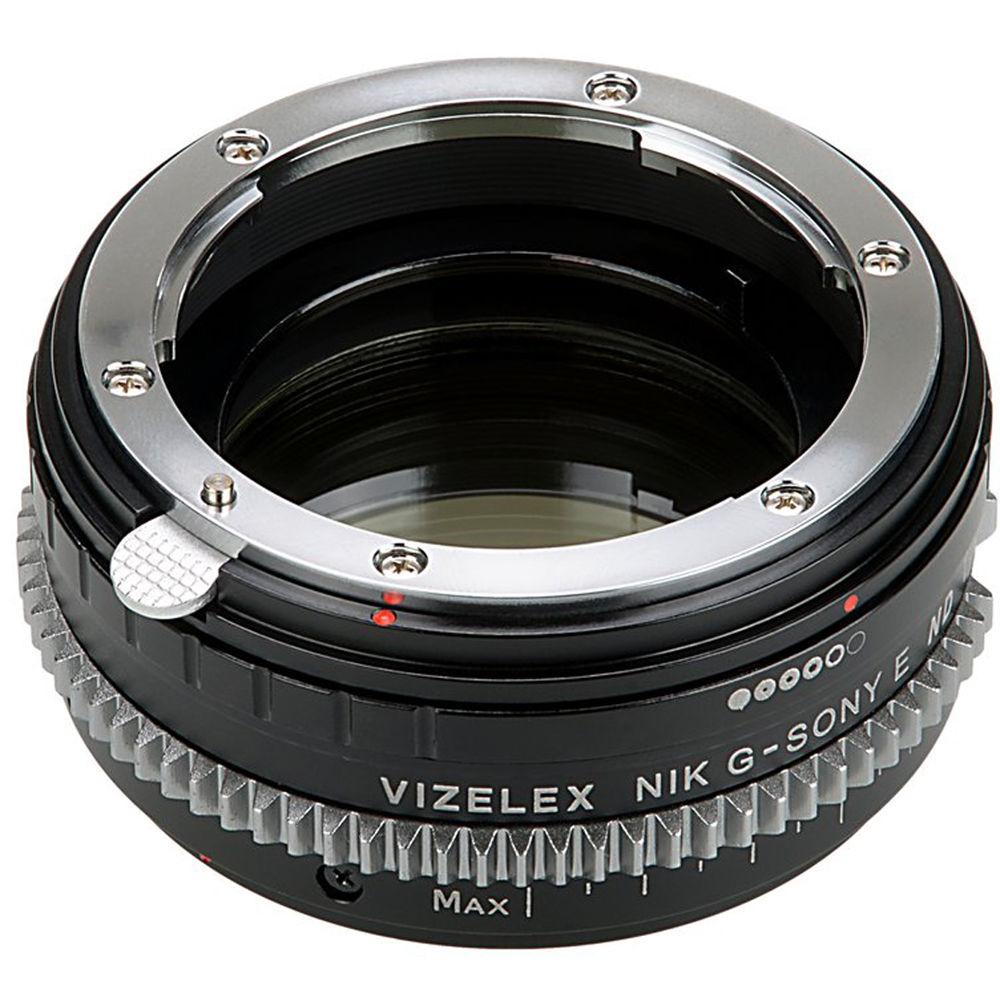

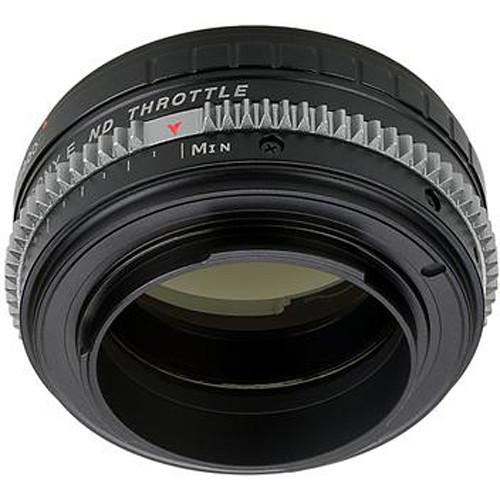

Product description The Vizelex Pro ND Throttle Lens Mount Adapter for Nikon F-Mount Lens to Sony E-Mount Camera from FotodioX allows a Nikon F-mount lens to be used with a Sony E-mount camera and features a built-in, variable neutral-density filter. This filter has a 2 to 1,000x filter factor that provides a 1 to 10 stop exposure reduction. While recording video with a CCD or CMOS camera, this adapter's variable neutral-density filter can help maintain proper exposure by compensating for increased light levels after widening an installed camera lens's iris to obtain a narrower depth-of-field.
This Vizelex Pro ND Throttle Lens Mount Adapter's variable neutral-density filter can also be applied to still photography. Its 0.3 to 3.0 density creates a darkening of the entire image, allowing wider aperture or slower shutter speed settings than otherwise normally possible. By adjusting exposure times and apertures, depth-of-field can be controlled and movement more easily conveyed.
Electronic communication between an attached camera and lens is not supported by this adapter. For Nikon F-mount, G-type lenses that lack a means to adjust apertures on the lens body itself, the Vizelex Pro ND Throttle Lens Mount Adapter provides an aperture-control ring that couples with a compatible lens's aperture mechanism so that adjustments to depth-of-field, as well as brightness, can be made. The adapter's aperture-ring can also be used with a non-G type, Nikon F-mount lens's own aperture-control ring; in combination with the built-in variable neutral-density filter's minimum or maximum setting.
This adapter can be used with full frame and APS-C sensors and lenses. -

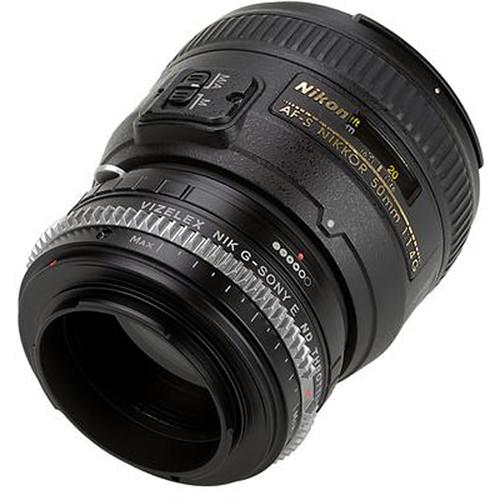

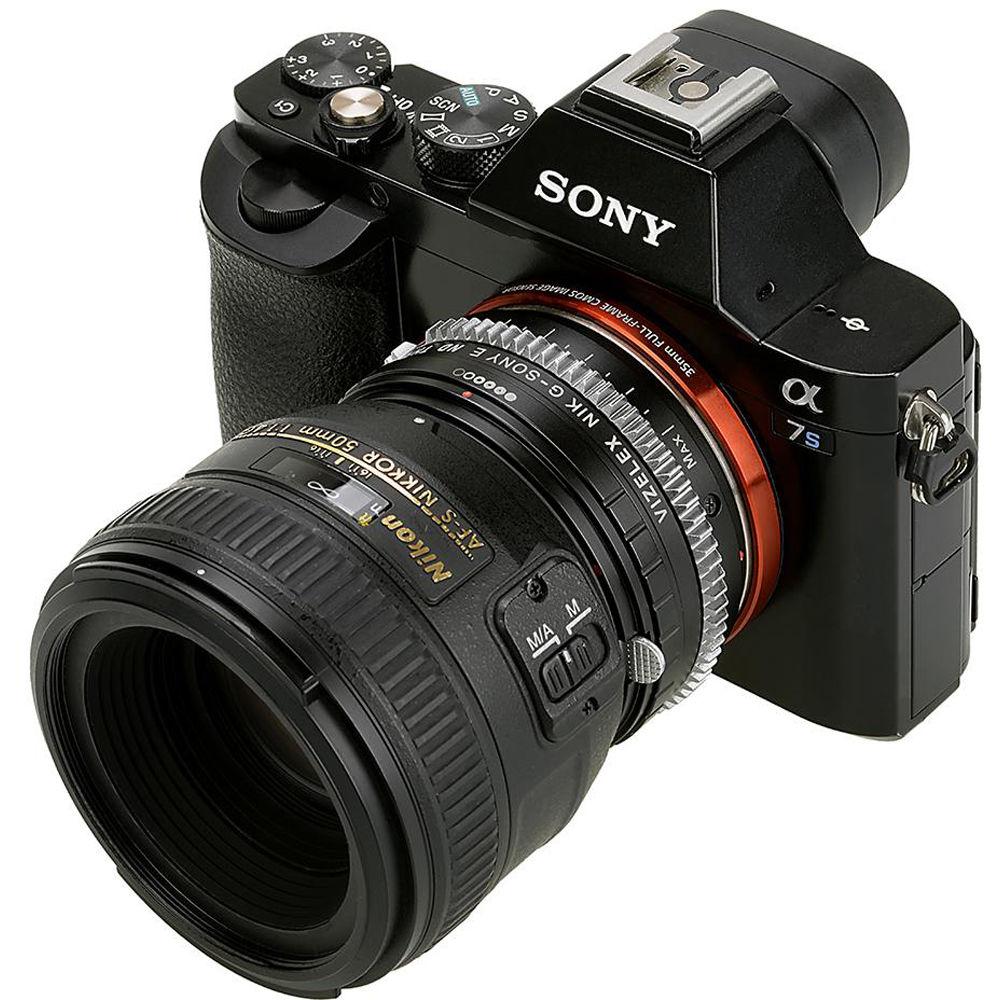

- Allows a Nikon F-mount lens to be used with a Sony E-mount camera
- Built-in variable neutral-density filter for recording video with a CCD or CMOS camera
- Filter helps maintain proper exposure by compensating for increased light levels when adjusting camera lens iris for narrower depth-of-field
- 0.3 to 3.0 built-in, variable neutral-density filter darkens the image, allowing photographs with longer shutter speeds or wider apertures than otherwise normally possible
- Providing a 1 to 10 stop exposure reduction, the built-in filter offers increased depth-of-field control and movement can be more easily conveyed
- Integrated, aperture-control ring for Nikon F-mount, G-type lenses
- Attached lens can focus to infinity
- Brass and aluminum-alloy construction with stainless-steel lens mounting ring for durability
- Locking mechanism for secure attachment of lens with push-button release
UPC: 847372002504 In the Box FotodioX Vizelex Pro ND Throttle Lens Mount Adapter for Nikon F-Mount Lens to Sony E-Mount Camera Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX Vizelex Pro ND Throttle Lens Mount Adapter for Nikon F-Mount Lens to Sony E-Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX NIKG-SNYE-PRO-NDTHRTL Specs | | | Camera Mount | Sony E | | Lens Mount | Nikon F | | | | Dimensions |
