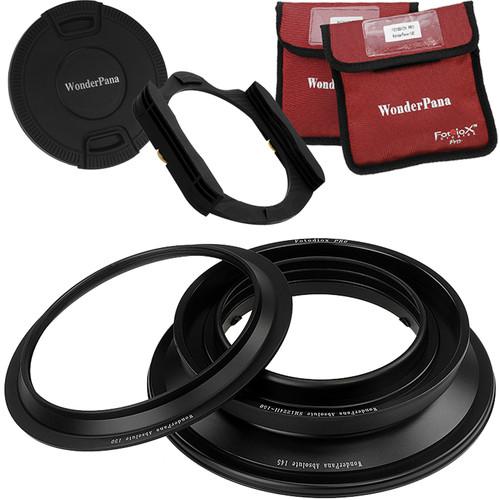

User Manual for FotodioX WonderPana Absolute Core Unit Kit for Sigma 12-24mm II Lens with Pro 130mm Filter Holder Click to enlarge the picture
Contents of the user manual for the FotodioX WonderPana Absolute Core Unit Kit
- Product category: Filter Holders & Frames FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX Filter Holders & Frames
 |
User manual for the FotodioX WonderPana Absolute Core Unit Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|
Product description This WonderPana Absolute Core Unit Kit from FotodioX includes a WonderPana Absolute Core Unit designed to specifically fit the Sigma 12-24mm f/4.5-5.6 DG HSM II lens. Also provided are several accessories to enable the use of various separately-available items. These items include both filter holders and filters for the Cokin X-Pro and FotodioX Pro 130mm filter systems, 145mm FotodioX round filters, and a LEE SW-150 filter holder.

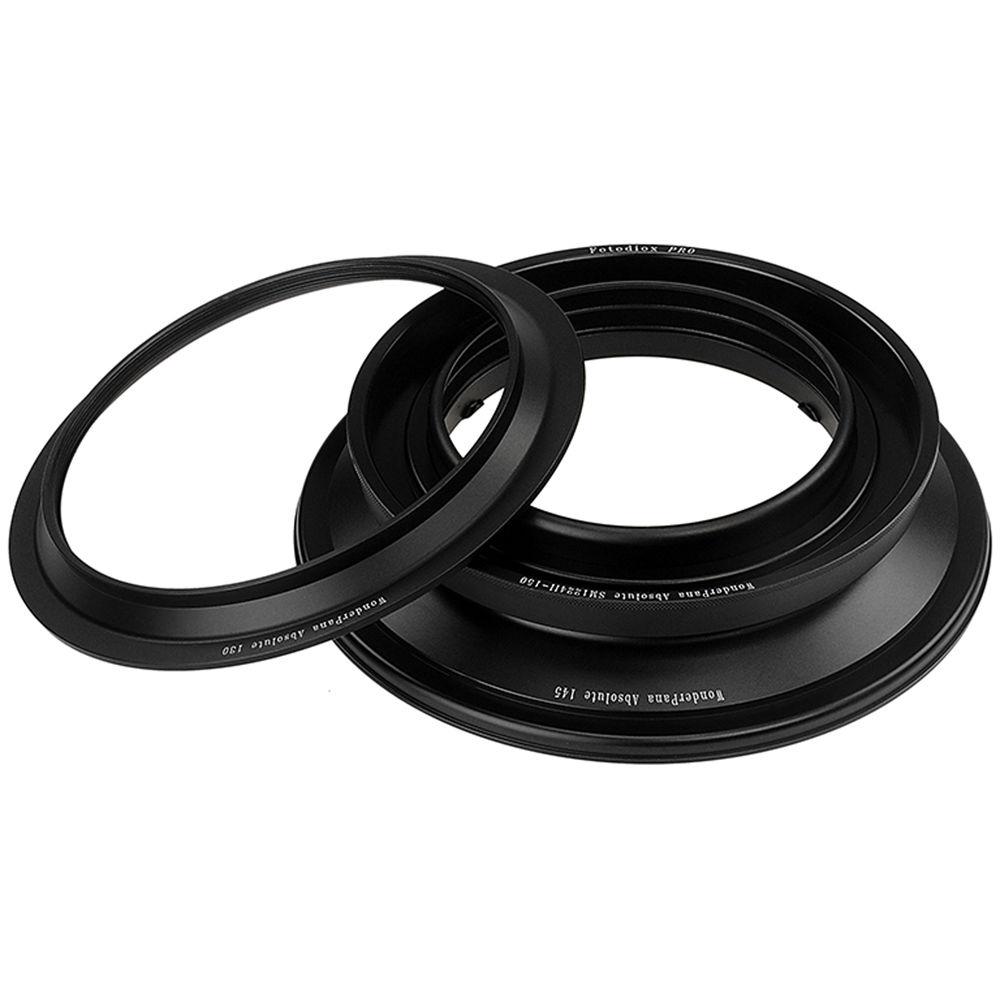

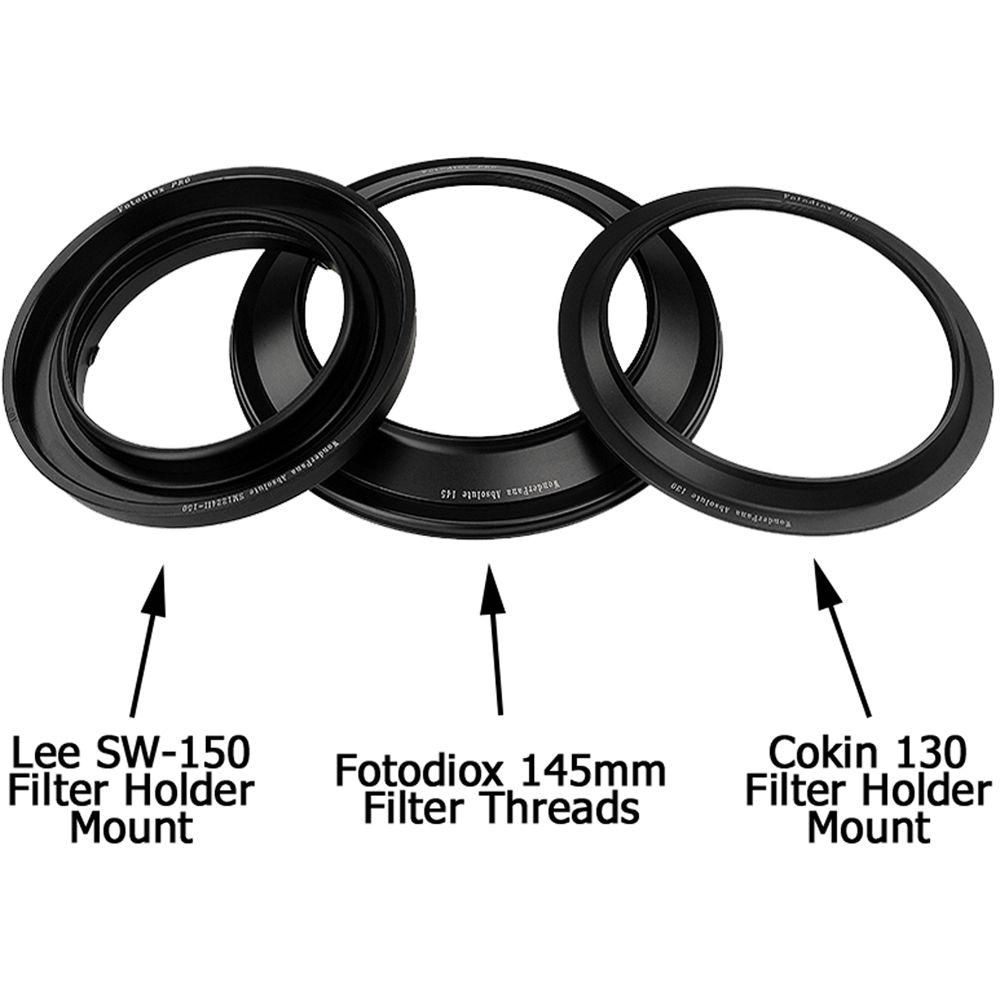

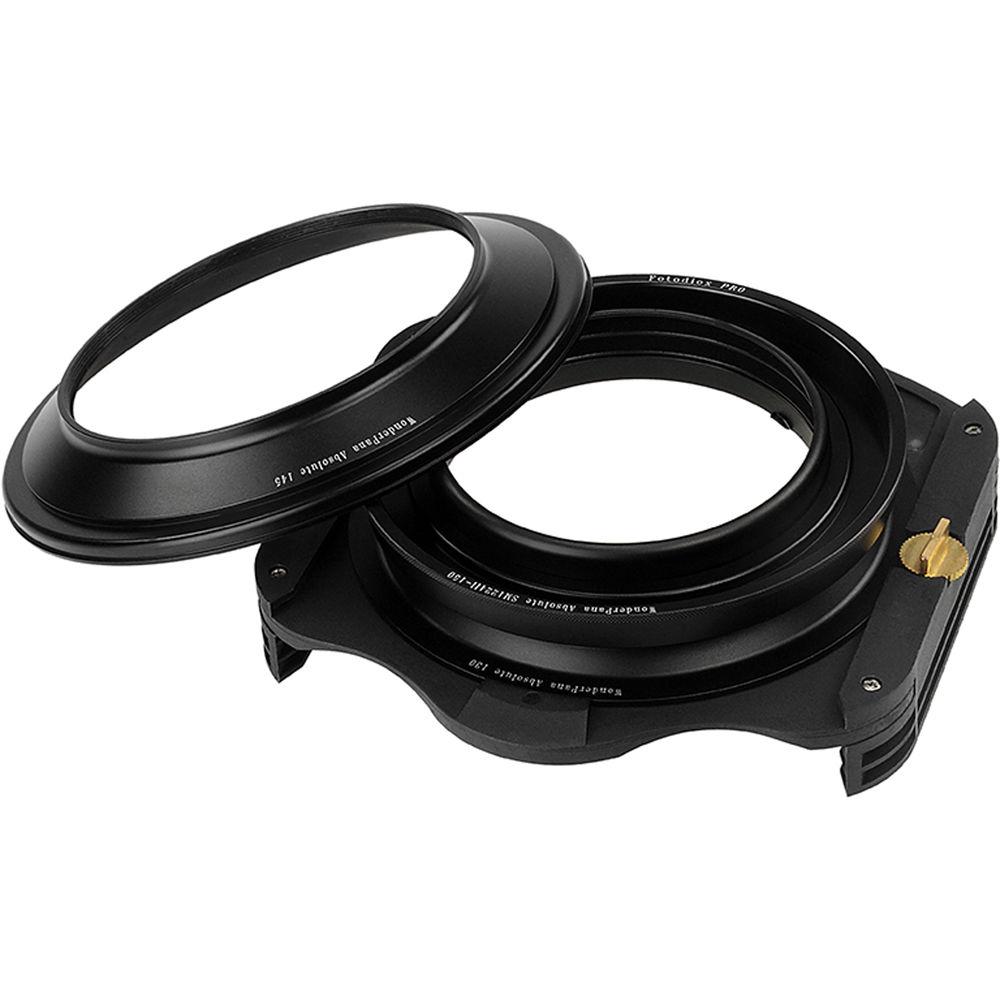

The kit contains a WonderPana Absolute 150mm filter holder adapter ring for the Lee SW-150 filter system, a 130mm WonderPana Absolute filter holder adapter ring and a filter holder for both the Cokin X-Pro and FotodioX Pro 130mm filter systems, a 145mm WonderPana Absolute filter adapter ring for 145mm FotodioX round filters, a lens-dedicated retention ring, plus a 145mm inner-pinch lens cap for 145mm FotodioX round filters.

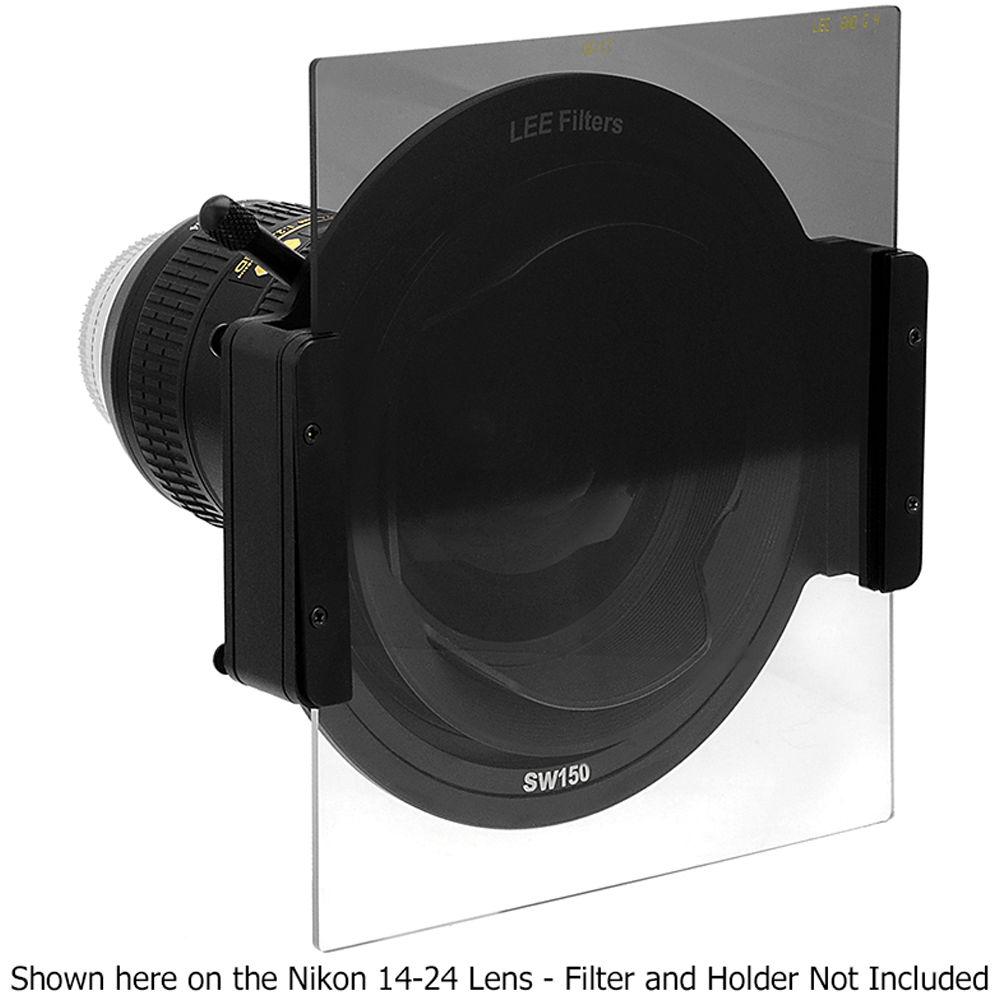

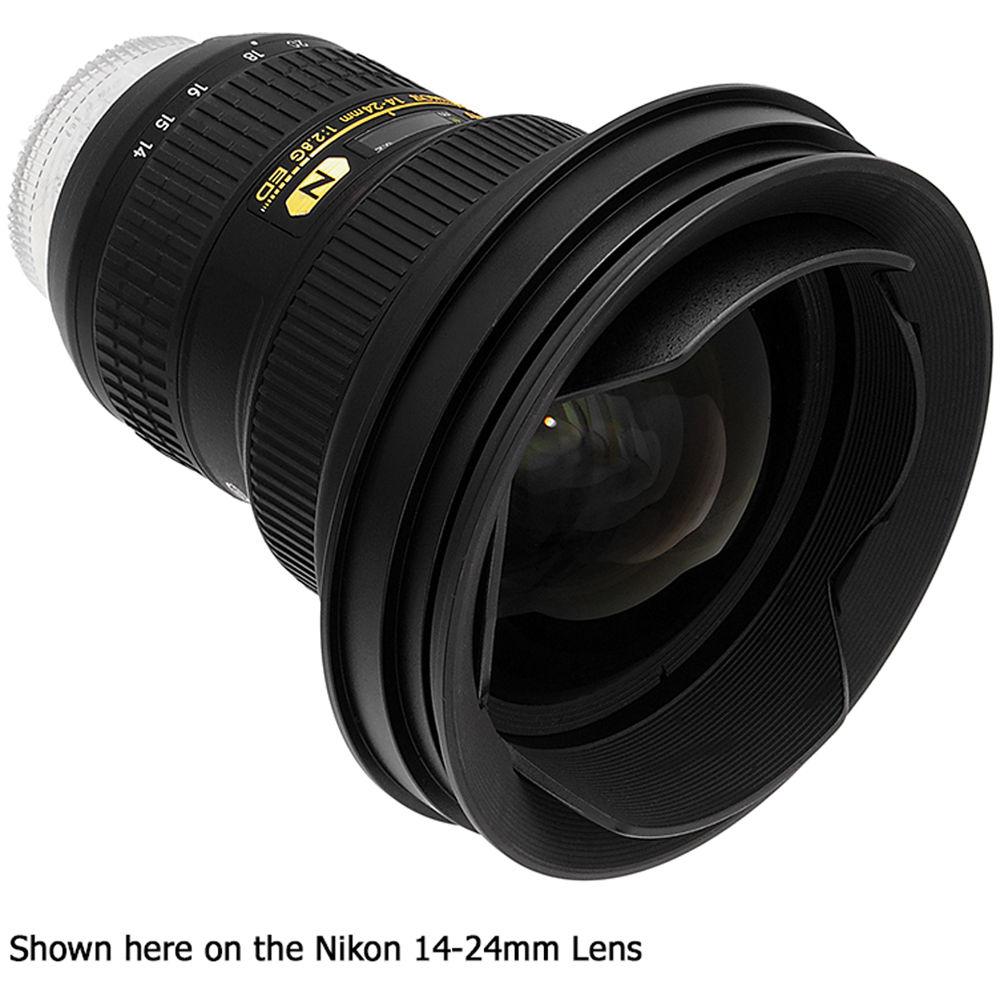

Each individual adapter ring attaches directly to the lens-dedicated retention ring and will not interfere with the Sigma 12-24mm f/4.5-5.6 DG HSM II lens's zoom capability. The adapter ring for a Lee SW-150 filter holder, as well as the adapter ring for the Cokin X-Pro and FotodioX Pro 130mm filter holders, securely connect to their compatible filter holders. They each allow for a filter holder's free rotation around the lens to complement the use of LEE SW-150, Cokin X-Pro, or FotodioX Pro 130mm graduated neutral density or other filters that are enhanced by varied positioning. Compatible filters can be screwed into the filter adapter ring for 145mm FotodioX round filters. Each adapter ring is designed to help avoid any vignetting. The retention ring and adapter rings within this kit are constructed using aluminum-alloy for durability while remaining lightweight.

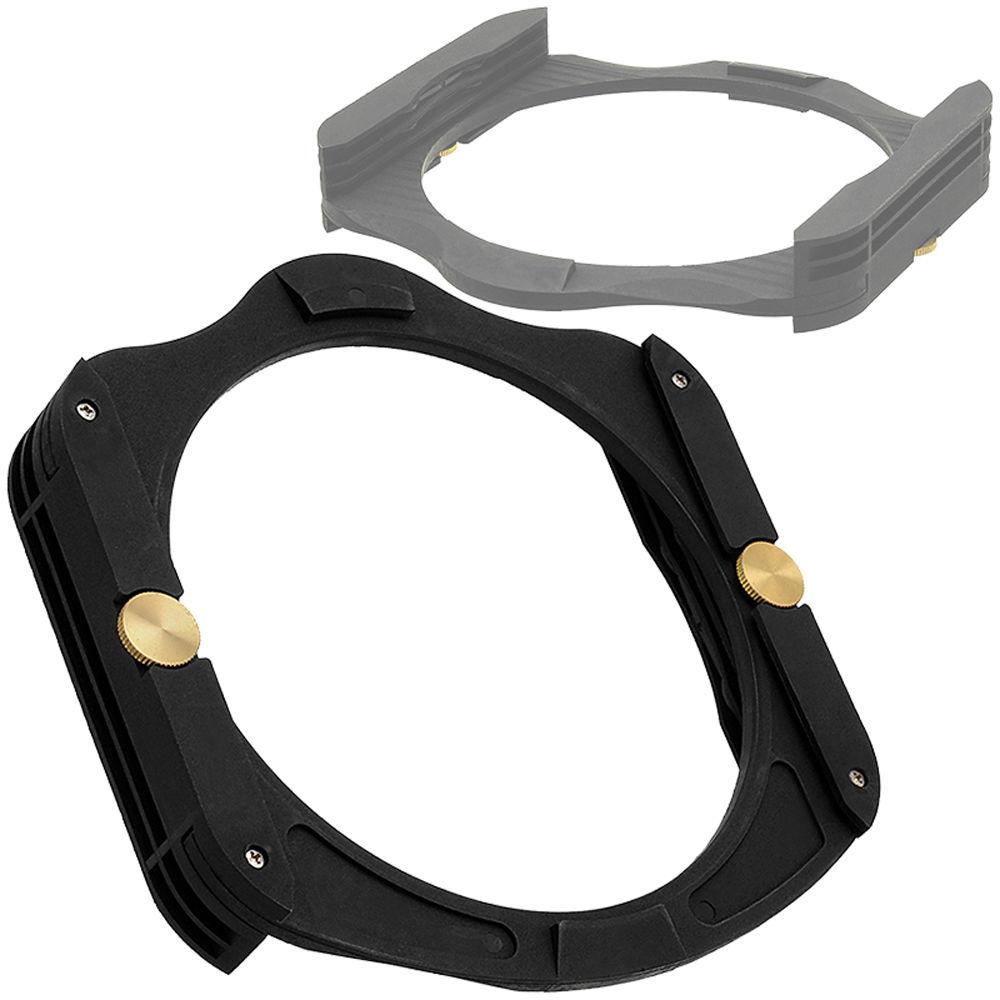

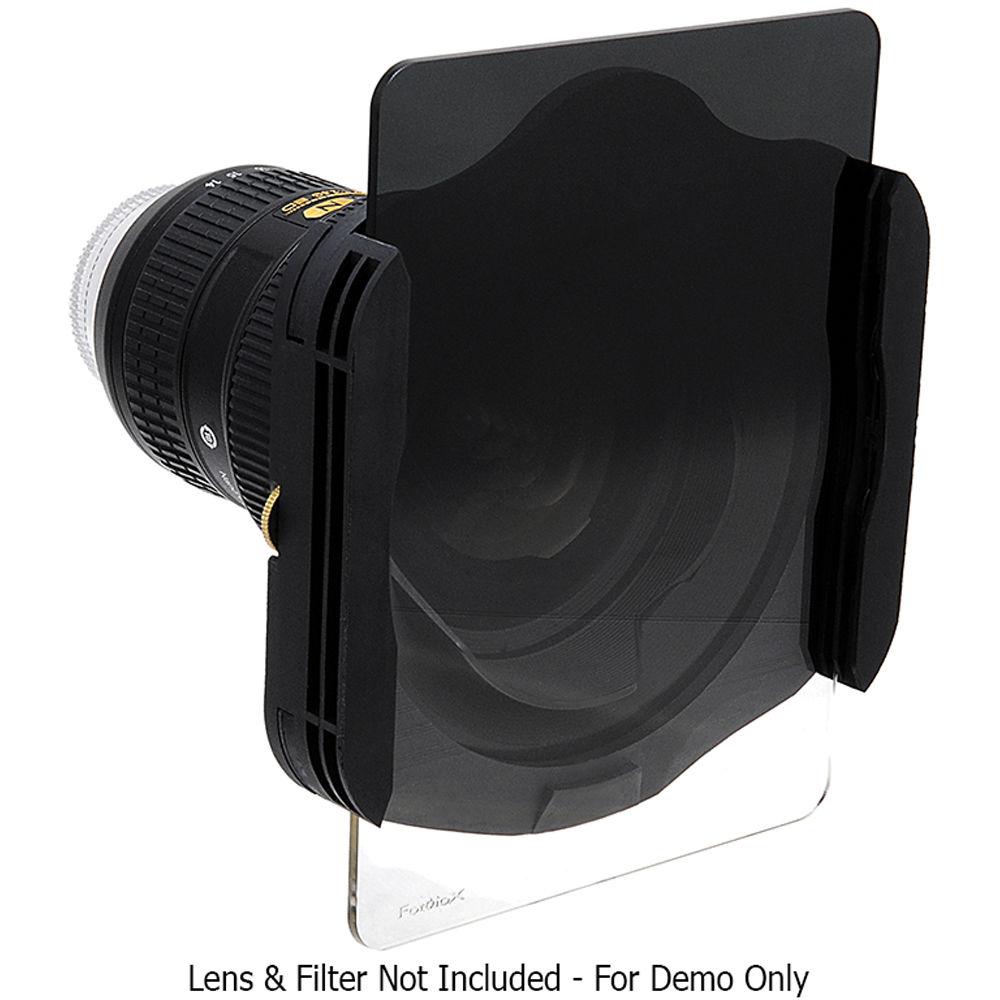

The FotodioX Pro 130mm Filter Holder is designed to accommodate multiple Cokin X-Pro series or FotodioX Pro 130mm filters in order to help create the shot you envision. In its standard front-facing position, it can hold up to two rectangular filters for the Cokin X-Pro series or FotodioX Pro 130mm filter holders. Two adjustable, rear-facing brass tension knobs allow the FotodioX Pro 130mm Filter Holder to be rotated or locked into place while installed on a compatible adapter ring and facing front. To further avoid vignetting when needed, the filter holder can be placed in a reverse-facing position where it cannot rotate, but can hold one Cokin X-Pro series or one FotodioX Pro 130mm filter closer to the front of a lens it is used with.
Rectangular Cokin X-Pro series or FotodioX Pro 130mm filters are 130mm-wide and 2.9mm-thick. A FotodioX Pro 130mm filter holder adapter ring or Cokin X-Pro series filter holder adapter ring can be used to connect this plastic filter holder to the front of a lens.

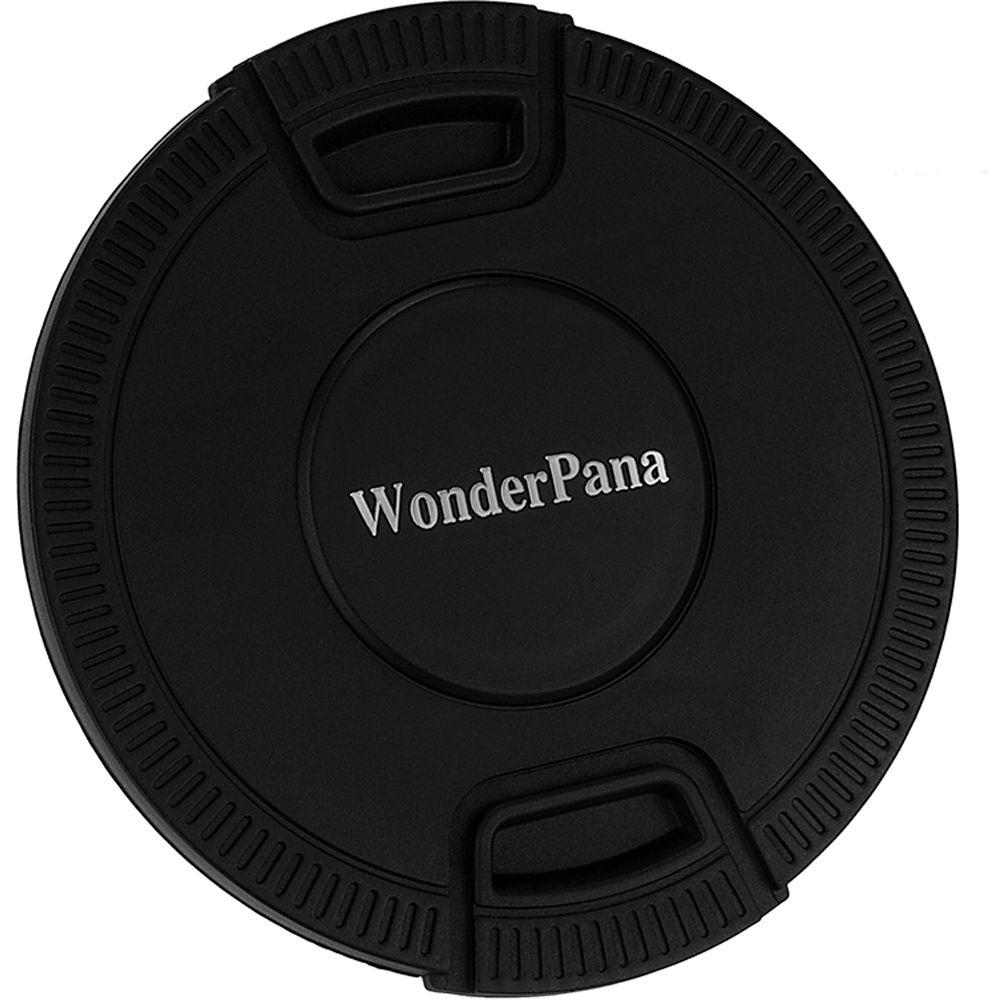

The FotodioX 145mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems and Filters is a 145mm front lens cap with a squeeze, spring, and snap-on mechanism. It is easy to install as well as remove, and can attach to a WonderPana 145, FreeArc, or Absolute filter holder system in order to protect the front element of a lens that any one of those systems are mounted on. Additionally, this lens cap can be used to protect a non-slim FotodioX WonderPana 145 filter that is mounted on a FotodioX WonderPana 145, FreeArc, or Absolute filter holder system and has no other filters placed in front of it.
Lens caps protect your lens or filter from scratches, fingerprints, and the elements when the lens or filter is not in use. - WonderPana Absolute Core Unit for Sigma 12-24mm II Lens
-
- Enables use of Lee SW-150, Cokin X-Pro, or FotodioX Pro 130mm filter holders
- Enables use of FotodioX 145mm round filters
- Will not interfere with the Sigma 12-24mm f/4.5-5.6 DG HSM II lens's zoom capability
- Allows for a compatible filter holder's free rotation around the lens to complement the use of LEE SW-150, Cokin X-Pro, or FotodioX Pro 130mm graduated neutral density or other filters that are enhanced by varied positioning
- Aluminum-alloy construction for durability while remaining lightweight
- FotodioX Pro 130mm Filter Holder
-
- Can attach to a lens using a compatible FotodioX Pro 130mm filter holder adapter ring or Cokin X-Pro series filter holder adapter ring
- Can hold up to two rectangular filters for the Cokin X-Pro series or FotodioX Pro 130mm filter holders in standard, front-facing position
- Can be rotated or locked into place while installed on a compatible adapter ring in standard, front-facing position using two integrated, adjustable, rear-facing brass tension knobs
- Reverse-facing, non-rotating installation option holds one filter and further minimizes vignetting when needed
In the Box FotodioX WonderPana Absolute Core Unit Kit for Sigma 12-24mm II Lens with Pro 130mm Filter Holder WonderPana Absolute Core Unit for Sigma 12-24mm f/4.5-5.6 DG HSM II WonderPana Absolute 150mm Filter Holder Adapter Ring WonderPana Absolute 130mm Filter Holder Adapter Ring WonderPana Absolute 145mm Filter Adapter Ring FotodioX Pro 130mm Filter Holder 145mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems and Filters wzswwwfsvsxtzedrxwuf Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX WonderPana Absolute Core Unit Kit for Sigma 12-24mm II Lens with Pro 130mm Filter Holder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX WP-ABS-KIT-SM1224II Specs | Lens Compatibility | Sigma 12-24mm f/4.5-5.6 DG HSM II | | System Compatibility | 150 mm rectangular filters (such as LEE SW-150 system), 130mm rectangular filters (such as the Cokin X-Pro system and the FotodioX Pro 130mm filters), and FotodioX 145mm round filters |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
