Product description This WonderPana FreeArc XL Core Unit Kit from FotodioX includes a WonderPana FreeArc XL Core Unit designed to specifically fit the Sigma 12-24mm f/4 DG HSM Art lens, as well as a WonderPana 8.0" Holder Bracket. Those items can be combined to allow for the convenient use of two 2.0mm thick filters measuring 7.9" wide, or one 2.0mm thick filter measuring 7.9" wide along with one FotodioX 186mm round filter behind it. A compatible 186mm solid neutral-density 1.5 filter and a 7.9 x 10.2" soft-edge graduated ND 0.9 filter are also provided, plus a 186mm inner-pinch lens cap for 186mm FotodioX round filters.

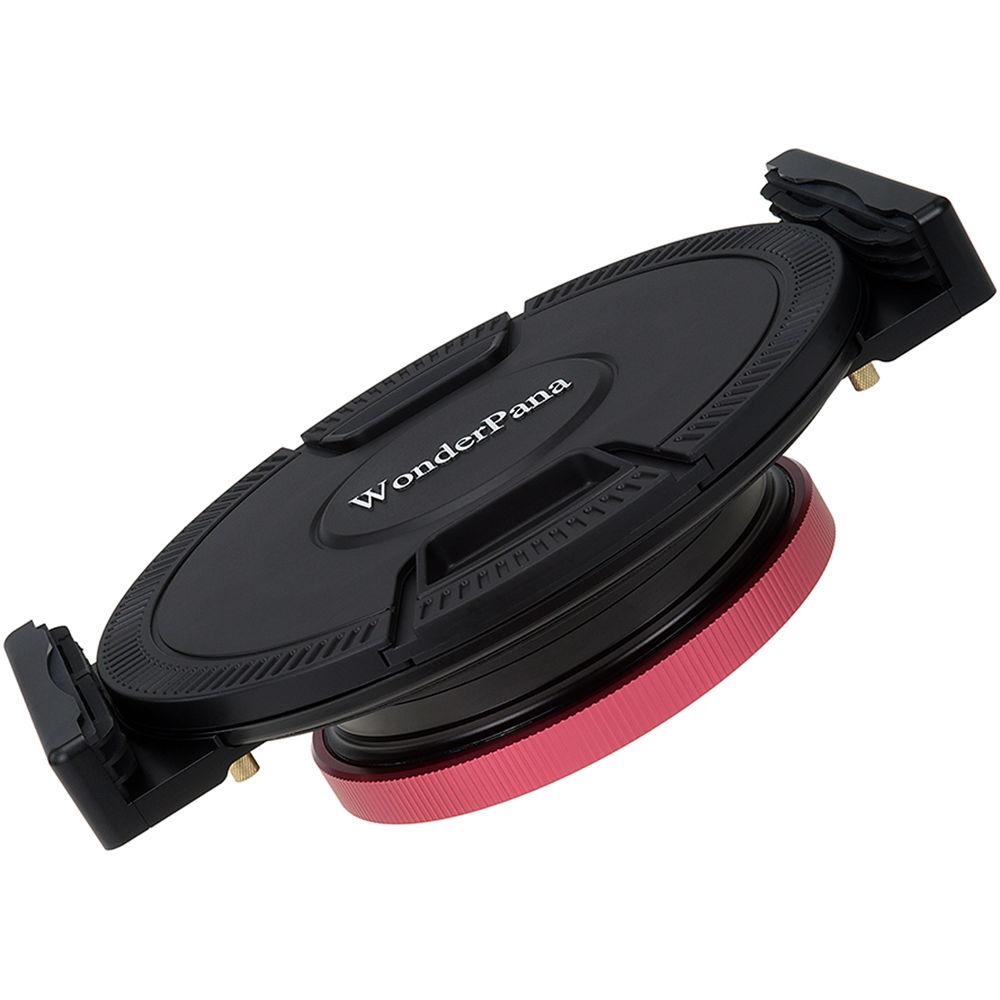

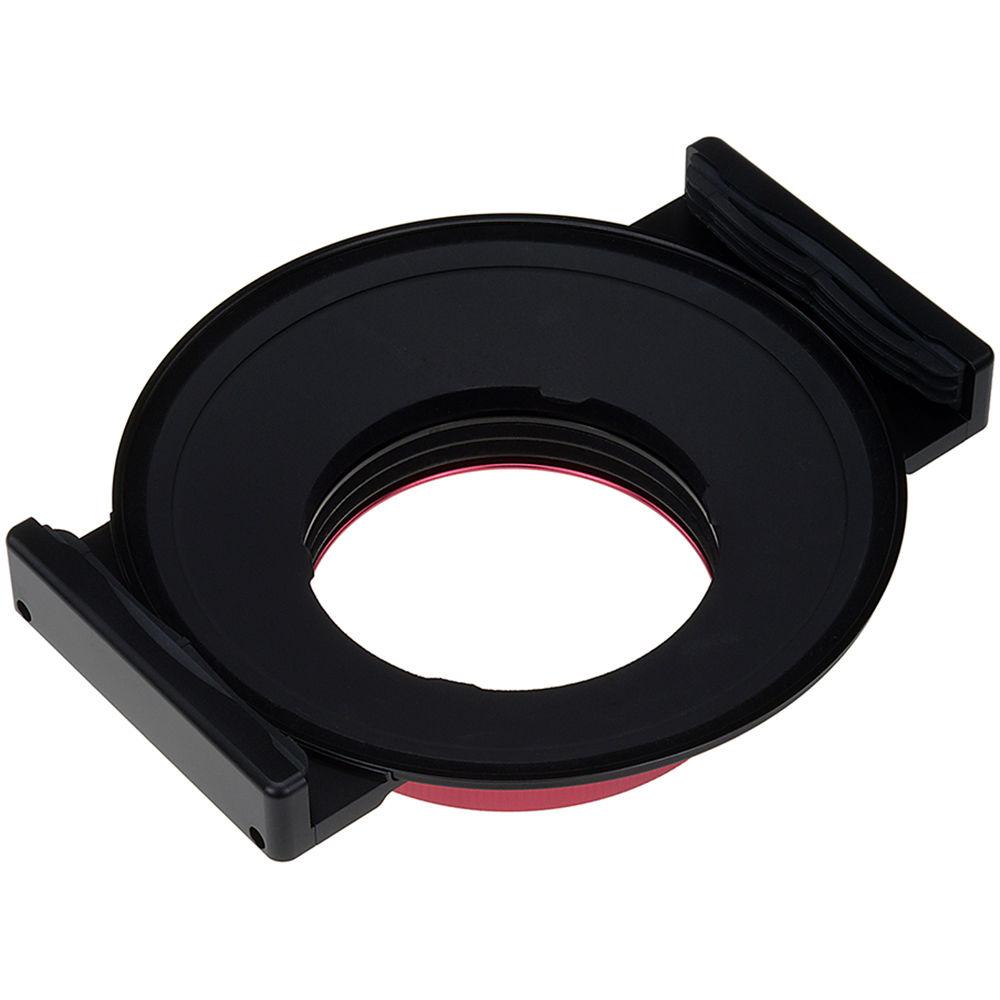

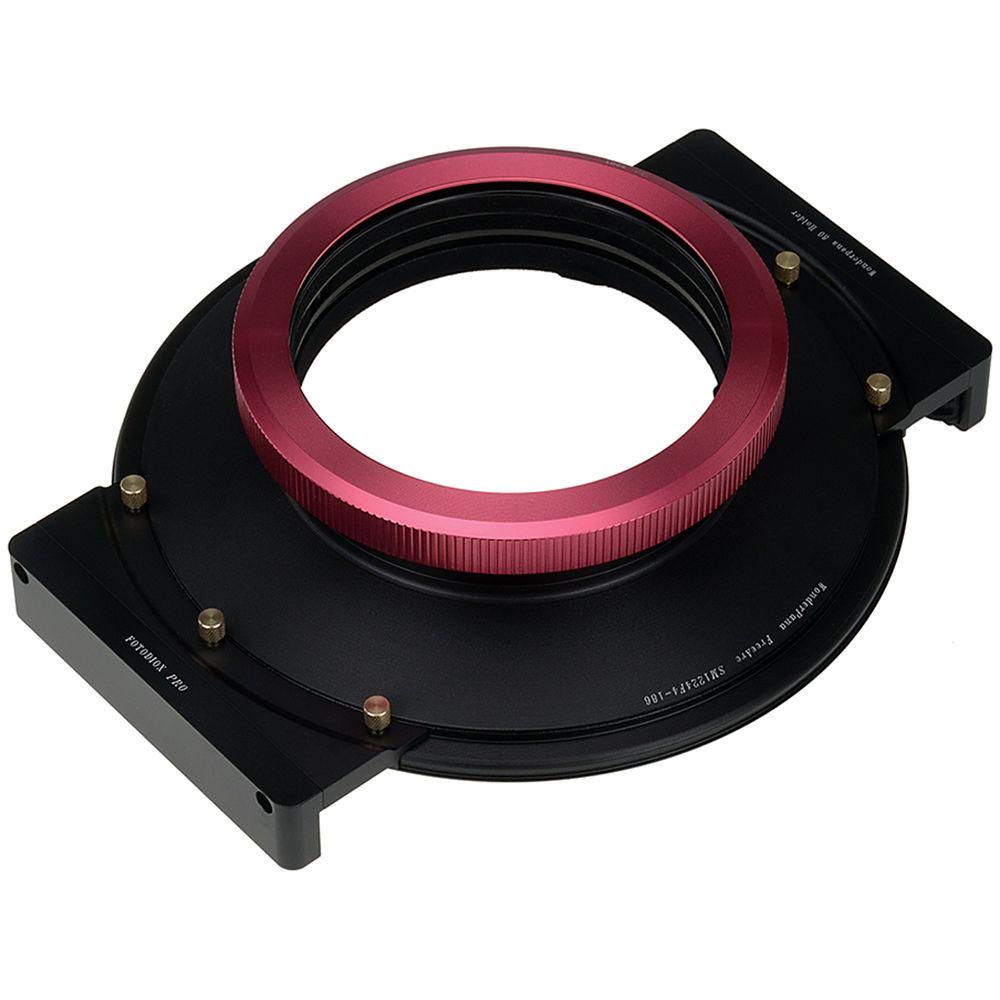

The included WonderPana FreeArc XL Core Unit consists of two components, a front filter holder and a rear lens collar. Placement of this FreeArc XL Core Unit onto a Sigma 12-24mm f/4 DG HSM Art lens is easily accomplished by sliding the rear lens collar over the rear of the lens until it has achieved a secure fit. Afterwards, the front filter holder can be screwed onto the front of the installed rear lens collar.
To use the WonderPana 8.0" Holder Bracket with the FreeArc XL Core Unit for a Sigma 12-24mm f/4 DG HSM Art lens, pre-tapped threaded inserts along the edge of the front filter holder accommodate six of the eight included brass short-screws for correct positioning of the WonderPana 8.0" Holder Bracket's two assembly pieces so that they are placed parallel to each other and can hold a 7.9" wide filter between them. Once the holder bracket and the front filter holder are combined, and the separate collar has been slid over the rear of a Sigma 12-24mm f/4 DG HSM Art lens, the front filter holder with the attached holder bracket can be screwed onto the installed rear lens collar.
After being fitted onto a Sigma 12-24mm f/4 DG HSM Art lens, the bearing design of this WonderPana FreeArc XL Core Unit allows a WonderPana 8.0" Holder Bracket to be rotated 360°. This permits the use of graduated neutral density and other filters that are enhanced by varied positioning.
The FotodioX WonderPana 8.0" Holder Bracket provides two pairs of filter slots, a configuration that accommodates two compatible rectangular filters. For each rectangular filter that is placed within one of the holder bracket's slots, its position is secured by integrated guides within each slot. These guides apply pressure along both sides of a filter that is sufficient to hold it in place, but permits movement of that filter. This can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.
This FotodioX WonderPana FreeArc XL Core Unit includes front filter threads, which allow a FotodioX 186mm round filter to be used along with a WonderPana 8.0" Holder Bracket. If a 186mm round filter is used on the attached WonderPana FreeArc XL Core Unit, the rectangular filter slot closest to the rear of the holder bracket becomes unavailable. The WonderPana 8.0" Holder Bracket features a durable and lightweight aluminum-alloy construction that has a corrosion-resistant, black anodized finish.

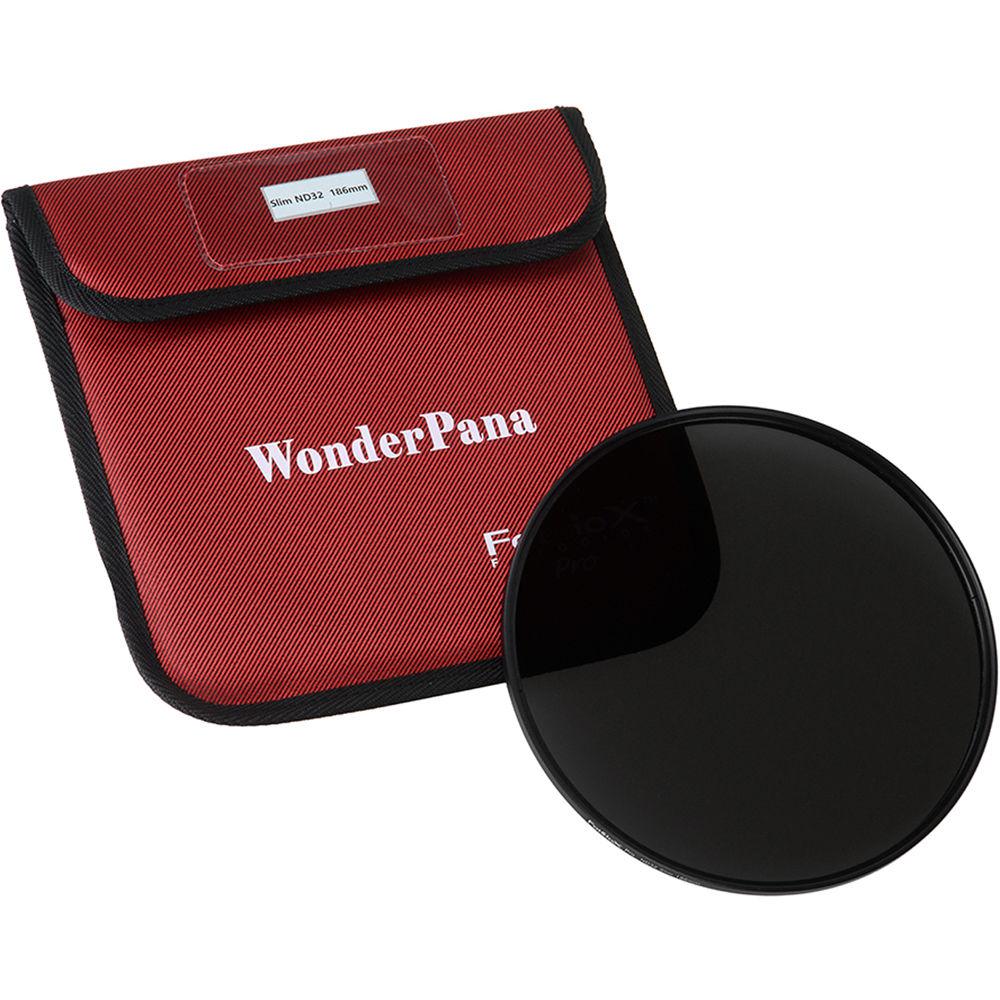

The FotodioX 186mm Slim, Solid Neutral Density 1.5 Filter is an ND filter with a 32x filter factor that provides a 5-stop exposure reduction and is compatible with FotodioX WonderPana FreeArc XL filter holder systems. Its 1.5 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.
This filter is constructed from optical glass for clarity as well as color fidelity and features a lightweight, slim, aluminum-alloy filter ring to minimize the potential for vignetting.

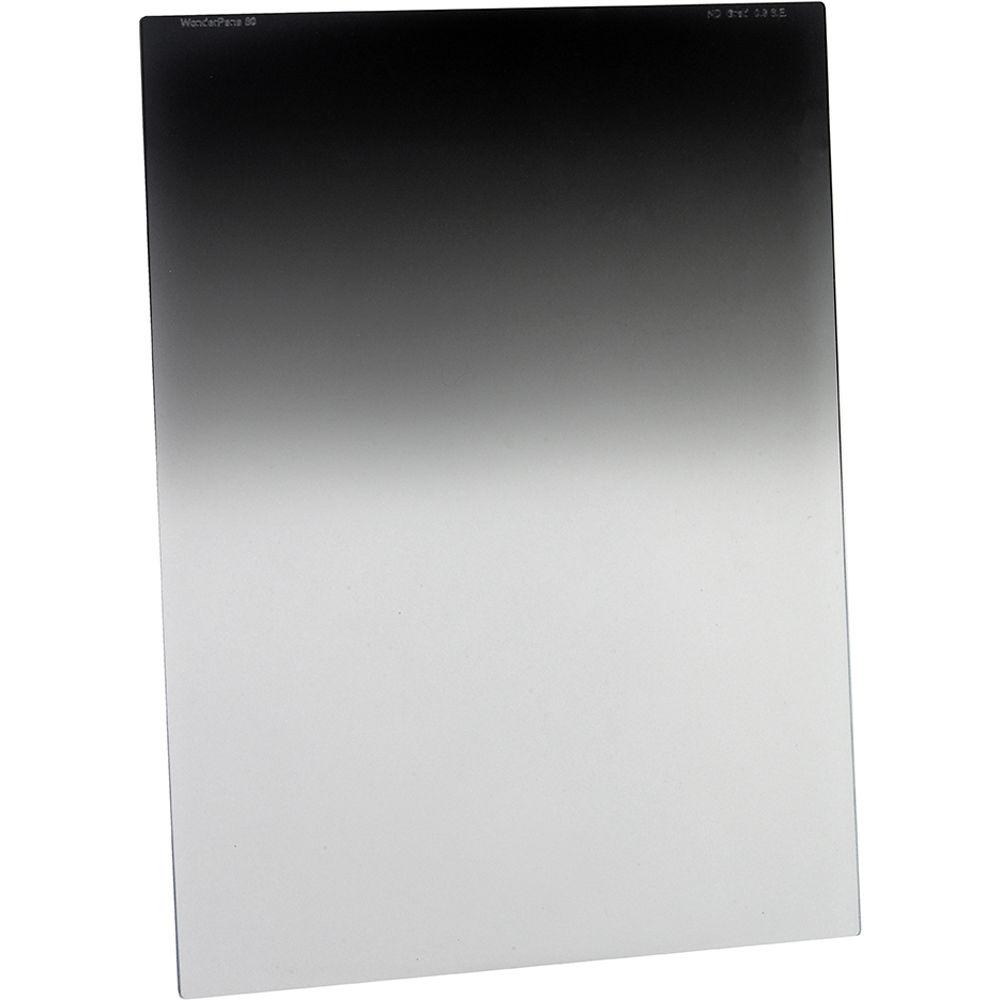

The FotodioX 7.9 x 10.2" Soft-Edge Graduated Neutral Density 0.9 Filter is a filter designed for use with the WonderPana 80 and FreeArc XL filter holder systems. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. A neutral density filter with a soft-edged line of transition is particularly useful for images that do not have a strongly defined transition between the sky and the foreground. Neutral density filters do not affect the coloration of the image and this filter provides up to a 3-stop reduction in light from entering a lens.
This filter is made of durable, optical resin (CR39) and measures 2mm thick.

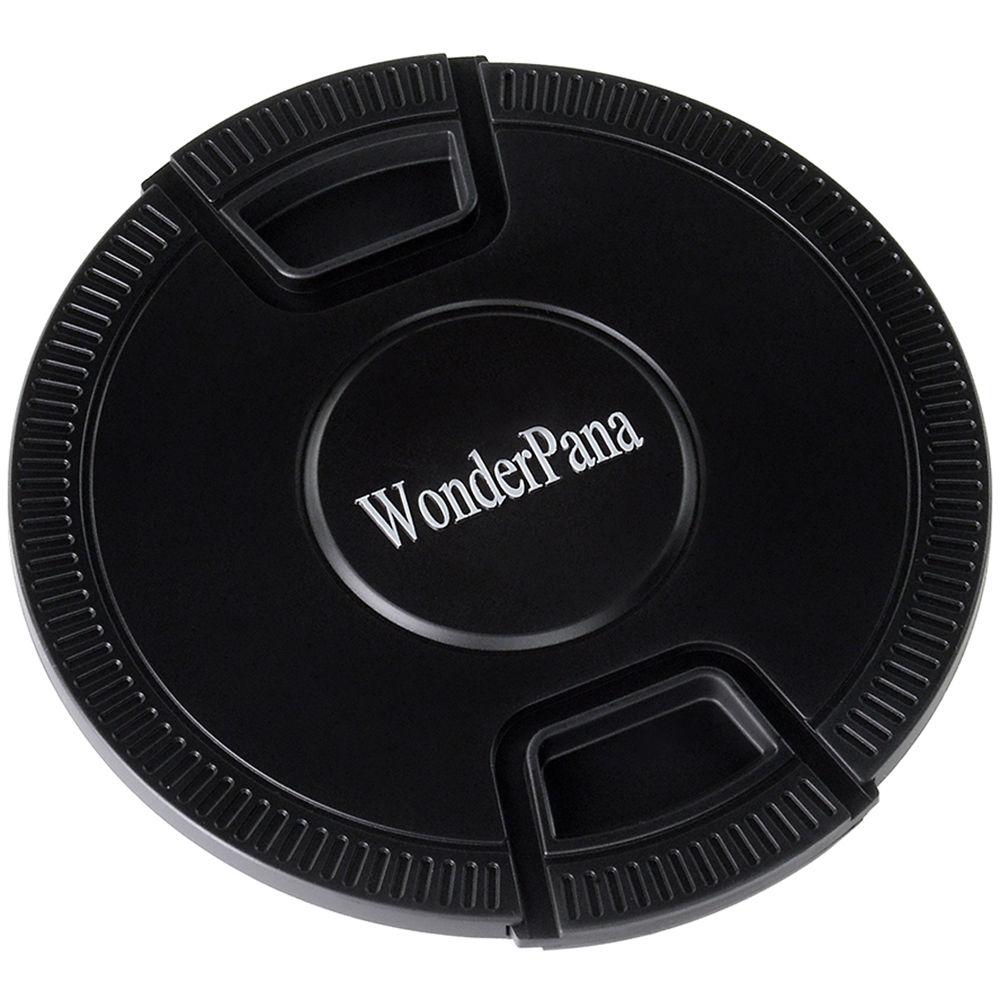

The FotodioX 186mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems and Filters is a 186mm front lens cap with a squeeze, spring, and snap-on mechanism. It is easy to install as well as remove, and can attach to a WonderPana FreeArc XL filter holder system in order to protect the front element of a lens that any one of those systems is mounted on. Additionally, with the exception of the FotodioX Ultra Slim filters, this lens cap can be used to protect a FotodioX 186mm filter that is mounted on a FotodioX WonderPana FreeArc XL filter holder system.
Lens caps protect your lens or filter from scratches, fingerprints, and the elements when the lens or filter is not in use. - WonderPana 8.0" Holder Bracket The FotodioX WonderPana 8.0" Holder Bracket is a two-piece assembly designed to be used in combination with a FotodioX WonderPana FreeArc XL Core Unit or a WonderPana XL Aluminum Step-Up Ring. Attaching the WonderPana 8.0" Holder Bracket to a WonderPana FreeArc XL Core Unit or a WonderPana XL Aluminum Step-Up Ring can allow for the convenient use of two 2.0mm-thick filters measuring 7.9" wide, or one 2.0mm-thick filter measuring 7.9" wide along with one FotodioX 186mm round filter behind it.

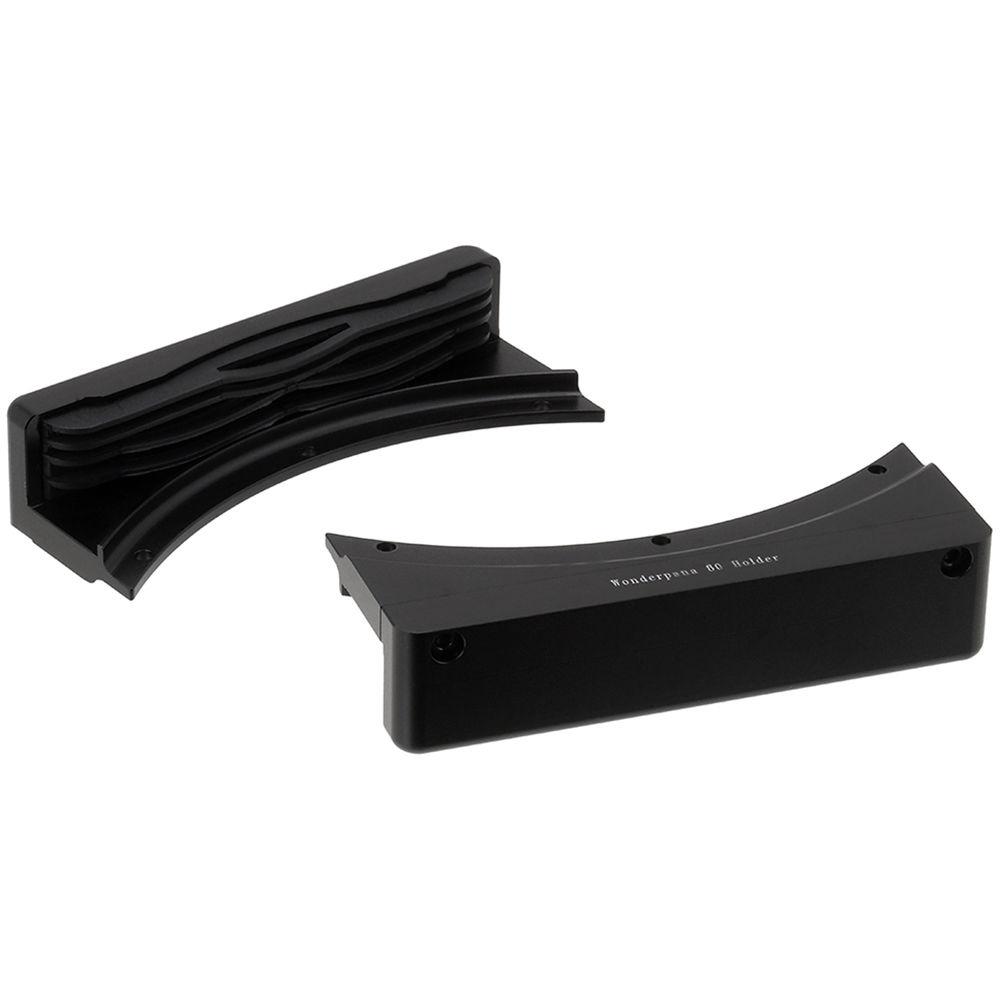

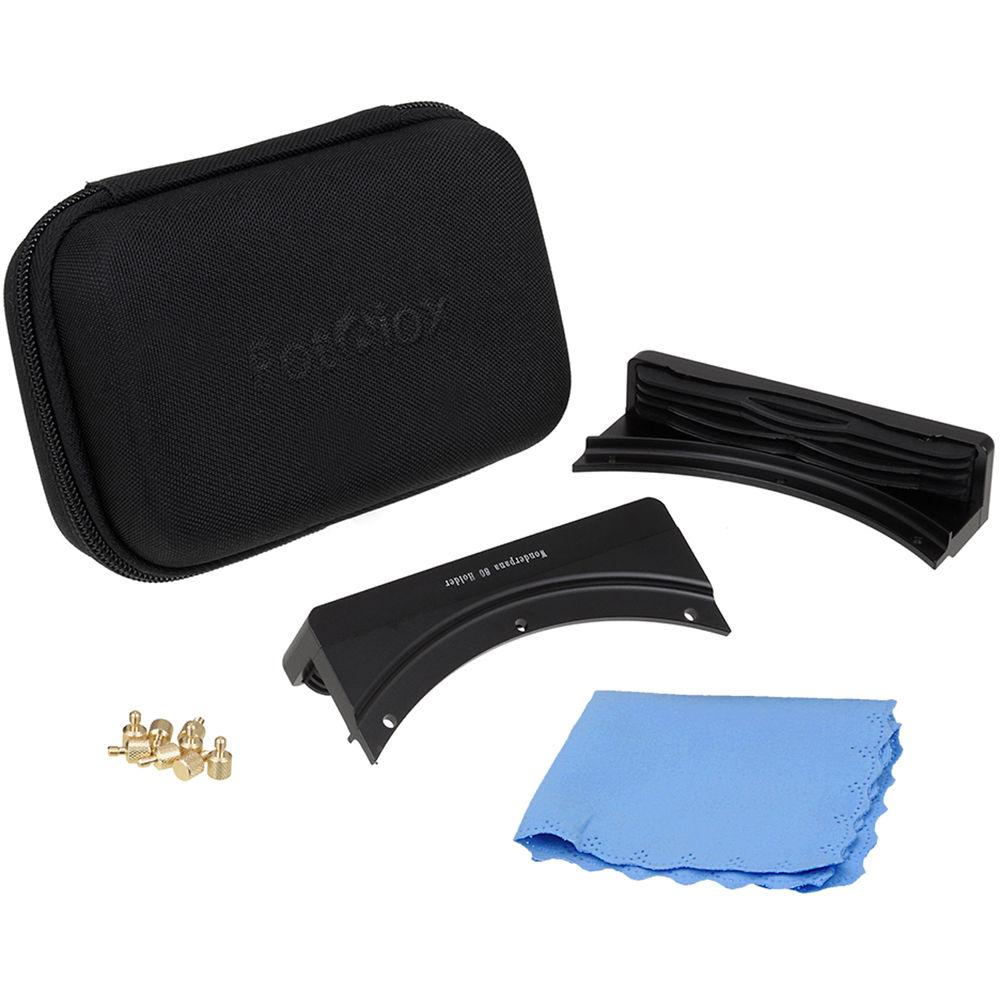

Use of this holder bracket is easily accomplished by separately attaching its two assembly pieces to opposite sides of a WonderPana FreeArc XL Core Unit or a WonderPana XL Aluminum Step-Up Ring using six of the eight included brass short-screws. Pre-tapped threaded inserts along the edge of a WonderPana XL Aluminum Step-Up Ring accommodate those screws and ensure correct positioning of the two assembly pieces so that they are positioned parallel to each other and can hold a 7.9"-wide filter between them. The combined WonderPana XL Aluminum Step-Up Ring, and WonderPana 8.0" Holder Bracket can then be attached to a compatible lens.
For WonderPana FreeArc XL Core Units that consist of a rear lens collar and a front filter holder, pre-tapped threaded inserts along the edge of the front filter holder accommodate six of the eight brass short-screws for correct positioning of the WonderPana 8.0" Holder Bracket's two assembly pieces. Once the holder bracket and a front filter holder are combined, and the separate collar has been slid over the rear of a compatible lens until it has achieved a secure fit, the front filter holder with the attached holder bracket can be screwed onto the front of the installed rear lens collar.
After being fitted onto a compatible lens, the bearing design of the WonderPana FreeArc XL Core Unit allows a WonderPana 8.0" Holder Bracket to be rotated 360°. This permits the use of graduated neutral density and other filters that are enhanced by varied positioning.
The FotodioX WonderPana 8.0" Holder Bracket provides two pairs of filter slots, a configuration that accommodates two compatible rectangular filters. For each rectangular filter that is placed within one of the holder bracket's slots, its position is secured by integrated guides within each slot. These guides apply pressure along both sides of a filter that is sufficient to hold it in place, but permits movement of that filter. This can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.The WonderPana 8.0" Holder Bracket features a lightweight, aluminum-alloy construction that has a corrosion-resistant, black anodized finish for durability. A rigid pouch is included for storage and transport. -
- When used with a FotodioX WonderPana FreeArc XL Core Unit or a WonderPana XL Aluminum Step-Up Ring, allows for the convenient use of two filters measuring 7.9" wide, or one filter measuring 7.9" wide along with one FotodioX 186mm round filter installed on a WonderPana FreeArc XL Core Unit or WonderPana XL Aluminum Step-Up Ring
- Provides two pairs of filter slots, a configuration that accommodates up to two 2.0mm-thick rectangular filters
- Allows up to two compatible rectangular filters to be rotated 360° when used with a FotodioX WonderPana FreeArc XL Core Unit
- Integrated guides within each filter slot apply pressure along both sides of a filter that is sufficient to hold it in place, but permits movement of that filter, complementing the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot
- Lightweight, aluminum-alloy construction with a corrosion-resistant, black anodized finish for durability
- Microfiber cleaning cloth included, plus a rigid pouch for storage and transport

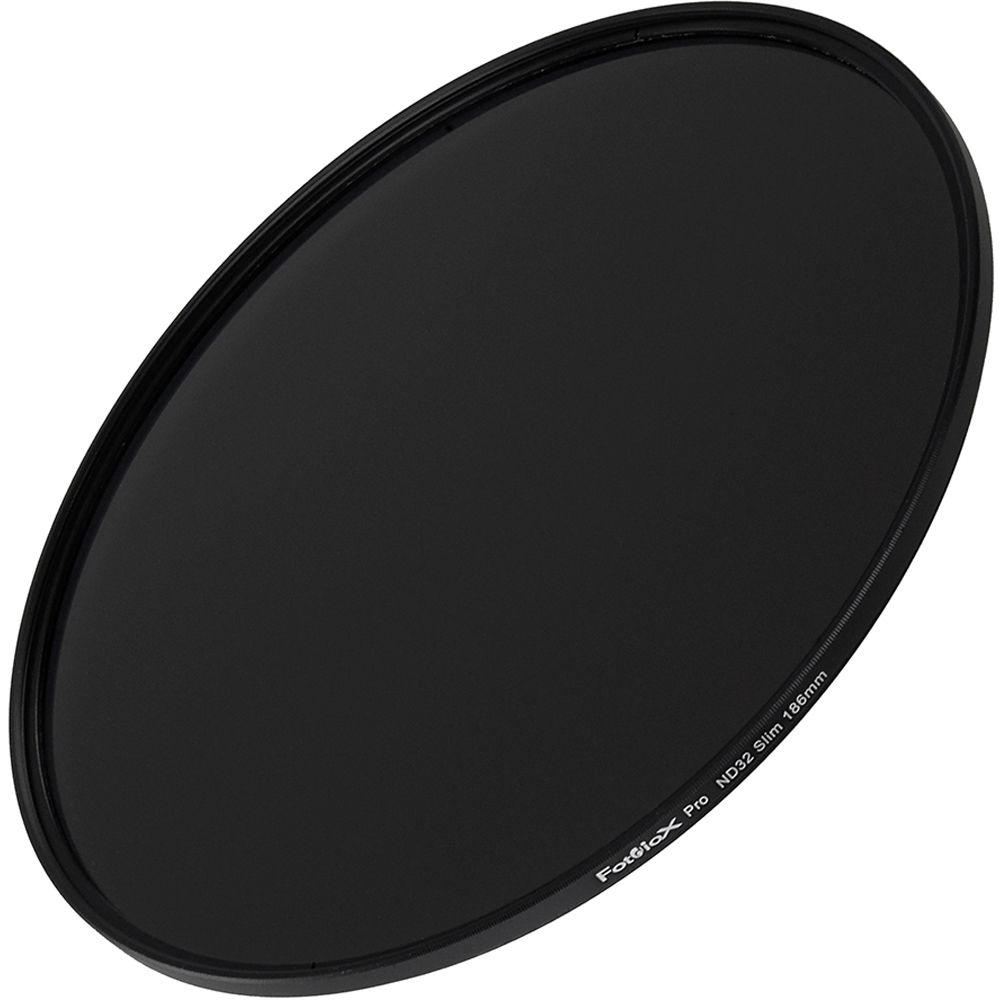

- 186mm Slim ND 1.5 Filter (5-Stop) The FotodioX 186mm Slim ND 1.5 Filter is an ND filter with a 32x filter factor that provides a 5-stop exposure reduction and is compatible with FotodioX WonderPana FreeArc XL filter holder systems. Its 1.5 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.
This filter is constructed from optical glass for clarity as well as color fidelity and features a lightweight, slim, aluminum-alloy filter ring to minimize the potential for vignetting. A separately-available FotodioX 186mm Center-Pinch Snap-On Lens Cap can be used to protect the front of a FotodioX 186mm Slim ND 1.5 Filter that is placed in front of a lens. - Compatible with FotodioX WonderPana FreeArc XL filter holder systems
- 1.5 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required
- Providing a 5-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily
- Filter does not affect coloration of the image and is ideal for use with other filters
- Constructed from optical glass for clarity and color fidelity
- Lightweight and slim aluminum-alloy filter ring that is 5mm-thick to minimize the potential for vignetting
- Filter pouch included for storage and transport
UPC: 847372032303 - FotodioX 7.9 x 10.2" Soft-Edge Graduated Neutral Density 0.9 Filter (3-Stop) The FotodioX 7.9 x 10.2" Soft-Edge Graduated Neutral Density 0.9 Filter is a filter designed for use with the WonderPana 80 and FreeArc XL filter holder systems. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. A neutral density filter with a soft-edged line of transition is particularly useful for images that do not have a strongly defined transition between the sky and the foreground. Neutral density filters do not affect the coloration of the image and this filter provides up to a 3-stop reduction in light from entering a lens.
This filter is made of durable, optical resin (CR39) and measures 4mm thick. A carrying pouch is also included with the filter. -
- Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
- Provides up to a 3-stop reduction of light in selective areas
- Soft-edged line of transition between the dense and clear areas
- Useful for images that do not have a strongly defined transition between the sky and the foreground
- Filter does not affect the overall coloration of the image
- Constructed from optical resin (CR39) for clarity and durability
- Filter pouch included for storage and transport
UPC: 847372032358 - 186mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems & Filters The 186mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems and Filters from FotodioX is a 186mm front lens cap with a squeeze, spring, and snap-on mechanism. It is easy to install as well as remove, and can attach to a WonderPana FreeArc XL filter holder system in order to protect the front element of a lens that any one of those systems are mounted on. Additionally, this lens cap can be used to protect a non-ultra slim FotodioX WonderPana 186mm filter mounted on a FotodioX WonderPana FreeArc XL filter holder system, with no other filter placed in front of it.
Lens caps protect your lens or filter from scratches, fingerprints, and the elements when the lens or filter is not in use. It's always good to have a spare in your camera bag. UPC: 847372032228 In the Box Bundle Items WonderPana 8.0" Holder Bracket zzzwfwxedq - Microfiber Cleaning Cloth
186mm Slim ND 1.5 Filter (5-Stop) FotodioX 7.9 x 10.2" Soft-Edge Graduated Neutral Density 0.9 Filter (3-Stop) zzzwfwxedq 186mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems & Filters

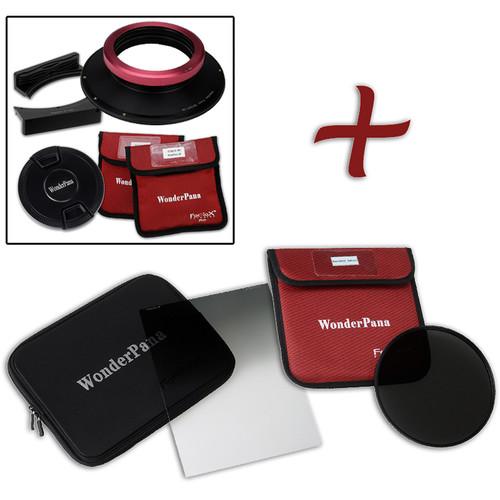

Also Includes - WonderPana FreeArc XL Core Unit for Sigma 12-24mm f/4 DG HSM Art Lens
- Limited 2-Year Warranty
