User Manual for FotodioX WonderPana FreeArc XL Core Unit Kit for Sigma 14mm Art Lens Click to enlarge the picture
Contents of the user manual for the FotodioX WonderPana FreeArc XL Core Unit
- Product category: Filter Holders & Frames FotodioX
- Brand: FotodioX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FotodioX Filter Holders & Frames
 |
User manual for the FotodioX WonderPana FreeArc XL Core Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FotodioX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FotodioX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FotodioX product will considerably shorten its lifespan!
|
Product description This WonderPana FreeArc XL Core Unit Kit from FotodioX includes a WonderPana FreeArc XL Core Unit designed to specifically fit the Sigma 14mm f/1.8 DG HSM Art lens, as well as a separately available WonderPana 8.0" Holder Bracket. Those items can be combined to allow for the convenient use of two 2.0mm thick filters measuring 7.9" wide, or one 2.0mm thick filter measuring 7.9" wide, along with one FotodioX 186mm round filter behind it. A compatible 186mm inner-pinch lens cap for 186mm FotodioX round filters is also provided.

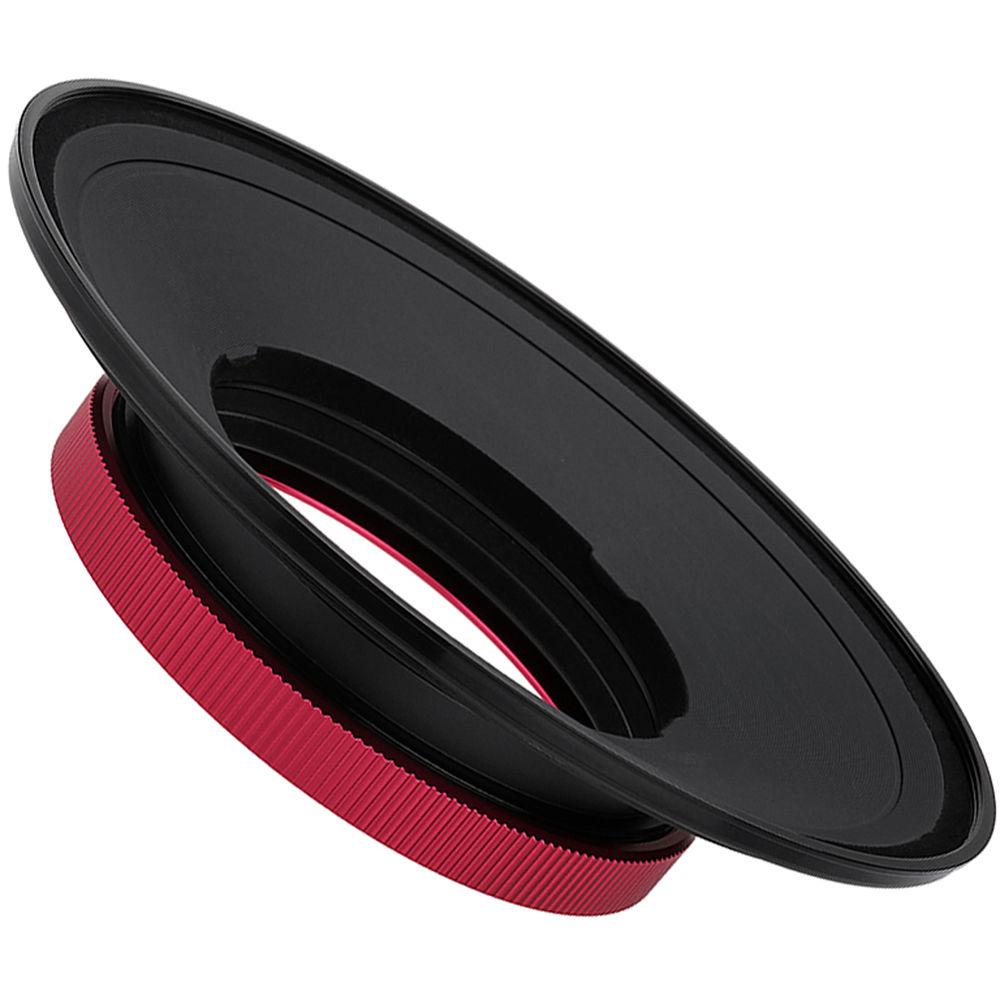

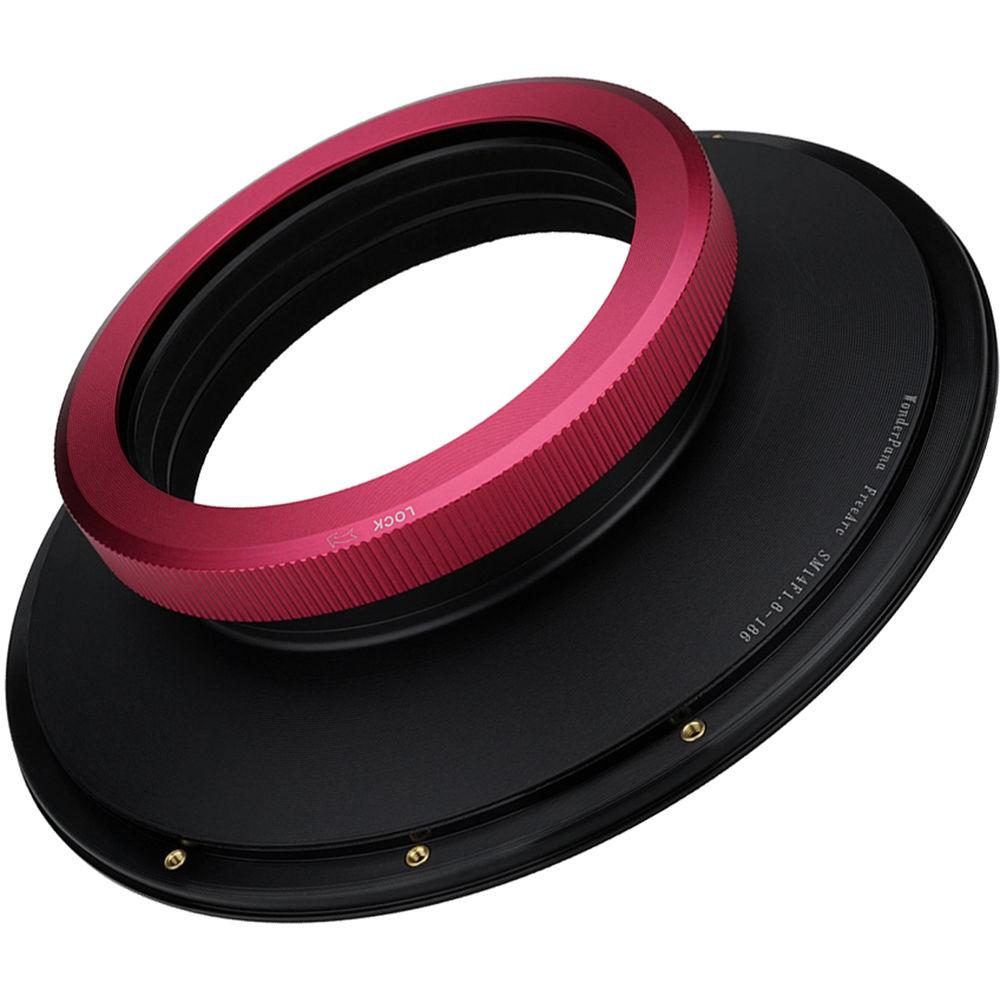

The included WonderPana FreeArc XL Core Unit consists of a compression front filter ring. Use of the WonderPana 8.0" Holder Bracket is easily accomplished by attaching its two assembly pieces to opposite sides of the FreeArc XL Core Unit using six of that holder bracket's eight included brass short-screws. Pre-tapped threaded inserts along the edge of the Core Unit accommodate those screws and ensure that the two assembly pieces are positioned parallel to each other and can hold a 7.9" wide filter between them. The combined holder bracket and front filter ring can then be attached to a Sigma 14mm f/1.8 DG HSM Art lens by tightening the Core Unit's locking mechanism.
After being fitted onto a Sigma 14mm f/1.8 DG HSM Art lens, the bearing design of this WonderPana FreeArc XL Core Unit allows a WonderPana 8.0" Holder Bracket to be rotated 360°. This permits the use of graduated neutral density and other filters that are enhanced by varied positioning.
A FotodioX WonderPana 8.0" Holder Bracket provides two pairs of filter slots, a configuration that accommodates two compatible rectangular filters. For each rectangular filter that is placed within one of the holder bracket's slots, its position is secured by integrated guides within each slot. These guides apply pressure along both sides of a filter that is sufficient to hold it in place, but permits movement of that filter. This can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.
This FotodioX WonderPana FreeArc XL Core Unit includes front filter threads, which allow a FotodioX 186mm round filter to be used along with a WonderPana 8.0" Holder Bracket. If a 186mm round filter is used on the attached WonderPana FreeArc XL Core Unit, the rectangular filter slot closest to the rear of the holder bracket becomes unavailable.

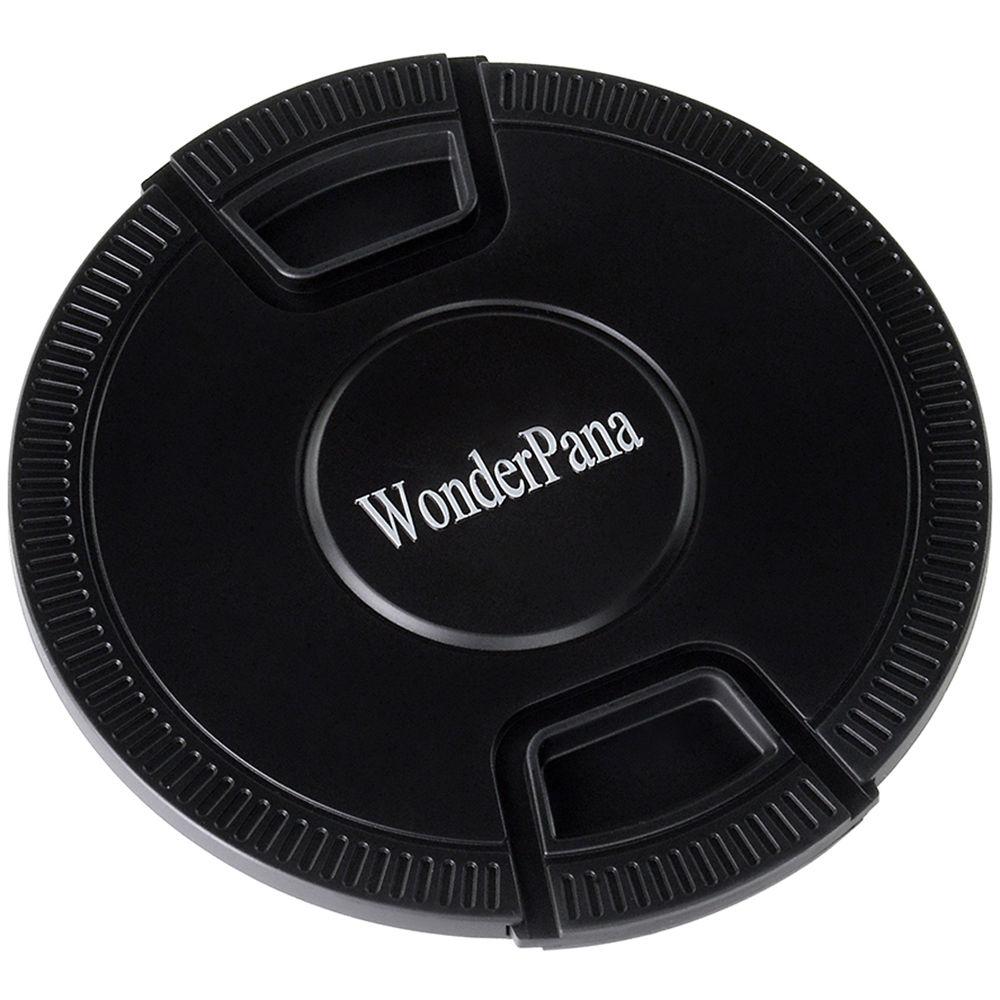

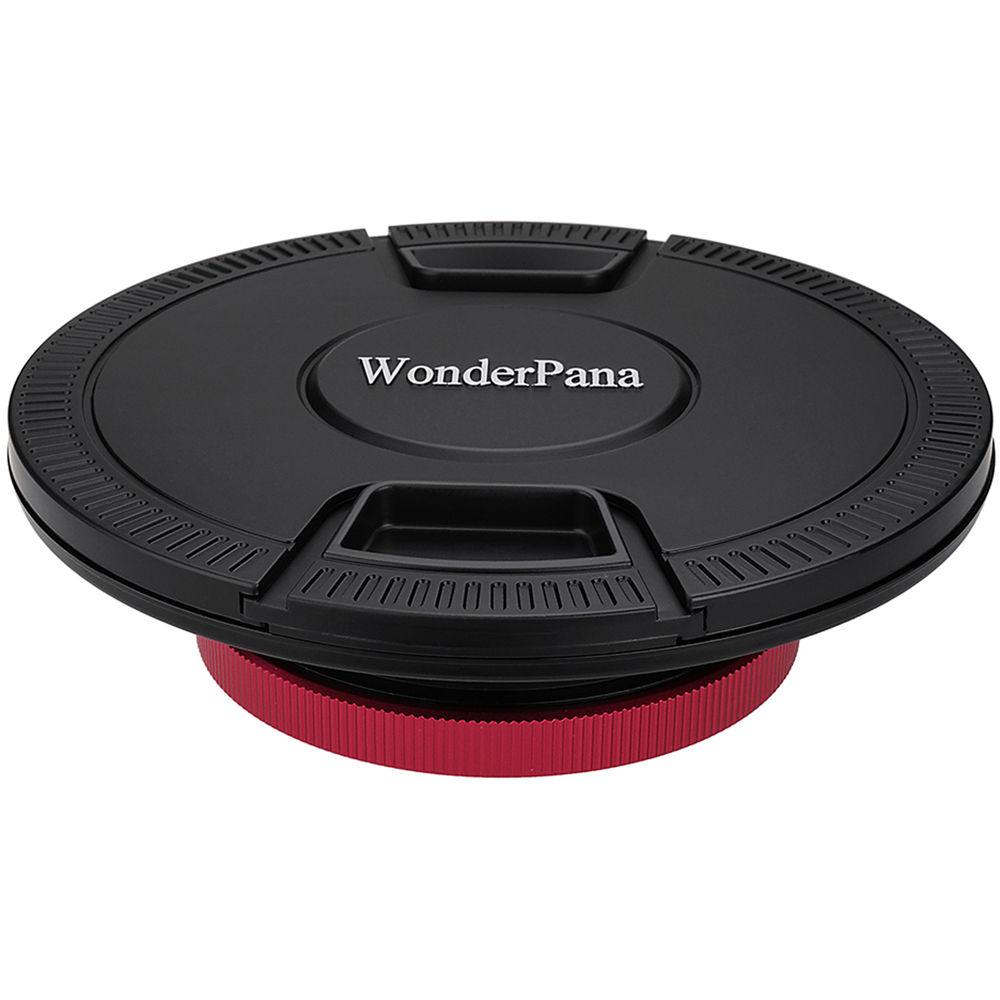

The FotodioX 186mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems and Filters is a 186mm front lens cap with a squeeze, spring, and snap-on mechanism. It is easy to install as well as remove and can attach to a WonderPana FreeArc XL filter holder system in order to protect the front element of a lens that any one of those systems is mounted on. Additionally, with the exception of the FotodioX Ultra Slim filters, this lens cap can be used to protect a FotodioX 186mm filter that is mounted on a FotodioX WonderPana FreeArc XL filter holder system.
Lens caps protect your lens or filter from scratches, fingerprints, and the elements when the lens or filter is not in use. -
- Compatible with a Sigma 14mm f/1.8 DG HSM Art lens
- Accommodates a separately available WonderPana 8.0" Holder Bracket
- With a WonderPana 8.0" Holder Bracket, allows for the convenient use of two 2.0mm thick filters measuring 7.9" wide, or one 2.0mm thick filter measuring 7.9" wide, along with one FotodioX 186mm round filter behind it
- Allows a WonderPana 8.0" Holder Bracket to be rotated 360° so that rectangular filters placed within it can be angled to the best position relative to the subject in front of the camera
- Includes 186mm front filter threads, which allow a FotodioX 186mm round filter to be used along with a WonderPana 8.0" Holder Bracket
- Constructed from aluminum alloy for durability while remaining lightweight
- 186mm front lens cap with a squeeze, spring, and snap-on mechanism

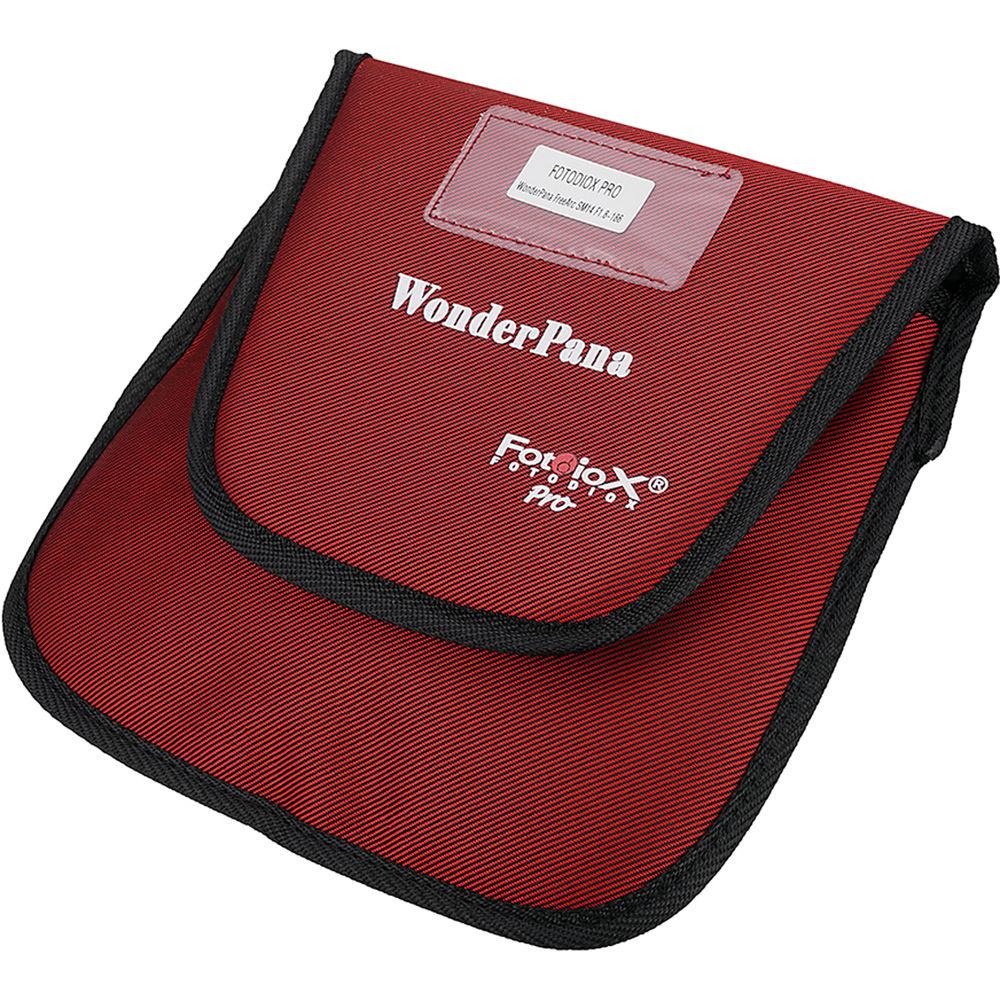

- Nylon pouch for storage and transport

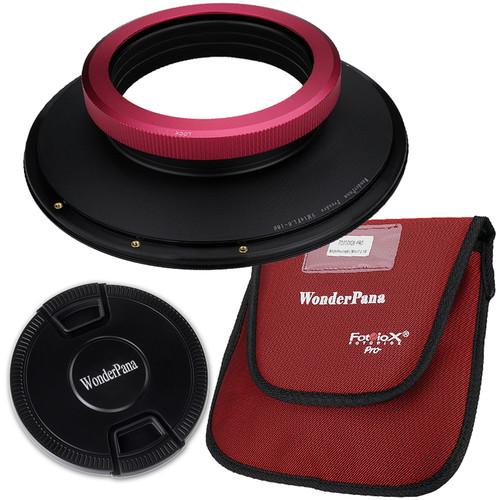

UPC: 847372043941 In the Box FotodioX WonderPana FreeArc XL Core Unit Kit for Sigma 14mm Art Lens WonderPana FreeArc XL Core Unit for Sigma 14mm f/1.8 DG HSM Art Lens 186mm Center-Pinch Snap-On Lens Cap for Select WonderPana Systems & Filters svbrvsbfxfxcfqebtyrvxavtcdrybuvvfr Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FotodioX WonderPana FreeArc XL Core Unit Kit for Sigma 14mm Art Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFotodioX WP186-CORE-SM14F18 Specs | Compatibility | Sigma 14mm f/1.8 DG HSM Art Lens | | Material | WonderPana FreeArc XL Core Unit: Aluminum Alloy
186mm Center-Pinch Snap-On Lens Cap: Plastic |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
