User Manual for FoxFury Nomad 360 LED Scene Light with Integrated Tripod Click to enlarge the picture
Contents of the user manual for the FoxFury Nomad 360 LED Scene Light
- Product category: Outdoor Area Lighting FoxFury
- Brand: FoxFury
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FoxFury Outdoor Area Lighting
 |
User manual for the FoxFury Nomad 360 LED Scene Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FoxFury product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FoxFury user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FoxFury product will considerably shorten its lifespan!
|

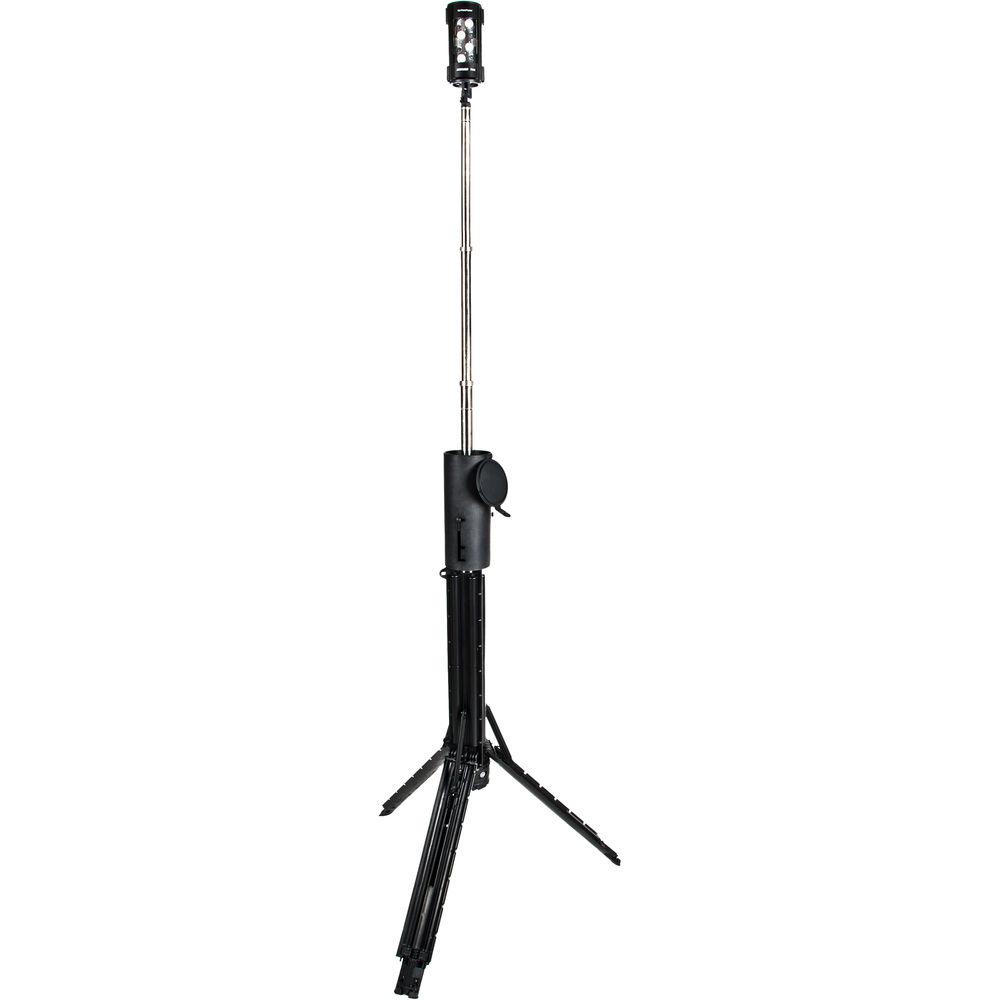

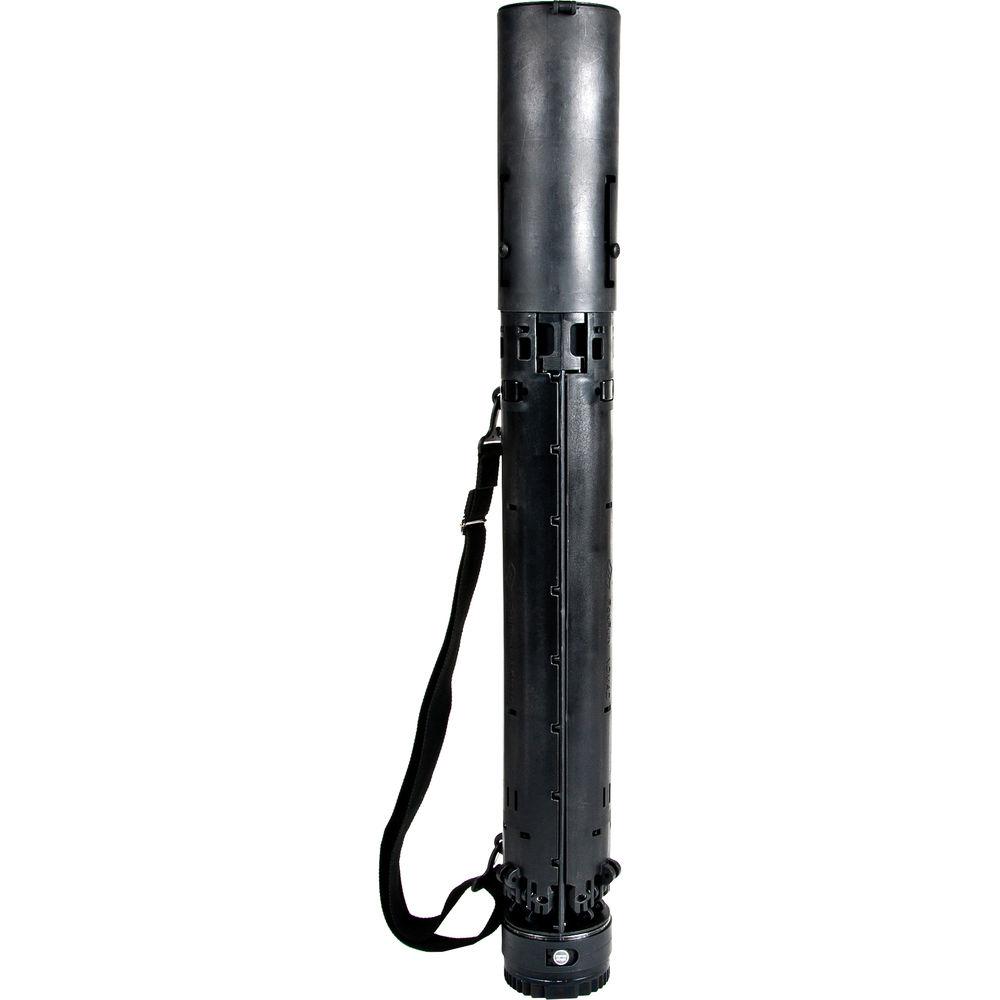

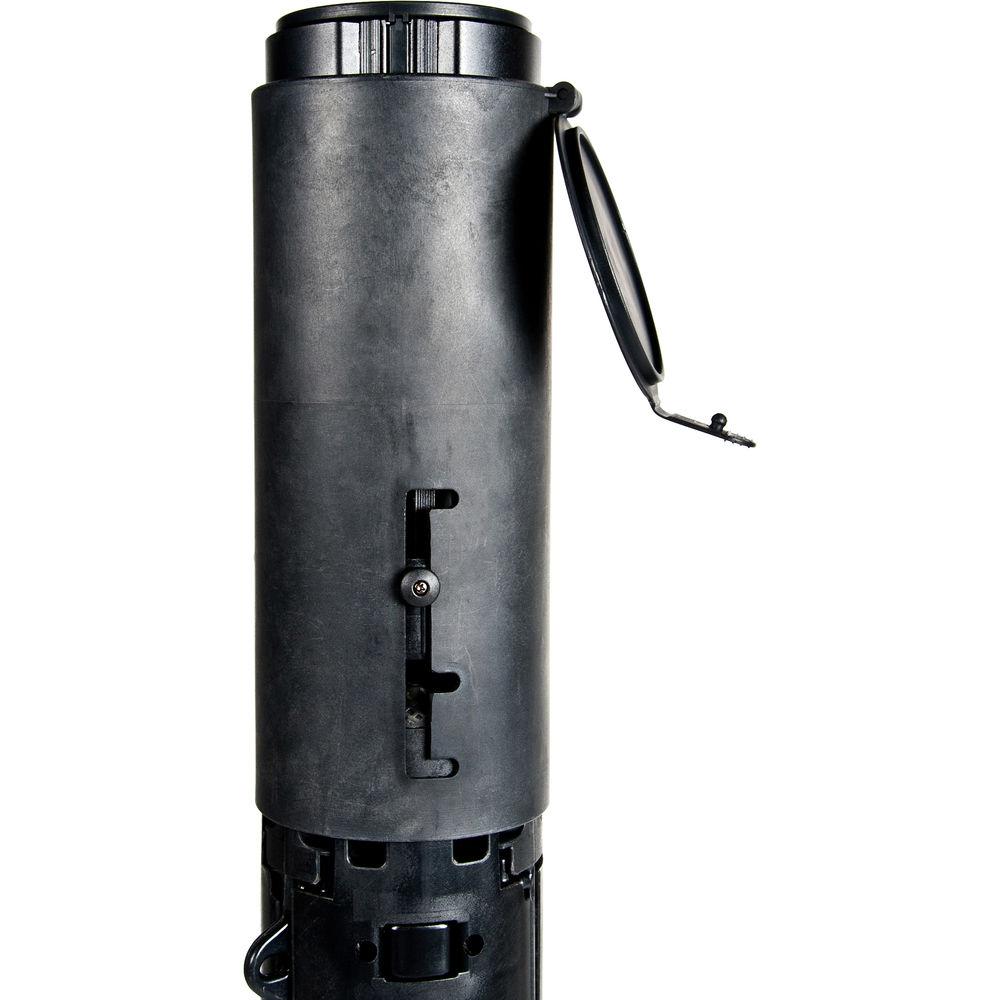

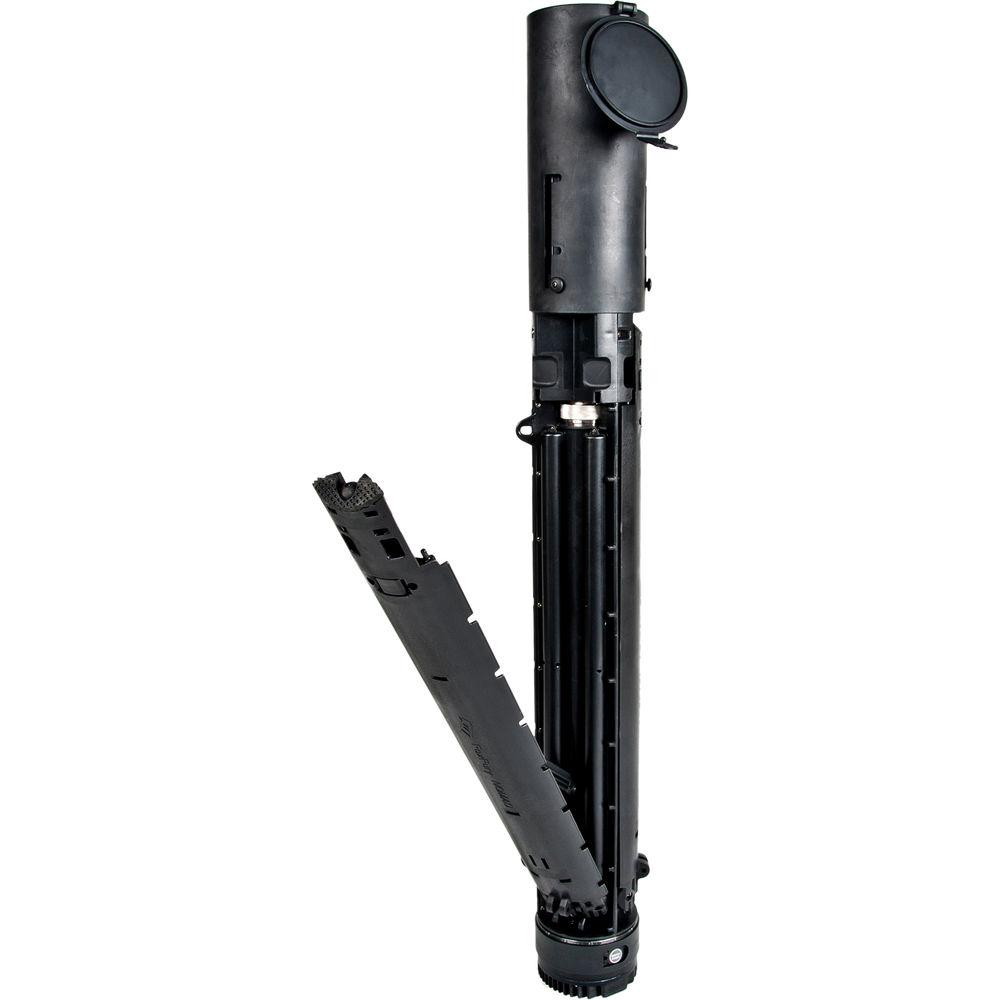

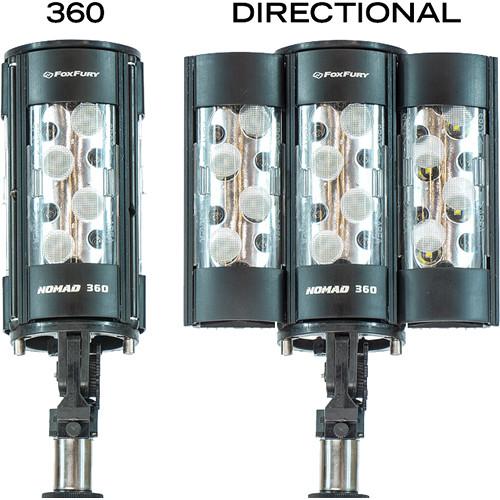

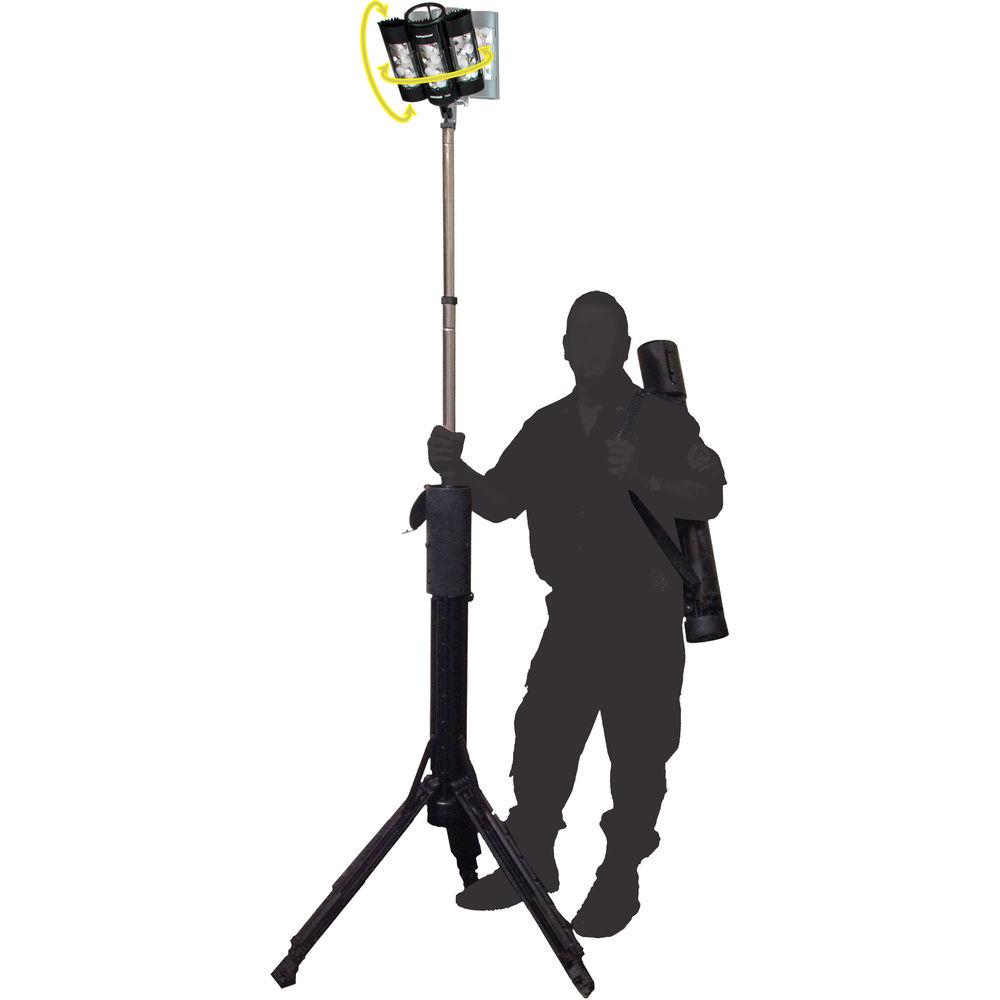

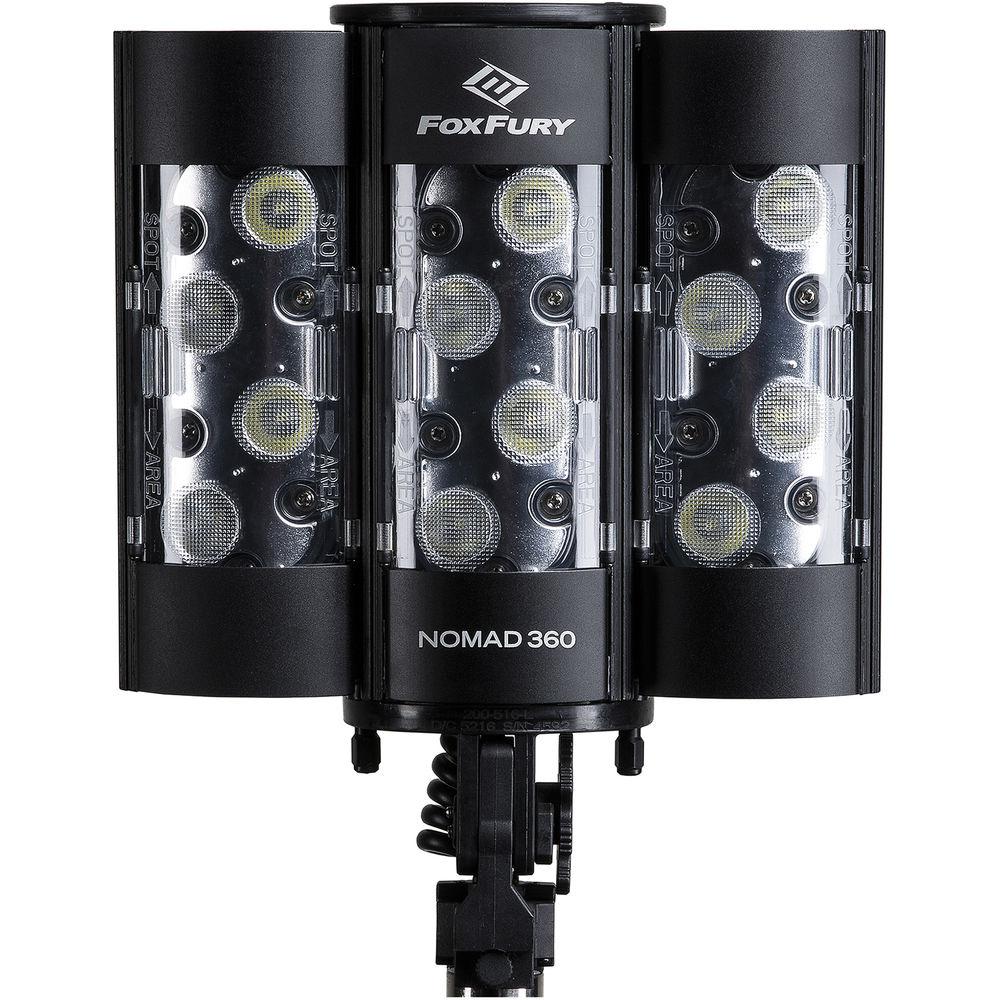

Product description With three output settings (plus flash), spot, flood and 360° configurations, and a built-in 8.5' tripod, the rechargeable Nomad 360 LED Scene Light from FoxFury is a versatile lighting tool for a variety of public safety and industrial uses. The lithium-ion battery pack will power the light for 3 hours at the 7000-lumen high setting, 9 hours on medium and 24 hours on low. A battery power indicator lets you know how much runtime is left.The Nomad 360's collapses down into a 24-pound, 40" tube, with shoulder strap. Once on the scene, the tripod can be deployed and the lamp hoisted to its full height in 20 seconds. Open its side panels and the light head produces a 12° or 120° beam; close the panels to restore its cylindrical shape, and the light head shines 360°. Unlike lights mounted on shorter tripods, the Nomad 360's 8.5' height illuminates a wide area while keeping the light out of the eyes of on-scene personnel.Constructed of nylon 66 with glass fibers and 6061-T6 aluminum with a polycarbonate diffuser lens, the Nomad 360 is submersible to 9.8', impact resistant to 6.6' and meets NFPA 1971-2007 fire resistance standards. - Light Performance
-
- High: 7000 lumens
- Medium: 2100 lumens
- Low: 700 lumens
- Flash: 7000 lumens
- Runtimes: 3 hours / 9 hours / 24 hours / 10 hours, respectively
- Beam angles: 12° / 120° / 360°
- Switching
-
- Push-button at base of unit
- Use & Handling
-

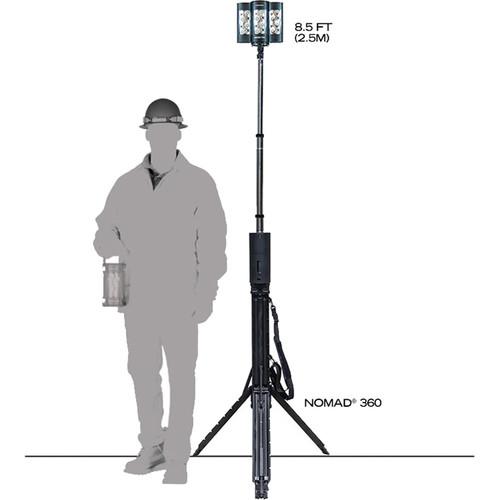

- Integrated tripod elevates light to 8.5'
- Waterproof/submersible to 9.8'
- Rechargeable lithium-ion power pack
- Recharges in 7 hours
- Battery power indicator
- Can run on direct AC or DC power
- Tripod footprint 36" diameter
- Folds down to 39.9 x 4.6"
- Weight: 24 pounds

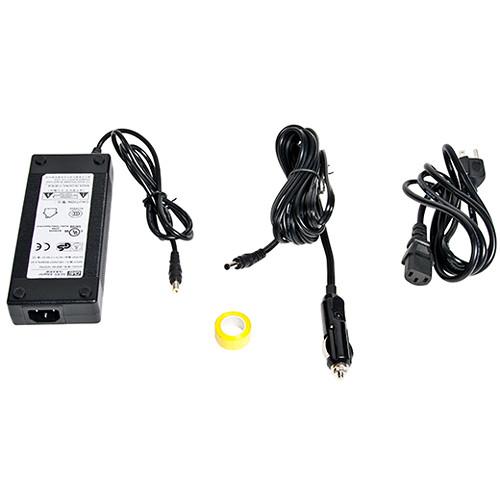

In the Box FoxFury Nomad 360 LED Scene Light with Integrated Tripod AC/DC Adapter AC Cable 12VDC Cable 3M Yellow Reflective Tape Carry Strap Accessories Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FoxFury Nomad 360 LED Scene Light with Integrated Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFoxFury Nomad 360 Specs | Output Range | Low: 700 lumens
Med: 2100 lumens
High: 7000 lumens
Flash: 7000 lumens | | Beam Angle | 12° / 120° / 360° | | Battery | Rechargeable Lithium-ion | | Runtime | High: 3 h
Med: 9 h
Low: 24 h
Flash: 10 h | | Construction | 6061-T6 aluminum, 66 nylon with glass fiber
Diffuser lens: polycarbonate
Tripod post: stainless steel | | Waterproofing | Submersible to 9.8' (3 m) | | Dimensions | Collapsed: 39.9 x 4.6" (101.4 x 11.7 cm)
Max height: 8.5' (260.0 cm) | | Weight | 24 lb (11 kg) | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 49.0 x 9.0 x 9.0" |
