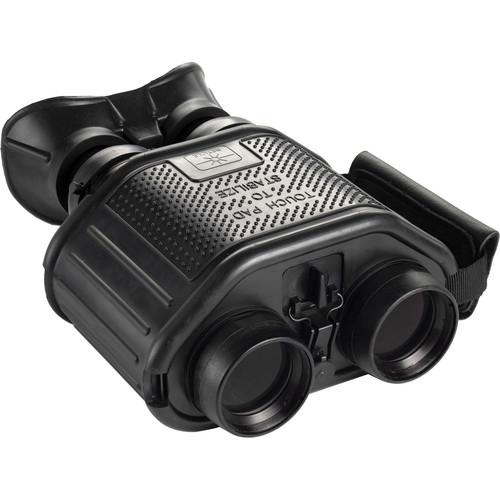

User Manual for Fraser Optics 10x40 Stedi-Eye Aviator-C Image-Stabilized Binocular Click to enlarge the picture
Contents of the user manual for the Fraser Optics 10x40 Stedi-Eye Aviator-C Image-Stabilized
- Product category: Binoculars Fraser Optics
- Brand: Fraser Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fraser Optics Binoculars
 |
User manual for the Fraser Optics 10x40 Stedi-Eye Aviator-C Image-Stabilized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fraser Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fraser Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fraser Optics product will considerably shorten its lifespan!
|

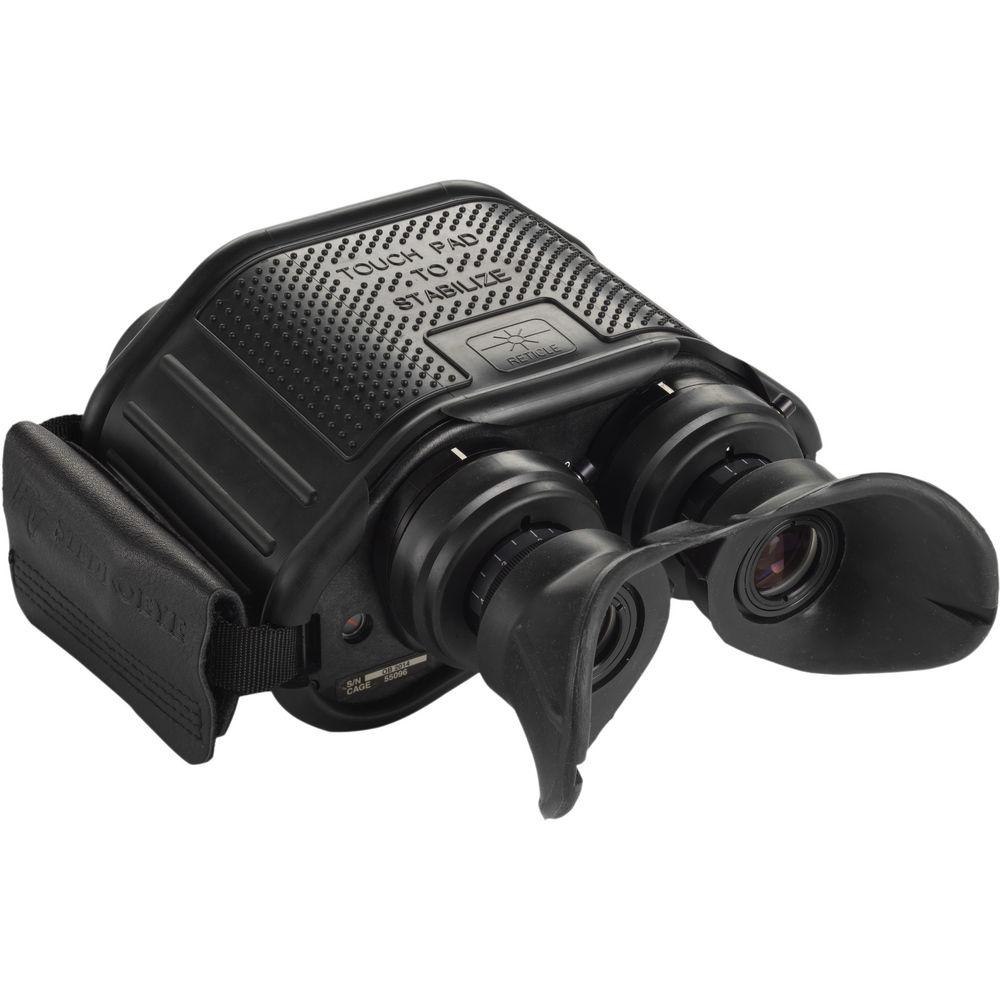

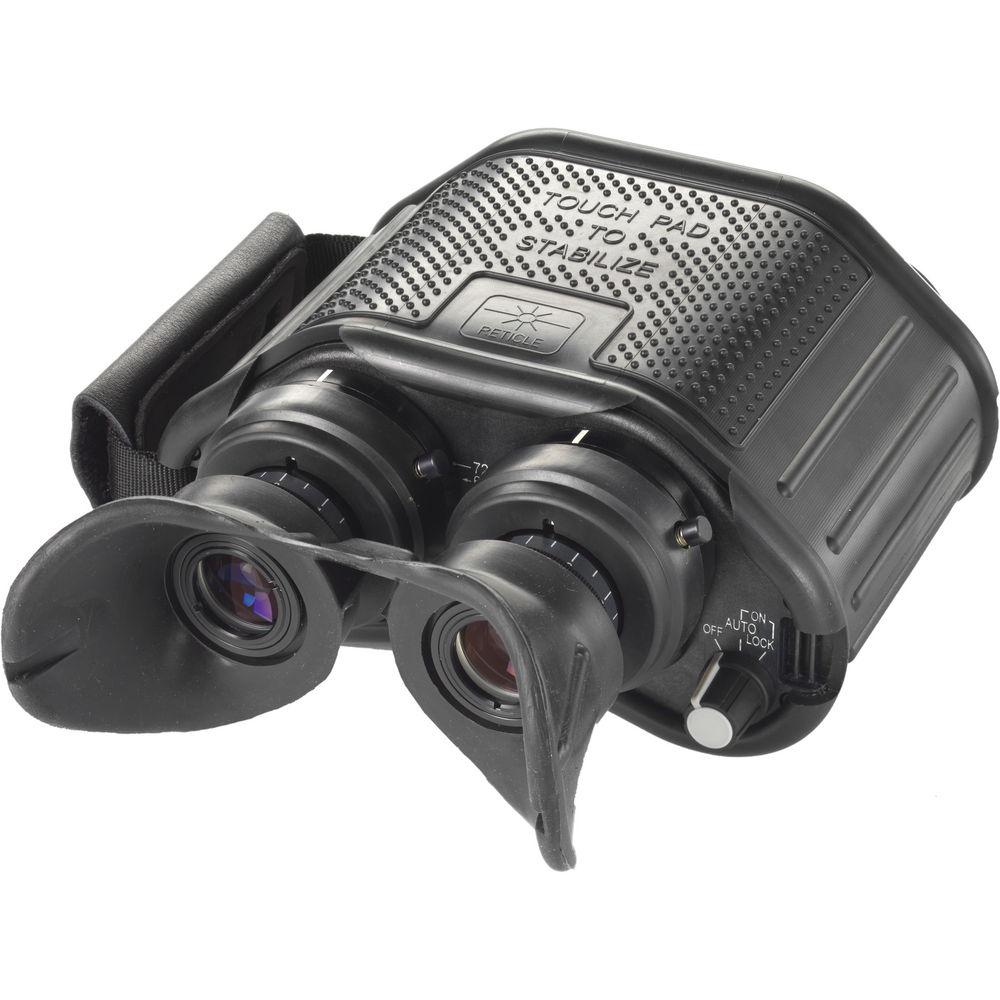

Product description The B&H Binocular Buying Guide Read More The 10x40 Stedi-Eye Aviator Image-Stabilized Binocular from Fraser Optics is an advanced electro-optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. The Aviator uses gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. This technology is especially useful for law enforcement personnel and first responders observing from a marine vessel, moving vehicle, or helicopter. As the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8°. All configurations of the Aviator series are built to the same construction standards as Fraser's military spec optics. The weatherproof and buoyant housing, fully multi-coated optics, and supplemental external power supply make the Aviator a full-featured binocular for first responders and tactical professionals. - Optical Performance
-
- Powerful 14x magnification is ideal for making detailed observations and identifications at long distances
- 40mm objectives ensure a compact and easy-to-hold form factor
- MgFI (magnesium-fluoride) fully multi-coated optics maximize light transmission, color fidelity, contrast, and sharpness
- Wide 64° apparent angle of view presents an immersive observational experience
- 241-foot field of view at 1000 yards
- Individual-focusing eyepieces ensure tack-sharp views regardless of individual eye prescription
- Image Stabilization
-
- Electronically controlled gyro-stabilization system reduces 98% of image motion to offset hand shake and motion to maintain steady views even on the water or in the air
- Intuitive activation touch pad with stabilization lock for constant stabilization without having to keep finger on pad
- ±8% stabilization freedom and 8°/sec scan rate, with 4.3 arcsecond daytime resolution
- Runs for up to 12 hours on two user-supplied AA batteries
- Capable of running on optional 6-30VDC external power supply with a built-in regulator to help maintain consistent performance
- Construction Details
-
- Completely sealed to be waterproof and submersible
- Buoyant for easy retrieval if dropped overboard
- Shockproof with rubberized armoring to withstand extreme use and conditions
- No-slip neoprene cover for added comfort and improved grip
- Removable haze and polarizing filters enhance and clarify views
- Removable face shield with winged eyecups helps block bright sun from interfering with looking through the optic to produce bright views with enhanced contrast and clarity
- Custom hard shell carrying case with lens cleaning kit
- Made in the USA
In the Box Fraser Optics 10x40 Stedi-Eye Aviator-C Image-Stabilized Binocular Handstrap 2 x AA Batteries Haze Filter Face Shield with Attachment Kit Polarizing Filter with Adapter External Power Cord Lens Cleaning Kit Custom Hard Shell Case Limited 2-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 cayqswvdevtabevbtdyvbrsawtrtbvvz A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 cayqswvdevtabevbtdyvbrsawtrtbvvz A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics 10x40 Stedi-Eye Aviator-C Image-Stabilized Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics Aviator Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 40 mm | | Angle of View | 4.6° (Actual) | | Field of View | 240.96' @ 1000 yd / 80.00 m @ 1000 m | | Exit Pupil Diameter | 2.9 mm | | Interpupillary Adjustment | 60 to 75 mm / 2.4 to 3" | | Dioptric Correction | ±5 | | Stabilization Freedom | ±8° | | Resolution | 4.3 arcseconds (USAF-1951) | | Scan Rate | 8°/ second | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.3 x 7.5 x 3.5" / 210.8 x 190.5 x 88.9 mm | | Weight | 4.5 lb / 2.04 kg | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 17.5 x 13.25 x 11.5" |
