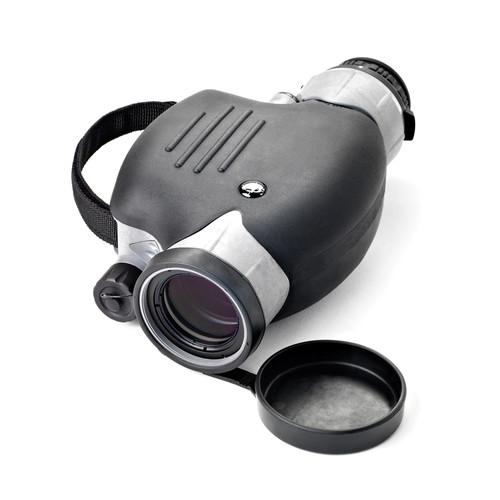

User Manual for Fraser Optics 10x40 Stedi-Eye Monolite-C Image Stabilized Monocular Click to enlarge the picture
Contents of the user manual for the Fraser Optics 10x40 Stedi-Eye Monolite-C Image
- Product category: Monoculars Fraser Optics
- Brand: Fraser Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fraser Optics Monoculars
|
User manual for the Fraser Optics 10x40 Stedi-Eye Monolite-C Image contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fraser Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fraser Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fraser Optics product will considerably shorten its lifespan!
|
Product description The 10x40 Stedi-Eye Monolite-C Image Stabilized Monocular from Fraser Optics is a fully multicoated optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. Designed to withstand long-term use in demanding weather conditions, the Monolite has a rugged slip-resistant armoring and its housing is waterproof, submersible, and buoyant. The housing is made of a lightweight polycarbonate material that is designed to reduce weight and user fatigue for long-duration observation, while adding corrosion, temperature and impact resistance.This binocular uses gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. As the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8°. It can run for up to 8 continuous hours on single CR123 battery, and an optional external power pack is available for extended use. One haze and one polarized lens filter are provided for challenging and high-glare environments. A hard protective case with a die-cut foam insert is also included. - Performance
-
- 10x magnification
- 40mm objective lens
- Porro prism optical design
- MgFI fully multicoated optics for enhanced light transmission and color fidelity
- STEDI-EYE technology: gyroscopic image stabilization delivers up to 98% reduction in image motion
- Stabilization freedom: ±8°
- Scan rate: 8°/sec
- 270' field of view at 1000 yd
- 51° angular field of view
- Use and Handling
-
- ±4 dioptric adjustment
- Touchpad control and switch lock to activate stabilization
- Continuous operation for up to 8 hours on one CR-123 battery
- Construction Details
-
- Lightweight polycarbonate housing is corrosion, temperature and impact resistant
- Buoyant, submersible, and waterproof
- Slip-resistant neoprene cover for added comfort and grip
- Haze and polarized lens filters for challenging or high-glare applications such as marine environments
- Tethered lens covers prevents loss
In the Box Fraser Optics 10x40 Stedi-Eye Monolite-C Image Stabilized Monocular Hard Protective Case Neck Strap Handstrap Objective Lens Cap Eyepiece Cap External Power Cord Polarizing Filter Haze Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics 10x40 Stedi-Eye Monolite-C Image Stabilized Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics 12002-300-1-C Specs | Prism Type | Porro | | Magnification | 10x | | Objective Lens Diameter | 40mm | | Angle of View | 5.1°, actual | | Field of View | 270' @ 1000 yd (90 m @ 1000 m) | | Minimum Focus Distance | 30' (9.1 m) | | Exit Pupil Diameter | 4 mm | | Eye Relief | 18 mm | | Dioptric Correction | ±4 | | Stabilization Freedom | ±8° | | Resolution | 4.7 arcseconds | | Scan Rate | 8°/second | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 9.5 x 5.1 x 2.7" (24.1 x 13.0 x 6.7 cm) | | Weight | 2.3 lb (1.0 kg) |
