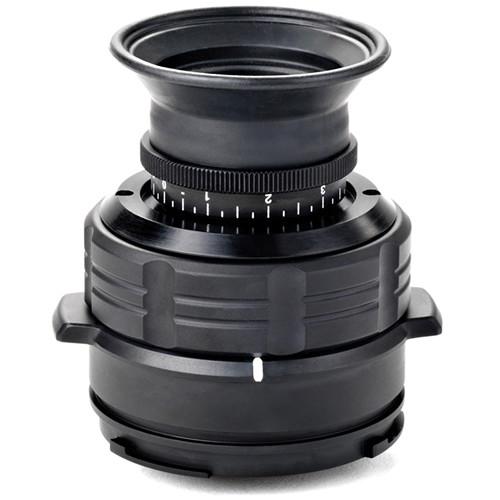

User Manual for Fraser Optics 12x Gen 3 Night Vision Eyepiece For 12002 Monolite NVR Monocular Click to enlarge the picture
Contents of the user manual for the Fraser Optics 12x Gen 3 Night
- Product category: Camera & Optics NV Adapters Fraser Optics
- Brand: Fraser Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fraser Optics Camera & Optics NV Adapters
|
User manual for the Fraser Optics 12x Gen 3 Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fraser Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fraser Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fraser Optics product will considerably shorten its lifespan!
|
Product description The 12x Gen 3 Night Vision Eyepiece for 12002 Series Monolite Night Vision Ready Monocular from Fraser Optics is a 12x eyepiece with a built-in Generation 3 intensifier tube. The intensifier tube offers a resolution of 64 lp/mm, a signal-to-noise ratio of 21.9:1, and draws power from the main unit. The Generation 3 night vision eyepiece will enable you to see a brighter and clearer image a softer color tone. Among other optical performance specifications are a 3.4° angular field of view which allows you to see approximately 180' filed at a distance of 1000 yards, a 5mm eyerelief with fold-down eyecups, and a ±4 diopter range. The eyepiece mounts in place of a regular daylight eyepiece via a push-and-twist bayonet mount.
The eyepiece also features an aluminum water resistant housing with a rubberized armoring. Optical Performance -
- For 12002 Monolite Series only
- Not conpatible with 07002 Daylight Series
- Magnification power: 12x
- Angular FOV: 3.4°
- Linear FOV: 180' @ 1000 yd
- Eye relief: 5 mm
Intensifier Tube -
- Type: Generation 3
- Resolution: 64 lp/mm
- Draws power from the main unit
- Figure of merit: 1400
- SNR: 21.9:1
Construction -
- Fold-down rubber eyecup
- Push-and-twist bayonet mount
- Aluminum housing with rubberized armoring
- Waterproof
In the Box Fraser Optics 12x Gen 3 Night Vision Eyepiece For 12002 Monolite NVR Monocular - Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics 12x Gen 3 Night Vision Eyepiece For 12002 Monolite NVR Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics 12002-056-17 Specs | Magnification | 12x | | Field of View | Angular: 3.4°
Linear: 180' @ 1000 yd (60 m @ 1000 m) | | Eye Relief | 5 mm | | Diopter Adjustment | +4 to - 4 | | Intensifier Tube | Type: Generation 3
Resolution: 64 lp/mm | | SNR | 21.9:1 | | Figure of Merit | 1400 | | Waterproof | Waterproof | | Housing Material | Aluminum | | Weight | 9 oz (255 g) |
