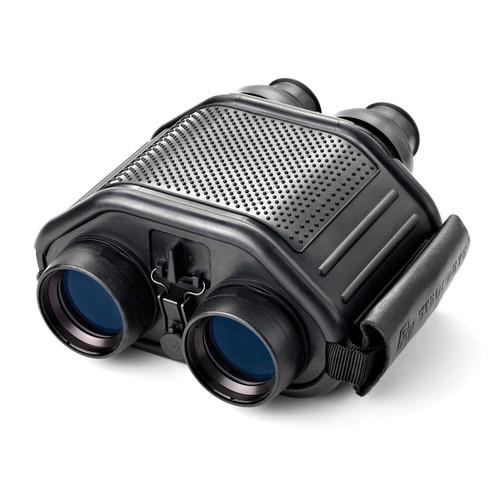

User Manual for Fraser Optics 14x40 Stedi-Eye Mariner-B Image-Stabilized Binoculars Click to enlarge the picture
Contents of the user manual for the Fraser Optics 14x40 Stedi-Eye Mariner-B Image-Stabilized
- Product category: Binoculars Fraser Optics
- Brand: Fraser Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fraser Optics Binoculars
|
User manual for the Fraser Optics 14x40 Stedi-Eye Mariner-B Image-Stabilized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fraser Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fraser Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fraser Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The black 14x40 Stedi-Eye Mariner-B Image-Stabilized Binoculars from Fraser Optics offer a fully multi-coated optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. They are designed to withstand long-term use in demanding weather conditions, with a rugged slip-resistant armor and housing that is shockproof, waterproof, submersible, and buoyant. These binoculars use gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. As the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8°. They can run for up to 12 continuous hours on two AA batteries, and an optional external power pack is available for extended use. Two polarized lens filters for use in high-glare marine environments, a hard case with foam lining, and soft pouch are included.
- Performance
-
- 14x magnification
- 40mm objective lens
- Porro prism optical design
- MgFI2 fully multi-coated optics for enhanced light transmission and color fidelity
- 64° wide angle viewing
- STEDI-EYE technology: gyroscopic image stabilization
- Stabilization freedom: ±8°
- Scan rate: 8°/sec
- Use and Handling
-
- Individual eyepiece focusing
- ±5 dioptric adjustment
- Up to 98% reduction of image motion
- Touchpad control and switch lock to activate stabilization
- Continuous operation for 12 hours on two AA batteries
- Construction Details
-
- Buoyant, submersible, and waterproof
- Slip-resistant Santoprene cover for added comfort and grip
- Polarized lens filters for high-glare marine environments
- Tethered lens covers prevents loss
UPC: 852077004760 In the Box Fraser Optics 14x40 Stedi-Eye Mariner-B Image-Stabilized Binoculars (Black) Hard Case Lens Cloth Soft Pouch Handstrap Neckstrap Lens Covers External Power Cord Full Face Eyecup 2 x AA Batteries Limited 2-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics 14x40 Stedi-Eye Mariner-B Image-Stabilized Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics Mariner Specs | Prism Type | Roof | | Magnification | 14.0 x | | Objective Lens Diameter | 40 mm | | Angle of View | 4.3° (actual) | | Field of View | 222.89' @ 1000 yd / 74.00 m @ 1000 m | | Minimum Focus Distance | 29.9' / 9.1 m | | Exit Pupil Diameter | 3 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | 60 to 75 mm / 2.4 to 3" | | Dioptric Correction | ±5 | | Stabilization Freedom | ±8° | | Resolution | 4.3 arcseconds (USAF-1951) | | Scan Rate | 8°/ second | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.2 x 7.5 x 3.5" / 208.3 x 190.5 x 88.9 mm | | Weight | 4.5 lb / 2.0 kg | | | | Package Weight | 13.575 lb | | Box Dimensions (LxWxH) | 16.2 x 13.5 x 7.7" |
