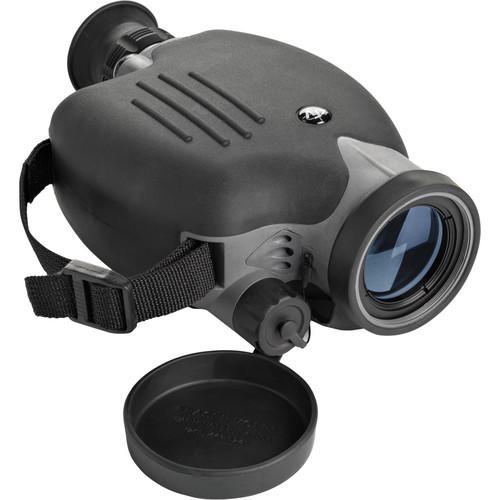

User Manual for Fraser Optics 14x40 Stedi-Eye Monolite-CL Gyro-Stabilized Monocular Click to enlarge the picture
Contents of the user manual for the Fraser Optics 14x40 Stedi-Eye Monolite-CL Gyro-Stabilized
- Product category: Monoculars Fraser Optics
- Brand: Fraser Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fraser Optics Monoculars
|
User manual for the Fraser Optics 14x40 Stedi-Eye Monolite-CL Gyro-Stabilized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fraser Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fraser Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fraser Optics product will considerably shorten its lifespan!
|
Product description Designed for long-range observations from unstable viewing platforms, the Fraser Optics 14x40 Stedi-Eye Monolite-CL Gyro-Stabilized Monocular uses gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. This is especially useful for law enforcement personnel and first responders observing from a marine vessel, moving vehicle, or helicopter. When the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within ±8 degrees.The objectives draw in enough light for use from dawn to dusk, while the high power is optimized for long-distance viewing. To ensure the brightest images possible, the optical system is fully multi-coated with magnesium fluoride (MgFI), which evenly passes light across the entire visual spectrum so colors are represented correctly with improved contrast and clarity. Ideal for scanning large swaths of territory, the Stedi-Eye is engineered with a wide apparent angle of view.To withstand the rigors of constant use in the elements, the chassis is 100% sealed to be waterproof and submersible—and if it goes overboard, it is also buoyant for easy retrieval. The entire chassis is covered in a slip-resistant neoprene cover and a hand strap is included to add further grip security. This model of the monocular is supplied with standard accessories plus a hard foam-lined case, and a large lens cleaning kit. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Gyro Stabilization
- Gyro stabilization technology uses angular momentum generated by a gyro to compensate for movement of the optical housing. When the optical housing moves in one direction, the gyro mechanism moves in the opposite direction and reorients the prisms to stabilize the transmitted image. This stabilization technique happens in real time, as opposed to electronic stabilization, and corrects pitch and roll motion within 8 degrees. The Monolite is capable of correcting up to 98% of image motion caused by hand tremor and platform motion.
- Performance
- The 14x magnification is well suited for long-range viewing on the water, in the air, and on the road. Gyro stabilization ensures that transmitted images will be rock steady despite the hand tremor commonly visible through high-magnification optics. Impressive 4.3 arcsecond resolution and an 8-degree scan rate ensure that the Monolite is ready to handle a wide range of commercial and law enforcement applications.
- Anti-Reflective Coated Optics
- Fraser's proprietary composite optical coating minimizes unwanted reflections and maximizes light transmission through the optical channel. By adding multiple layers to each lens surface, engineers created a system that produces bright images with rich contrast.
In the Box Fraser Optics 14x40 Stedi-Eye Monolite-CL Gyro-Stabilized Monocular Hard Carrying Case with Foam Lining Large Deluxe Lens Cleaning Kit Hand Strap Neck Strap Objective Lens Cap CR123 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics 14x40 Stedi-Eye Monolite-CL Gyro-Stabilized Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics Monolite Specs | Magnification | 14x | | Objective Lens Diameter | 40 mm | | Angle of View | 4.3°, actual | | Field of View | 225' @ 1000 yd / 74 m @ 100 m | | Exit Pupil | 2.9 mm | | Eye Relief | 14 mm | | Resolution | 4.3 arcseconds, daytime | | Stabilization Freedom | ±8° | | Diopter Correction | ±4 | | Scan Rate | 8°/second | | Power Supply | 1 x CR123 battery | | Dimensions | 8.25 x 5.1 x 2.7" / 21.0 x 13.0 x 6.8 cm | | Weight | 32.0 oz / 907.2 g | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 17.5 x 13.25 x 9.25" |
