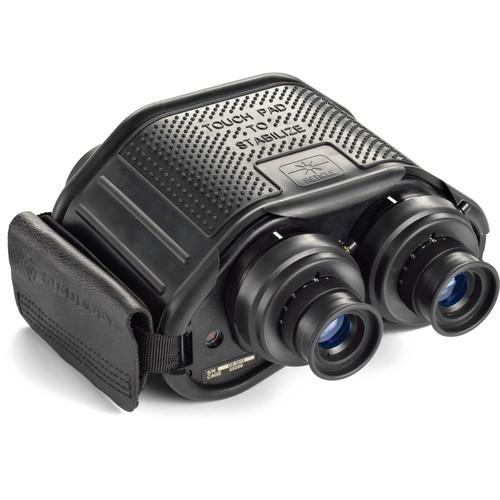

Product description The B&H Binocular Buying Guide Read More The 14x40 Stedi-Eye Observer Stabilized Binoculars with Pouch from Fraser-Volpe are an advanced electro-optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. Fraser-Volpe has developed electro-optics for the US Military since 1972 and is an industry leader in the production of next-generation optical stabilization. Their rigorous and high-minded approach to designing, prototyping, and manufacturing world-class products has earned Fraser-Volpe a reputation in both industrial and defense markets. Stedi-Eye series optics are manufactured in the United States and are designed to withstand long-term use in demanding weather conditions.The Observer uses gyro-stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. This technology is especially useful for law enforcement personnel and first responders observing from a marine vessel, moving vehicle, or helicopter. Whether in high-speed pursuit or conducting aerial and marine surveillance, the Observer's stabilized viewing platform can be the difference between mission success and failure. As the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction. This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8°. All configurations of the Observer series are built to the same construction standards as Fraser-Volpe's military spec optics. The weatherproof/buoyant housing, fully multi-coated optics, and supplemental external power supply make the Observer a full-featured optic for first responders and tactical professionals. - Gyro Stabilization
- Gyro-stabilization technology uses angular momentum generated by a gyro to compensate for movement of the optical housing. When the optical housing moves in one direction, the gyro mechanism moves in the opposite direction and reorients the prisms to stabilize the viewed image. This stabilization technique happens in real time, as opposed to electronic stabilization, and corrects up to 98% of pitch and roll motion within 8° of freedom.
- Performance
- The 14x magnification is well suited for long-range viewing in the air, at sea, and on land. Gyro stabilization ensures that transmitted images will remain steady despite the hand tremor commonly visible through high-magnification optics. A 4.3 arcsecond resolution and an 8° scan rate ensure that the Observer is ready to handle a wide range of law enforcement applications.
- Anti-Reflective Coated Optics
- Fraser-Volpe's proprietary compound optical coatings minimize unwanted reflections and maximize light transmission through the optical channels, resulting in enhanced image brightness and contrast.
- Stedi-Eye Cam Compatible
- This CCD recording device attaches to an ocular of any Stedi-Eye series binocular and transmits 512 x 492 video for remote monitoring or recording.
In the Box Fraser Optics 14x40 Stedi-Eye Observer Stabilized Binoculars with Pouch Protective Pouch with Strap Handstrap Neckstrap External Power Cord Haze Filter Polarizing Filter with Adapter Lens Cleaning Kit 2 x AA Battery Limited 2-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics 14x40 Stedi-Eye Observer Stabilized Binoculars with Pouch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics Observer Specs | Prism Type | Roof | | Magnification | 14.0 x | | Objective Lens Diameter | 40 mm | | Angle of View | 4.3° (Actual) | | Field of View | 222.89' @ 1000 yd / 74.00 m @ 1000 m | | Exit Pupil Diameter | 2.85 mm | | Interpupillary Adjustment | 60 to 75 mm / 2.4 to 3" | | Dioptric Correction | ±5 | | Stabilization Freedom | ±8° | | Resolution | 4.3 arcseconds (USAF-1951) | | Scan Rate | 8°/ second | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.2 x 7.5 x 3.5" / 208.3 x 190.5 x 88.9 mm | | Weight | 4.5 lb / 2.0 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 17.5 x 13.25 x 9.75" |
