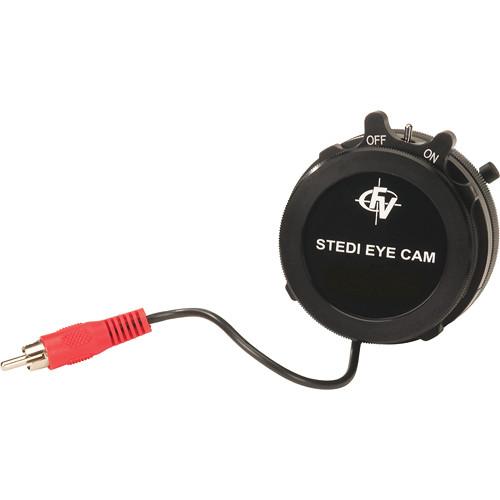

User Manual for Fraser Optics Stedi-Eye Cam CCD Camera Click to enlarge the picture
Contents of the user manual for the Fraser Optics Stedi-Eye Cam CCD Camera
- Product category: Eyepieces & Accessories Fraser Optics
- Brand: Fraser Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fraser Optics Eyepieces & Accessories
|
User manual for the Fraser Optics Stedi-Eye Cam CCD Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fraser Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fraser Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fraser Optics product will considerably shorten its lifespan!
|
Product description The NTSC configuration of the Stedi-Eye Cam CCD Camera from Fraser-Volpe enables operators to remotely view and record images transmitted by Stedi-Eye series stabilized binoculars. To install this accessory, replace either of the binocular eyepieces with the Stedi-Eye Cam. The operator can continue viewing through the other ocular while the Stedi-Eye Cam is in use. With the Stedi-Eye Cam, operators can view the transmitted image on a monitor and/or record the output using standard NTSC-compatible video equipment. Note: Not compatible with M25 and Bylite. - Camera Features
-
- 512x492 CCD sensor
- 400 line horizontal resolution
- Output image is central 40% of binocular FOV
- Automatic image gain
- NTSC video output
- Use and Handling
-
- Manual focus
- Submersible to 1 meter
- Runs on (1) CR123 battery
- Stedi-Eye Binocular Compatibility
-
- Aviator
- Mariner
- Observer
- Navigator
- PM25
In the Box Fraser Optics Stedi-Eye Cam CCD Camera (NTSC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fraser Optics Stedi-Eye Cam CCD Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFraser Optics 05004-525 Specs Field of View | Central 40% of binocular FOV | Sensor | CCD | Sensor Resolution | 512 x 492 | Lines of Horizontal Resolution | 400 | Output Format | NTSC | Power Supply | (1) CR123 battery | Runtime | Up to two hours of continuous operation | Weatherproofing | Waterproof to 3.3 ft (1 m) | Weight | 16 oz (454 g) | | Package Weight | 1.0 lb | Box Dimensions (LxWxH) | 9.0 x 6.0 x 5.0" |
