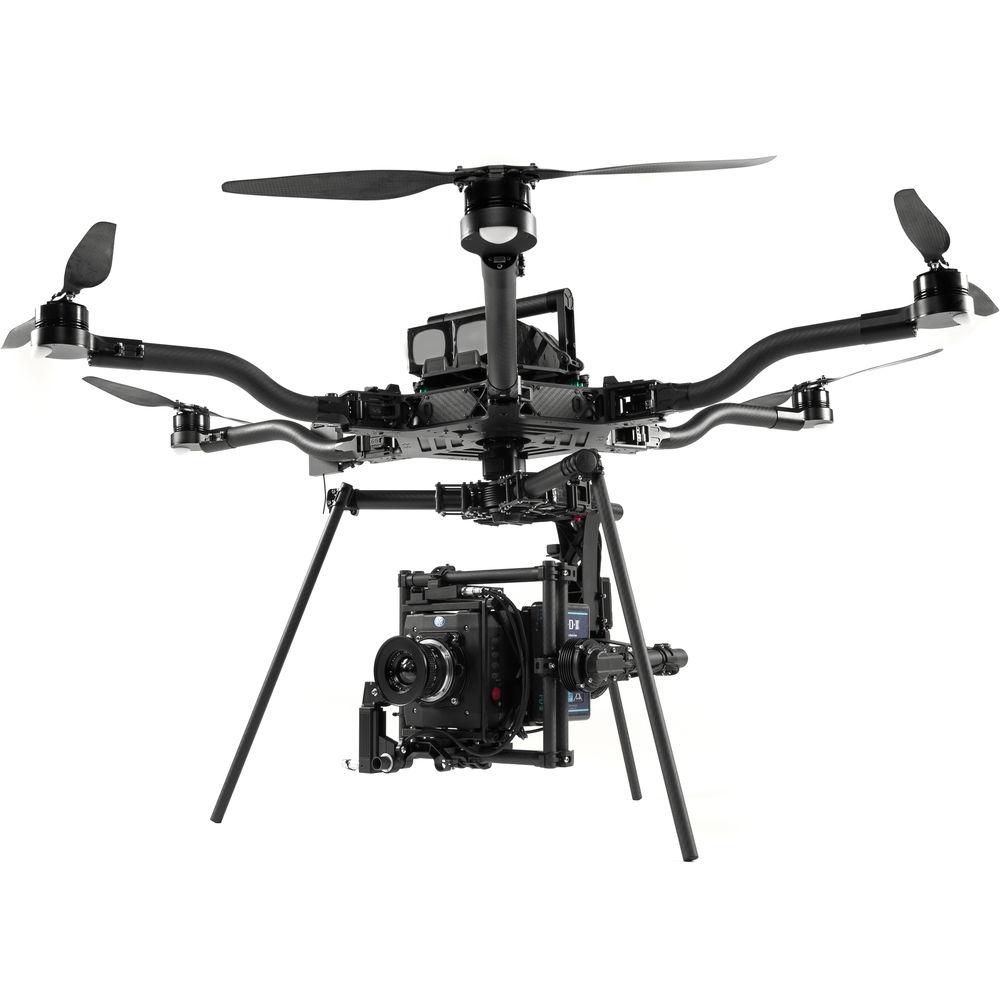

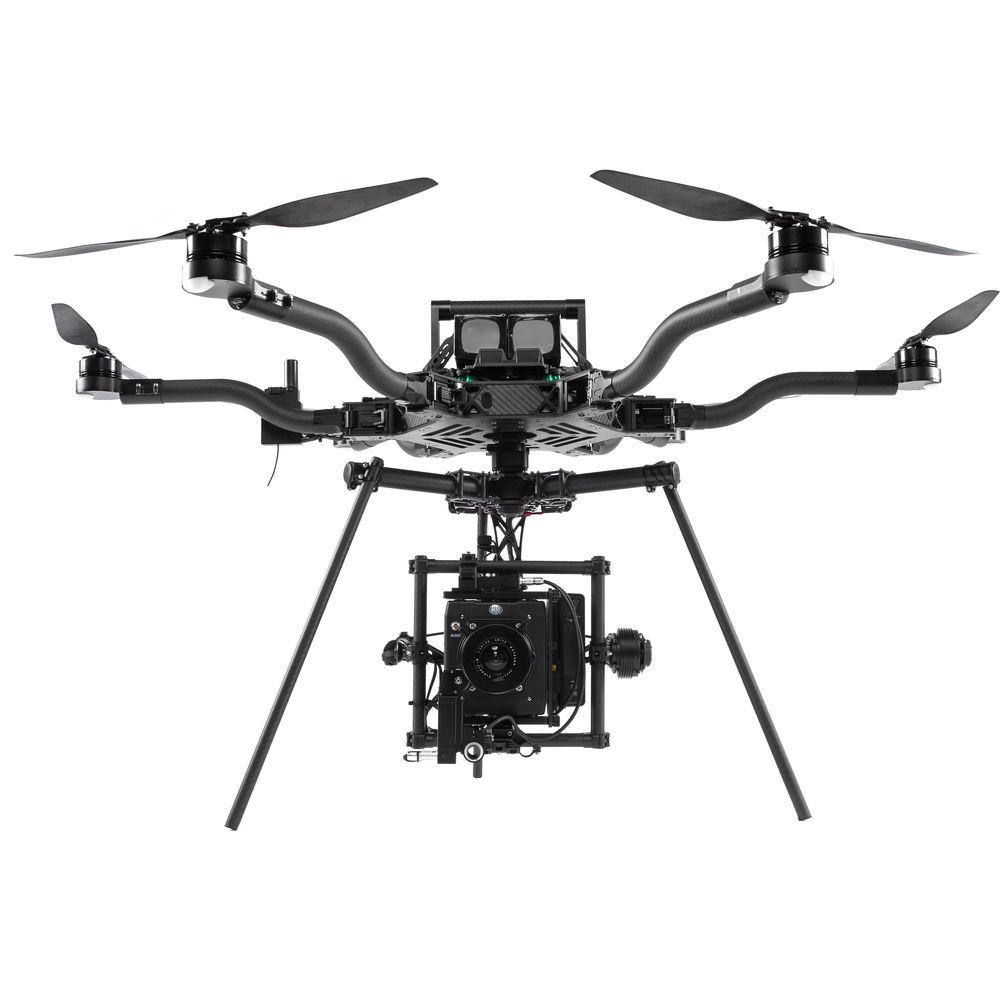

User Manual for FREEFLY ALTA 6 UAS for Aerial Cinematography Click to enlarge the picture
Contents of the user manual for the FREEFLY ALTA 6 UAS for Aerial
- Product category: See All Drones FREEFLY
- Brand: FREEFLY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FREEFLY See All Drones
 |
User manual for the FREEFLY ALTA 6 UAS for Aerial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FREEFLY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FREEFLY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FREEFLY product will considerably shorten its lifespan!
|

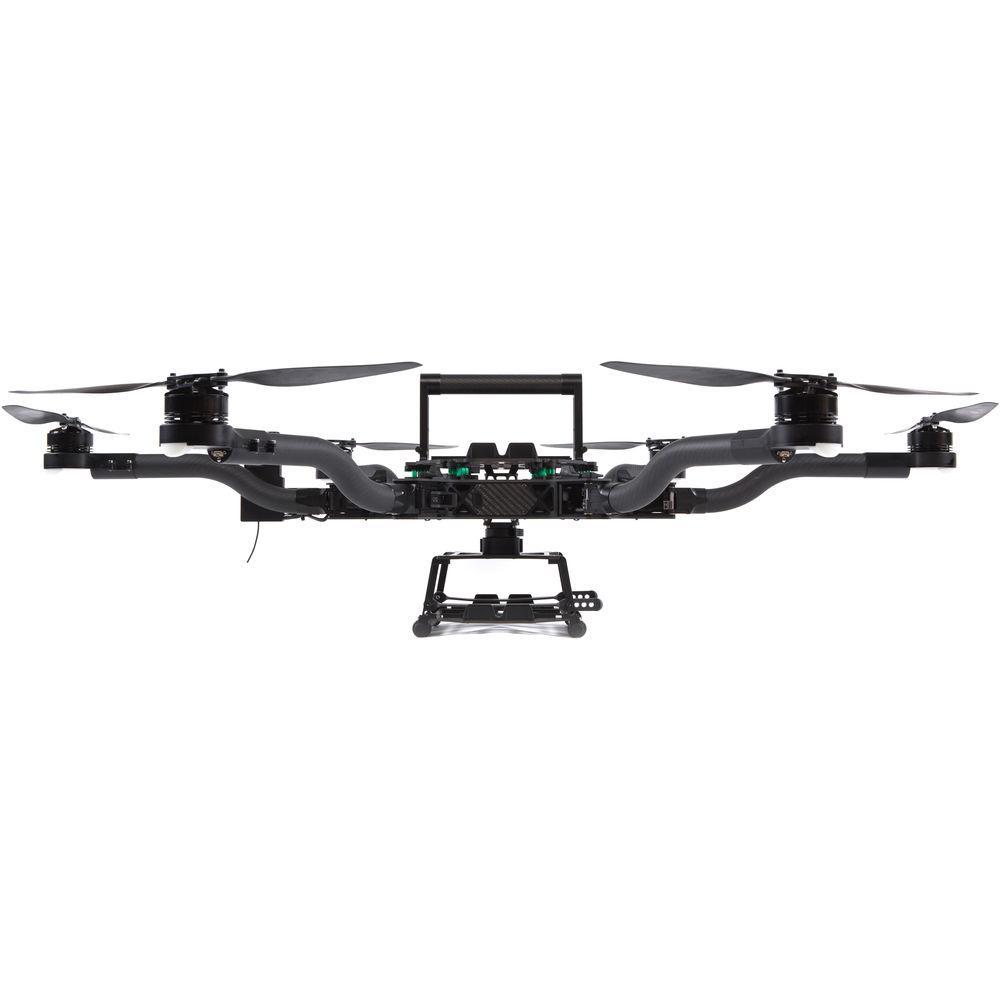

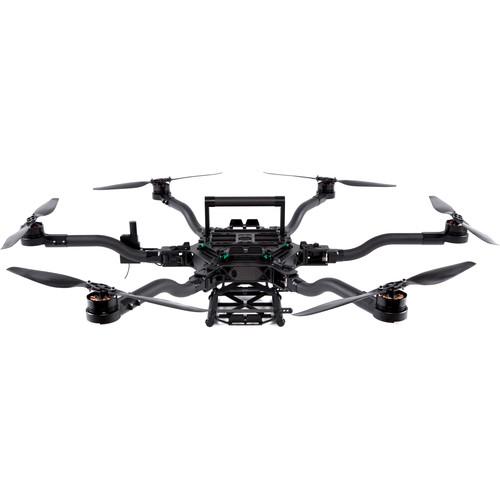

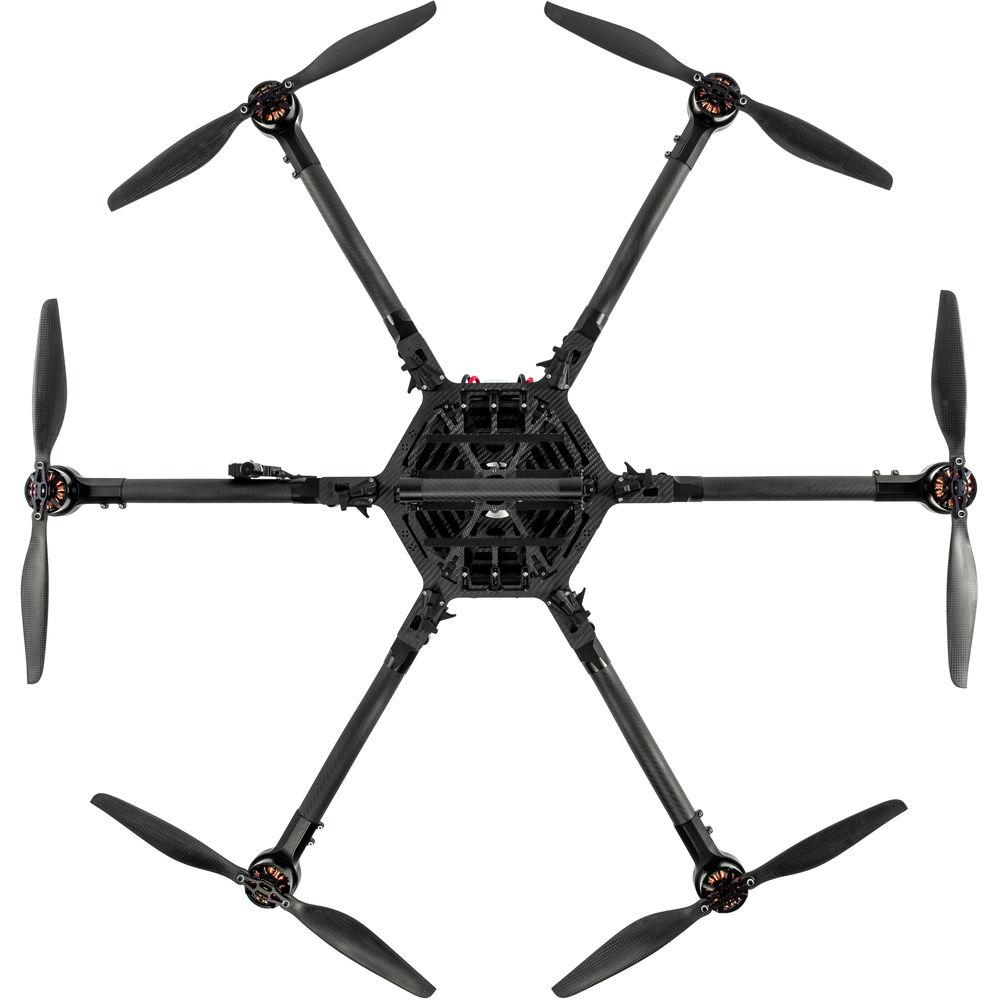

Product description FREEFLY Alta Drone Read More ALTA 6 from Freefly is a hexa-rotor drone for aerial imaging that – when used in conjunction with a separately available MoVI gimbal – supports mounting the camera either below or above the airframe. This configuration flexibility makes shooting from virtually any angle possible, even with the camera pointed up. ALTA features a maximum payload of 15 lb, and is therefore suitable for DSLRs, mirrorless cameras, and even compact cinema cameras (depending on lens weight and other variables). Equipped with Freefly's own flight control system, ALTA works with a range of transmitters, including many Futaba, Spektrum, and radios (see specifications for specific requirements). Flight modes provided include Manual, Height Hold, Climb Rate Control (Vario), Position Hold, Ground Speed Control, Return-To-Home, and Auto-land. For monitoring and first-person view, the flight controller works with FPV systems from Skyzone, BOSCAM, Immersion RC, and Fatshark. OSD display is user-configurable, and telemetry can data can also be displayed on compatible Futaba transmitters.
The ALTA includes a hard transit case. Additional item essential to get started include flight batteries and a charger, a transmitter (radio controller), and of course a MoVI gimbal and camera. - Fast Setup and Breakdown

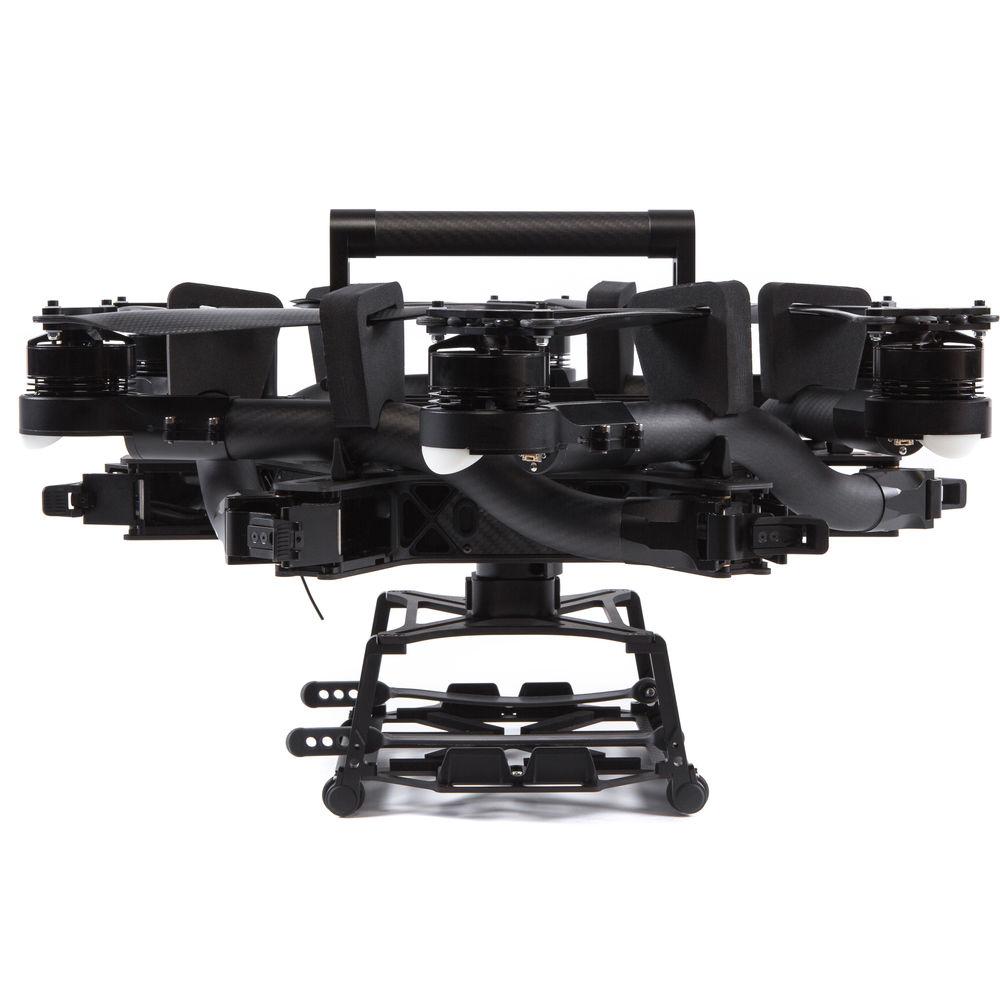

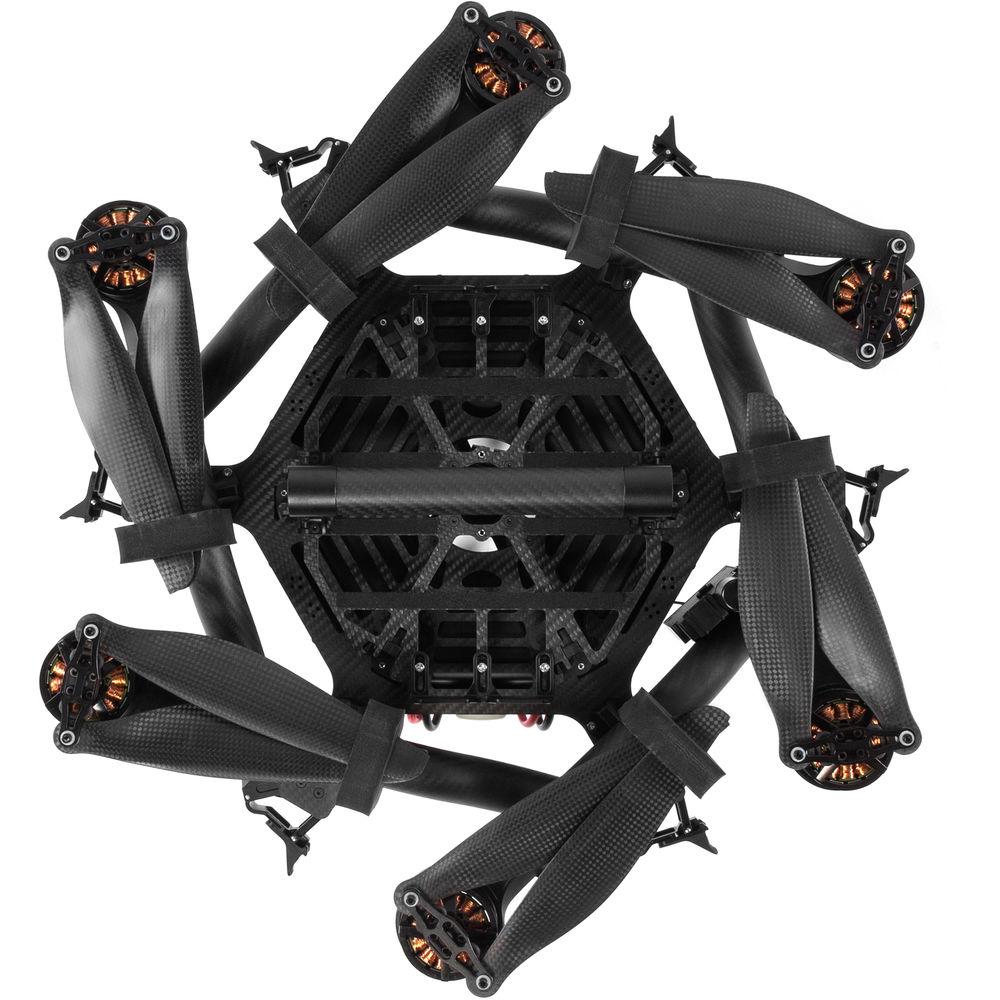

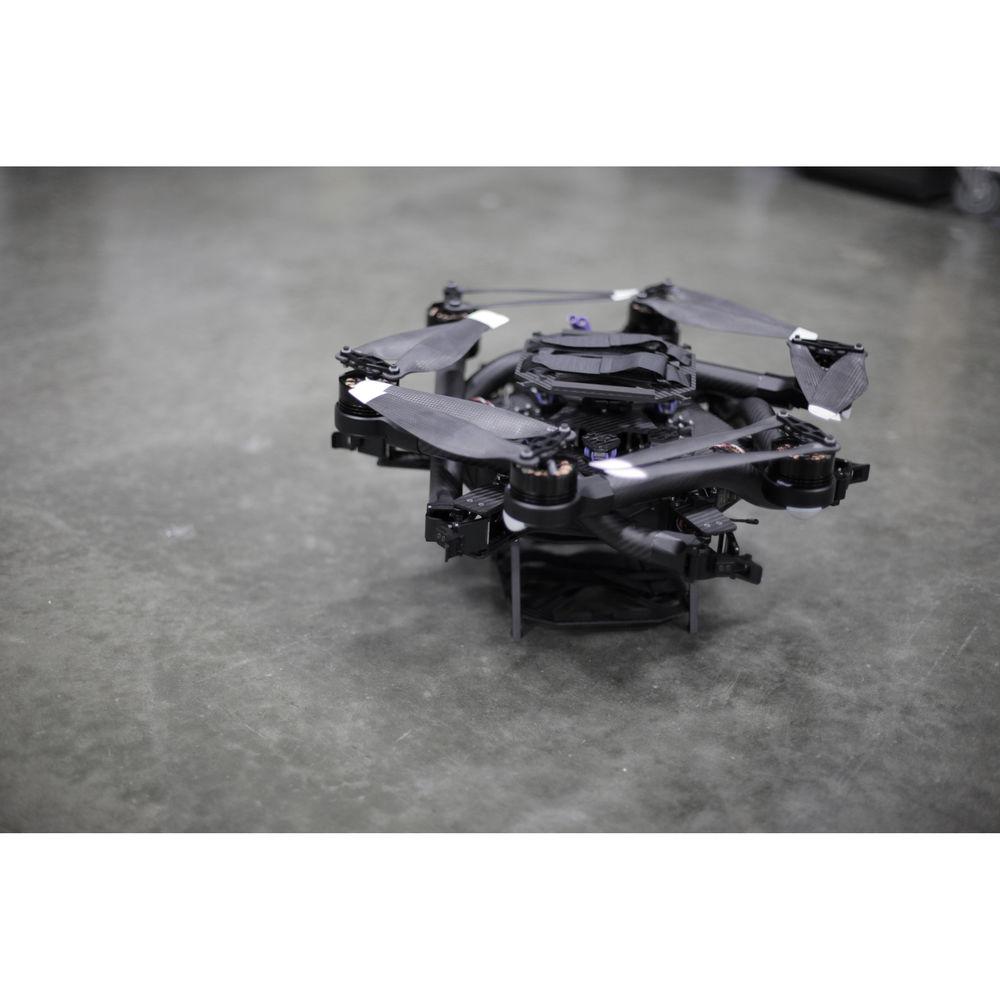

- The Freefly ALTA features a robust standard hard case that the aircraft folds up in and a packs away. Before each flight, simply unfold the prop arms and in insert the battery (available separately) – the props themselves unfold automatically as they spin up. No pre-flight assembly requiring tools is needed
Performance - Up to 15 lb Payload Capacity
- Designed for today's growing crop of compact cinema cameras, the ALTA is suitable for models such as the RED Dragon, Sony F55, and ALEXA Mini. It also supports popular mirrorless and DSLR cameras widely used in video production or to take stills from the air
Synapse Intelligent Flight Control System - The Freefly Synapse flight control system combines gyros and other sensors with proprietary control algorithms to allow users to execute complex flight patterns with ease. It features an integrated on-screen display, high-bandwidth position control, live , and has been tested for years by the industry's best pilots
- Data Logging
- High speed data logging allows user analysis of critical flight data
Works with MoVI Gimbals - Top Mount Camera Option

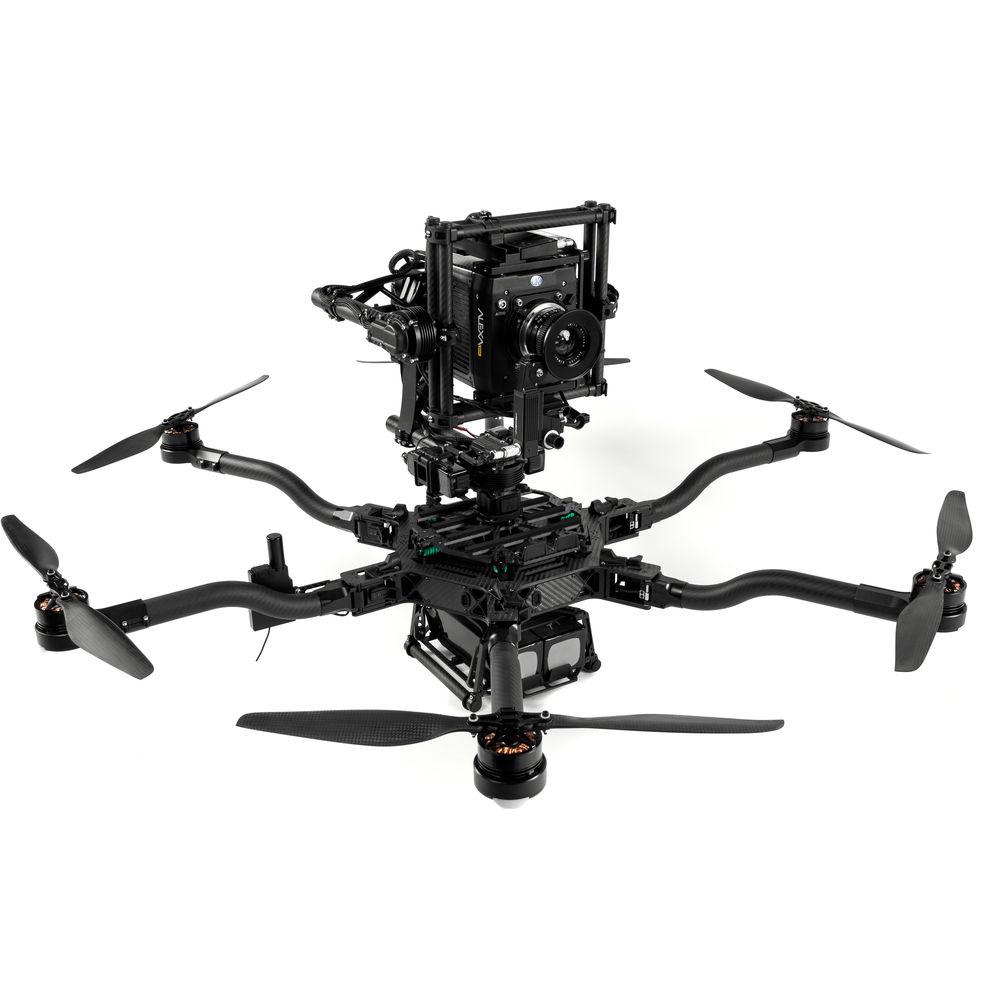

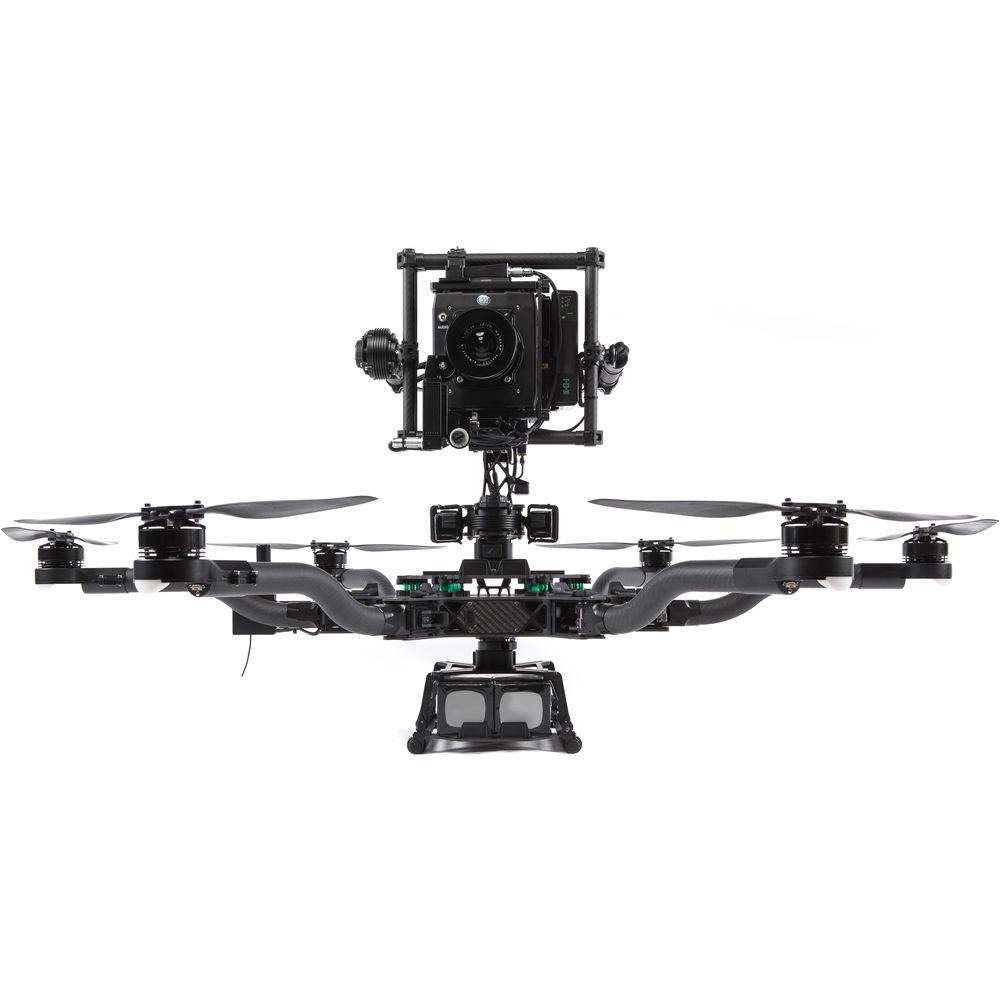

- In addition to traditional bottom mounting, the ALTA supports mounting the gimbal on top of the aircraft. This enables capturing distinct camera angles from beneath an elevated subject
- Toad in the Hole Quick Release
- MoVI gimbals can be easily attached or removed using Freefly's Toad in the Hole mounting standard
Air System Design - Vibration Isolation System
- A refined vibration isolation system rejects high frequency disturbances adding further image stability on top of what the gimbal provides
- Lightweight Frame
- The frame has been engineered to provide the optimal strength-to-weight ratio, enabling its up to 15 lb payload capacity
- Weather-Resistant Electronics
- The internal distribution board is weather sealed and conformal coated. It features four 12V power leads for driving LEDs or other accessories, as well as integrated connections for FPV monitoring systems
- Silent Drive Technology
- Using sine wave drive motor controls with active braking, the ALTA features low noise and precise, efficient, closed loop control of the propeller
Additional Features - User-Definable LEDs
- Customize your ALTA's LED color scheme to suit your piloting preferences via the ALTA App
UPC: 780742994750 In the Box FREEFLY ALTA 6 UAS for Aerial Cinematography Pelican Case Battery Cage Landing Gear for Top Mounting Digital Luggage Scale Limited 1-Year Warranty Aerial Photography and Drone Glossary David Adler 09/04/2018 Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the FREEFLY ALTA 6 UAS for Aerial Cinematography in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFREEFLY Alta 6 Specs | | | Weights | Maximum Gross Takeoff Weight: 29.9 lb / 13.6 kg
Maximum Useful Load: 21 lb / 9.5 kg
Maximum Payload: 15 lb / 6.8 kg | | Specific Power | Typical: 145 W/kg | | Thrust Ratio | At Max Takeoff Weight: 2.0:1 | | | | Payload Mounting | Mounting Locations: Bottom and top mount
Mounting System: Freefly Toad In The Hole Quick Release | | Isolation System | Vibration Isolation System: Silicone O-rings
Densities by Color
Soft / Light Payloads: Red O-rings
Medium / Mid Payloads: Teal O-rings
Stiff / Heavy Payloads: Black O-rings | | Lighting and Indication | Orientation Lights: RGB LED's
Orientation Light Locations: Outboard on boom ends
Orientation Light Color: User definable
Status Light: Rear-facing red/white LED
Accessory Lighting Port: 12 VDC
Accessory Lighting Port Location: Outboard on boom ends | | | | Model | F45 | | Type | 6 x Direct drive 3-phase PMAC outrunner | | Max Continuous Power Output | 350 W | | Max Instantaneous Peak Power | 950 W | | ESC | Freefly Silent-Drive Sine Wave ESC | | | | Model | Freefly Synapse Flight Controller | | Connectivity | Inputs: Spektrum, S.Bus, PPM, FPV SD video
Outputs: PWM, I2C, CAN, FPV SD video with OSD | | Flight Modes | Manual
Height Hold
Climb Rate Control (Vario)
Position Hold
Ground Speed Control
Return-To-Home
Auto-land | | Installed Transceivers | Wi-Fi | | Data Logging Rate | 25 Hz | | | | Supported Radios | Futaba S.Bus & S.Bus 2
DSMX, DSM2 (Spektrum/JR)
PPM, PPM Invert, PPM Graupner | | | | Supported Telemetry Systems | Futaba with built-in voltage sensor port | | First-Person View OSD Telemetry | User configurable | | | | Supported First-Person View Systems | Skyzone
BOSCAM
Immersion RC
Fatshark | | | | Type | 6 x 18x6 folding | | Configuration | 3 x CW
3 x CCW | | Material | Carbon fiber with balsa core | | | | Voltage | 6S / 22.2 VDC | | Maximum Battery Size | 9.4 x 7.1 x 3.1" / 240 x 180 x 80 mm | | Maximum Battery Quantity | 2 x in parallel | | Connector | 2 x EC5 (parallel) | | | | Dimensions | Unfolded
Length: 39.4" / 1000 mm
Width: 45.1" / 1145 mm
Height (base of TITH): 8.7" / 220 mm
Folded
20.9" / 532 mm
20.3" / 515 mm
8.7" / 220 mm | | Weight | Typical Standard Empty Weight: 9 lb / 4.1 kg | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 29.8 x 28.4 x 17.4" |
