Product description

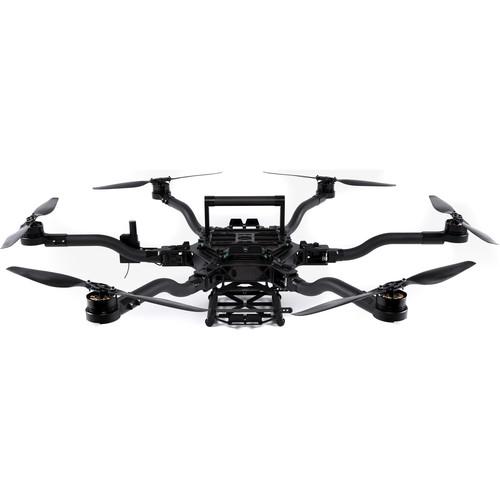

• ALTA 6 UAS for Aerial Cinematography ALTA 6 from Freefly is a hexa-rotor drone for aerial imaging that – when used in conjunction with a separately available MoVI gimbal – supports mounting the camera either below or above the airframe. This configuration flexibility makes shooting from virtually any angle possible, even with the camera pointed up. ALTA features a maximum payload of 15 lb, and is therefore suitable for DSLRs, mirrorless cameras, and even compact cinema cameras (depending on lens weight and other variables). Equipped with Freefly's own flight control system, ALTA works with a range of transmitters, including many Futaba, Spektrum, and radios (see specifications for specific requirements). Flight modes provided include Manual, Height Hold, Climb Rate Control (Vario), Position Hold, Ground Speed Control, Return-To-Home, and Auto-land. For monitoring and first-person view, the flight controller works with FPV systems from Skyzone, BOSCAM, Immersion RC, and Fatshark. OSD display is user-configurable, and telemetry can data can also be displayed on compatible Futaba transmitters.

  The ALTA includes a hard transit case. Additional item essential to get started include flight batteries and a charger, a transmitter (radio controller), and of course a MoVI gimbal and camera.
  Fast Setup and Breakdown
  • The Freefly ALTA features a robust standard hard case that the aircraft folds up in and a packs away. Before each flight, simply unfold the prop arms and in insert the battery (available separately) – the props themselves unfold automatically as they spin up. No pre-flight assembly requiring tools is needed

  Performance

  Up to 15 lb Payload Capacity
  • Designed for today's growing crop of compact cinema cameras, the ALTA is suitable for models such as the RED Dragon, Sony F55, and ALEXA Mini. It also supports popular mirrorless and DSLR cameras widely used in video production or to take stills from the air

  Synapse Intelligent Flight Control System

  • The Freefly Synapse flight control system combines gyros and other sensors with proprietary control algorithms to allow users to execute complex flight patterns with ease. It features an integrated on-screen display, high-bandwidth position control, live , and has been tested for years by the industry's best pilots
  Data Logging
  • High speed data logging allows user analysis of critical flight data

  Works with MoVI Gimbals

  Top Mount Camera Option
  • In addition to traditional bottom mounting, the ALTA supports mounting the gimbal on top of the aircraft. This enables capturing distinct camera angles from beneath an elevated subject
  Toad in the Hole Quick Release
  • MoVI gimbals can be easily attached or removed using Freefly's Toad in the Hole mounting standard

  Air System Design

  Vibration Isolation System
  • A refined vibration isolation system rejects high frequency disturbances adding further image stability on top of what the gimbal provides
  Lightweight Frame
  • The frame has been engineered to provide the optimal strength-to-weight ratio, enabling its up to 15 lb payload capacity
  Weather-Resistant Electronics
  • The internal distribution board is weather sealed and conformal coated. It features four 12V power leads for driving LEDs or other accessories, as well as integrated connections for FPV monitoring systems
  Silent Drive Technology
  • Using sine wave drive motor controls with active braking, the ALTA features low noise and precise, efficient, closed loop control of the propeller

  Additional Features

  User-Definable LEDs
  • Customize your ALTA's LED color scheme to suit your piloting preferences via the ALTA App
  UPC: 780742994750

• Pelican Case

• Battery Cage

• Landing Gear for Top Mounting

• Digital Luggage Scale

• Limited 1-Year Warranty

Also Includes

• 14SGH 14-Channel 2.4 GHz Computer Radio System

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ALTA 6 UAS for Aerial Cinematography

  Weights	Maximum Gross Takeoff Weight: 29.9 lb / 13.6 kg Maximum Useful Load: 21 lb / 9.5 kg Maximum Payload: 15 lb / 6.8 kg
  Specific Power	Typical: 145 W/kg
  Thrust Ratio	At Max Takeoff Weight: 2.0:1

  Payload Mounting	Mounting Locations: Bottom and top mount Mounting System: Freefly Toad In The Hole Quick Release
  Isolation System	Vibration Isolation System: Silicone O-rings Densities by Color Soft / Light Payloads: Red O-rings Medium / Mid Payloads: Teal O-rings Stiff / Heavy Payloads: Black O-rings
  Lighting and Indication	Orientation Lights: RGB LED's Orientation Light Locations: Outboard on boom ends Orientation Light Color: User definable Status Light: Rear-facing red/white LED Accessory Lighting Port: 12 VDC Accessory Lighting Port Location: Outboard on boom ends

  Model	F45
  Type	6 x Direct drive 3-phase PMAC outrunner
  Max Continuous Power Output	350 W
  Max Instantaneous Peak Power	950 W
  ESC	Freefly Silent-Drive Sine Wave ESC

  Model	Freefly Synapse Flight Controller
  Connectivity	Inputs: Spektrum, S.Bus, PPM, FPV SD video Outputs: PWM, I2C, CAN, FPV SD video with OSD
  Flight Modes	Manual Height Hold Climb Rate Control (Vario) Position Hold Ground Speed Control Return-To-Home Auto-land
  Installed Transceivers	Wi-Fi
  Data Logging Rate	25 Hz

  Supported Radios	Futaba S.Bus & S.Bus 2 DSMX, DSM2 (Spektrum/JR) PPM, PPM Invert, PPM Graupner

  Supported Telemetry Systems	Futaba with built-in voltage sensor port
  First-Person View OSD Telemetry	User configurable

  Supported First-Person View Systems	Skyzone BOSCAM Immersion RC Fatshark

  Type	6 x 18x6 folding
  Configuration	3 x CW 3 x CCW
  Material	Carbon fiber with balsa core

  Voltage	6S / 22.2 VDC
  Maximum Battery Size	9.4 x 7.1 x 3.1" / 240 x 180 x 80 mm
  Maximum Battery Quantity	2 x in parallel
  Connector	2 x EC5 (parallel)

  Dimensions	Unfolded Length: 39.4" / 1000 mm Width: 45.1" / 1145 mm Height (base of TITH): 8.7" / 220 mm Folded 20.9" / 532 mm 20.3" / 515 mm 8.7" / 220 mm
  Weight	Typical Standard Empty Weight: 9 lb / 4.1 kg

  Box Dimensions (LxWxH)	29.8 x 28.4 x 17.4"
