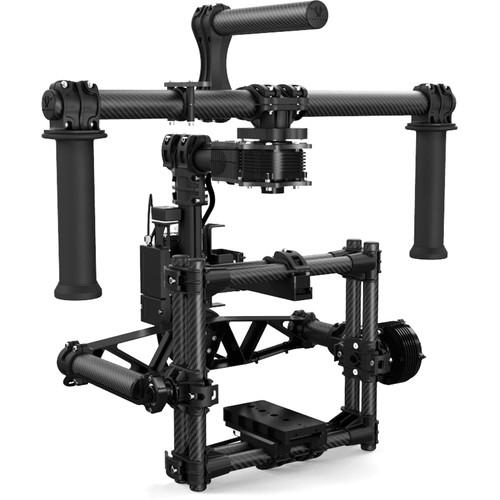

Product description The MōVI M5 3-Axis Motorized Gimbal Stabilizer from Freefly is designed for mid-sized DSLRs, mirrorless cameras, and camcorders weighing up to 5 pounds, including the lens. For camera stabilization the M5 uses three motors and an IMU (inertial measurement unit) to detect and counteract unwanted movement along three axes: pan, tilt, and roll. In particular, compensating for handshake or vehicle-induced vibration and reducing translation. There is a quick-release adapter available separately so that it can be mounted on cranes, jibs, vehicle mounts, and other camera support equipment. There is also an MR (multi-rotor) conversion kit, available separately, so that it can mounted on a UAV.
The system supports single- or dual-operator control. In single user (Majestic) mode the system's software intelligently differentiates unwanted shake or vibration from intentional movement, such as panning, while keeping the horizon level. Alternatively, you can have a dedicated operator with a remote control or RC transmitter who is in charge of camera pan, tilt--and if you want--roll. In this configuration the camera will always point where the operator of the remote tells it to, independent of how the rig operator moves.
As with sled-style stabilizers, the camera should be balanced on the MōVI to ensure best performance. Once balanced, the MōVI will need to be linked via Bluetooth to an Android mobile device or a computer or tablet running Windows to finalize the configuration process.
Two lithium-polymer (LiPo) batteries and a charger are included, as well as a top handle for low-angle shooting or transporting the assembled rig on set. - Supported Cameras
- For DSLRs such as the Canon EOS-5D Mark III, Nikon D800, and Panasonic GH4 as well as select compact cinema cameras weighting up to 5 pounds total, including the lens. Large DSLRs such as the Canon EOS-1DC will not fit and typically exceed the specified weight limit
- Remote Operation
- The MōVI can be operated remotely either with a dedicated controller or using an RC aircraft transmitter (handheld radio controller). It supports Spektrum DSMX and Futaba SBUS transmitters with at least six channels, including the Spektrum DX7s. Wireless range will vary depending on the transmitter used
- Majestic Mode
- For single-operator use. In this mode the gimbal provides stabilization without counteracting operator-directed camera movements--the camera goes where you point the handles. This mode is ideal for accurate framing in tight situations
- Drift Free Horizon
- The gimbal uses a GPS-assisted IMU that when used outdoors with available satellite signals is able to minimize drift even when under acceleration--such as where the camera is mounted on a UAV or vehicle
- Live Wireless Tuning and Graphing
- A real-time Bluetooth wireless link is provided by the gimbal which transmits performance data for live adjustment of any of the gimbal parameters using software for Windows or Android
- Silent Drive
- The motors driving the gimbal have been designed to operate as quietly as possible to ensure you will be able to record sound without picking up any unwanted noise
- Translation Compensation
- Making hundreds of adjustments per second, the software works to counteract translation--the bobbing up and down effect while running--when tracking a moving subject moving at high speed. In this situation translation may be unavoidable, but at least the subject will remain in-frame
- Shot Recorder
- Keeps a record of the camera position (where GPS is available), height, camera pan, tilt, and roll so that the shot can be recreated later or to help Visual Effects align the live action shot with other elements in a CG composite
- Third-Party Mounting
- Using separately available mounting hardware it is possible to mount the MōVI on cranes, jibs, Steadicams and similar vest-supported stabilizers (where it corrects for angular error), and other camera support hardware. It has also been verified to work on an Easyrig
- Remote Firmware Updatable
- You can upgrade the gimbal to new software features as they are released by Freefly yourself, without having to send the device in for a factory update
- Custom Direct Drive Motors
- The MōVI system uses motors that were custom made for the gimbal rather than re-purposing off-the-shelf parts
UPC: 780742993913 In the Box FREEFLY MōVI M5 3-Axis Motorized Gimbal Stabilizer 2 x LiPo Battery LiPo Battery Charger with Leads Stand Top Handle M2 Hex Driver M2.5 Hex Driver Limited 1-Year Warranty on Gimbal Hardware (Batteries Not Covered) User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the FREEFLY MōVI M5 3-Axis Motorized Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFREEFLY 950-00010 Specs | | | Number of Axes | 3-Axis (Pitch, Roll, Yaw) | | Rotation Range | Yaw (Pan): 360
