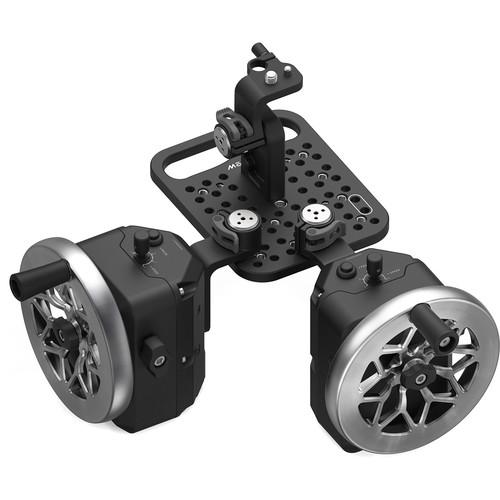

User Manual for FREEFLY MōVI Wheels 2-Axis Module Click to enlarge the picture
Contents of the user manual for the FREEFLY MōVI Wheels 2-Axis Module
- Product category: Stabilizers & Gimbals FREEFLY
- Brand: FREEFLY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FREEFLY Stabilizers & Gimbals
|
User manual for the FREEFLY MōVI Wheels 2-Axis Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FREEFLY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FREEFLY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FREEFLY product will considerably shorten its lifespan!
|
Product description Add classic wheeled control to your M?VI robotic system with the M?VI Wheels 2-Axis Module from FREEFLY. Designed for use with your M?VI Controller or MIMIC, these two cutout stainless steel wheels are part of a modular system capable of linking up to nine wheels. The open design of the stainless steel wheel reduces the weight of your MōVI rig, making it especially handy for quick setups or multilocation days.Compatible with M?VI Pro, XL, Carbon, M5, M10, and M15 stabilizers, M?VI Wheels provides long-range wireless control and uses a plug-and-play, high-speed CAN network. Each wheel can be assigned to control the gimbal's pan, tilt, or zoom, or your camera's focus, iris, or zoom functions.Wheel module mounting options include 1" toolless post brackets and rosette mounts. The included cheese plate incorporates a bracket for mounting the separately available M?VI Controller. Gear ratios, wheel friction, and toggle controls can be adjusted on the fly, and the wheel modules can be combined with M?VI Pilot modules for operating flexibility. Note: Please note that firmware version 3.7.0 or later is required for the MōVI Controller and that software to support MIMIC compatibility and control of the roll axis is available in the Blackjack 2.0 firmware release. - Compatibility
-
- MōVI Controller (requires MōVI Controller firmware version 3.7.0 or later)
- Pilot
- MIMIC
- Controls
-
- MōVI Pro
- MōVI XL
- MōVI Carbon
- M5 / M10 / M15
- Performance
-
- Long-range wireless control
- High-speed, plug-and-play CAN network
- Wheels can be used singly, or can be set up in multiples for complex system control
- Compatible with the entire FREEFLY ecosystem (requires MōVI Controller or MIMIC)
- Mechanical
-
- Cutout design reduces weight of rig
- Robust machined enclosures
- Mounting options include adjustable 1" toolless mounting posts and integrated rosette mounts
- Cheese plate includes a bracket for mounting the MōVI Controller above the wheels
- The wheel's position can be fine-tuned to the user's preference
- A friction lock enables the user to define wheel friction or lock out the wheels
- Usability
-
- Quickly control wheel direction, gearing, or deactivate wheel
- Designed with minimum latency
- Precise control of the MōVI's position
- Easily assign any wheel to any axis regardless of its connection
- Wheels and Pilot modules can be mixed for maximum flexibility
UPC: 742574250633 In the Box FREEFLY MōVI Wheels 2-Axis Module (Cutout Stainless Steel) 2 x MōVI Wheel Module (Cutout Stainless Steel) Cheese Plate with MōVI Controller Mounting Bracket 2 x Quick Release 25mm Post yuszwcvwvvzqtzuycafwxxsbvtebsazbctyq 4 x 1/4"-20 Socket Head Cap Screw CAN Cable for Daisy-Chaining MōVI Wheels (9.8") MōVI Controller to Wheel Cable (19.7") USB Type-C to USB Type-A Cable for MoVI Pro (39") USB Type-C to USB Type-C Cable for MoVI (39") 5/32" Driver 3/16" Driver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FREEFLY MōVI Wheels 2-Axis Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFREEFLY Movi Wheels Specs | | | Input | CAN
USB C
UART (5 V)
Speed Knob
Pause Button | | Output | CAN (12 V)
USB C
UART
Tricolor LED | | | | Encoders | 16-Bit, Magnetic | | | | Daisy Chain Capability | 9 x Maximum Modules | | | | Mounting Post Width | 1" / 25 mm | | Wheel | Each:
Material: Cutout Stainless Steel
Diameter: 5.9" / 150 mm
Weight: 3 lb / 1.36 kg |
