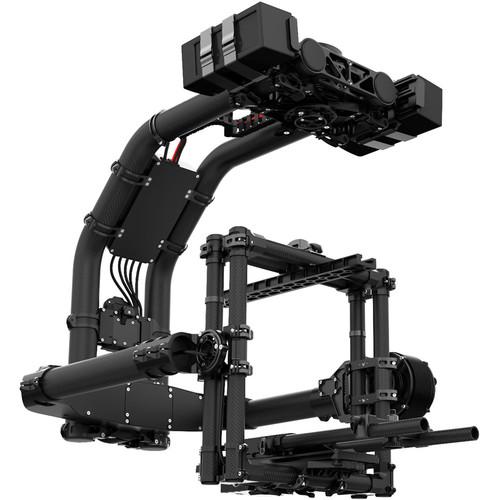

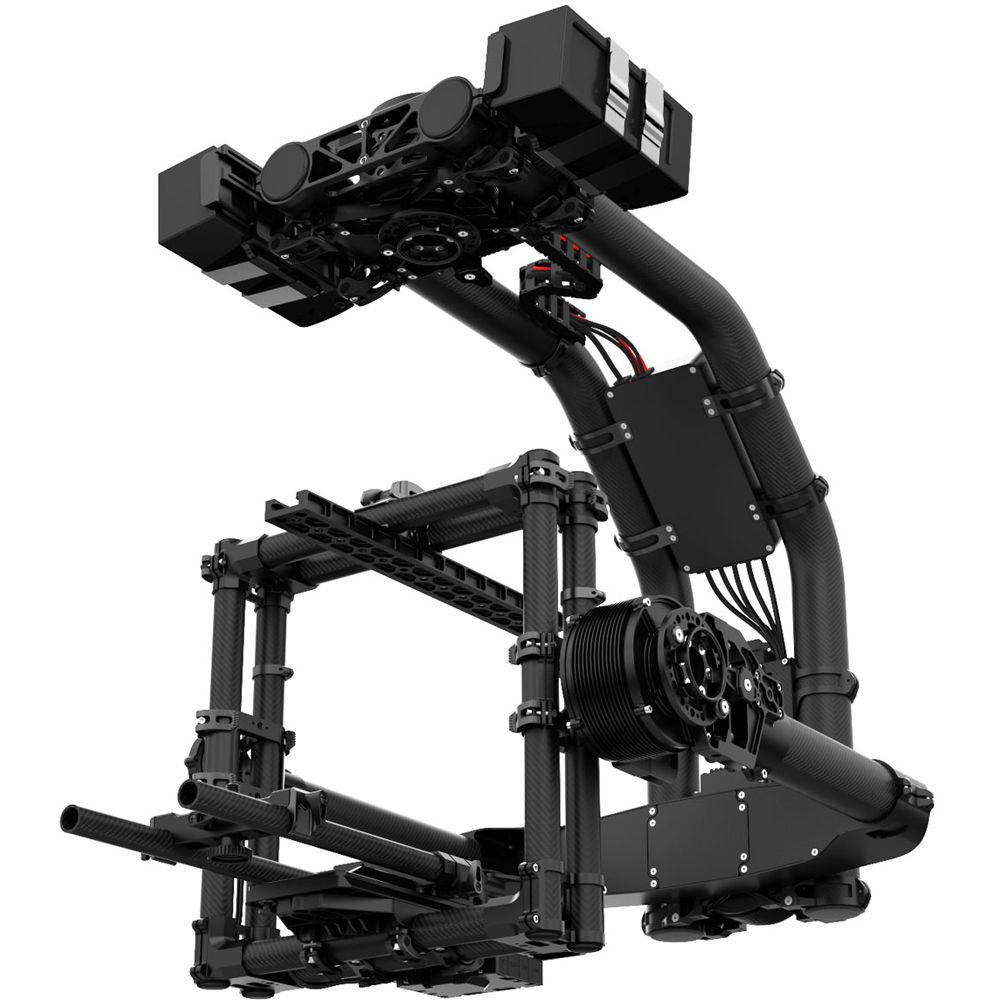

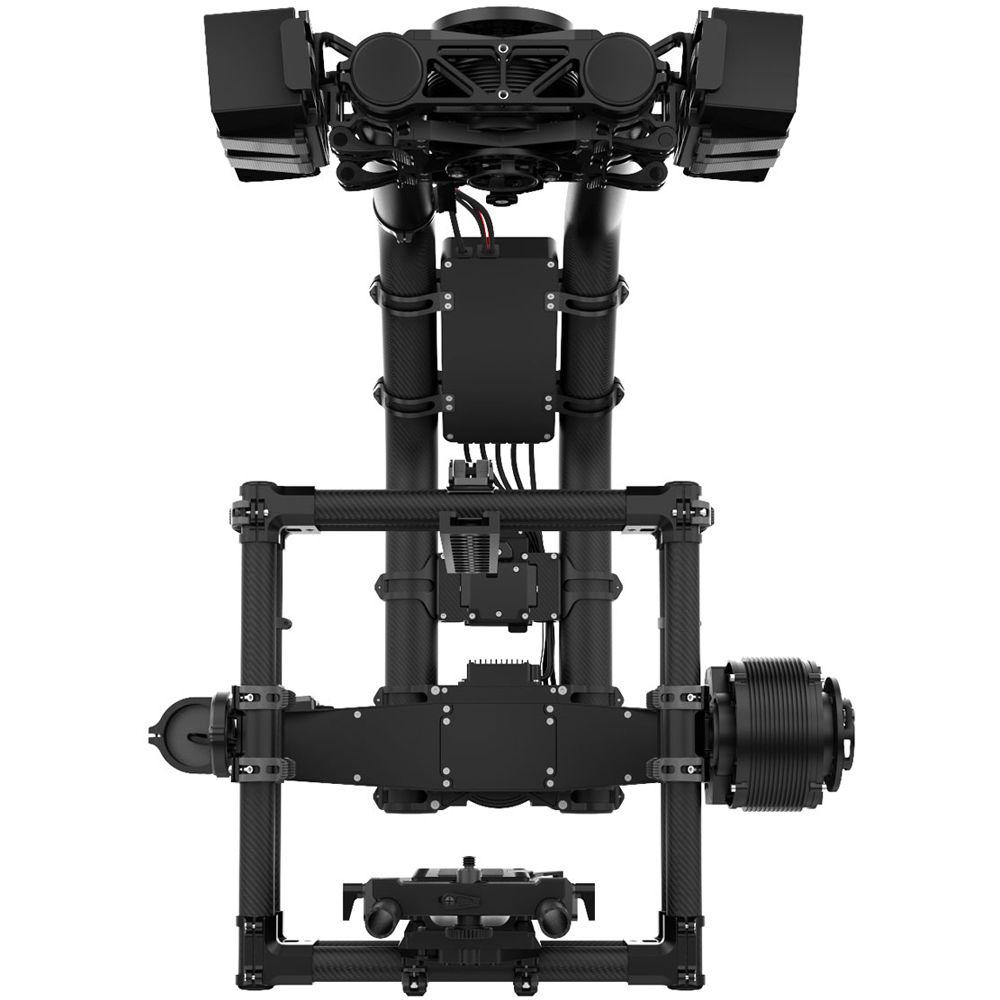

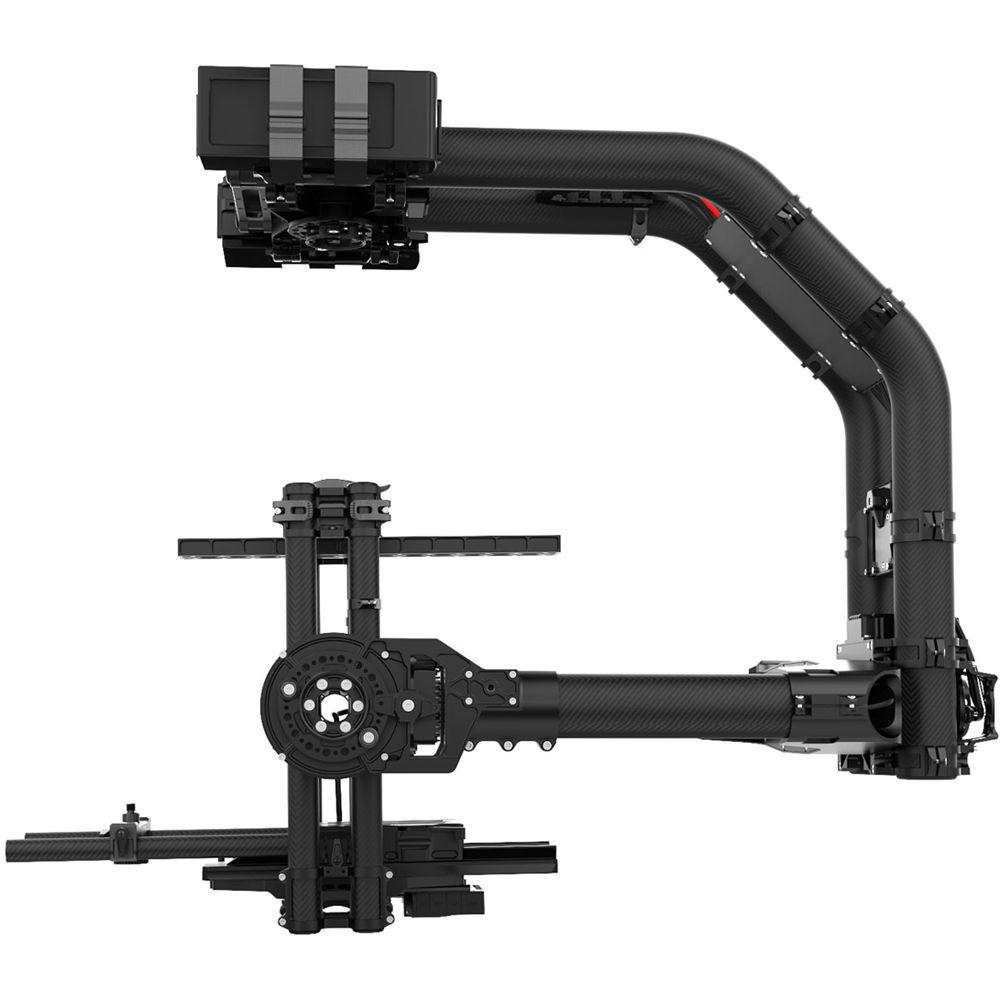

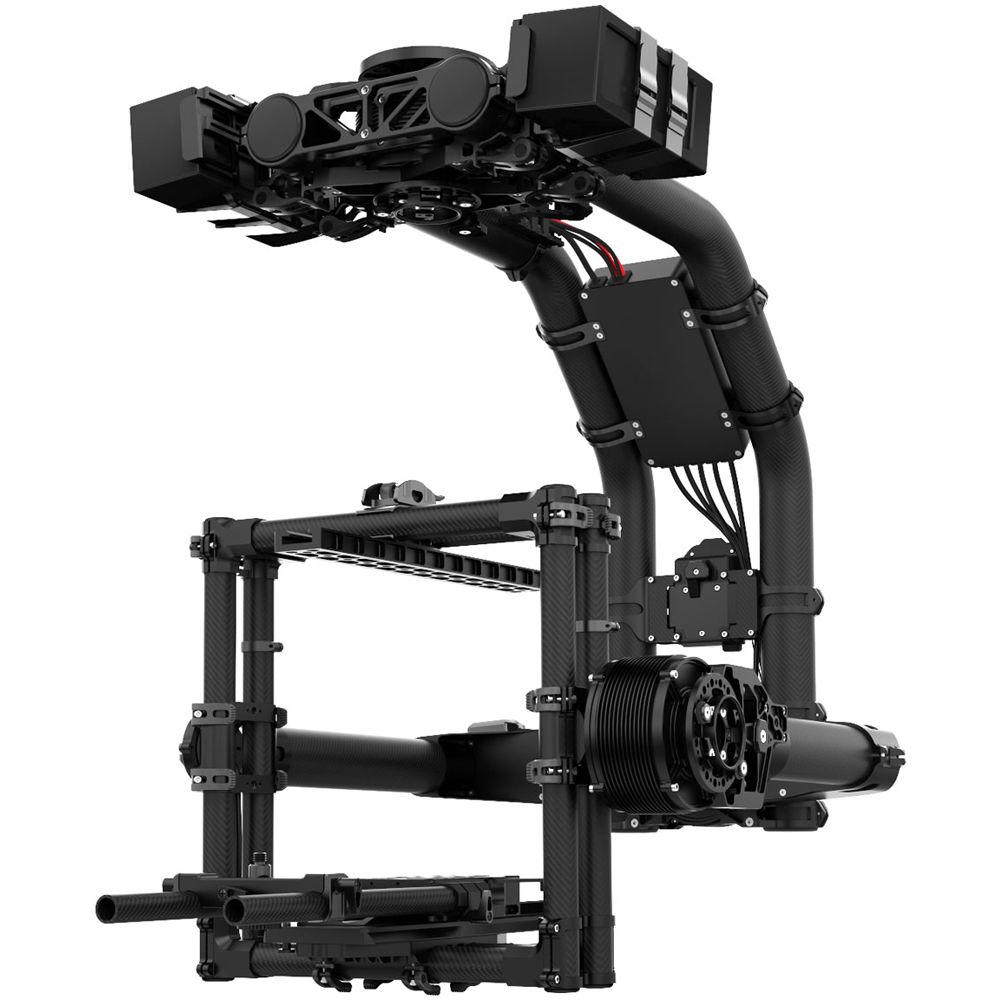

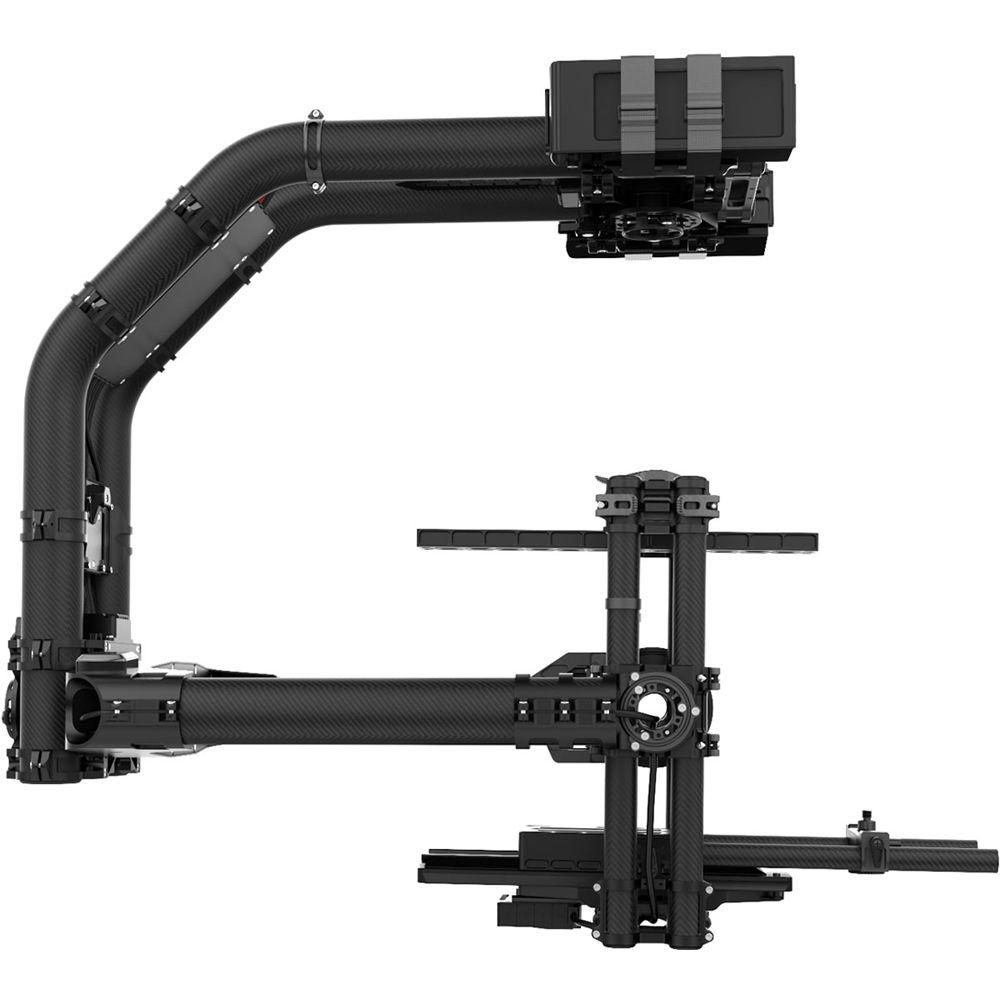

User Manual for FREEFLY MōVI XL 3-Axis Motorized Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the FREEFLY MōVI XL 3-Axis Motorized Gimbal
- Product category: Gimbal Stabilizers FREEFLY
- Brand: FREEFLY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FREEFLY Gimbal Stabilizers
 |
User manual for the FREEFLY MōVI XL 3-Axis Motorized Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FREEFLY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FREEFLY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FREEFLY product will considerably shorten its lifespan!
|
Product description - Introducing MōVI XL
- MōVI XL 60 sec Splash
The FREEFLY MōVI XL 3-Axis Motorized Gimbal Stabilizer supports cameras and accessories weighing up to 50 pounds, so it is designed to be mounted on a remote head, jib or other support gear to create smooth cinematic moving shots. It uses three motors and an IMU (inertial measurement unit) to detect and counteract unwanted movement along three axes: pan, tilt, and roll.
The FREEFLY MōVI XL is suitable for professional cinema cameras and lenses and compatible with both the Mimic and MōVI Controller systems (not included), as well as select Futaba and Spektrum transmitters. As with sled-style stabilizers, the camera should be balanced on the MōVI to ensure best performance. Once balanced, the MōVI pairs over Wi-Fi to an iOS, Android, or Windows app to finalize the configuration process. - Supported Cameras
- The MōVI XL is designed to support payloads up to 50 pounds, making it suitable for professional cinema cameras with cinema lenses.
- Remote Operation
- The MōVI XL can be operated remotely either with a dedicated controller or by using the Mimic controller (neither controller is included and must be sourced separately). The MōVI XL is compatible as well with most Spektrum and Futaba radios.
- App
- MōVI XL can be configured wirelessly via Bluetooth LE, from the MōVI XL app on a mobile device.
- Hot Swapping Batteries
- You can hot swap the batteries on the MōVI XL, but extreme care must be taken to avoid damage to the batteries, and to the operator.
- Three Control Modes
-
- Majestic Mode: For single-operator use. In this mode the gimbal provides stabilization without counteracting operator-directed camera movements. For example, you could set it in majestic to pan with a vehicle turning on streets or a jib with only one operator for example. This mode is especially useful when the MōVI XL is deployed on a moving vehicle.
- Stabilized Mode: Assumes no operator input, compensating for all movement it detects. Ideal scenarios for this mode include when the gimbal is mounted to a car or shots where the camera is moving, but the camera angle remains fixed.
- Slew Stabilized Mode: For dual-operator control. In this mode, an operator with a dedicated remote or RC transmitter controls pan, tilt, and roll independently of the support platform.
- Freefly Configurator
- The Freefly Configurator is a GUI that enables you to precisely adjust your MōVI XL via an iOS or Android device over Wi-Fi pairing.
- Silent Drive
- The motors driving the gimbal have been designed to operate as quietly as possible to ensure you will be able to record sound without picking up any unwanted noise.
- Translation Compensation
- Making hundreds of adjustments per second, the software works to counteract translation--the bobbing up and down effect while running--when tracking a moving subject moving at high speed.
- Shot Recorder
- Keeps a record of the camera position (where GPS is available), height, camera pan, tilt, and roll so that the shot can be recreated later or to help Visual Effects align the live action shot with other elements in a CG composite.
- Third-Party Mounting
- Using separately available mounting hardware, it is possible to mount the MōVI XL on cranes, jibs, ad remote heads.
- Remote Firmware Updatable
- You can upgrade the gimbal to new software features as they are released by Freefly yourself, without having to send the device in for a factory update.
- Custom Direct Drive Motors
- The MōVI XL system uses powerful motors that enable you to create smooth shots while on camera platforms moving at high speed.
- User Adjustable "Shakey Cam"
- Want an organic hand-held look? The MōVI provides variable noise filters that allow you to effectively dial in a custom amount of shake to help you achieve the effect you are after.
- Additional Features
-
- Custom designed, precisely calibrated sensors
- Fully tool-less balancing
- Second battery cage of holding a battery dedicated to powering accessories
- Handles can be switch from low to high modes with flip of a lever
- Quick release top handle
UPC: 742574248869 In the Box FREEFLY MōVI XL 3-Axis Motorized Gimbal Stabilizer Limited 1-Year Warranty on Gimbal Hardware (Batteries not Covered) User Manual PDF 8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the FREEFLY MōVI XL 3-Axis Motorized Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFREEFLY MoVI XL Specs | | | Number of Axes | 3-Axis | | Load Capacity | 50 lb / 22.7 kg | | | | Ports | 1 x XT-90S (Power) Input | | Wireless Protocol | Wi-Fi (Unspecified Type) | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Voltage | 9.0 to 18.0 VDC | | | | Weight | 25 lb / 11.3 kg
34 lb / 15.4 kg (with Battery) | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 34.5 x 29.0 x 14.0" |
