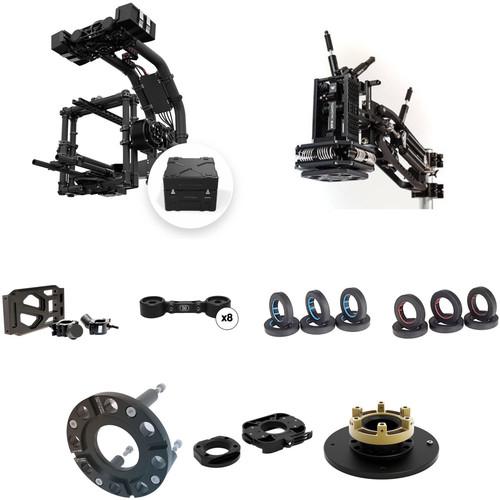

User Manual for FREEFLY MoVI XL with Case & Black Arm Complete Vehicle Mount Kit Click to enlarge the picture
Contents of the user manual for the FREEFLY MoVI XL with Case &
- Product category: See All Gimbal Stabilizers FREEFLY
- Brand: FREEFLY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FREEFLY See All Gimbal Stabilizers
|
User manual for the FREEFLY MoVI XL with Case & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FREEFLY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FREEFLY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FREEFLY product will considerably shorten its lifespan!
|
Product description This Kit features the FREEFLY MoVI XL Motorized Stabilizer with a Case and the FLOWCINE Black Arm Complete Dampening System, which enables optimal vehicle-mounted use of the MoVI. The Black Arm Complete features a vibration mount for stabilizing roll and tilt errors as well as vertical motion and vibrations. The MoVI XL supports up to 50 lb payloads while the Black Arm Complete supports up to 70 lb loads (the MoVI weighs 34 lb with batteries). - FLOWCINE Black Arm Complete Dampening System with Tranquilizer Mount & Pro Case Capture super-stabilized gimbal shots from your car, ATV, boat, snowmobile, or other vehicle with the Black Arm Complete from FLOWCINE. Purely mechanical, this three-axis dampening and vibration-reduction system hard-mounts your gimbal-and-camera setup to your vehicle, stabilizing roll and tilt as well as vertical motion and vibration. The Black Arm's design incorporates a four-spring arm with fully adjustable actuator hydraulic dampers and a platform that levels the separately available gimbal. In addition, between the arm and the mounted gimbal there is an anti-vibration Tranquilizer mount capable of handling loads between 14.8 and 49.6 lb. Mounting the Black Arm is as simple as clamping it onto a standard 48-52mm speed rail.
The damping action of all three axes—vertical, tilt, and roll—is brought about by the hydraulic dampers. A 22-step knob enables you to precisely dial in the amount of damping you need for your shot. The Black Arm Complete ships with two dampers for each of the three axes. Also included is an extra-sturdy, wheeled all-black pro case with powder-coated metal corners, butterfly catches, and heavy-duty recessed handles. - FREEFLY MoVI XL to Mitchell Adapter Provided by third party: MoVI XL features a 6 bolt pattern allowing users to mount the gimbal to a variety of devices. The MoVI XL to Mitchell Adapter adapts the 6 bolt pattern to a standard Mitchell Mount. This can be used with or without the MoVI XL quick release. Freefly sets gimbals up to use the Quick Release system as it allows for much faster changeover than bolted or Mitchell mount.
- Key Features
-
- Adapts from MoVI XL Pan Mounting plate or quick release to Mitchell Mount
- Standard Mitchell Mount thread
- 6061-T6 black anodized lightweight aluminum design with brass nut
UPC: 742574248739 In the Box - FLOWCINE - 11.8" Front Extension Block with Set of 2 Rubber Stoppers for Black Arm Dampening System rfqvezettsaryerfww
- FLOWCINE - Black Arm Complete Dampening System with Tranquilizer Mount & Pro Case
- FLOWCINE - Tranquilizer Pan Barrels 50 for Black Arm Dampening System (Set of 8)
- FLOWCINE - Black Arm Tranquilizer Shore Pack 50 (30-61 lb)
- FLOWCINE - Black Arm Tranquilizer Shore Pack 60 (42-76 lb)
- FLOWCINE - Mitchell Mount for Black Arm Dampening System (Female)
- MoVI XL Quick Release Kit
- MoVI XL to Mitchell Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the FREEFLY MoVI XL with Case & Black Arm Complete Vehicle Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FREEFLY MoVI XL with Case
| | | Box Dimensions (LxWxH) | 30.0 x 30.0 x 26.0" | - FLOWCINE 11.8" Front Extension Block with Set of 2 Rubber Stoppers for Black Arm Dampening System
| | | Box Dimensions (LxWxH) | 16.8 x 10.4 x 6.6" | - FLOWCINE Black Arm Complete Dampening System with Tranquilizer Mount & Pro Case
| Load Capacity | 14.8 - 49.6 lb / 6.7 - 22.5 kg | | Mounting Interface | Black Arm to Vehicle:
Clamp for 1.9 - 2.0" / 48 - 52 mm speed rail
Gimbal to Black Arm:
4 x 1/4"-20 UNC holes - 25 mm CC
5 x 3/8"-16 holes UNC - 25.4 mm CC
4 x 8 mm holes - 98.99 mm CC
6.5 mm holes - 2 x 1.5" CC
3.2 mm holes - 32 mm CC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 32.0 x 25.0 x 17.5" | - FLOWCINE Tranquilizer Pan Barrels 50 for Black Arm Dampening System (Set of 8)
| | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 0.75" | - FLOWCINE Black Arm Tranquilizer Shore Pack 50 (30-61 lb)
| | | Box Dimensions (LxWxH) | 6.05 x 4.6 x 2.05" | - FLOWCINE Black Arm Tranquilizer Shore Pack 60 (42-76 lb)
| | | Box Dimensions (LxWxH) | 5.1 x 4.0 x 1.9" | - FLOWCINE Mitchell Mount for Black Arm Dampening System (Female)
| | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 4.0" | - FREEFLY MoVI XL Quick Release Kit
| | | Box Dimensions (LxWxH) | 9.7 x 7.5 x 3.1" | - FREEFLY MoVI XL to Mitchell Adapter
| | | Accessory Type | Gimbal adapter | | | | Intended For | Camera support system | | | | Box Dimensions (LxWxH) | 9.1 x 8.9 x 2.9" |
