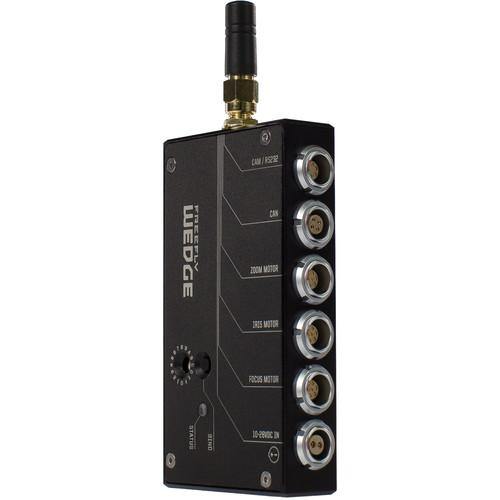

User Manual for FREEFLY WEDGE Click to enlarge the picture
Contents of the user manual for the FREEFLY WEDGE
- Product category: Stabilizers & Gimbals FREEFLY
- Brand: FREEFLY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FREEFLY Stabilizers & Gimbals
|
User manual for the FREEFLY WEDGE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FREEFLY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FREEFLY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FREEFLY product will considerably shorten its lifespan!
|
Product description Control your cine lenses straight from the MōVI Controller with the FREEFLY WEDGE. One of the key principles of operating a camera stabilizer or a drone is removing as much external camera contact as possible. The WEDGE connects wirelessly with the MōVI Controller and has three 7-pin LEMO connections for lens motors, enabling full remote actuation of focus, zoom, and iris lens functions from up to 1200' away (line of sight). A camera connection port enables remote start/stop recording control (separately available camera cable is required). WEDGE was designed with a low profile in order to fit on drones and gimbals with minimal impact on balance and weight. The included MōVI top camera plate ensures the repeatable and rigid mounting of the WEDGE to the MōVI . Note: MōVI Firmware v4.02 and MōVI Controller Firmware v2.0.5 are required for the Freefly WEDGE. UPC: 780742994774 In the Box FREEFLY WEDGE MōVI Top Rail Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FREEFLY WEDGE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFREEFLY 910-00130 Specs | Compatibility | Most standard 7-pin digital lens motors such as Redrock, Heden, and Preston | | Connectors | 1 x 2-pin LEMO, Power port
3 x 7-pin LEMO, Focus, Iris, and Zoom ports
1 x 4-pin LEMO, CAN port
1 x 6-pin LEMO, CAM/RS-232 port | | Dimensions | 4.75 x 2.1 x 0.7" / 121 x 54 x 18 mm | | Weight | 4 oz / 113 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.3 x 6.0 x 1.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
