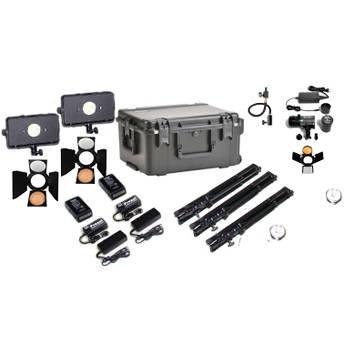

User Manual for Frezzi 2-SkyLight, 1-EyLight 3 LED Light Kit with Travel Case Kit

• Product category: LED Lights Frezzi
• Brand: Frezzi
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Frezzi LED Lights

Product description

• SKY1A Portable LED with HMI Type Output & A/B Battery Bracket The Portable LED with HMI Type Output & A/B Battery Bracket from Frezzolini is a compact, high intensity daylight-usable LED that doesn't fade in the sun. This redefined high-output portable LED lighting with HyLight delivers an impressive amount of daylight-balanced light suitable for indoor/outdoor news gathering and field production. It's a highly portable LED fixture powered by standard broadcast batteries and DC or AC power. It delivers equivalent light to a 650W tungsten or 125 to 150W HMI source while drawing only 75W of power. It is fully dimmable with selectable beam angles using quick change reflector technology.
  • Ultra High Output: 240 fc at 5' in flood and 640 fc at 5' in spot; highest output in power class
  • Long Run Time: 1 hour with Frezzi FLB-100 battery and 2 hours with Frezzi FLB-200 battery ¹

    Please Note:

    Battery units sold separately close
  • High Quality White Light: High CRI single source 5600K daylight light without pixilation or color fringing
  • True Color Dimming: 100 to 0% dimming without color shift
  • Wide Range Input: 12 to 36VDC input via AB battery bracket
  • Weatherproof: Useable in all weather conditions
  • Durability: All aluminum design built to Frezzi industry work horse standard; 50,000 hour LED life
  • Silent Operation: No fan with reliable passive cooling
• FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7') The 7' FHMS Heavy Duty Mini Light Stand from Frezzolini is an accessory for the Dual Head AC/DC SkyLight Kit.
• FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
  Charger
  • This charger charges lithium ion batteries from Frezzolini's FLB series.
  Worldwide Operation
  • Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
• FLB-100 14.8 VDC Lithium Ion Brick Battery The Frezzi FLB-100 is a 3-stud mount (Anton Bauer) Lithium Ion battery offering a fuel gauge. It runs at 14.8 VDC with a 100Wh capacity.
  Lithium-Ion (Li-Ion)
  • Li-Ion batteries can deliver 40% more capacity than comparably sized NiCd batteries and are one of the lightest rechargeable batteries available today.
  Fuel Gauge
  • A 5 Stage LED readout offers the user a quick reference for remaining battery power.
  14.8 Volts
  • The 14.8V design complies with equipment manufacturers specifications, eliminating all 12V battery cutoff problems.
  3-Stud Mount
  • Works with Anton Bauer Gold Mounts.
• Power Supply for SkyLight High Intensity LED Lamp The Frezzolini Power Supply is designed use with the SkyLight High Intensity LED Lamp.
• Barndoor Combo Diffusion and CTO Filter for Skylight Barn Door Combo with CTO and Diffusion Filters for Skylight LED lamp from Frezzi is a four-way barn door set with a diffusion filter built into one of the leaves and a CTO tungsten conversion filter built into another. Simply swing one or both of the filtered leaves in the path of the light's beam for the desired effect.
• 24° Reflector for SkyLight LED Light This 24° Reflector for SkyLight LED Light from Frezzi slips into the light's accessory holder and narrows the SkyLight's beam spread for long-throw applications or to highlight a subject.
• Reflector for SkyLight LED Light, 44 Degrees This 44-Degree Reflector for SkyLight LED Light from Frezzi slips into the light's accessory holder and widens the SkyLight's beam spread for large groups or for even coverage in tight quarters.
• EyLight Body with Front Cap This aluminum EyLight Body is the fixture unit which holds the bulb and battery for the EyLight lamp system. A protective front cap is included. This unit is compatible with the separately available EyLight 5000K and 3000K LED bulbs and the 20W quartz-tungsten bulbs. Use this fixture to expand your existing EyLight setup if you already have extra bulbs, batteries, and mounting accessories.
• 5000 to 3000K Barndoor Color Changer and Diffusion Combo Filter The Barndoor Color Changer and Diffusion Combo Filter from Frezzi is a combo accessory with a 5000 to 3000K color changer, diffuser, and two-leaf barn doors.
• ELBP Rechargeable Battery Pack for EyLight The ELBP Rechargeable Battery Pack from Frezzi was designed specifically for the EyLight. It uses the ELCC Charging Cup (sold separately) to charge, and each charge lasts for two hours. The battery weighs half a pound. The ELBP features a push button with a four-LED level indication to indicate charge remaining in the battery.
  • 2-hour run time
  • Energy gauge with push button and LED lights
  • Weighs half a pound
• FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
  Charger
  • This charger charges lithium ion batteries from Frezzolini's FLB series.
  Worldwide Operation
  • Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
• ELCC Charging Cup for EyLight Battery Pack The ELCC Charging Base from Frezzi is a cup-shaped base for the rechargeable EyLight battery. The Charging Cup requires the FLC-1 charger (sold separately) to charge the battery. It has a DC barrel connector for the power supply. The base features two electrical contact terminals, and the battery is placed into the base.
• Gooseneck FGNS Made for lights such as the Eylight and the Mini-Fill, the Gooseneck FGNS from Frezzi is a 24" flexible arm that can support up to 5 lb and can be bent into forms not possible with articulating arms. The gooseneck has a 5/8" receiver at one end and a 1/2" stud at the other.
• MS-1A Adapter Stud - 1/2" to 1/4-20 The Frezzolini MS-1A is an adapter stud for Frezzi on camera lights. It measures 1" high and attaches to camera via a 1/4"-20 screw and adapts to a 1/2" Diameter Stud.
• MS-21A Adapter Stud - 1/2" Stud to Shoe Mount The Frezzolini MS-21A is an adapter stud for Frezzi on camera lights. It measures 1/2" high and attaches to camera via a Shoe Mount and adapts to a 1/2" Diameter Stud.
• Transport Case for SkyLight Dual Kit This Transport Case for SkyLight Dual Kit from Frezzolini is a rugged waterproof wheeled case with a pull handle and a padded divider set.

• Limited 1-Year Warranty on Parts & Labor

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty on Parts & Labor

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• 1 Year Warranty

• 1 Year Warranty

• Padded Divider Set

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SKY1A Portable LED with HMI Type Output & A/B Battery Bracket

  Color Temperature	5600K
  Cooling System	None
  Display	None
  Fixture Dimensions	10.0 x 5.0 x 2.0" / 25.4 x 12.7 x 5.0 cm
  Fixture Weight	4.25 lb / 1.92 kg

  Battery Plate	1 x Gold Mount
  Power Input Connector	4-Pin XLR

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery

  IP Rating	None

  Box Dimensions (LxWxH)	12.9 x 7.5 x 3.2"

• FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')

  Mounting Options	5/8" Stud
  Maximum Working Height	7' / 2.1 m
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.0 x 3.0 x 3.0"

• FLC-1 Compact Lithium-Ion Battery Charger

  Power Supply	No
  Battery Bays	1
  Type of Charging	Lithium Ion
  Diagnostics	None
  Connections/Interface	Specific to FLB Series Batteries
  Power Requirements	95-250 Volts AC
  Dimensions (WxHxD)	4.55 x 1.25 x 1.88" 11.5 x 3.17 x 4.8cm
  Weight	0.5 lbs. 227 grams

  Box Dimensions (LxWxH)	6.8 x 5.3 x 4.4"

• FLB-100 14.8 VDC Lithium Ion Brick Battery

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	100 Wh
  Output Voltage	14.8 VDC
  Dimensions (W x H x D)	3.8 x 5.9 x 2.0" / 96.0 x 149.0 x 46.0 mm
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	7.95 x 4.3 x 3.6"

• Power Supply for SkyLight High Intensity LED Lamp

  Power Supply

  AC Input Source: 90 to 240 VAC (50/60 Hz) Output: 15 V @ 90 W of power

  Box Dimensions (LxWxH)	11.0 x 9.0 x 7.0"

• Barndoor Combo Diffusion and CTO Filter for Skylight

  Box Dimensions (LxWxH)	6.4 x 5.75 x 1.3"

• 24° Reflector for SkyLight LED Light

  Material of Construction

  Aluminum

  Box Dimensions (LxWxH)	4.8 x 3.3 x 2.4"

• Reflector for SkyLight LED Light, 44 Degrees

  Material of Construction

  Aluminum

  Box Dimensions (LxWxH)	5.8 x 4.4 x 3.5"

• EyLight Body with Front Cap

  Mount Type	1/2" Stud
  Dimensions	4.5 x 2.5 x 3" / 11.4 x 6.4 x 7.6 cm
  Weight	0.5 lb / 0.23 kg

  Box Dimensions (LxWxH)	6.8 x 5.4 x 4.4"

• 5000 to 3000K Barndoor Color Changer and Diffusion Combo Filter

  Compatibility	ELCK EyLight Cool LED
  Color Range	5000 to 3000K

  Box Dimensions (LxWxH)	4.7 x 4.4 x 3.25"

• ELBP Rechargeable Battery Pack for EyLight

  Capacity (Wh)	22 Wh
  Maximum Input Wattage	20 W
  Output Voltage	14.4 VDC

  Estimated Run Time	2 Hours
  Chemistry	Lithium-Ion
  Indicator	LED
  Dimensions	2 x 2.5" / 5.1 x 6.4 cm
  Weight	0.5 lb / 227 g

  Box Dimensions (LxWxH)	4.7 x 4.4 x 3.35"

• FLC-1 Compact Lithium-Ion Battery Charger

  Power Supply	No
  Battery Bays	1
  Type of Charging	Lithium Ion
  Diagnostics	None
  Connections/Interface	Specific to FLB Series Batteries
  Power Requirements	95-250 Volts AC
  Dimensions (WxHxD)	4.55 x 1.25 x 1.88" 11.5 x 3.17 x 4.8cm
  Weight	0.5 lbs. 227 grams

  Box Dimensions (LxWxH)	6.8 x 5.3 x 4.4"

• ELCC Charging Cup for EyLight Battery Pack

  Dimensions	2 x 1.5" / 5.1 x 3.8 cm
  Weight	0.2 lb / 0.1 kg

  Box Dimensions (LxWxH)	4.95 x 4.4 x 3.4"

• Gooseneck FGNS

  Load Capacity	5.0 lb (2.26 kg)
  Connections	0.62" (16 mm) receiver 0.5" (12.7 mm) stud
  Length	24" (61 cm)

  Box Dimensions (LxWxH)	12.0 x 10.3 x 6.6"

• MS-1A Adapter Stud - 1/2" to 1/4-20

  Bottom Mount	1 x 1/4"-20 Male
  Top Mount	1 x 1/2" Stud

  Box Dimensions (LxWxH)	3.0 x 1.7 x 0.2"

• MS-21A Adapter Stud - 1/2" Stud to Shoe Mount

  Bottom Mount	1 x Shoe Mount
  Top Mount	1 x 1/2" Stud

  Box Dimensions (LxWxH)	2.75 x 2.65 x 1.35"

• Transport Case for SkyLight Dual Kit

  Carry/Transport Options	Top Handle, Telescoping Handle, Wheels
  Interior Contents	Dividers/Organizers
  Exterior Dimensions	22.0 x 17.0 x 10.5" / 55.9 x 43.2 x 26.7 cm
  Watertight	Yes
  Weight	19.0 lb / 8.6 kg
