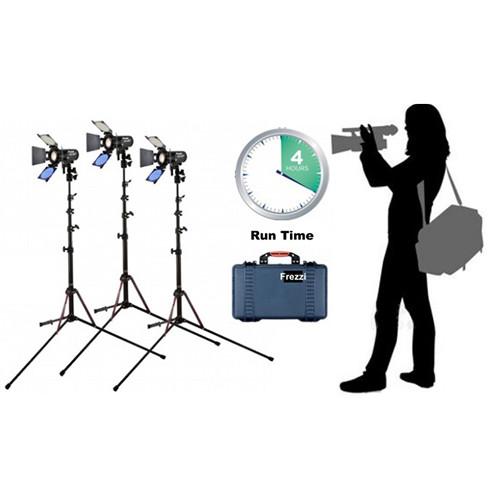

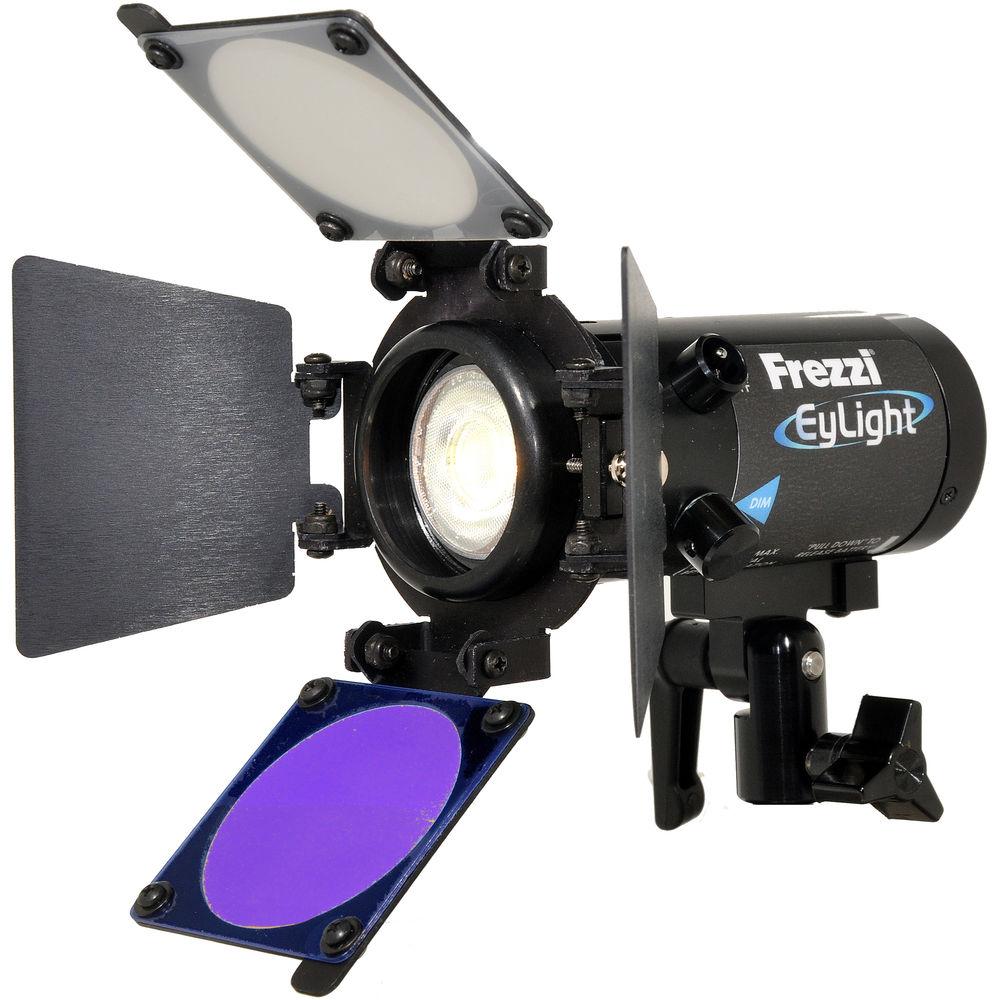

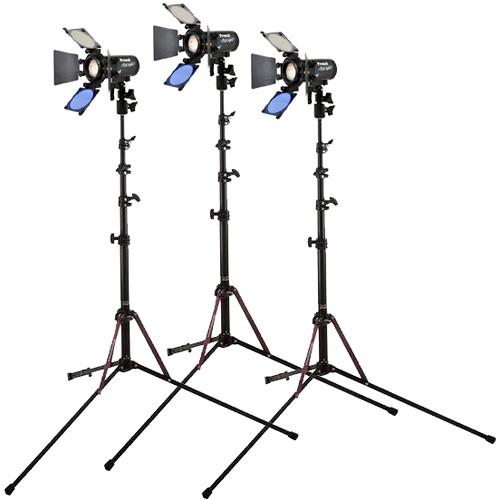

Product description The 3-Head EyLight 3200K Lamp Combo with Hard Case was put together by Frezzi for shooters who require a lightweight, 3-point setup with battery power options that's ready for travel. The kit includes three Eylights, each with a 3200K LED lamp, barndoors combined with filters, a battery, a charger, a light stand, and camera mounting hardware. It all fits in the included Portabrace, wheeled, weatherproof hard case. - EyLight Body with Front Cap This aluminum EyLight Body is the fixture unit which holds the bulb and battery for the EyLight lamp system. A protective front cap is included. This unit is compatible with the separately available EyLight 5000K and 3000K LED bulbs and the 20W quartz-tungsten bulbs. Use this fixture to expand your existing EyLight setup if you already have extra bulbs, batteries, and mounting accessories.
- LED Warm Lamp for EyLight The LED Warm Lamp for EyLight from Frezzi is meant for use in the EyLight fixture. The lamp has an MR-16 base, a 30-degree beam angle, and a 3000K tungsten-balanced color temperature. It has a high CRI rating of 90 for faithful color rendering, and a long 25,000-hour lamp life.
- ELBP Rechargeable Battery Pack for EyLight The ELBP Rechargeable Battery Pack from Frezzi was designed specifically for the EyLight. It uses the ELCC Charging Cup (sold separately) to charge, and each charge lasts for two hours. The battery weighs half a pound. The ELBP features a push button with a four-LED level indication to indicate charge remaining in the battery.
- Energy gauge with push button and LED lights
- ELCC Charging Cup for EyLight Battery Pack The ELCC Charging Base from Frezzi is a cup-shaped base for the rechargeable EyLight battery. The Charging Cup requires the FLC-1 charger (sold separately) to charge the battery. It has a DC barrel connector for the power supply. The base features two electrical contact terminals, and the battery is placed into the base.

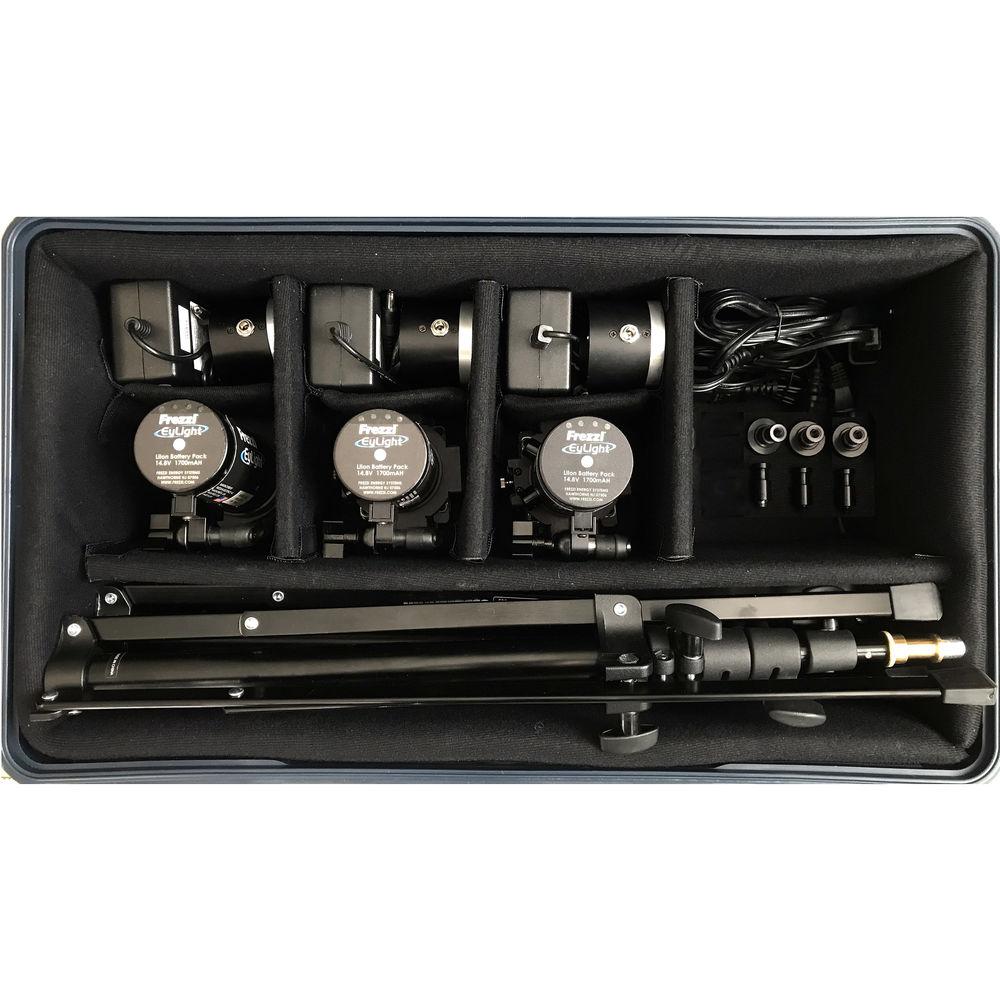

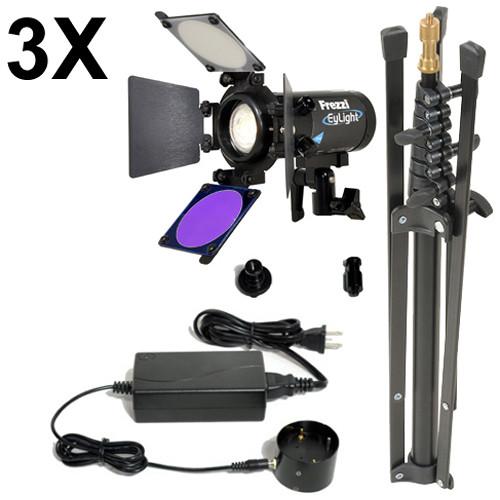

In the Box Bundle Items 3 x EyLight Body with Front Cap ccecaevuvdes 3 x LED Warm Lamp for EyLight 3 x ELBP Rechargeable Battery Pack for EyLight 3 x ELCC Charging Cup for EyLight Battery Pack
Also Includes - 3 x Barndoors Filter Combo
- 3 x Light Stand

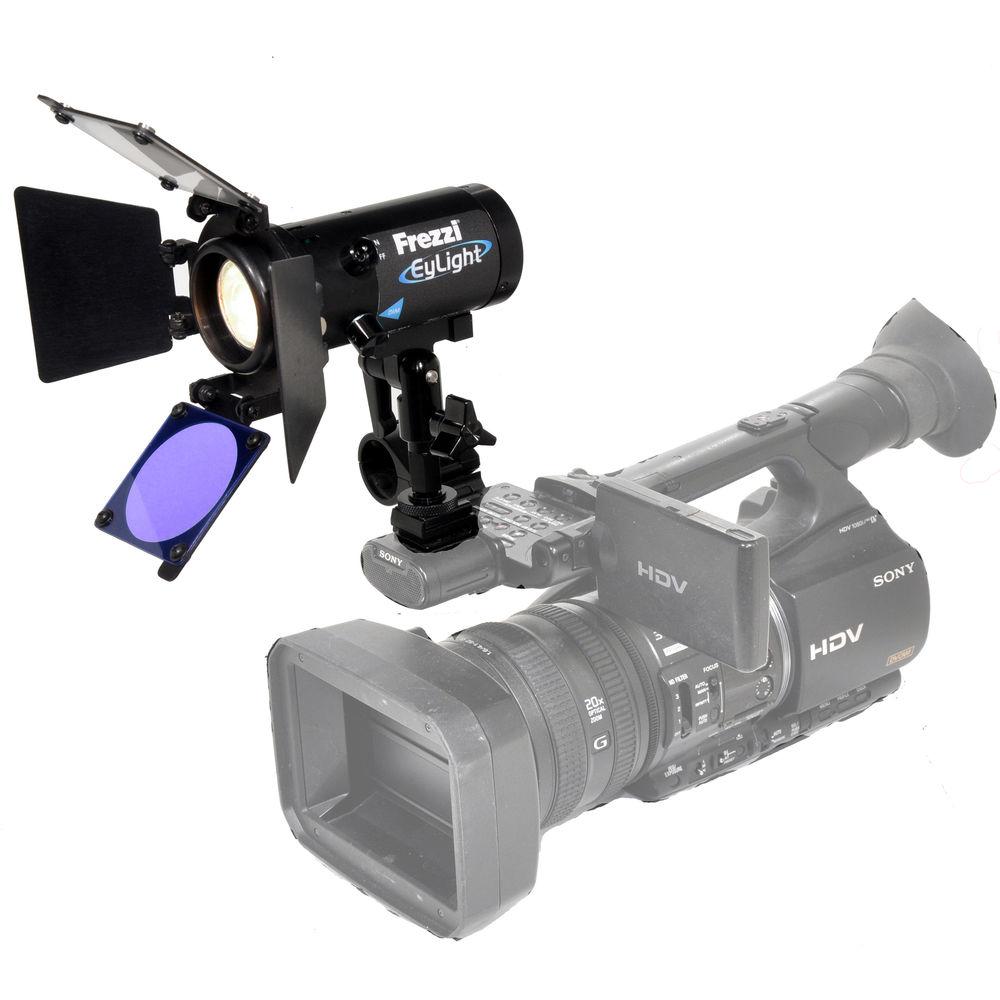

- 3 x Camera Mounting Hardware Set

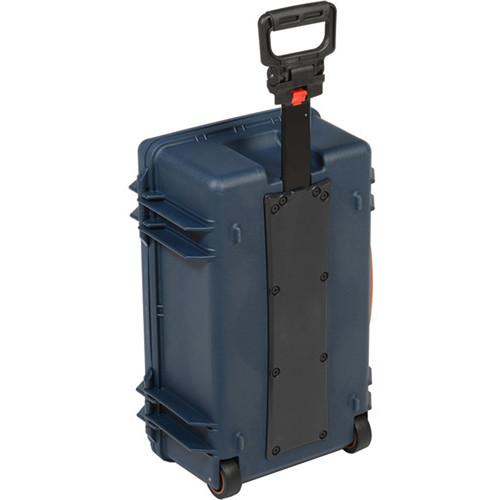

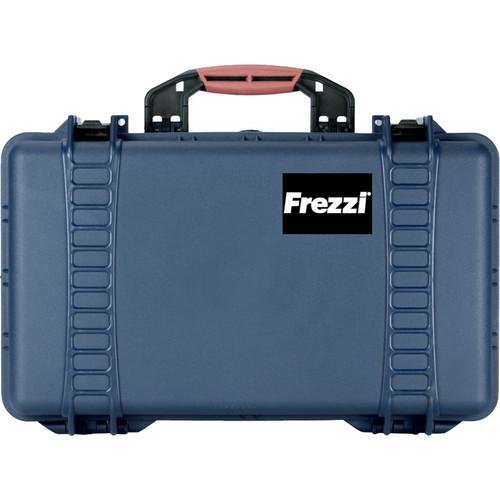

- Portabrace Weatherproof Wheeled Hard Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Frezzi 3-Head EyLight 3200K Lamp Combo with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EyLight Body with Front Cap
| | | Mount Type | 1/2" Stud | | Dimensions | 4.5 x 2.5 x 3" / 11.4 x 6.4 x 7.6 cm | | Weight | 0.5 lb / 0.23 kg | | | | Box Dimensions (LxWxH) | 6.8 x 5.4 x 4.4" | - LED Warm Lamp for EyLight
| Lamp Type | LED | | Compatibility | EyLight | | Watts | 8 W | | Color Temperature | 3000K | | Average Life Hours | 25,000 | | CRI | 90 | | Photometric Data | 100 fc @ 5' (1.5 m) | | Beam Angle | 30° | | Dimmable | Yes | | | | Box Dimensions (LxWxH) | 3.75 x 2.0 x 2.0" | - ELBP Rechargeable Battery Pack for EyLight
| | | Capacity (Wh) | 22 Wh | | Maximum Input Wattage | 20 W | | Output Voltage | 14.4 VDC | | | | Estimated Run Time | 2 Hours | | Chemistry | Lithium-Ion | | Indicator | LED | | Dimensions | 2 x 2.5" / 5.1 x 6.4 cm | | Weight | 0.5 lb / 227 g | | | | Box Dimensions (LxWxH) | 4.7 x 4.4 x 3.35" | - ELCC Charging Cup for EyLight Battery Pack
| | | Dimensions | 2 x 1.5" / 5.1 x 3.8 cm | | Weight | 0.2 lb / 0.1 kg | | | | Box Dimensions (LxWxH) | 4.95 x 4.4 x 3.4" |
