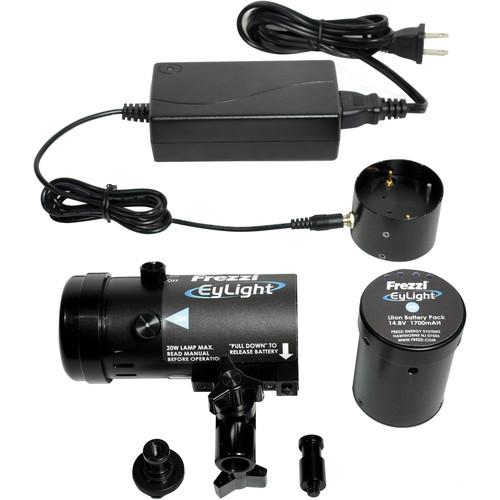

Frezzi EyLight Cool LED Kit

User Manual for Frezzi EyLight Cool LED Kit

• Product category: On Camera Lights Frezzi
• Brand: Frezzi
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Frezzi On Camera Lights

Product description

• EyLight Body with Front Cap This aluminum EyLight Body is the fixture unit which holds the bulb and battery for the EyLight lamp system. A protective front cap is included. This unit is compatible with the separately available EyLight 5000K and 3000K LED bulbs and the 20W quartz-tungsten bulbs. Use this fixture to expand your existing EyLight setup if you already have extra bulbs, batteries, and mounting accessories.
• LED75C Lamp (5000K) Illuminate your set with the broadcast-quality 5000K LED75C Lamp from Frezzi. Featuring a 40° beam angle and a light output equivalent to 75W, this LED lamp offers a high-efficiency 8W consumption and a 25,000 hour life. The lamp's universal socket works with all mini-fills, offering a quick upgrade to your existing light source.
  • 5000K color temperature
  • 40° beam angle
  • 75W equivalent output
  • High-efficiency, 8W consumption
  • 25,000-hour life
  • Compatible with all mini-fill lights
  • Simple lamp upgrade
• ELBP Rechargeable Battery Pack for EyLight The ELBP Rechargeable Battery Pack from Frezzi was designed specifically for the EyLight. It uses the ELCC Charging Cup (sold separately) to charge, and each charge lasts for two hours. The battery weighs half a pound. The ELBP features a push button with a four-LED level indication to indicate charge remaining in the battery.
  • 2-hour run time
  • Energy gauge with push button and LED lights
  • Weighs half a pound
• FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
  Charger
  • This charger charges lithium ion batteries from Frezzolini's FLB series.
  Worldwide Operation
  • Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
• ELCC Charging Cup for EyLight Battery Pack The ELCC Charging Base from Frezzi is a cup-shaped base for the rechargeable EyLight battery. The Charging Cup requires the FLC-1 charger (sold separately) to charge the battery. It has a DC barrel connector for the power supply. The base features two electrical contact terminals, and the battery is placed into the base.
• MS-21A Adapter Stud - 1/2" Stud to Shoe Mount The Frezzolini MS-21A is an adapter stud for Frezzi on camera lights. It measures 1/2" high and attaches to camera via a Shoe Mount and adapts to a 1/2" Diameter Stud.
• MS-1A Adapter Stud - 1/2" to 1/4-20 The Frezzolini MS-1A is an adapter stud for Frezzi on camera lights. It measures 1" high and attaches to camera via a 1/4"-20 screw and adapts to a 1/2" Diameter Stud.

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 1-Year Warranty

• 1 Year Warranty

• 1 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EyLight Body with Front Cap

  Mount Type	1/2" Stud
  Dimensions	4.5 x 2.5 x 3" / 11.4 x 6.4 x 7.6 cm
  Weight	0.5 lb / 0.23 kg

  Box Dimensions (LxWxH)	6.8 x 5.4 x 4.4"

• LED75C Lamp (5000K)

  Beam Angle	40º
  Power Consumption	8W
  Output	Equivalent to 75W
  Photometrics	100fc at 5' / 1.5 m
  Life	25,000 hours
  Dimensions	2 x 2 x 2" / 5 x 5 x 5 cm
  Weight	0.2 lb / 91 g

  Box Dimensions (LxWxH)	2.5 x 2.5 x 2.4"

• ELBP Rechargeable Battery Pack for EyLight

  Capacity (Wh)	22 Wh
  Maximum Input Wattage	20 W
  Output Voltage	14.4 VDC

  Estimated Run Time	2 Hours
  Chemistry	Lithium-Ion
  Indicator	LED
  Dimensions	2 x 2.5" / 5.1 x 6.4 cm
  Weight	0.5 lb / 227 g

  Box Dimensions (LxWxH)	4.7 x 4.4 x 3.35"

• FLC-1 Compact Lithium-Ion Battery Charger

  Power Supply	No
  Battery Bays	1
  Type of Charging	Lithium Ion
  Diagnostics	None
  Connections/Interface	Specific to FLB Series Batteries
  Power Requirements	95-250 Volts AC
  Dimensions (WxHxD)	4.55 x 1.25 x 1.88" 11.5 x 3.17 x 4.8cm
  Weight	0.5 lbs. 227 grams

  Box Dimensions (LxWxH)	6.8 x 5.3 x 4.4"

• ELCC Charging Cup for EyLight Battery Pack

  Dimensions	2 x 1.5" / 5.1 x 3.8 cm
  Weight	0.2 lb / 0.1 kg

  Box Dimensions (LxWxH)	4.95 x 4.4 x 3.4"

• MS-21A Adapter Stud - 1/2" Stud to Shoe Mount

  Bottom Mount	1 x Shoe Mount
  Top Mount	1 x 1/2" Stud

  Box Dimensions (LxWxH)	2.75 x 2.65 x 1.35"

• MS-1A Adapter Stud - 1/2" to 1/4-20

  Bottom Mount	1 x 1/4"-20 Male
  Top Mount	1 x 1/2" Stud

  Box Dimensions (LxWxH)	3.0 x 1.7 x 0.2"
