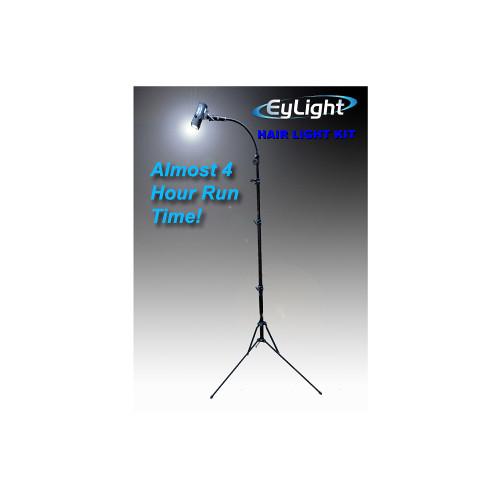

Product description The 3000K Eylight Hairlight/Backlight Kit from Frezzi is an easy, effective way to add a sophisticated look to portraits, interviews and ENG work. The kit comes with a weatherproof, lightweight, dimmable Eylight fixture with a 3000K bulb, quick swap lithium-ion battery, and charger. A 1/4"-20 to 1/2" stud and a shoe-mount to 1/2" stud are also included. Additionally, Frezzi supplies an articulating gooseneck to mount on the stand to facilitate flexibility in placement. - EyLight Body with Front Cap This aluminum EyLight Body is the fixture unit which holds the bulb and battery for the EyLight lamp system. A protective front cap is included. This unit is compatible with the separately available EyLight 5000K and 3000K LED bulbs and the 20W quartz-tungsten bulbs. Use this fixture to expand your existing EyLight setup if you already have extra bulbs, batteries, and mounting accessories.
- ELBP Rechargeable Battery Pack for EyLight The ELBP Rechargeable Battery Pack from Frezzi was designed specifically for the EyLight. It uses the ELCC Charging Cup (sold separately) to charge, and each charge lasts for two hours. The battery weighs half a pound. The ELBP features a push button with a four-LED level indication to indicate charge remaining in the battery.
- Energy gauge with push button and LED lights
- Extended-Time 3200K LED Warm Lamp for Dimmer Mini-Fill The Extended-Time 3200K LED Warm Lamp from Frezzi is a universal bulb meant to be used as a replacement or upgrade for any Frezzi Dimmer Mini-Fill camera light (sold separately). This LED lamp provides an output equivalent of 75W while only consuming 8W of energy. It has a lifetime of approximately 25,000 hours and a color temperature of 3200K. A Mini-Fill front cap is included.
- ELCC Charging Cup for EyLight Battery Pack The ELCC Charging Base from Frezzi is a cup-shaped base for the rechargeable EyLight battery. The Charging Cup requires the FLC-1 charger (sold separately) to charge the battery. It has a DC barrel connector for the power supply. The base features two electrical contact terminals, and the battery is placed into the base.
- FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
- Charger
- This charger charges lithium ion batteries from Frezzolini's FLB series.
- Worldwide Operation
- Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
- MS-1A Adapter Stud - 1/2" to 1/4-20 The Frezzolini MS-1A is an adapter stud for Frezzi on camera lights. It measures 1" high and attaches to camera via a 1/4"-20 screw and adapts to a 1/2" Diameter Stud.
- MS-21A Adapter Stud - 1/2" Stud to Shoe Mount The Frezzolini MS-21A is an adapter stud for Frezzi on camera lights. It measures 1/2" high and attaches to camera via a Shoe Mount and adapts to a 1/2" Diameter Stud.
- FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7') The 7' FHMS Heavy Duty Mini Light Stand from Frezzolini is an accessory for the Dual Head AC/DC SkyLight Kit.

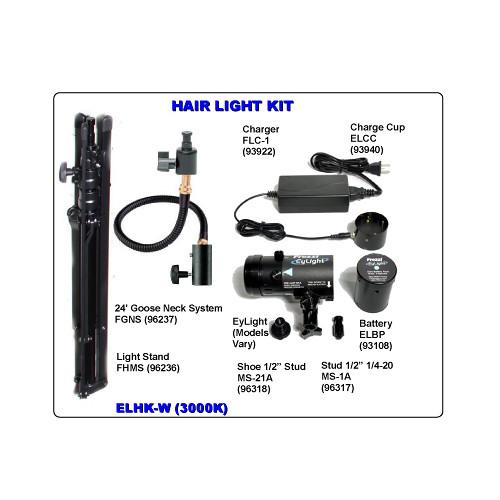

In the Box Bundle Items EyLight Body with Front Cap eduuwdtffvxecvqaqxv ELBP Rechargeable Battery Pack for EyLight Extended-Time 3200K LED Warm Lamp for Dimmer Mini-Fill eduuwdtffvxecvqaqxv ELCC Charging Cup for EyLight Battery Pack FLC-1 Compact Lithium-Ion Battery Charger MS-1A Adapter Stud - 1/2" to 1/4-20 MS-21A Adapter Stud - 1/2" Stud to Shoe Mount FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Frezzi Eylight Hairlight Backlight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EyLight Body with Front Cap
| | | Mount Type | 1/2" Stud | | Dimensions | 4.5 x 2.5 x 3" / 11.4 x 6.4 x 7.6 cm | | Weight | 0.5 lb / 0.23 kg | | | | Box Dimensions (LxWxH) | 6.8 x 5.4 x 4.4" | - ELBP Rechargeable Battery Pack for EyLight
| | | Capacity (Wh) | 22 Wh | | Maximum Input Wattage | 20 W | | Output Voltage | 14.4 VDC | | | | Estimated Run Time | 2 Hours | | Chemistry | Lithium-Ion | | Indicator | LED | | Dimensions | 2 x 2.5" / 5.1 x 6.4 cm | | Weight | 0.5 lb / 227 g | | | | Box Dimensions (LxWxH) | 4.7 x 4.4 x 3.35" | - Extended-Time 3200K LED Warm Lamp for Dimmer Mini-Fill
| Lamp Type | LED | | Compatibility | Dimmer Mini-Fill | | Watts | 8 W | | Color Temperature | 3200K | | Average Life Hours | 25,000 | | CRI | 90 | | Photometric Data | 100 FC @ 5' (1.5 m) | | Beam Angle | 30° | | Dimmable | Yes | | | | Box Dimensions (LxWxH) | 3.9 x 2.55 x 2.4" | - ELCC Charging Cup for EyLight Battery Pack
| | | Dimensions | 2 x 1.5" / 5.1 x 3.8 cm | | Weight | 0.2 lb / 0.1 kg | | | | Box Dimensions (LxWxH) | 4.95 x 4.4 x 3.4" | - FLC-1 Compact Lithium-Ion Battery Charger
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Lithium Ion | | Diagnostics | None | | Connections/Interface | Specific to FLB Series Batteries | | Power Requirements | 95-250 Volts AC | | Dimensions (WxHxD) | 4.55 x 1.25 x 1.88"
11.5 x 3.17 x 4.8cm | | Weight | 0.5 lbs.
227 grams | | | | Box Dimensions (LxWxH) | 6.8 x 5.3 x 4.4" | - MS-1A Adapter Stud - 1/2" to 1/4-20
| Bottom Mount | 1 x 1/4"-20 Male | | Top Mount | 1 x 1/2" Stud | | | | Box Dimensions (LxWxH) | 3.0 x 1.7 x 0.2" | - MS-21A Adapter Stud - 1/2" Stud to Shoe Mount
| Bottom Mount | 1 x Shoe Mount | | Top Mount | 1 x 1/2" Stud | | | | Box Dimensions (LxWxH) | 2.75 x 2.65 x 1.35" | - FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 7' / 2.1 m | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | | | Box Dimensions (LxWxH) | 23.0 x 3.0 x 3.0" |
