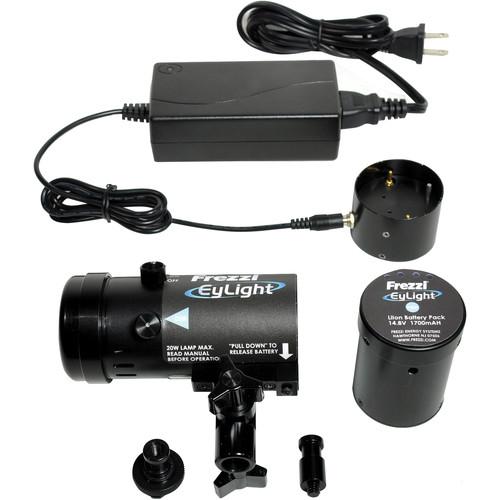

User Manual for Frezzi EyLight Quartz-Tungsten 20W Kit Click to enlarge the picture
Contents of the user manual for the Frezzi EyLight Quartz-Tungsten 20W Kit
- Product category: On Camera Lights Frezzi
- Brand: Frezzi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Frezzi On Camera Lights
|
User manual for the Frezzi EyLight Quartz-Tungsten 20W Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Frezzi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Frezzi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Frezzi product will considerably shorten its lifespan!
|
Product description The Frezzi EyLight Quartz-Tungsten 20W Kit is a professional camera light with an internal quick-swap rechargeable battery that delivers sustainable power to traditional tungsten and LED lamps in a compact, all-in-one design. Built on Frezzi Mini-Fill's form factor, it's designed to be ideal for handheld cameras that have no way to power a professional light. - BAB Lamp - 20W/12V - for Mini-Fill Frezzolini BAB Lamp - 20 Watts/12 Volts - for Mini-FillFor on-camera video light or projector. For suitable alternative, order: GBBAB UPC: 043168990080
- ELBP Rechargeable Battery Pack for EyLight The ELBP Rechargeable Battery Pack from Frezzi was designed specifically for the EyLight. It uses the ELCC Charging Cup (sold separately) to charge, and each charge lasts for two hours. The battery weighs half a pound. The ELBP features a push button with a four-LED level indication to indicate charge remaining in the battery.
- Energy gauge with push button and LED lights
- FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
- Charger
- This charger charges lithium ion batteries from Frezzolini's FLB series.
- Worldwide Operation
- Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
- ELCC Charging Cup for EyLight Battery Pack The ELCC Charging Base from Frezzi is a cup-shaped base for the rechargeable EyLight battery. The Charging Cup requires the FLC-1 charger (sold separately) to charge the battery. It has a DC barrel connector for the power supply. The base features two electrical contact terminals, and the battery is placed into the base.
- MS-21A Adapter Stud - 1/2" Stud to Shoe Mount The Frezzolini MS-21A is an adapter stud for Frezzi on camera lights. It measures 1/2" high and attaches to camera via a Shoe Mount and adapts to a 1/2" Diameter Stud.
- MS-1A Adapter Stud - 1/2" to 1/4-20 The Frezzolini MS-1A is an adapter stud for Frezzi on camera lights. It measures 1" high and attaches to camera via a 1/4"-20 screw and adapts to a 1/2" Diameter Stud.
In the Box Bundle Items BAB Lamp - 20W/12V - for Mini-Fill yeqxazrruqdbbt ELBP Rechargeable Battery Pack for EyLight FLC-1 Compact Lithium-Ion Battery Charger ELCC Charging Cup for EyLight Battery Pack MS-21A Adapter Stud - 1/2" Stud to Shoe Mount MS-1A Adapter Stud - 1/2" to 1/4-20
Also Includes - EyeLight Body and Front Cap
- Limited 2-Year Warranty
Brochure PDF 1.2mbyeqxazrruqdbbt Table of Contents
|
Upload User Manual
Have you got an user manual for the Frezzi EyLight Quartz-Tungsten 20W Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BAB Lamp - 20W/12V - for Mini-Fill
| Base Type | GU5.3 | | Filament Type | CC-8 | | ANSI Code | BAB | | Wattage | 20 W | | Voltage | 12 V | | Lumens | 790 | | Color Temperature | 2950K | | Average Life | 3500 Hours | | Maximum Overall Length (MOL) | 1.75" / 44.5 mm | | | | Box Dimensions (LxWxH) | 2.05 x 2.05 x 1.9" | - ELBP Rechargeable Battery Pack for EyLight
| | | Capacity (Wh) | 22 Wh | | Maximum Input Wattage | 20 W | | Output Voltage | 14.4 VDC | | | | Estimated Run Time | 2 Hours | | Chemistry | Lithium-Ion | | Indicator | LED | | Dimensions | 2 x 2.5" / 5.1 x 6.4 cm | | Weight | 0.5 lb / 227 g | | | | Box Dimensions (LxWxH) | 4.7 x 4.4 x 3.35" | - FLC-1 Compact Lithium-Ion Battery Charger
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Lithium Ion | | Diagnostics | None | | Connections/Interface | Specific to FLB Series Batteries | | Power Requirements | 95-250 Volts AC | | Dimensions (WxHxD) | 4.55 x 1.25 x 1.88"
11.5 x 3.17 x 4.8cm | | Weight | 0.5 lbs.
227 grams | | | | Box Dimensions (LxWxH) | 6.8 x 5.3 x 4.4" | - ELCC Charging Cup for EyLight Battery Pack
| | | Dimensions | 2 x 1.5" / 5.1 x 3.8 cm | | Weight | 0.2 lb / 0.1 kg | | | | Box Dimensions (LxWxH) | 4.95 x 4.4 x 3.4" | - MS-21A Adapter Stud - 1/2" Stud to Shoe Mount
| Bottom Mount | 1 x Shoe Mount | | Top Mount | 1 x 1/2" Stud | | | | Box Dimensions (LxWxH) | 2.75 x 2.65 x 1.35" | - MS-1A Adapter Stud - 1/2" to 1/4-20
| Bottom Mount | 1 x 1/4"-20 Male | | Top Mount | 1 x 1/2" Stud | | | | Box Dimensions (LxWxH) | 3.0 x 1.7 x 0.2" |
