User Manual for Frezzi Skylight Single AC DC Kit with Anton Bauer Battery Plate Click to enlarge the picture
Contents of the user manual for the Frezzi Skylight Single AC DC Kit
- Product category: LED Lights Frezzi
- Brand: Frezzi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Frezzi LED Lights
|
User manual for the Frezzi Skylight Single AC DC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Frezzi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Frezzi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Frezzi product will considerably shorten its lifespan!
|

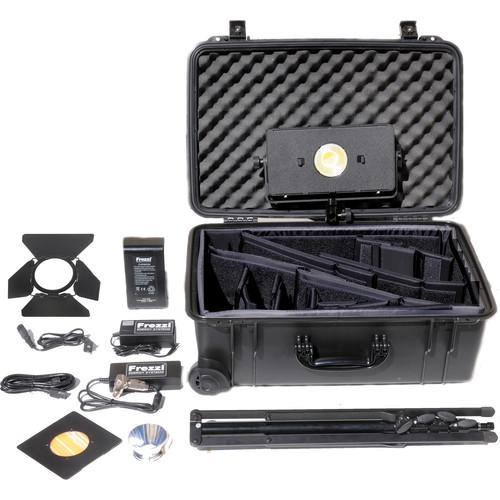

Product description The SkyLight Single AC/DC Kit with Anton Bauer Battery Plate from Frezzi is built around the Skylight 5,600K LED fixture that offers 650W tungsten equivalent output while drawing only 75W. The kit includes 1 Skylight fixture with an Anton Bauer battery plate, a 100WH Battery, charger, AC power supply, barndoor set and a 7' heavy duty light stand. Also provided are a filter pack, 24 and 50 degree reflectors and a watertight, wheeled travel case. The SkyLight is a compact, high intensity daylight-balanced luminaire that's ideal for indoor/outdoor news gathering and field production. The highly portable 4.5 lb unit has pro battery options thanks to its Anton Bauer battery plate as well as multi-voltage AC via its included adapter. Other features include 100-0% dimming, high CRI, weatherproof construction and 50,000 hour lamp life. - SKY1A Portable LED with HMI Type Output & A/B Battery Bracket The Portable LED with HMI Type Output & A/B Battery Bracket from Frezzolini is a compact, high intensity daylight-usable LED that doesn't fade in the sun. This redefined high-output portable LED lighting with HyLight delivers an impressive amount of daylight-balanced light suitable for indoor/outdoor news gathering and field production. It's a highly portable LED fixture powered by standard broadcast batteries and DC or AC power. It delivers equivalent light to a 650W tungsten or 125 to 150W HMI source while drawing only 75W of power. It is fully dimmable with selectable beam angles using quick change reflector technology.
- Ultra High Output: 240 fc at 5' in flood and 640 fc at 5' in spot; highest output in power class
- Long Run Time: 1 hour with Frezzi FLB-100 battery and 2 hours with Frezzi FLB-200 battery 1
Please Note: Battery units sold separately close - High Quality White Light: High CRI single source 5600K daylight light without pixilation or color fringing
- True Color Dimming: 100 to 0% dimming without color shift
- Wide Range Input: 12 to 36VDC input via AB battery bracket
- Weatherproof: Useable in all weather conditions
- Durability: All aluminum design built to Frezzi industry work horse standard; 50,000 hour LED life
- Silent Operation: No fan with reliable passive cooling
- FLB-100 14.8 VDC Lithium Ion Brick Battery The Frezzi FLB-100 is a 3-stud mount (Anton Bauer) Lithium Ion battery offering a fuel gauge. It runs at 14.8 VDC with a 100Wh capacity.
- Lithium-Ion (Li-Ion)
- Li-Ion batteries can deliver 40% more capacity than comparably sized NiCd batteries and are one of the lightest rechargeable batteries available today.
- Fuel Gauge
- A 5 Stage LED readout offers the user a quick reference for remaining battery power.
- 14.8 Volts
- The 14.8V design complies with equipment manufacturers specifications, eliminating all 12V battery cutoff problems.
- 3-Stud Mount
- Works with Anton Bauer Gold Mounts.
- FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
- Charger
- This charger charges lithium ion batteries from Frezzolini's FLB series.
- Worldwide Operation
- Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
- Power Supply for SkyLight High Intensity LED Lamp The Frezzolini Power Supply is designed use with the SkyLight High Intensity LED Lamp.
- Barndoor Set for SkyLight LED Light The Barndoor Set for SkyLight LED Light from Frezzi allows you to shape the light beam to put it where you want it and block it from areas that you don't. The barndoors slip into the SkyLight's built-in accessory holder.
- FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7') The 7' FHMS Heavy Duty Mini Light Stand from Frezzolini is an accessory for the Dual Head AC/DC SkyLight Kit.
- Filter Pack for SkyLight High Intensity LED Lamp The Frezzolini Filter Pack is designed for use with the SkyLight High Intensity LED Lamp. It consists of a diffuser and a CTO filter.
- 24° Reflector for SkyLight LED Light This 24° Reflector for SkyLight LED Light from Frezzi slips into the light's accessory holder and narrows the SkyLight's beam spread for long-throw applications or to highlight a subject.
- Reflector for SkyLight LED Light, 44 Degrees This 44-Degree Reflector for SkyLight LED Light from Frezzi slips into the light's accessory holder and widens the SkyLight's beam spread for large groups or for even coverage in tight quarters.
In the Box Bundle Items SKY1A Portable LED with HMI Type Output & A/B Battery Bracket xzysrsyuatfcdyzzstrvdsrdsdbrzx - Limited 1-Year Warranty on Parts & Labor
FLB-100 14.8 VDC Lithium Ion Brick Battery FLC-1 Compact Lithium-Ion Battery Charger Power Supply for SkyLight High Intensity LED Lamp - Limited 1-Year Warranty on Parts & Labor
Barndoor Set for SkyLight LED Light FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7') Filter Pack for SkyLight High Intensity LED Lamp - Limited 1-Year Warranty on Parts & Labor
24° Reflector for SkyLight LED Light Reflector for SkyLight LED Light, 44 Degrees
Also Includes - TC4 Watertight Travel Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Frezzi Skylight Single AC DC Kit with Anton Bauer Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SKY1A Portable LED with HMI Type Output & A/B Battery Bracket
| | | Color Temperature | 5600K | | Cooling System | None | | Display | None | | Fixture Dimensions | 10.0 x 5.0 x 2.0" / 25.4 x 12.7 x 5.0 cm | | Fixture Weight | 4.25 lb / 1.92 kg | | | | Battery Plate | 1 x Gold Mount | | Power Input Connector | 4-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Box Dimensions (LxWxH) | 12.9 x 7.5 x 3.2" | - FLB-100 14.8 VDC Lithium Ion Brick Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 100 Wh | | Output Voltage | 14.8 VDC | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.0" / 96.0 x 149.0 x 46.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 7.95 x 4.3 x 3.6" | - FLC-1 Compact Lithium-Ion Battery Charger
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Lithium Ion | | Diagnostics | None | | Connections/Interface | Specific to FLB Series Batteries | | Power Requirements | 95-250 Volts AC | | Dimensions (WxHxD) | 4.55 x 1.25 x 1.88"
11.5 x 3.17 x 4.8cm | | Weight | 0.5 lbs.
227 grams | | | | Box Dimensions (LxWxH) | 6.8 x 5.3 x 4.4" | - Power Supply for SkyLight High Intensity LED Lamp
| Power Supply | AC Input Source: 90 to 240 VAC (50/60 Hz)
Output: 15 V @ 90 W of power | | | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 7.0" | - Barndoor Set for SkyLight LED Light
| Material of Construction | Metal | | | | Box Dimensions (LxWxH) | 5.7 x 5.6 x 1.2" | - FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 7' / 2.1 m | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | | | Box Dimensions (LxWxH) | 23.0 x 3.0 x 3.0" | - Filter Pack for SkyLight High Intensity LED Lamp
| | | Box Dimensions (LxWxH) | 6.1 x 5.5 x 0.2" | - 24° Reflector for SkyLight LED Light
| Material of Construction | Aluminum | | | | Box Dimensions (LxWxH) | 4.8 x 3.3 x 2.4" | - Reflector for SkyLight LED Light, 44 Degrees
| Material of Construction | Aluminum | | | | Box Dimensions (LxWxH) | 5.8 x 4.4 x 3.5" |
