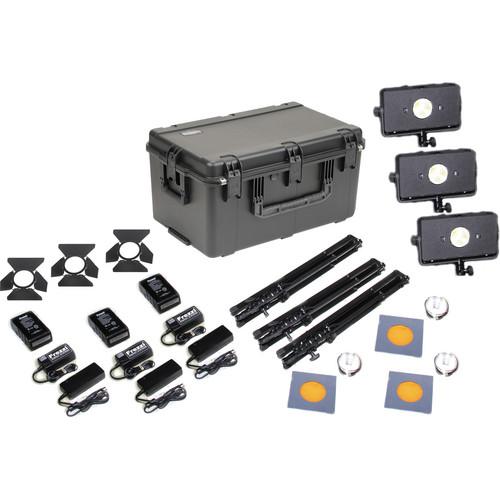

Product description The Skylight Triple Light AC/DC Anton Bauer-Mount Kit by Frezzolini provides you with three high-intensity LED lights with a low 75W power requirement and all the accessories needed for amply and efficiently covering a variety of lighting scenarios. Intended for use on location, this kit produces the equivalent output of three 650W tungsten lights. The kit features three Skylights with AB-mount, three batteries, three AC power supplies, three barn doors, three heavy-duty stands, reflectors (spot and flood), three filter packs and a water-tight rolling travel case.
Each Skylight will maintain its daylight color temperature through-out its dimming range. This negates the need for repeated camera color balancing with lighting changes. These versatile, 4.75 lb luminaires can be powered by standard broadcast batteries via the AB-mount rear plate, external DC battery pack or AC input. The Skylight is ready for use as soon as it is turned on and is guaranteed flicker-free. Their size, weight and silent operation are all attributes desirable to any mobile team needing speedy operation. Frezzolini has constructed the Skylight so as to be weatherproof and they are built with an LED that has a 50,000 hour life expectancy. - SKY1A Portable LED with HMI Type Output & A/B Battery Bracket The Portable LED with HMI Type Output & A/B Battery Bracket from Frezzolini is a compact, high intensity daylight-usable LED that doesn't fade in the sun. This redefined high-output portable LED lighting with HyLight delivers an impressive amount of daylight-balanced light suitable for indoor/outdoor news gathering and field production. It's a highly portable LED fixture powered by standard broadcast batteries and DC or AC power. It delivers equivalent light to a 650W tungsten or 125 to 150W HMI source while drawing only 75W of power. It is fully dimmable with selectable beam angles using quick change reflector technology.
- Ultra High Output: 240 fc at 5' in flood and 640 fc at 5' in spot; highest output in power class
- Long Run Time: 1 hour with Frezzi FLB-100 battery and 2 hours with Frezzi FLB-200 battery 1
Please Note: Battery units sold separately close - High Quality White Light: High CRI single source 5600K daylight light without pixilation or color fringing
- True Color Dimming: 100 to 0% dimming without color shift
- Wide Range Input: 12 to 36VDC input via AB battery bracket
- Weatherproof: Useable in all weather conditions
- Durability: All aluminum design built to Frezzi industry work horse standard; 50,000 hour LED life
- Silent Operation: No fan with reliable passive cooling
- FLB-100 14.8 VDC Lithium Ion Brick Battery The Frezzi FLB-100 is a 3-stud mount (Anton Bauer) Lithium Ion battery offering a fuel gauge. It runs at 14.8 VDC with a 100Wh capacity.
- Lithium-Ion (Li-Ion)
- Li-Ion batteries can deliver 40% more capacity than comparably sized NiCd batteries and are one of the lightest rechargeable batteries available today.
- Fuel Gauge
- A 5 Stage LED readout offers the user a quick reference for remaining battery power.
- 14.8 Volts
- The 14.8V design complies with equipment manufacturers specifications, eliminating all 12V battery cutoff problems.
- 3-Stud Mount
- Works with Anton Bauer Gold Mounts.
- FLC-1 Compact Lithium-Ion Battery Charger The Frezzolini FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port that fits in all FLB series batteries.
- Charger
- This charger charges lithium ion batteries from Frezzolini's FLB series.
- Worldwide Operation
- Auto voltage selection from 120 to 240 VAC @ 50/60 Hz.
- Power Supply for SkyLight High Intensity LED Lamp The Frezzolini Power Supply is designed use with the SkyLight High Intensity LED Lamp.
- FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7') The 7' FHMS Heavy Duty Mini Light Stand from Frezzolini is an accessory for the Dual Head AC/DC SkyLight Kit.
In the Box Bundle Items 3 x SKY1A Portable LED with HMI Type Output & A/B Battery Bracket wfbuayscvzytvysqzvfvrafzyfdc - Limited 1-Year Warranty on Parts & Labor
3 x FLB-100 14.8 VDC Lithium Ion Brick Battery wfbuayscvzytvysqzvfvrafzyfdc 3 x FLC-1 Compact Lithium-Ion Battery Charger 3 x Power Supply for SkyLight High Intensity LED Lamp - Limited 1-Year Warranty on Parts & Labor
3 x FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')
Also Includes - 3 x Barn Doors
- 3 x Filter Packs
- 3 x Spot Reflectors, 24º
- 3 x Flood Reflectors, 50º
- Watertight Rolling Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Frezzi Skylight Triple AC DC Anton Bauer-Mount Light Kit with Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SKY1A Portable LED with HMI Type Output & A/B Battery Bracket
| | | Color Temperature | 5600K | | Cooling System | None | | Display | None | | Fixture Dimensions | 10.0 x 5.0 x 2.0" / 25.4 x 12.7 x 5.0 cm | | Fixture Weight | 4.25 lb / 1.92 kg | | | | Battery Plate | 1 x Gold Mount | | Power Input Connector | 4-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Box Dimensions (LxWxH) | 12.9 x 7.5 x 3.2" | - FLB-100 14.8 VDC Lithium Ion Brick Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 100 Wh | | Output Voltage | 14.8 VDC | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.0" / 96.0 x 149.0 x 46.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 7.95 x 4.3 x 3.6" | - FLC-1 Compact Lithium-Ion Battery Charger
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Lithium Ion | | Diagnostics | None | | Connections/Interface | Specific to FLB Series Batteries | | Power Requirements | 95-250 Volts AC | | Dimensions (WxHxD) | 4.55 x 1.25 x 1.88"
11.5 x 3.17 x 4.8cm | | Weight | 0.5 lbs.
227 grams | | | | Box Dimensions (LxWxH) | 6.8 x 5.3 x 4.4" | - Power Supply for SkyLight High Intensity LED Lamp
| Power Supply | AC Input Source: 90 to 240 VAC (50/60 Hz)
Output: 15 V @ 90 W of power | | | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 7.0" | - FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 7' / 2.1 m | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | | | Box Dimensions (LxWxH) | 23.0 x 3.0 x 3.0" |
