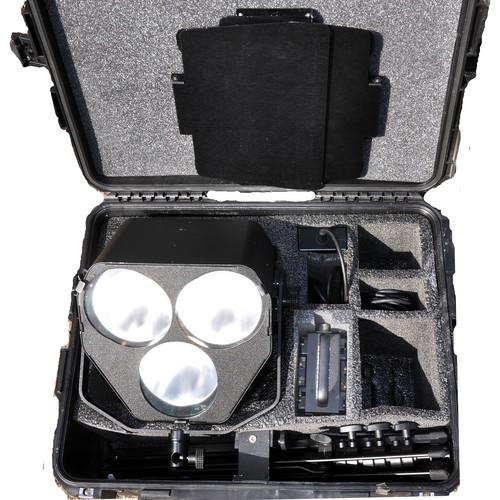

Frezzi SunLight AC DC Travel Kit

User Manual for Frezzi SunLight AC DC Travel Kit

• Product category: LED Lights Frezzi
• Brand: Frezzi
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Frezzi LED Lights

Product description

• SunLight LED Head The SunLight LED Light from Frezzi is an innovative light source that uses proprietary Directional Focusing Technology to access 100% of the generated light without lenses or filters that would sap the output. The SunLight produces the equivalent of 575W of HMI light with a color temperature of 5500K, while drawing only 220W and maintaining a high CRI of 93. The beam is adjustable from 20-degree spot to a wide flood that can be further controlled with optional 4-way barndoors. Light intensity is variable too, from 0 to 100% without color shift. The 8 x 10.5 x 13" fixture weighs just 6.5 lb, a fraction of the weight of many lights with comparable output. The SunLight LED Light is ready for worldwide use thanks to the inclusion of a 120 - 240 VAC adapter but it can also run on batteries when AC power is unavailable. For example, the SunLight gets 45 minutes of run time from two Frezzi HD-150 batteries. And don't worry about inclement weather - the SunLight is rated IP55 weather-resistant.
  Benefits
  • • 575W HMI-type output - almost 1000 fc at 10'
    • Direct Focusing LED without the use of filters
    • 45 Minute run time with two Frezzi HD-150 batteries
    • Weatherproof and rugged all aluminum chassis
    • Lightweight and compact - only 6.5-pound fixture
    • Instant on and runs cool - fast setup and break-down
    • Compact, optional, fully loaded AC/DC travel kit with HD stand available
    • Travel friendly optional NiMH battery is safe for air transport
    • No harmful UV radiation
    • Saves money - no bulb replacements or ballast repairs
    • Full 0 to 100% dimming without color shift
    • Integrated LED voltmeter for battery/power supply status
  Photometrics
  • Full Flood: 600 fc @ 10' (3.0 m)
    Full Spot: 950 fc @ 10' (3.0 m)
• 220W AC Power Supply for SunLight LED Head Keep your SunLight LED Head powered up during a long shoot with this 220W AC Power Supply from Frezzi. It works with a universal 120-240 VAC system, permitting it to be used worldwide. Also, it outputs about 24 VDC, an ideal setup for the SunLight fixture.
• Barndoor Set for SunLight LED Light Ideal for modifying the light output, the four-leaf Barndoor Set for SunLight LED Light from Frezzi controls spill light while it allows you to shape the fixture's light beam by swinging the leaves into it. A valuable asset for selective lighting, the barndoor set enables you to light the areas of a subject that you want to, while keeping light from areas that you don't want illuminated.
• CTO Gel and Diffusion Filter for SunLight The CTO Gel and Diffusion Filter for SunLight from Frezzi contains a Full CTO for converting the SunLight fixture's 5600K color temperature to 3200K. A diffusion filter is also included to soften the light's output.
• FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7') The 7' FHMS Heavy Duty Mini Light Stand from Frezzolini is an accessory for the Dual Head AC/DC SkyLight Kit.
• Power Cable for SunLight The Power Cable for SunLight from Frezzi is a 12' long cable with a 2-prong plug that provides mains power to the SunLight LED fixture.
• Stand Clamp Dual Brick Battery Adapter Featured in Frezzi SunLight kits, the Stand Clamp Dual Brick Battery Adapter clamps to the light stand supporting the fixture and holds 2 brick-type batteries to power it. Used on the lower section of the stand, the batteries, which weigh approximately five pounds each, act as ballast to stabilize the light. The adapter can also be used to hold the AC power supply.
• Transport Case for SkyLight Dual Kit This Transport Case for SkyLight Dual Kit from Frezzolini is a rugged waterproof wheeled case with a pull handle and a padded divider set.
• PA-30-B Dual Brick Adapter The Frezzi PA 30 B Dual Brick Adapter allows the user to utilize two brick batteries to power equipment. The dual configuration is hot swappable, allowing continuous equipment use. This device will work with 30VDC equipment offering a 2-pin Amphenol connection on the unit.
  30 Volts
  • 2-Pin
    The 30 volt mode supplies a higher output for applications including, powering an HMI ballast.
  Hot Swap
  • Batteries can be exchanged while operating equipment; this allows for continuous operation.

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Padded Divider Set

• Limited 2-Year Warranty

• 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SunLight LED Head

  Color Range	5500K
  Dimming	0 - 100% Without color shift
  LED Life Expectancy	50,000 Hours
  Beam Angle	20° Spot-to-flood
  Operating Voltage	Input Range: 24-36 VDC Battery: 2 x Frezzi HD-150s or 30 V pack AC Power Supply: 120 - 240 VAC, 50/60 Hz
  Connector	Amphenol 30 V 2-pin (B+, A-)
  Power Consumption	220 W max.
  Mount	5/8" (16 mm)
  Dimensions	8.0 x 10.5 x 13" (20.3 x 27 x 33 cm)
  Weight	6.5 lb (3.0 kg)

• 220W AC Power Supply for SunLight LED Head

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Output Voltage	24 VDC
  Power Draw	220.00 W

• FHMS Heavy Duty Mini Light Stand for Dual Head AC/DC SkyLight Kit (7')

  Mounting Options	5/8" Stud
  Maximum Working Height	7' / 2.1 m
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.0 x 3.0 x 3.0"

• Power Cable for SunLight

  Dimensions	9.0' (2.7 m)
  Plug	2-Prong US/No. American

• Transport Case for SkyLight Dual Kit

  Carry/Transport Options	Top Handle, Telescoping Handle, Wheels
  Interior Contents	Dividers/Organizers
  Exterior Dimensions	22.0 x 17.0 x 10.5" / 55.9 x 43.2 x 26.7 cm
  Watertight	Yes
  Weight	19.0 lb / 8.6 kg

• PA-30-B Dual Brick Adapter

  Power Supply	Yes 30VDC Output
  Battery Bays	Anton Bauer x2
  Type of Charging	None
  Diagnostics	None
  Connections/Interface	Gold Mount x2 2-Pin Amphenol Connector
  Power Requirements	14VDC 3-Stud Brick Batteries x2
  Dimensions (WxHxD)	Not Specified By Manufacturer
  Weight	1.4 lbs (0.6kg)

  Box Dimensions (LxWxH)	8.0 x 7.1 x 4.0"

• Barndoor Set for SunLight LED Light
• CTO Gel and Diffusion Filter for SunLight
• Stand Clamp Dual Brick Battery Adapter
