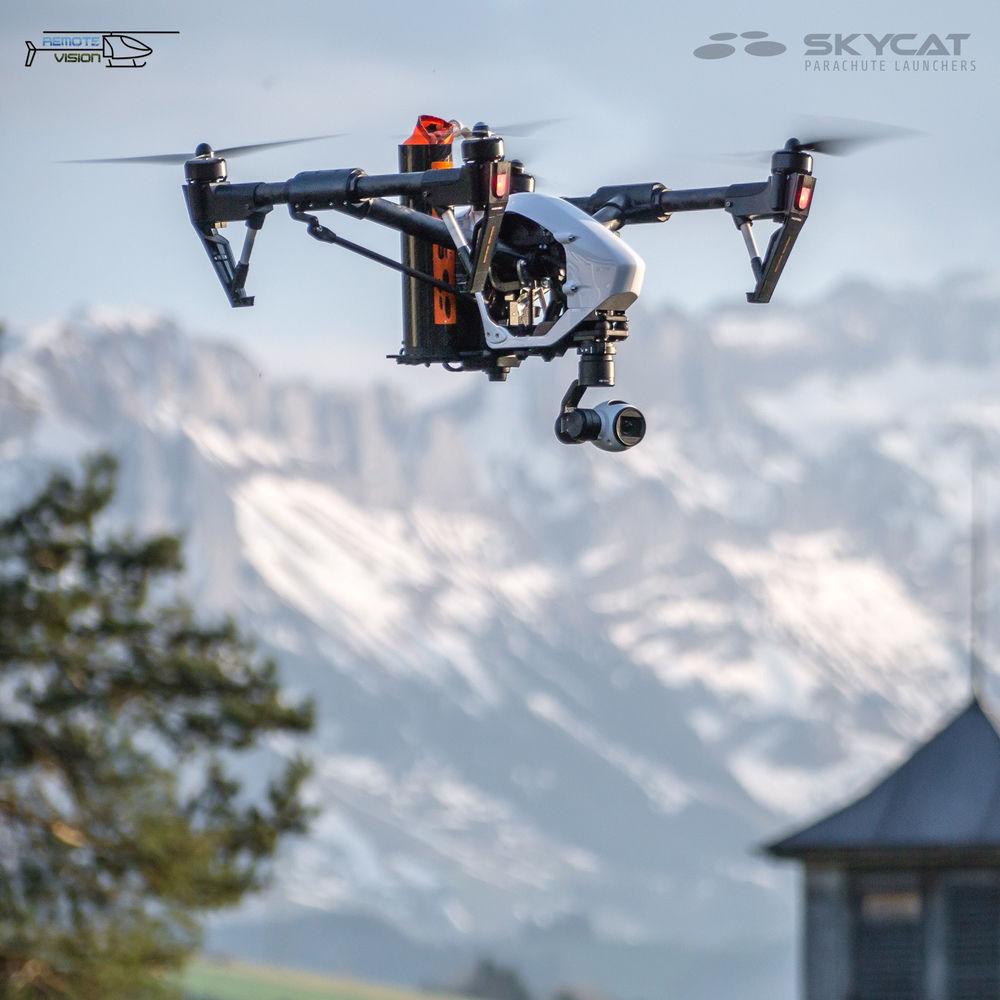

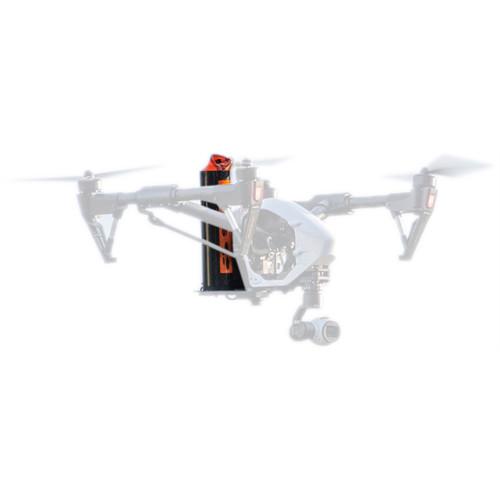

Product description The orange and black Parachute with Automatic Trigger System from Fruity Chutes is designed to gently land your DJI Inspire 1 drone in case it experiences rotor, motor, or power failure. The automatic trigger system (ATS) automatically detects failure and quickly ejects the parachute. The ATS features an independent power source, so it'll work on its own in case of drone power failure. The lightweight system can be used many times and includes a small rigger jig for easy folding and packing. - Automatic Trigger System (ATS)
- The automatic trigger system (ATS) can detect if the drone suddenly falls, rolls, flips, or experiences loss of a rotor or motor. Detection of a fall typically takes just 0.75 seconds, or about 16' of free fall. The system is designed to eject the parachute by the time the pilot notices a problem.
- Skycat Launcher
- To launch the parachute, the included Skycat launcher has a high-energy compression spring that ejects the parachute down and away from the Inspire 1 quickly. The launcher has no regulatory or transportation limitations so you have more flexibility as to where you can take it. The launcher is mounted onto the baseplate with M3 bolts, and the unit is attached to the airframe with a hook-and-loop strap.
- Descent Rate
- The parachute has a nominal drone weight rating of 7 lb at 15' per second descent rate after deployment, ensuring a gentle landing. The max supported weight is 15 lb, allowing you to use heavier cameras or batteries.
- Iris Light 48" Parachute
- The parachute features eight shroud lines, each rated at a 200 lb break strength. The overall break strength of the parachute is about 1000 lb of pull force, suitable for virtually any situation.

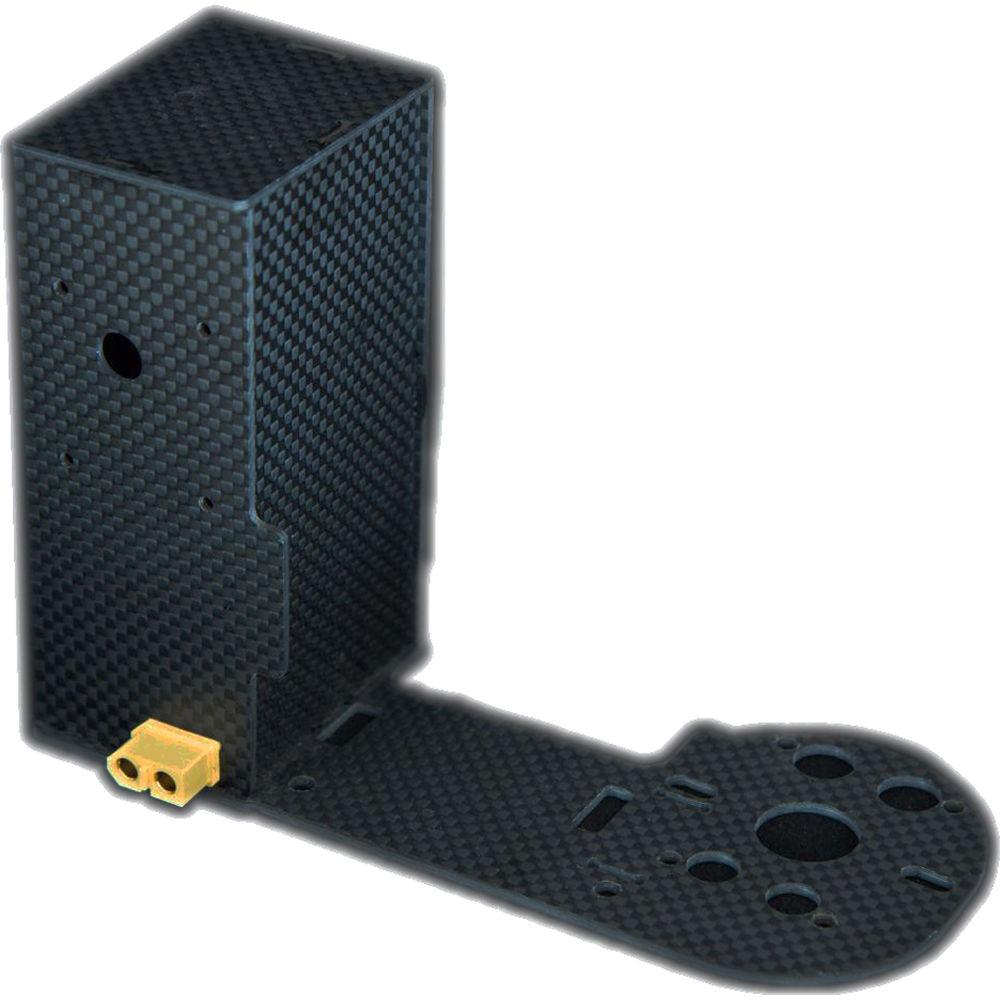

UPC: 852828008009 In the Box Fruity Chutes Parachute with Automatic Trigger System for DJI Inspire 1 (Orange/Black) Skycat X48 Carbon Fiber Launcher Bundle Spectra Harness Spectra Riser 1/8" Quick Links Inspire 1 Carbon Fiber Mount Automatic Trigger System Controller 800mAh 3S 40C Battery Mini Parachute Rigger Jig Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fruity Chutes Parachute with Automatic Trigger System for DJI Inspire 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFruity Chutes SKYI1M-48-48-SULCF-OB Specs | Compatibility | DJI Inspire 1 Drone | | Parachute | Type: Ultra Compact Toroidal (Annular)
Bridal: 1000# Spectra Loop
Shroud Lines: 200# Spectra, 8 Lines
Fabric: 0.66 oz / 19 g Ripstop
Weight: 2.6 oz / 74 g
Nominal Packing: 8.0 x 5.2" / 20.3 x 13.2 cm
Volume: 13.1 in³ / 33.3 cm³
Nominal Rating: 7 lb / 3.2 kg at 15 f/s / 4.6 m/s
Cd: 2.2
Number of Gores: 8 | | Automatic Trigger System | Exterior Dimensions: 1.5 x 1.5 x 0.5" / 3.8 x 3.8 x 1.3"
Input Voltage: 3 to 12.6 V
Weight: 0.5 oz / 14 g
Servo Connections: 3-Pin Header, JR Standard Servo Connector | | Weight Capacity | Nominal Drone Weight: 7 lb / 3.2 kg
Maximum Drone Weight: 14 lb / 6.4 kg | | Deployment Speed | 110 f/s / 33.5 m/s | | Minimum Deployment Altitude | 120' / 40 m | | Weight | Complete System: 15.7 oz / 447 g |
