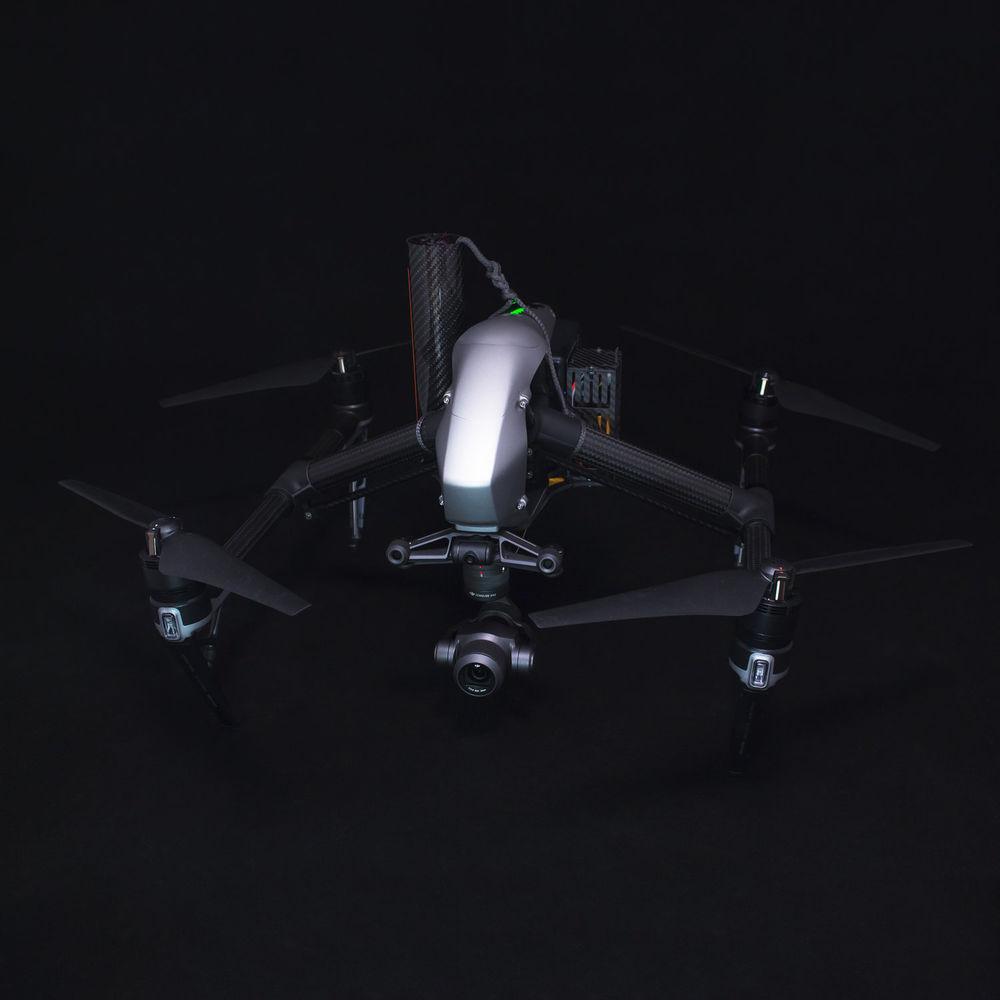

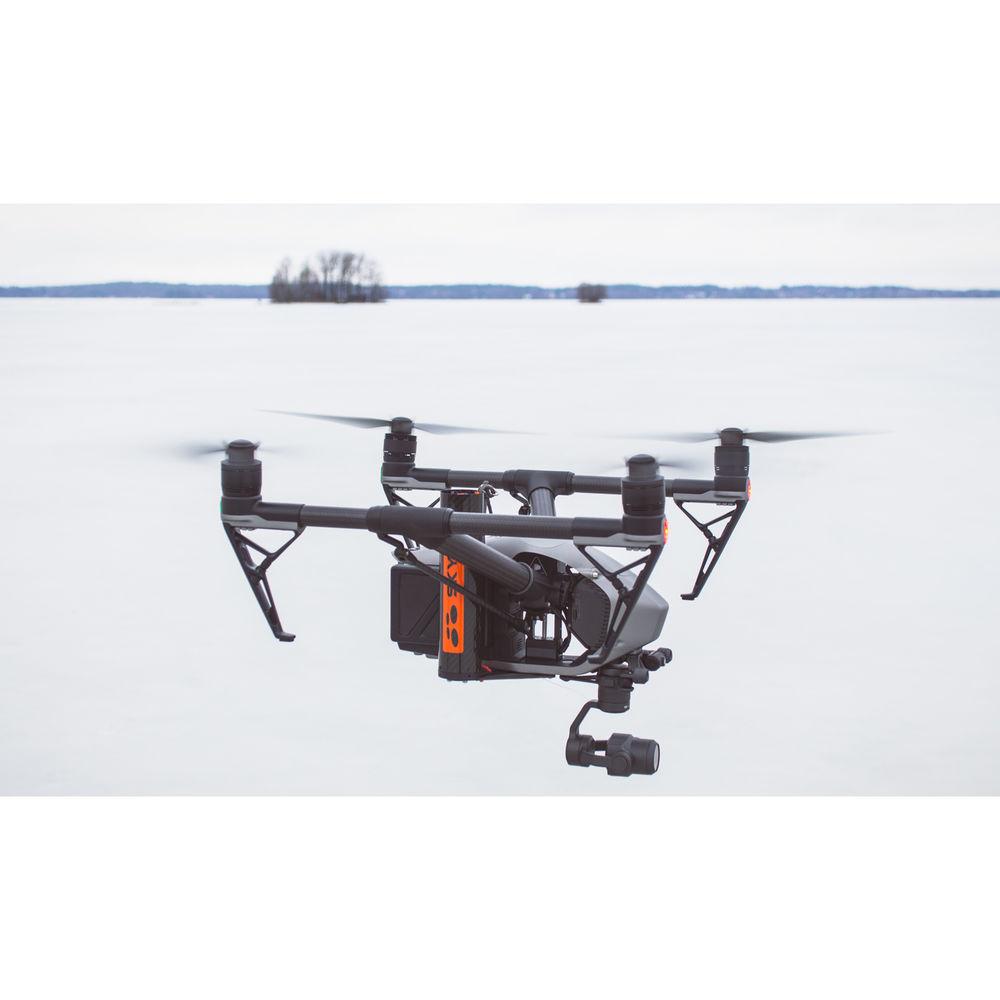

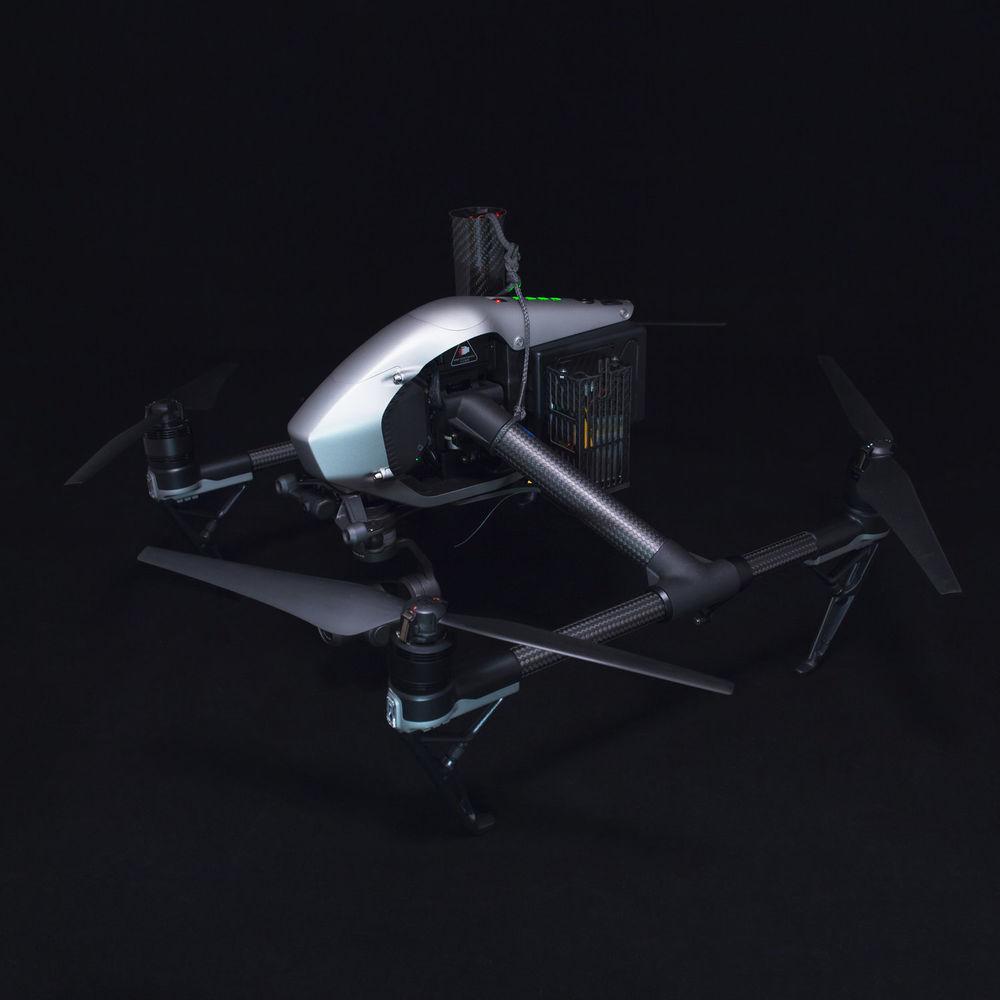

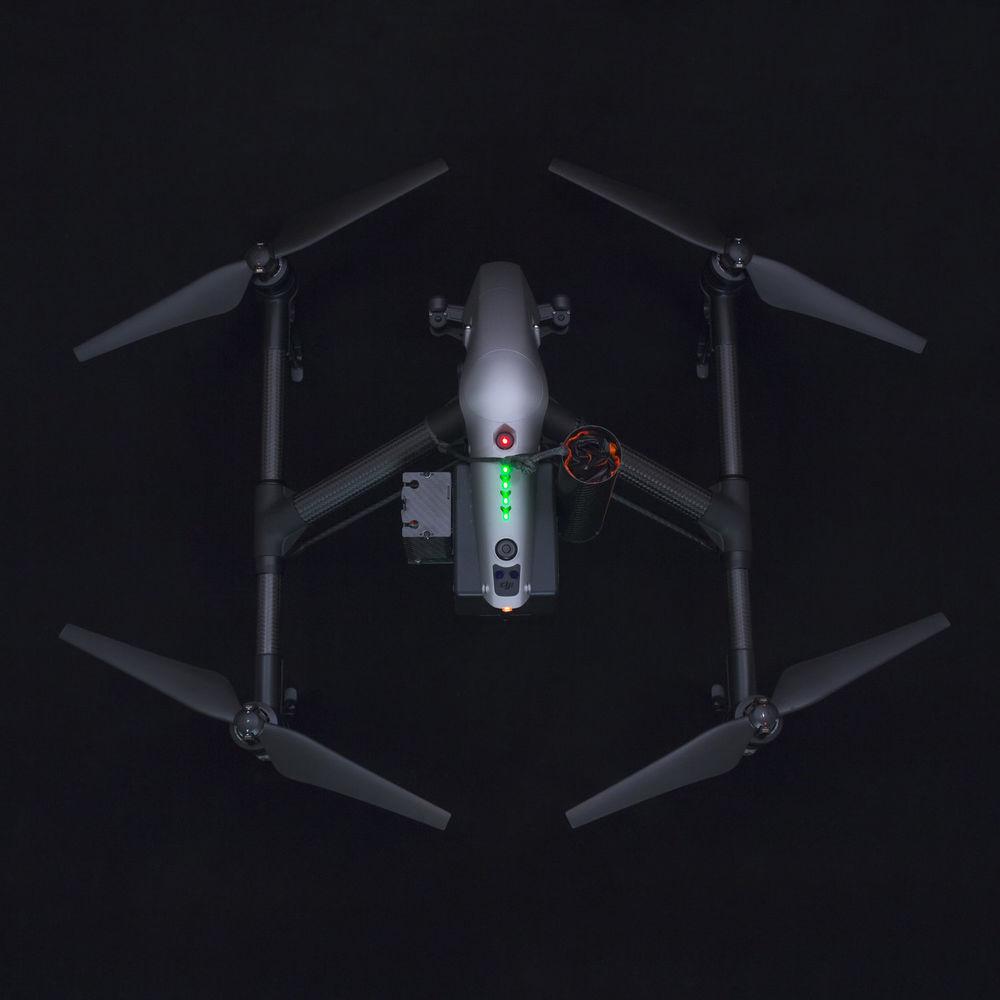

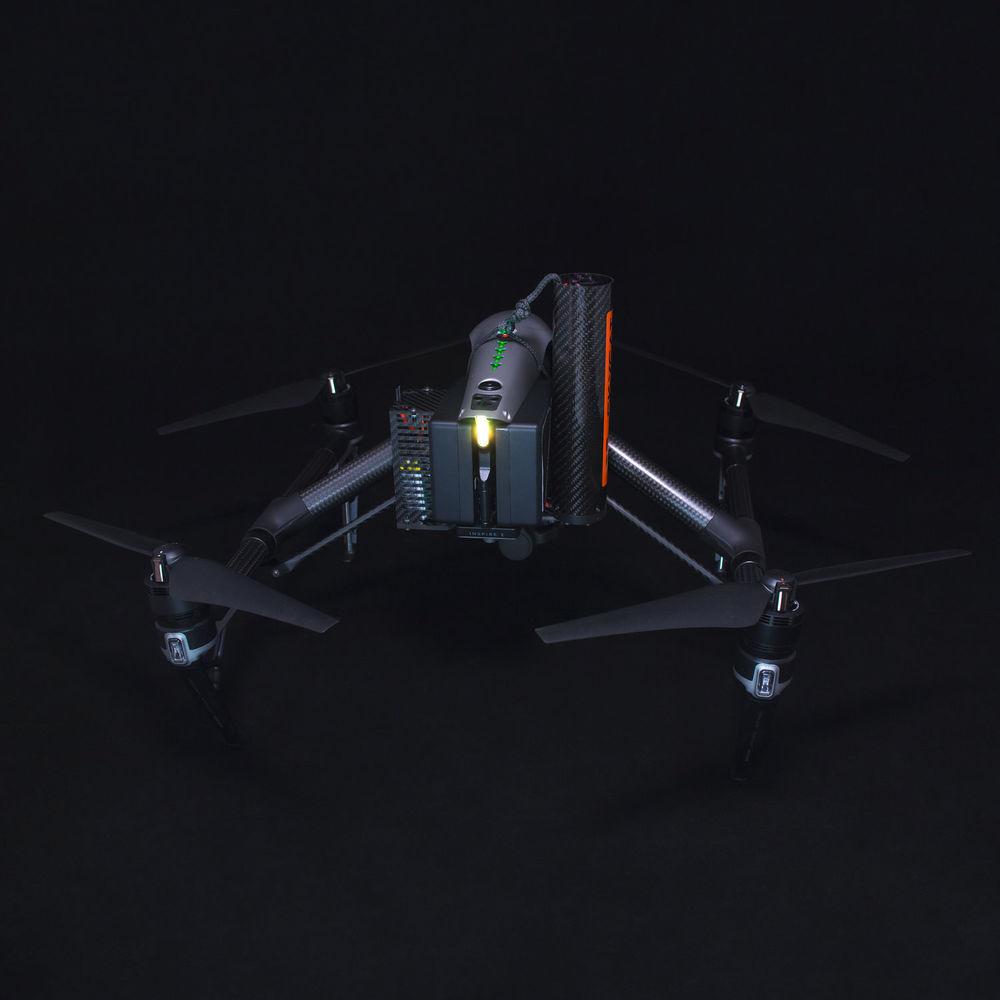

Product description Want to better protect your DJI Inspire 2? The Fruity Chutes Parachute with Failsafe, in an orange and black combo, is designed to gently land your drone in case it experiences rotor, motor, or power failure. The automatic trigger system (ATS) failsafe automatically detects failure and quickly ejects the parachute. The ATS features an independent power source, so it'll work on its own in case of drone power failure. - Automatic Trigger System (ATS)

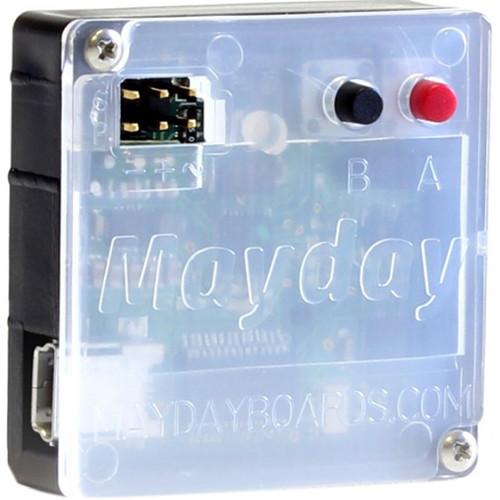

- The automatic trigger system (ATS) can detect if the drone suddenly falls, rolls, flips, or experiences loss of a rotor or motor. Detection of a fall typically takes just 0.75 seconds, or about 16' of free fall. The system is designed to eject the parachute by the time the pilot notices a problem.

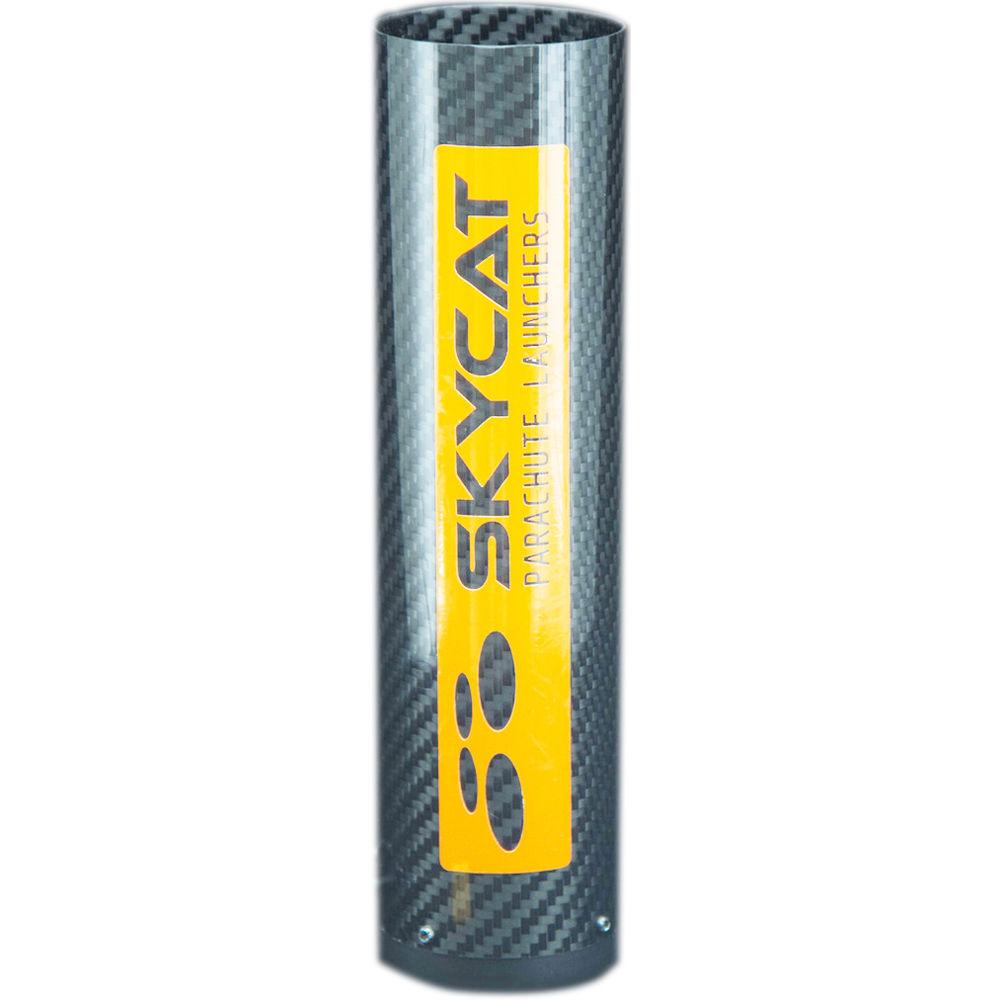

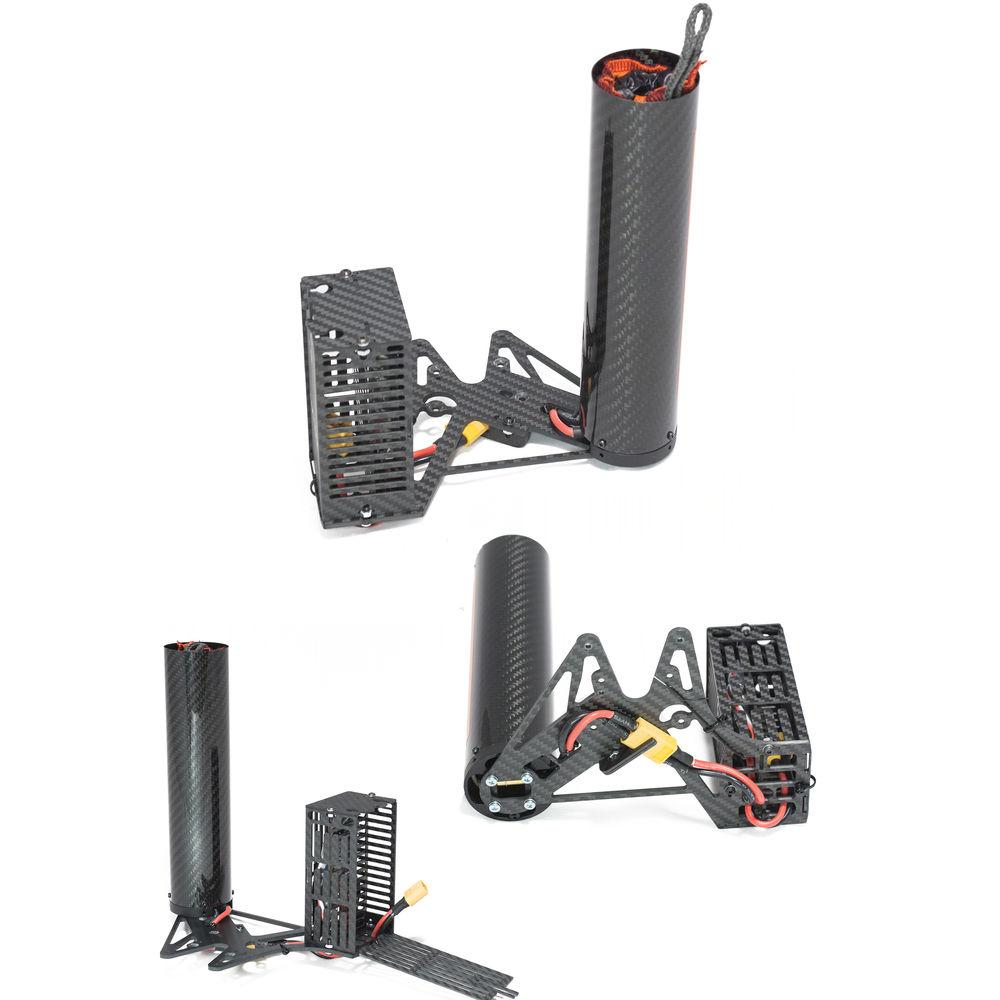

- Skycat Parachute Launcher

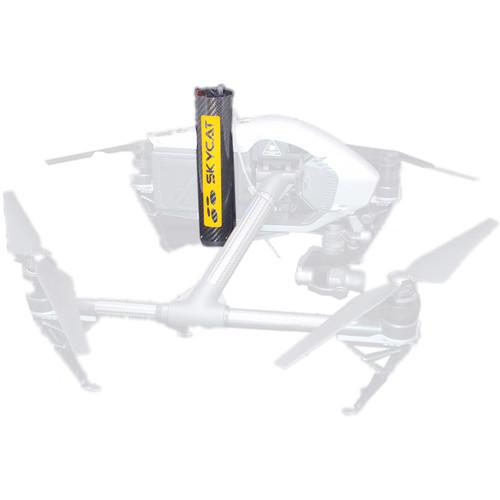

- To launch the parachute, the included Skycat launcher has a high-energy torsion spring that ejects the parachute down and away from the Inspire 2 quickly. The launcher has no regulatory or transportation limitations so you have more flexibility as to where you can take it. The launcher clips into one of the landing gear frames. It can be installed and removed without tools.
- Descent Rate
- The parachute has a nominal drone weight rating of 7 lb at 15' per second (4.6 mps) descent rate after deployment, ensuring a gentle landing. The max supported weight is 11 lb, allowing you to use heavier cameras or batteries.
- Iris Ultra Light 48" Parachute
- The parachute features 8 shroud lines, each rated at a 200 lb break strength. The overall break strength of the parachute is about 1000 lb of pull force, suitable for virtually all situations.

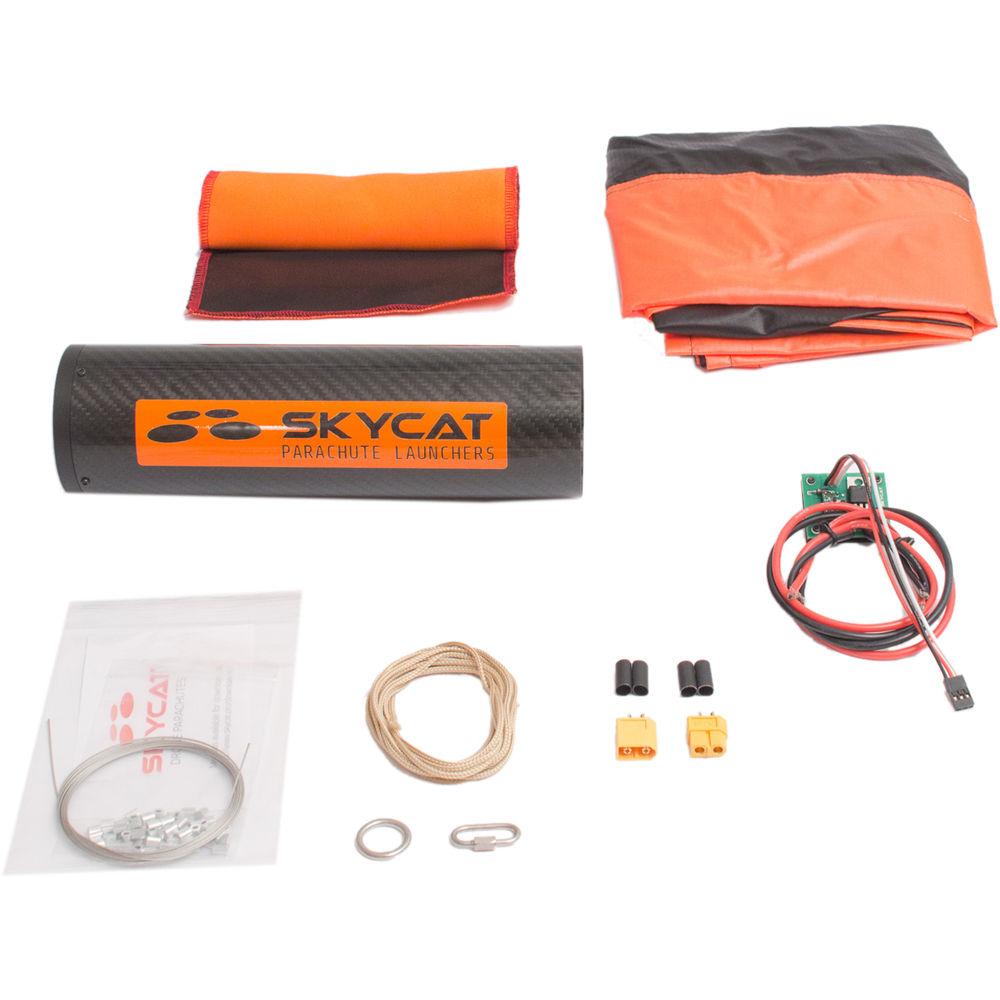

UPC: 852828008023 In the Box Fruity Chutes Parachute with Failsafe for DJI Inspire 2 (Orange & Black) Iris 48" Ultra Light Parachute Skycat X48 Launcher Bundle Spectra Harness Multi-Point Mount for Inspire 2 Spectra Riser (6') 1/8" Quick Links (for Attaching Riser to Harness) Inspire 2 Carbon Fiber Mount Automatic Trigger System Controller 800mAh 3S 40C Battery for Launcher Trigger Mini Parachute Rigger Jig Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fruity Chutes Parachute with Failsafe for DJI Inspire 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFruity Chutes SKYI2M-48-48-SULCF-OB Specs | Weight Capacity | Nominal Drone Weight:
4 lb / 1.8 kg
Max Drone Weight:
11 lb / 5 kg | | Minimum Deployment Altitude | Recommended Minimum Deployment Altitude:
120' / 40 m | | Deployment Speed | Maximum Deployment Speed:
110 fps / 75 mph | | Parachute | Type:
Ultra compact toroidal (annular)
Bridal:
1000# Spectra loop
Shroud Lines:
200# Spectra, 8 lines
Fabric:
0.66 oz / 19 g ripstop
Weight:
2.6 oz / 74 g
Nominal Packing Volume:
8 x 5.2" / 20 x 13.2 cm
13.1 cubic inches / 33.3 cubic centimeters
Nominal Rating:
7 lb / 3.2 kg at 15 fps
Cd:
2.2
Number of Gores:
8 | | Automatic Trigger System | Exterior Dimensions:
1.5 x 1.5 x 0.5" / 3.8 x 3.8 x 1.3 cm
Input Voltage Range:
3 - 12.6 V
Weight:
0.5 oz / 14 g
Servo Connections:
3-pin header, JR standard servo connector | | Weight | Complete System:
15.7 oz / 447 g | | | | Package Weight | 1.905 lb | | Box Dimensions (LxWxH) | 14.1 x 10.5 x 2.35" |
