User Manual for Fruity Chutes Parachute with Failsafe for DJI Phantom 4 Click to enlarge the picture
Contents of the user manual for the Fruity Chutes Parachute with Failsafe for
- Product category: DJI Accessories Fruity Chutes
- Brand: Fruity Chutes
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fruity Chutes DJI Accessories
 |
User manual for the Fruity Chutes Parachute with Failsafe for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fruity Chutes product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fruity Chutes user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fruity Chutes product will considerably shorten its lifespan!
|

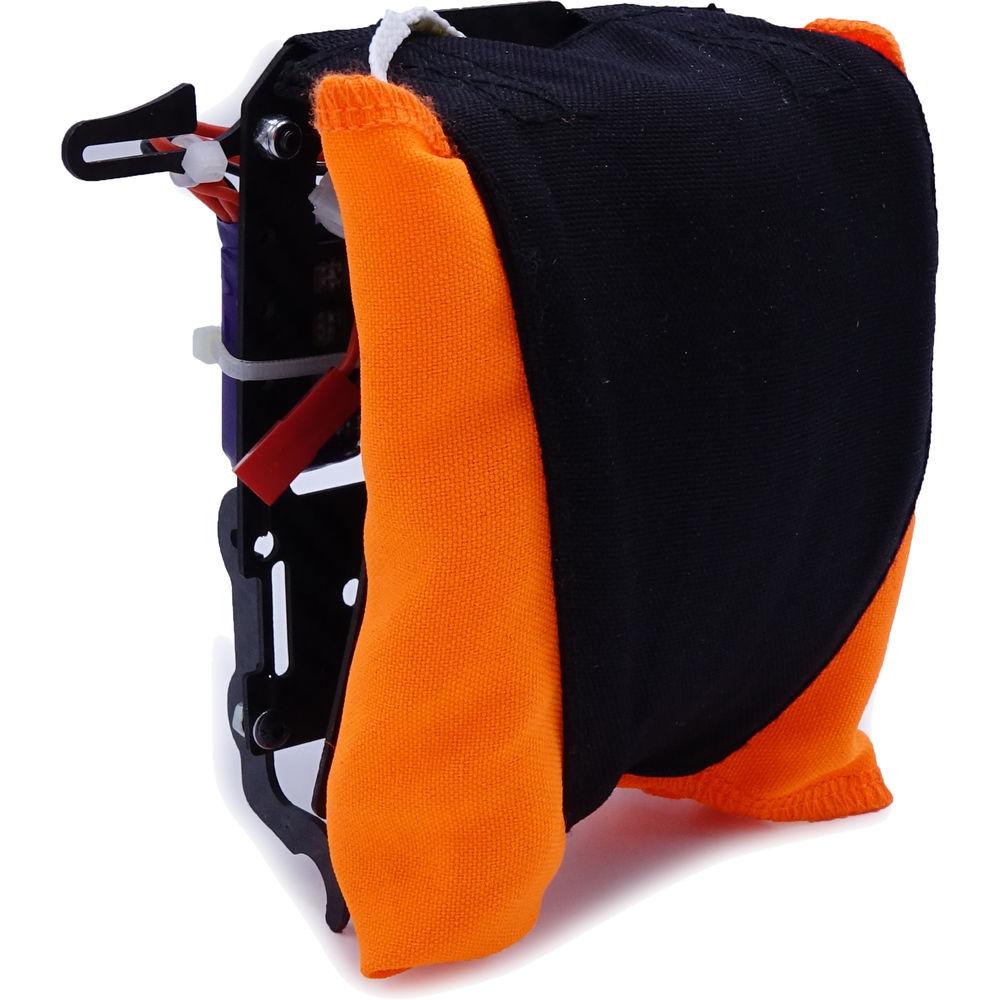

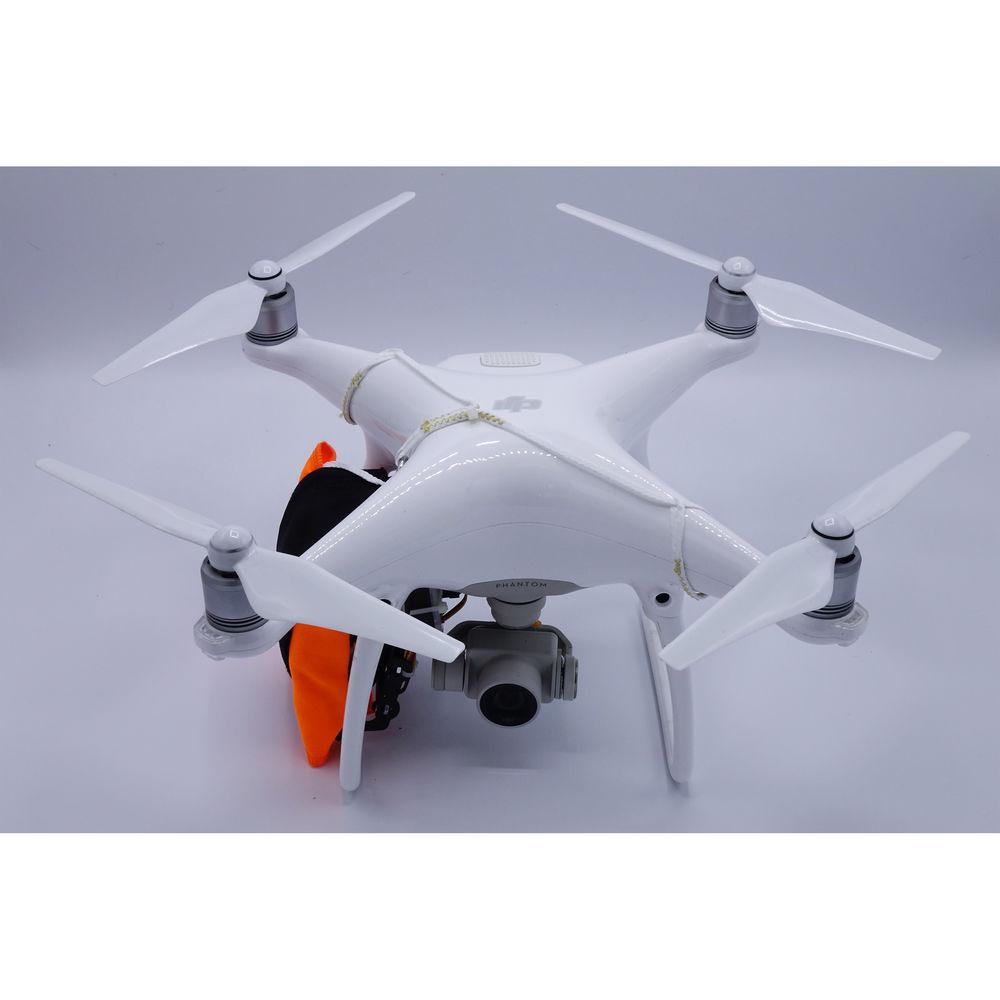

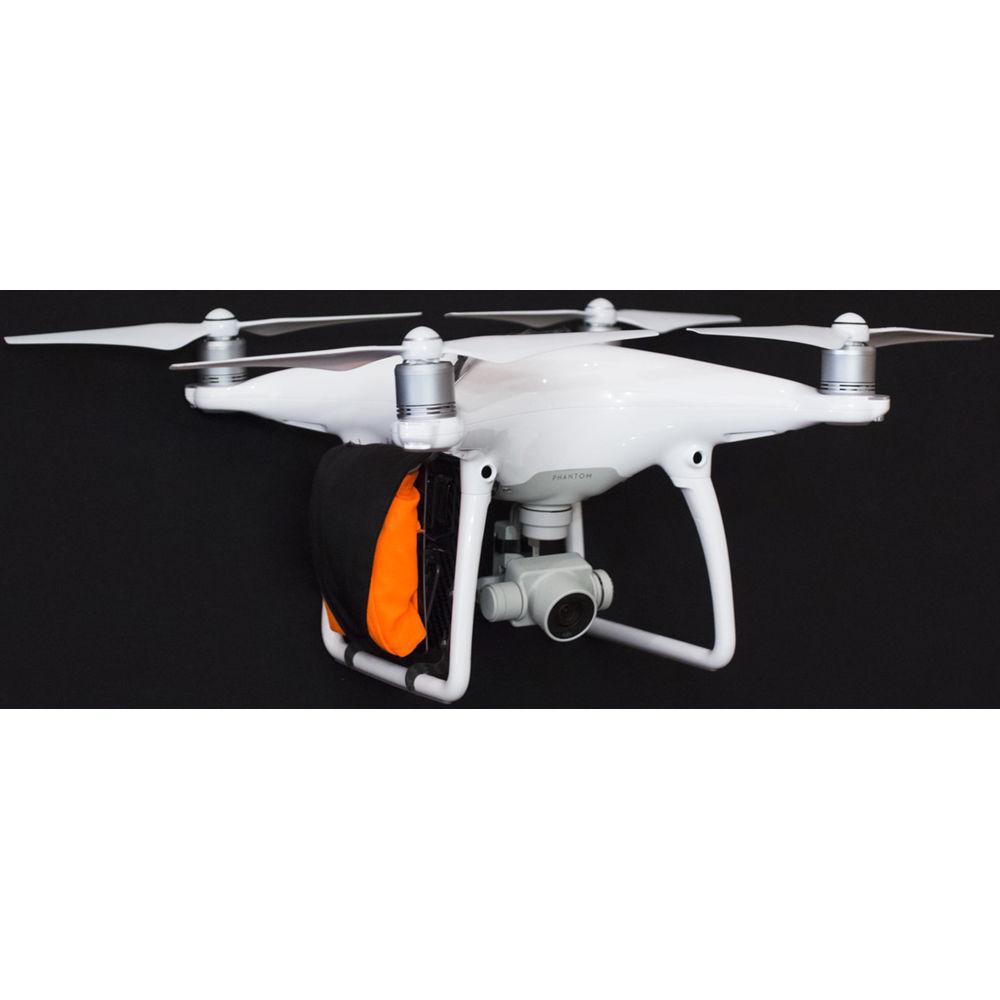

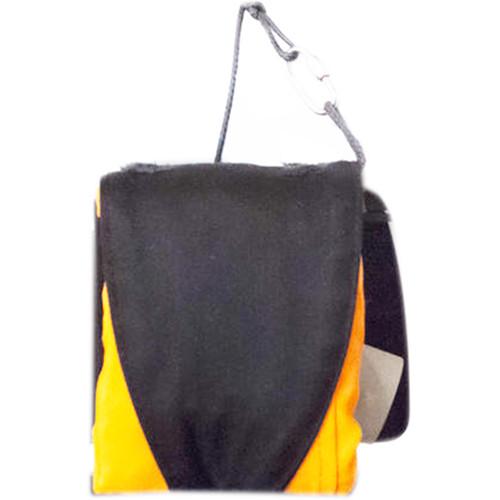

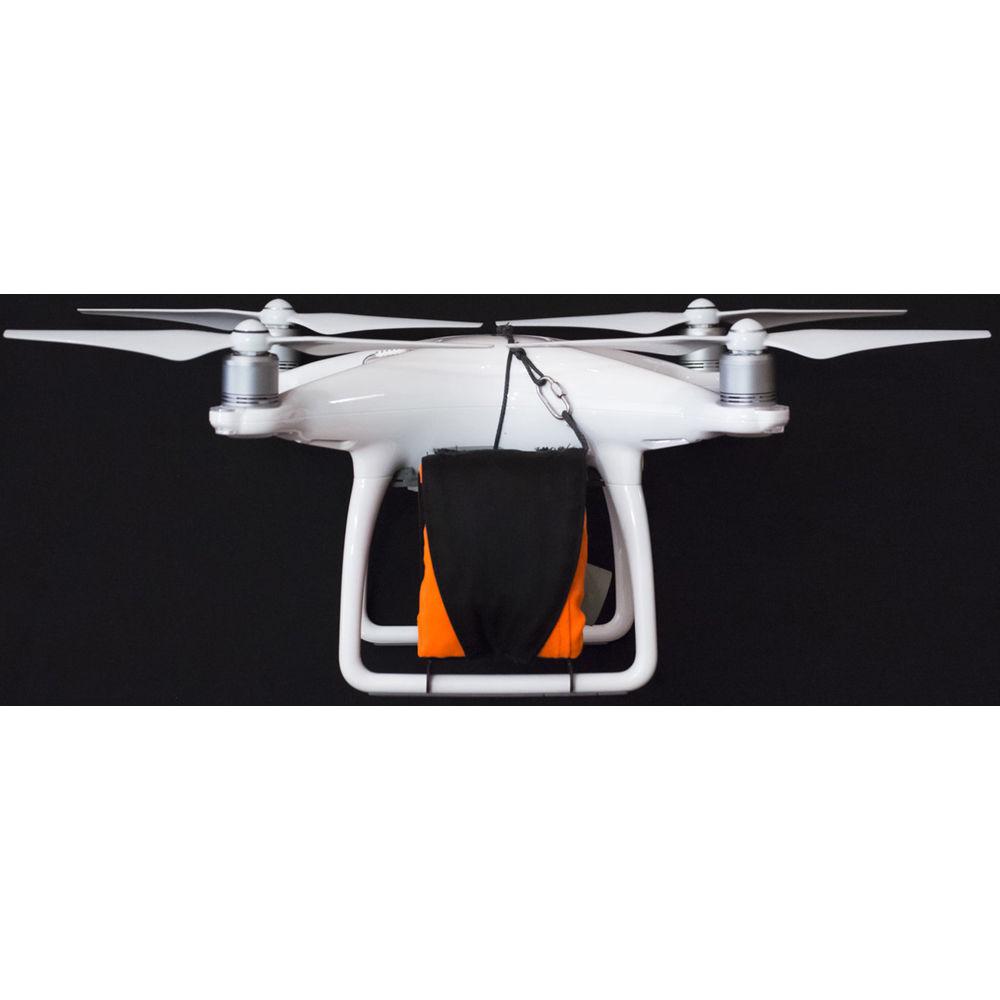

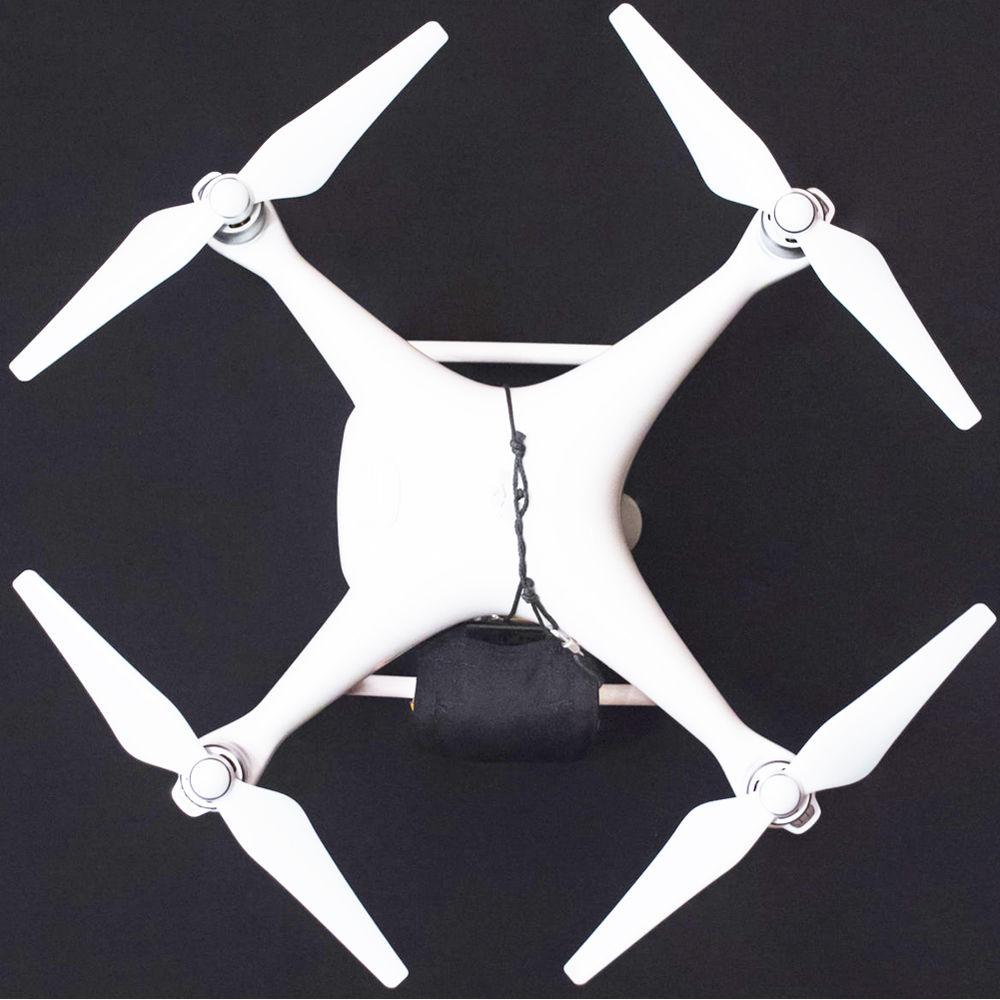

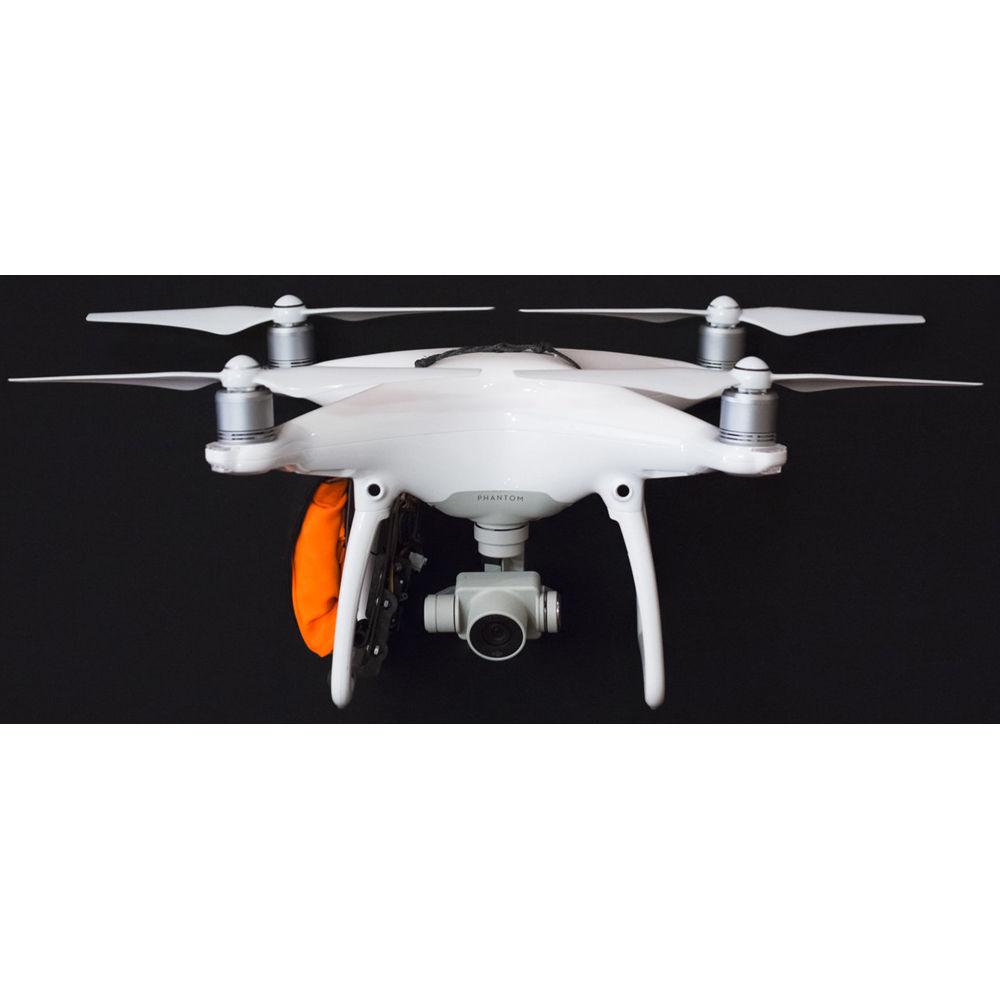

Product description Want to better protect your DJI Phantom 4? The Fruity Chutes Parachute with Failsafe, in an orange and white combo, is designed to gently land your drone in case it experiences rotor, motor, or power failure. The automatic trigger system (ATS) failsafe automatically detects failure and quickly ejects the parachute. The ATS features an independent power source, so it'll work on its own in case of drone power failure. The system is lightweight and neatly packs into the drone's landing gear frame. - Automatic Trigger System (ATS)
- The automatic trigger system (ATS) can detect if the drone suddenly falls, rolls, flips, or experiences loss of a rotor or motor. Detection of a fall typically takes just 0.75 seconds, or about 16' of free fall. The system is designed to eject the parachute by the time the pilot notices a problem.

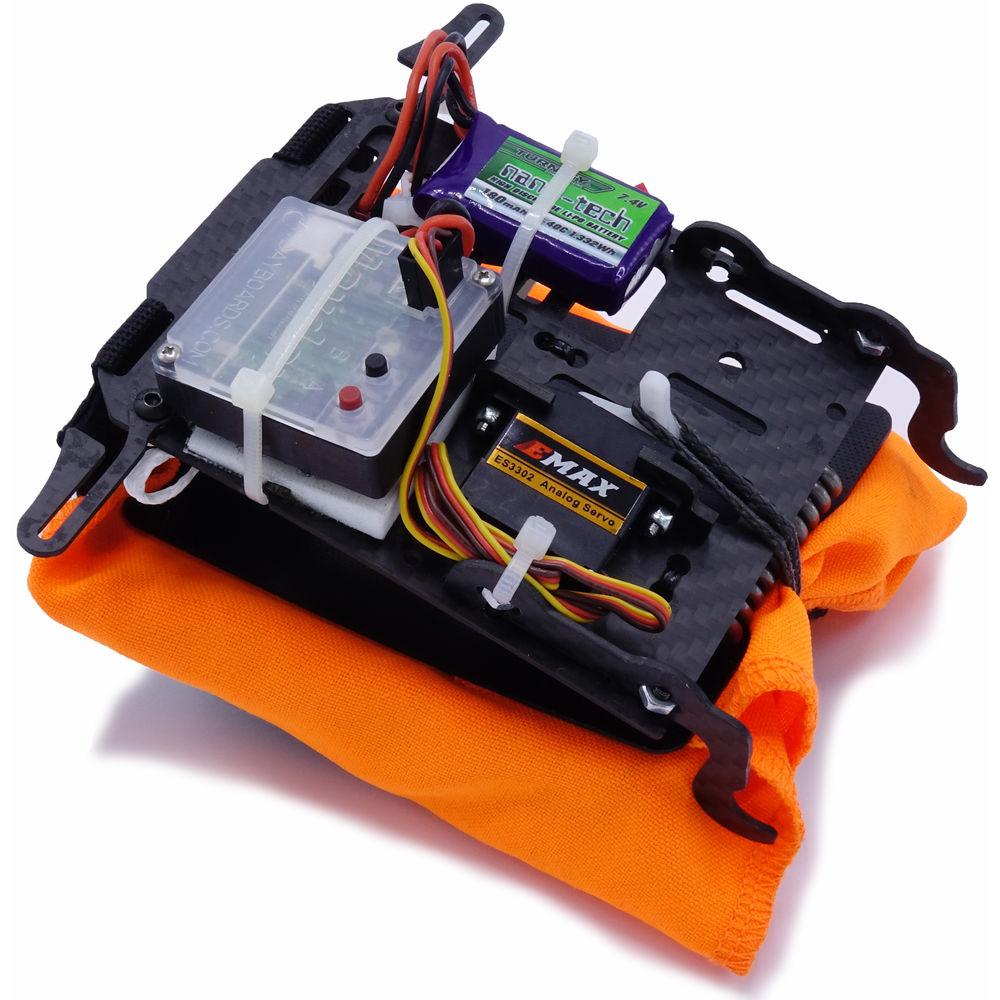

- Skycat Launcher
- To launch the parachute, the included Skycat XS launcher has a high-energy torsion spring that ejects the parachute down and away from the Phantom 4 quickly. The launcher has no regulatory or transportation limitations so you have more flexibility as to where you can take it. The launcher clips into either side of the landing gear. It can be installed and removed without tools.
- Descent Rate
- The parachute has a nominal drone weight rating of 4 lb at 15' per second (4.6 mps) descent rate after deployment, ensuring a gentle landing. The max supported weight is 8 lb, allowing you to use heavier cameras or batteries.

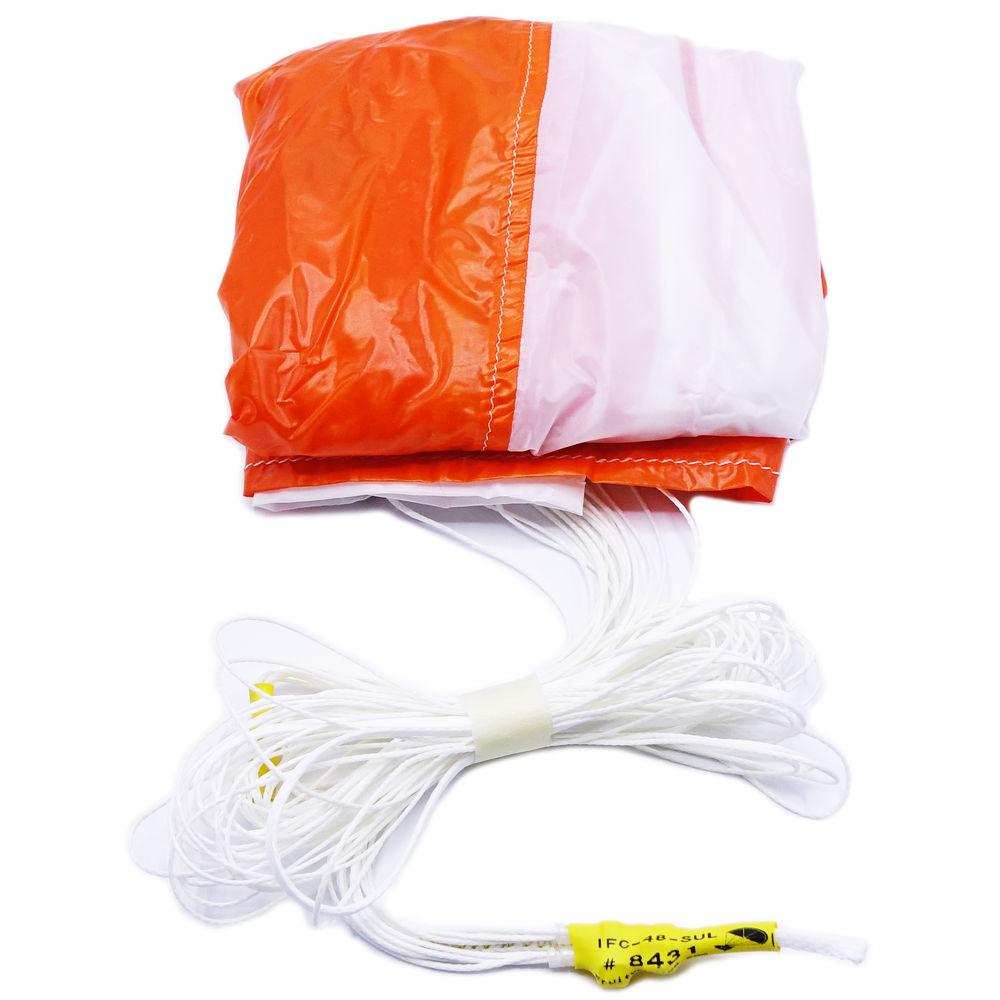

- Iris Ultra Light 36" Parachute
- The parachute features 8 shroud lines, each rated at a 200 lb break strength. The overall break strength of the parachute is about 700 lb of pull force, suitable for virtually any situation.
In the Box Fruity Chutes Parachute with Failsafe for DJI Phantom 4 (Orange & White) Iris 36" Ultra Light Parachute Skycat XS Launcher Spectra Harness Multi-Point Mount for Phantom 4 Spectra Riser (3') 1/8" Quick Links (for Attaching Riser to Harness) Automatic Trigger System Controller 120mAh 2S 40C Battery Mini Parachute Rigger Jig Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fruity Chutes Parachute with Failsafe for DJI Phantom 4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFruity Chutes SKYP4M-36-SUL-OW Specs | Weight Capacity | Nominal Drone Weight:
4 lb / 1.8 kg
Max Drone Weight:
8 lb / 3.6 kg | | Minimum Deployment Altitude | Recommended Minimum Deployment Altitude:
100' / 30.5 m | | Deployment Speed | Maximum Deployment Speed:
110 fps / 75 mph | | Parachute | Type:
Ultra compact toroidal (annular)
Bridal:
725# Spectra loop
Shroud Lines:
200# Spectra, 8 lines
Fabric:
0.66 oz / 19 g ripstop
Weight:
1.7 oz / 49 g
Nominal Rating:
4 lb / 1.8 kg at 15 fps
Cd:
2.2
Number of Gores:
8 | | Automatic Trigger System | Exterior Dimensions:
1.5 x 1.5 x 0.5" / 3.8 x 3.8 x 1.3 cm
Input Voltage Range:
3 - 12.6 V
Weight:
0.5 oz / 14 g
Servo Connections:
3-pin header, JR standard servo connector | | Weight | Complete System:
4.8 oz / 184 g |
